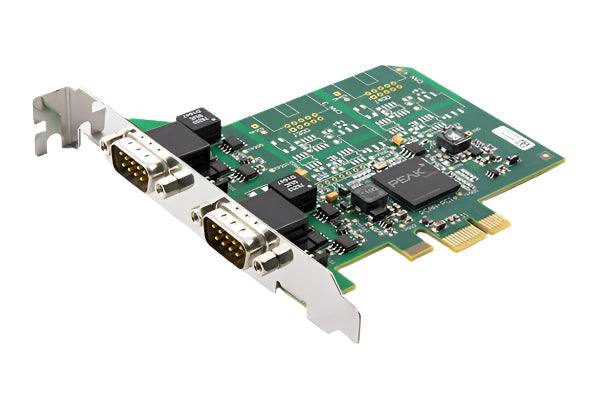

PCAN-PCI Express Insert-card (1ch/2ch)
PCAN-PCI Express Insert-card (1ch/2ch)

PCAN-PCI Express Insert-card (1ch/2ch)

por PEAK-System Technik
R$ 3.672,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

Configuration of the host PC is not necessary since the driver automatically registers the card.

Connection to the CAN bus is available at a 9-pin D-Sub connector with a pin assignment corresponding to the CiA standard recommendation DS 102-1. The PCAN-PCI Express package includes device drivers for Windows Windows® 10, 8, 7 (32/64bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available.

Note: The 4-channel version IPEH-003040 is no longer available, customers are encouraged to migrate to the CAN FD compliant PCAN-PCI Express product version

Contact Phytools with any questions or concerns.
  • PC plug-in card (PCIe-x1) for PCI Express slot
  • Bit rates up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • Single, dual, or four-channel version
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
  • NXP SJA1000-compatible CAN controller (FPGA implementation)
  • NXP PCA82C251 CAN transceiver
  • Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
  • 5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
Interface(s) PC: PCI Express x1 (1 Lane), Specification 1.1
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Power Consumption 1 channel isolated max. 250mA (3.3V), 50 mA (12V)
2 channel isolated max. 250mA (3.3V), 70 mA (12V)
Baud Rate CAN: max. 1 Mbit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver CAN: NXP / Philips PCA82C251
Dimensions 100 x 100 mm
Weight 54, 61, 54, 63 g
Software Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit)
Tools: PCAN-View for Windows®
Isolation 500 VDC
Controller(s) CAN: NXP / Philips SJA1000T
Channels 1 or 2 or 4
I/O & IRQ automatically assigned via "plug n play"
Specification CAN: 2.0A (Standard format) and 2.0B (extended format)
Operating temperature -20°C to +70°C
Storage temperature -40°C to +125°C
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 55024:2003-10
EN 55022:2007-04
EC directive 89/336/EEC
Certifications CE, RoHS
PCAN-PCI Express manual
User's Guide in English
Device driver setup for Windows
Installation package from PEAK-System for device drivers and tools for Windows ® 10, 8.1 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway.
Device drivers for Linux
Device driver for PEAK CAN interfaces from Kernel 2.6.
PCAN-View
Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API
API for developing applications with CAN and CAN FD connections for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API (Linux)
API for developing applications with CAN connection for Linux.
PCAN-CCP API
API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-XCP API
API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-ISO-TP API
API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 10, 8.1 (32/64-bit).
PCAN-UDS API
API for communication with control units according to UDS (ISO 14229-1) for Windows ® 10, 8.1 (32/64-bit).
PCAN-OBD-2 API
API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 10, 8.1 (32/64-bit).
PCAN-PassThru API
Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 10, 8.1 (32/64-bit) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download.
Bit Rate Calculation Tool (Windows Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
Bit Rate Calculation Tool (Android Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
Bit Rate Calculation Tool (iOS Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
Windows 2000 package
Device drivers for Windows® 2000 and the CAN monitor PCAN-View.
