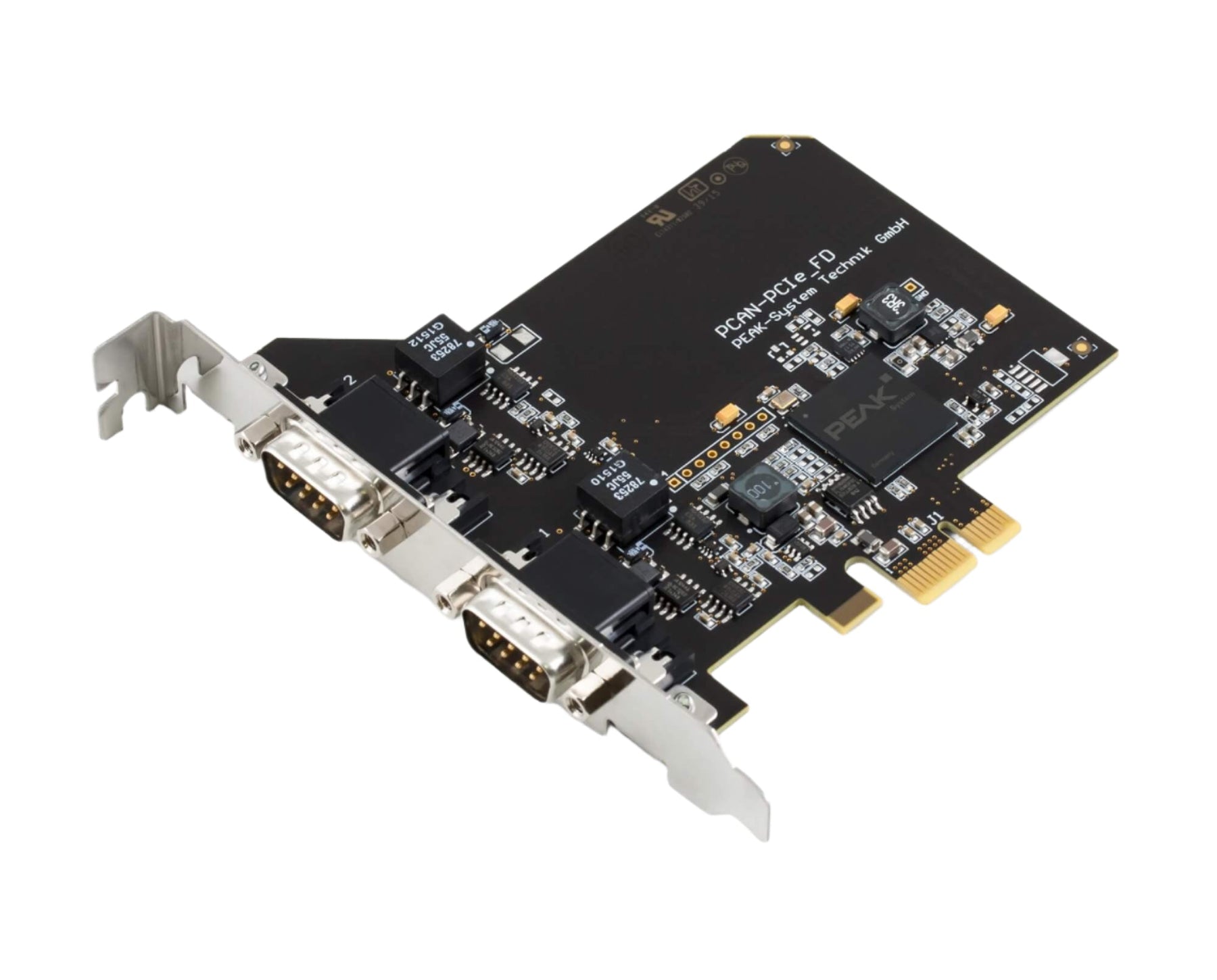

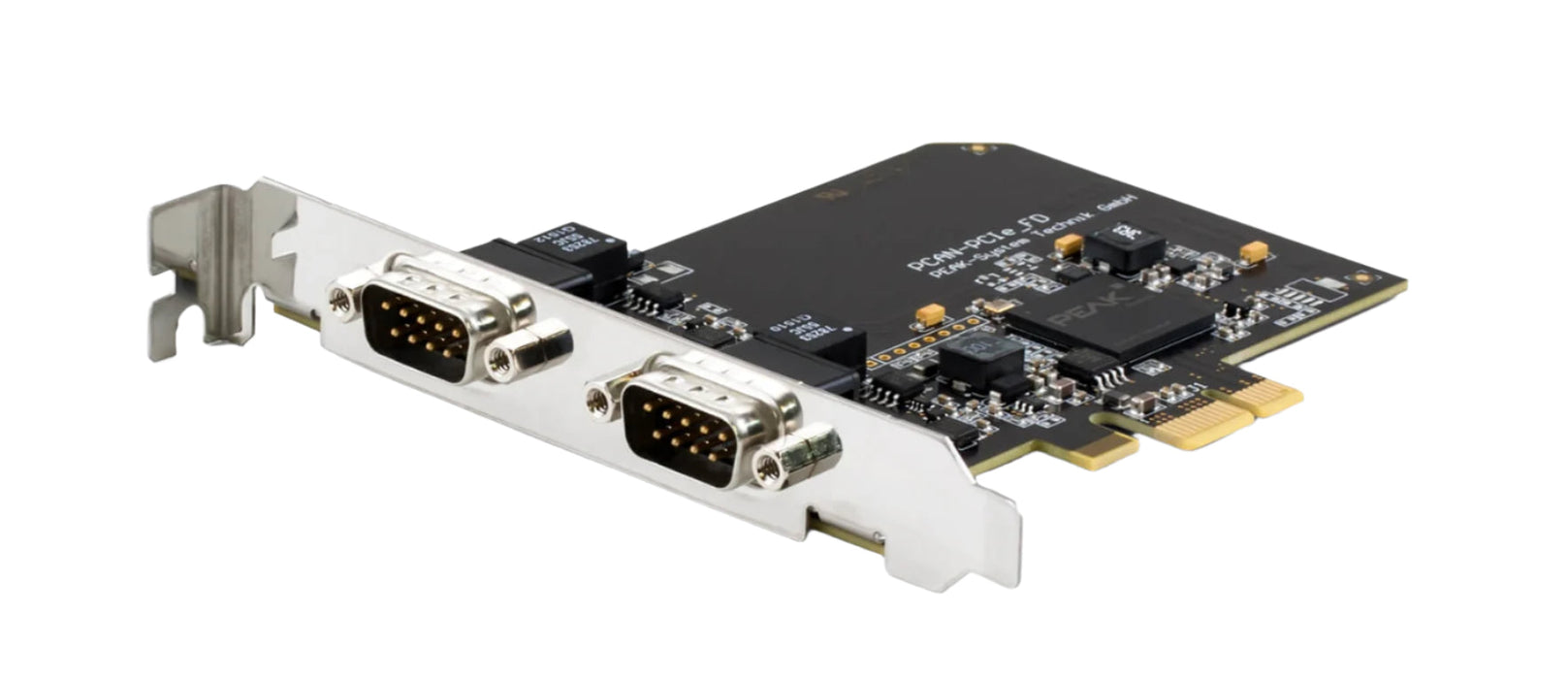

PCAN-PCI Express FD (1ch/2ch/4ch)
Clique ou role para ampliar
Toque ou belisque para ampliar
PCAN-PCI Express FD (1ch/2ch/4ch)
PCAN-PCI Express FD (1ch/2ch/4ch)

PCAN-PCI Express FD (1ch/2ch/4ch)

por PEAK-System Technik
R$ 4.164,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

 The card provides galvanic isolation of up to 500 Volts between the computer and CAN sides. This CAN FD interface for PCI Express systems is also available with the free PCAN-View application and the PCAN-Basic Programming interfaces for standardized protocols from the automotive sector. It is available with single, dual, or quad CAN channels.
  • PC plug-in card (PCIe-x1) for PCI Express slots
  • 1, 2 or 4 High-speed CAN channels (ISO 11898-2)
  • Complies with CAN specifications 2.0 A/B and FD
  • CAN FD support for ISO and Non-ISO standards switchable
  • CAN FD bit rates for the data field (64 bytes max.) from 25 kbit/s up to 12 Mbit/s
  • CAN bit rates from 25 kbit/s up to 1 Mbit/s
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
  • FPGA implementation of the CAN FD controller
  • NXP TJA1044GT CAN transceiver
  • Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
  • CAN termination can be activated through a solder jumper, separately for each CAN channel
  • PCIe data transfer via bus master DMA
  • DMA memory access operations with 32- and 64-bit addresses
  • Measurement of bus load including error frames and overload frames on the physical bus
  • Induced error generation for incoming and outgoing CAN messages
  • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
Interface(s) PC: PCI Express x1 (1 Lane)
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
CAN FD 1.0
Power Consumption 1 channel: tbd
2 channel: max. 200mA (@3.3V), 30 mA (@12V)
4 channel: tbd
Baud Rate CAN: 25 kBit/s - 1 Mbit/s
CAN FD: 25 kBit/s - 12 Mbit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver NXP TJA1044GT
Dimensions 121 x 114 mm
Weight 55g (single channel); 66 g (dual channel); tbd g (four channel)
Software Driver: Windows® 10, 8.1, 7; Linux
Tools: PCAN-View for Windows®
Controller(s) FPGA Implementation
Channels 1, 2 or 4
I/O & IRQ automatically assigned via "plug n play"
Isolation Up to 500 VDC, separate for each CAN channel
Specification CAN FD 1.0 (compatible with CAN 2.0)
Operating temperature -40°C to +85°C
Storage temperature -40°C to +125°C
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 55024:2011-09
EN 55022:2011-12
EC directive 2004/108/EG
Certifications CE, RoHS
PCAN-PCI Express FD manual
User Manual in English
Device driver setup for Windows
Installation package from PEAK-System for device drivers and tools for Windows ® 10, 8.1 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway.
Device drivers for Linux
Device driver for PEAK CAN interfaces from Kernel 2.6.
PCAN-View
Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API
API for developing applications with CAN and CAN FD connections for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API (Linux)
API for developing applications with CAN connection for Linux.
PCAN-CCP API
API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-XCP API
API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-ISO-TP API
API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 10, 8.1 (32/64-bit).
PCAN-UDS API
API for communication with control units according to UDS (ISO 14229-1) for Windows ® 10, 8.1 (32/64-bit).
PCAN-OBD-2 API
API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 10, 8.1 (32/64-bit).
PCAN-PassThru API
Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 10, 8.1 (32/64-bit) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download.
Bit Rate Calculation Tool (Windows Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
Bit Rate Calculation Tool (Android Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
Bit Rate Calculation Tool (iOS Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
