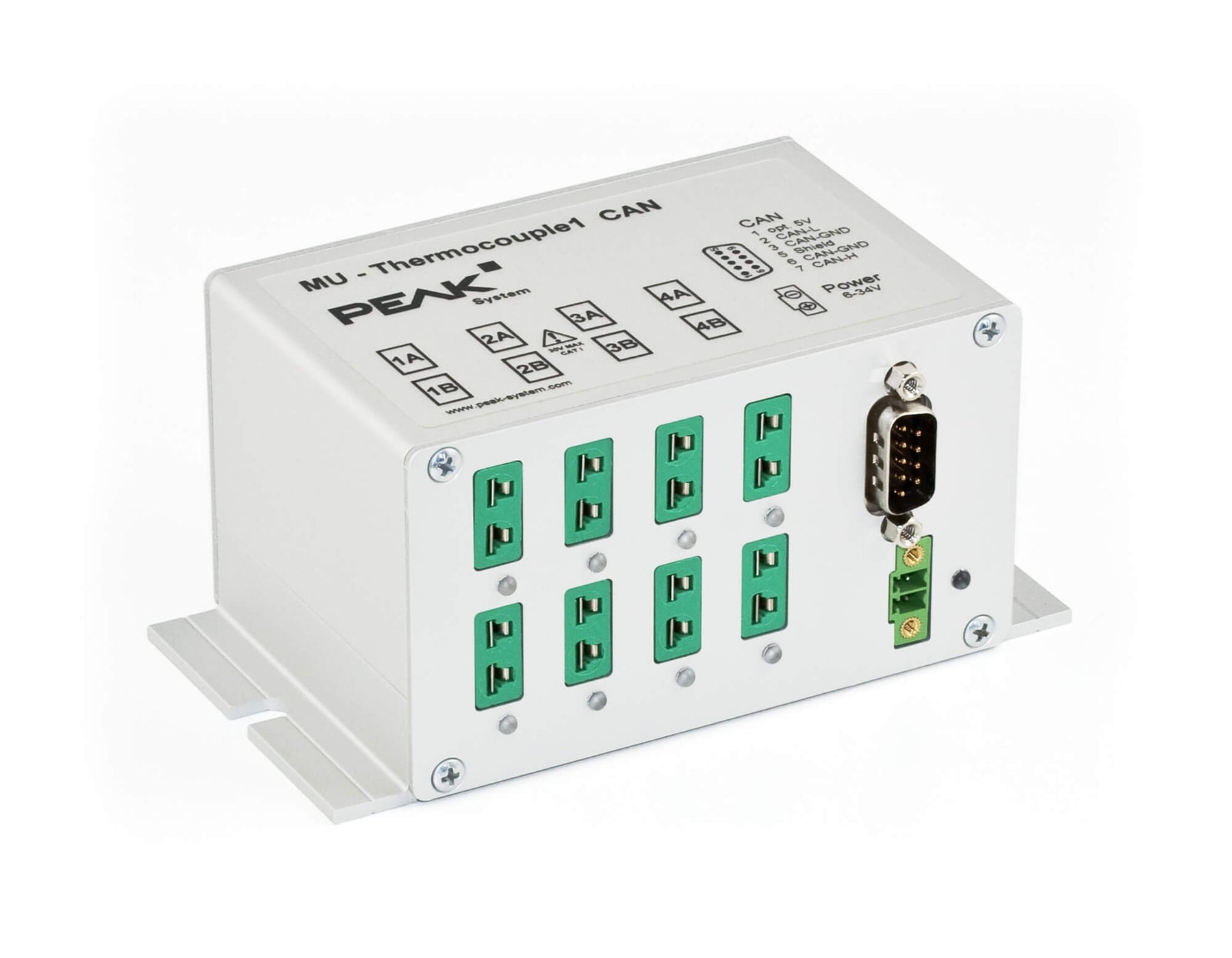

The Thermocouple Measuring Unit offers connections for 8 thermo-elements for different temperature ranges (J, K, T).

Measurement data can be pre-processed and transmitted via CAN bus using a central microcontroller. Configuration work involves using Windows® software on a computer connected to the same CAN bus.

Scope of supply

  • MU-Thermocouple1 CAN in aluminum casing
  • Mating connector for voltage supply
  • Configuration software Thermocouple Configuration for Windows® 10, 8, 7 (32/64-bit) (Configuration requires a PEAK CAN interface
  • Configuration software PPCAN-Editor 2 for Windows® Details ...
  • Manual in PDF format
  • 8 Mini sockets for thermocouple types J, K, and T (depending on the assembly of measuring modules at delivery)
  • 4 galvanically isolated measuring modules, each with 2 thermocouple sockets of the same type
  • Measuring ranges:
    • J: -210 to +1121 °C
    • K: -200 to +1370 °C
    • T: -200 to +400 °C
  • Measurement accuracy: 0.2 %
  • Accuracy of the reference sensors: typically, ±0.5 K, max. ±1.0 K at +25 °C ambient temperature
  • Resolution for temperature data at CAN communication: 1/16 °C
  • High-speed CAN connection (ISO 11898-2) for data transfer and configuring
    • Bit rates from 40 kbit/s up to 1 Mbit/s
    • Galvanic isolation up to 500 V
    • NXP TJA1040 CAN transceiver
    • Complies with CAN specifications 2.0 A/B
  • Basic configuration with the Windows® software Thermocouple Configuration
  • Advanced configuration with the Windows® software PPCAN-Editor 2
  • Pre-processing of readings possible with integrated microcontroller
  • Aluminum casing with flange. DIN rail fixing option available on request
  • Voltage supply from 6 to 34 V
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
Power Supply Supply voltage: Nominal 12 V DC (6 - 34 V possible)
Current consumption: ca. 100 mA at 12 V
Measuring modules Count: 4
Connectors: 2 Mini sockets for thermocouples (DIN EN 50212) per module, 8 altogether
Galvanic isolation: each measuring module internally against the supply voltage, up to 500 V
Supported thermocouple types (IEC 60584-1): J (-210 - +1121 °C); K (-200 - +1370 °C); T (-200 - +400 °C); (according to the used module)
Measurement accuracy for thermocouple inputs: ±0.2 %
Influence of ambient temperature: 10.5 ppm/K
Reference sensors: 4 (1 per measuring module)
Accuracy of the reference sensors: ±1 K at 0 - +70 °C; ±2 K at -20 - +85 °C; ±3 K at -40 - +125 °C
Measuring category: CAT I (only electric circuits that are not connected to the mains)
Controller module Microcontroller: NXP LPC2366
Resolution for temperature data at CAN communication: 1/16 °C
Sampling rate of the sensors: 3 Hz
CAN Specification: ISO 11898-2, High-speed CAN 2.0A (standard format) and 2.0B (extended format)
Bit rates: 40 kbit/s - 1 Mbit/s; Lower bit rates on request
Transceiver: NXP TJA1040T
Connection: D-Sub (m), 9-pin, assignment according to specification CiA® 102; Optional 5-Volt supply at pin 1 for external devices (e.g. bus converters), max. 100 mA; Galvanic isolation up to 500 V
Termination: none
Dimensions 130 x 60 x 73 mm (W x H x D) (incl. mounting plate and connectors)
See also dimension drawings in Appendix B in the User's Manual
Weight 420 g
Operating temperature -40 - +85 °C (-40 - +185 °F)
Storage temperature -40 - +100 °C (-40 - +212 °F)
Relative humidity 15% to 90% (non-condensing)
Ingress protection (IEC 60529) IP20
EMC DIN EN 61326-1; EC directive 2004/108/EG
Safety EN 61010-1 + Amendments 1 and 2
MU-Thermocouple1 CAN manual
User's Guide in PDF format
PPCAN-Editor Configuration Tutorial For MU-Thermocouple1 CAN
PPCAN-Editor configuration tutorial for MU-Thermocouple1 CAN Manual
PPCAN-Editor Configuration Tutorial Example Files
Configuration Tutorial Example Files
PPCAN-Editor Function Block Reference Guide
PPCAN-Editor function block reference guide in PDF format
Thermocouple Configuration
Configuration software for MU-Thermocouple1 CAN for Windows® 11 (64-bit), 10 (32/64-bit).
PPCAN-Editor 2
Configuration software for PCAN-MIO and PCAN-Router Pro for Windows® 11 (64-bit), 10 (32/64-bit).
PEAK-Flash
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (64-bit), 10 (32/64-bit).
