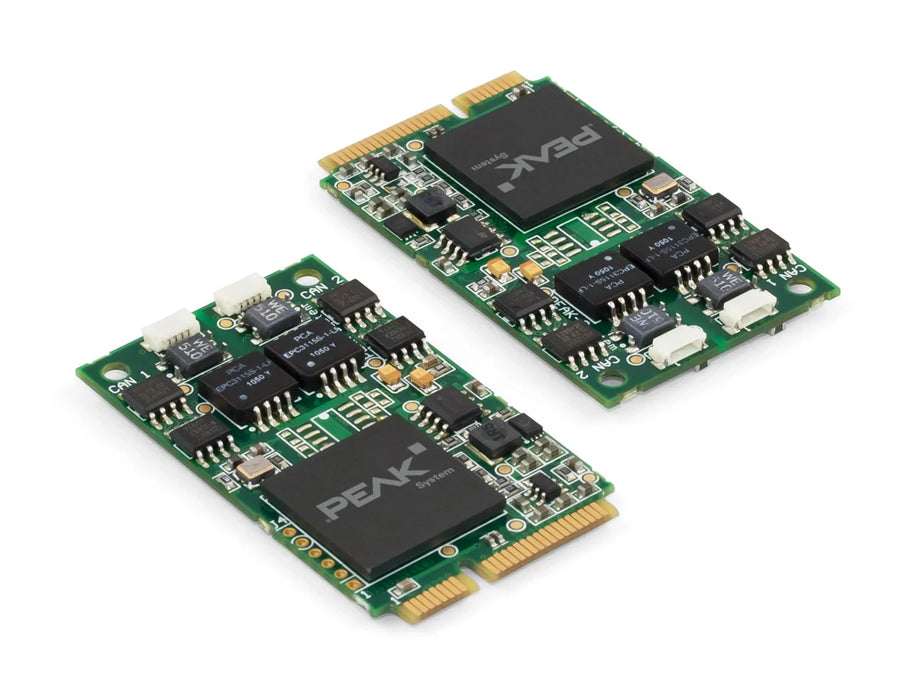

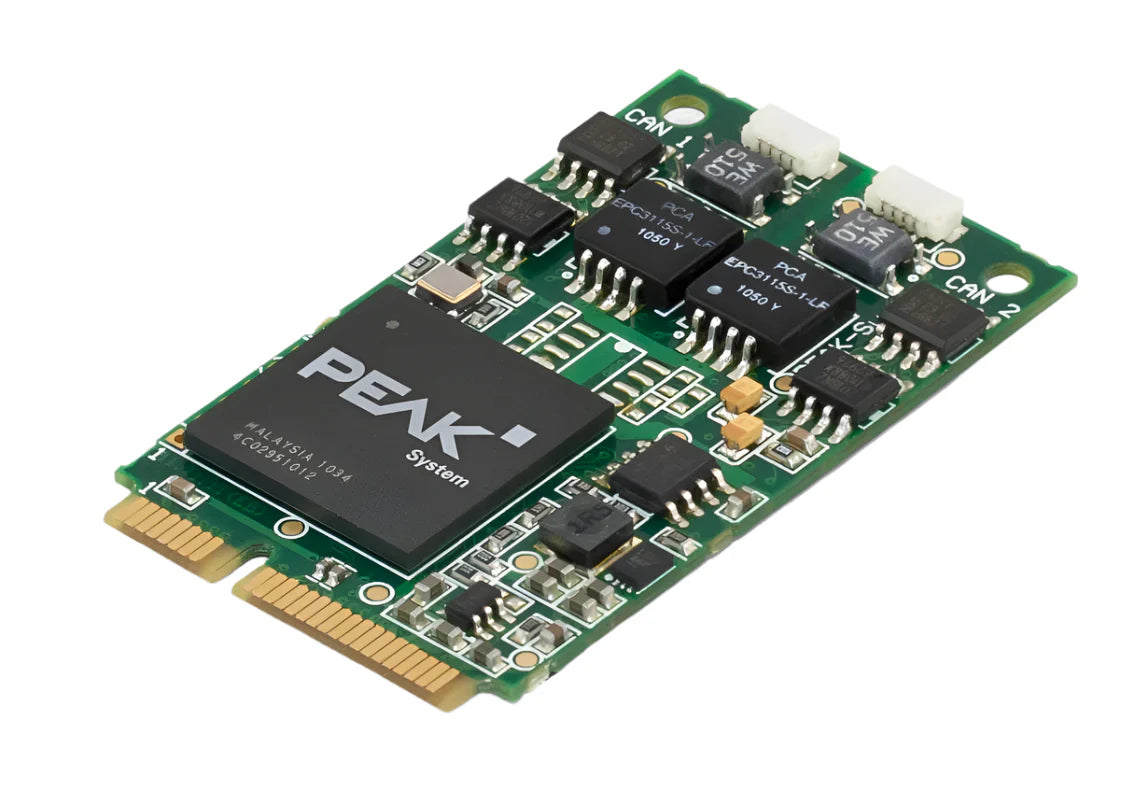

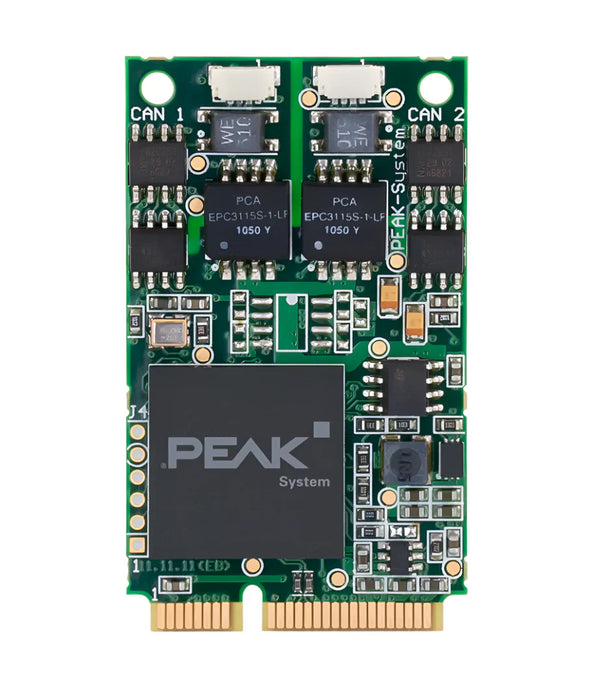

- Allows embedded PCs and laptops with PCI Express Mini slots to be integrated into CAN networks.
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Between the computer and the CAN side there is galvanic isolation up to a maximum of 300 volts. The card is available as a single or dual channel version.
SPECIFICATIONS
- CAN interface for the PCI Express Mini slot (uses PCIe lane)
- 1 or 2 High-speed CAN channels (ISO 11898-2)
- CAN bus connection via connection cable and D-Sub, 9-pin (in accordance with CiA® 106)
- Bit rates from 5 kbit/s up to 1 Mbit/s
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- FPGA implementation of the CAN controller (SJA1000 compatible)
- NXP PCA82C251 CAN transceiver
- Galvanic isolation on the CAN connection up to 300 V, separate for each CAN channel
- Extended operating temperature ranges from -40 to +85 °C (-40 to +185 °F
SCOPE OF SUPPLY:
- PCAN-miniPCIe card
- Connection cable including D-Sub plug for each channel
- Device drivers for Windows® 11 (x64), 10 (x64), and Linux
- CAN monitor PCAN-View for Windows® Details...
- Programming interface PCAN-Basic for developing applications with CAN connection Details...
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
DOWNLOADS
Device driver setup for Windows DOWNLOAD
PEAK-System installation package for PC interface device drivers for Windows® 11 (x64/ARM64), 10 (x64). Included tools: PEAK Settings, PCAN-View, PLIN-View Pro, and Virtual PCAN-Gateway. Included APIs: PCAN-Basic, PLIN-API, and PCAN-RP1210.
CAN device driver for Linux DOWNLOAD
Device drivers for PEAK CAN interfaces running on Kernel 2.6 and higher.
PCAN-miniPCIe manual DOWNLOAD
PEAK-Flash 3 DOWNLOAD
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-Basic API DOWNLOAD
API for the development of applications with CAN and CAN FD connections for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-Basic API (Linux) DOWNLOAD
API for the development of applications with CAN connection for Linux.
PCAN-Basic.NET Assembly DOWNLOAD
The PCAN-Basic.NET Assembly is available as a package in the NuGet Gallery. The online documentation is available on our website.
PCAN-CCP API DOWNLOAD
API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP) for Windows® 11 (x64/ARM64), 10 (x86/x64).
PCAN-XCP API DOWNLOAD
API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP) for Windows® 11 (x64/ARM64), 10 (x86/x64).
PCAN-ISO-TP API DOWNLOAD
API for the transfer of data packages according to ISO-TP (ISO 15765-2) for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-UDS API DOWNLOAD
API to communicate with control devices according to UDS (ISO 14229-1) for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-OBD-2 API DOWNLOAD
API for the vehicle diagnostics according to OBD-2 (ISO 15765-4) for Windows® 11 (x64/ARM64), 10 (x64).
PCAN-PassThru API DOWNLOAD
Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows® 11 (x64/ARM64), 10 (x64) includes interface DLLs, a configuration software, and the PCAN-ISO-TP API. The download also contains the documentation (English).
Suitable to be used with:
- PCIe-miniPCIe Adapter: PCI Express Low-Profile Adapter for PCI Express Mini
