PCAN-MiniDisplay
Clique ou role para ampliar
Toque ou belisque para ampliar
PCAN-MiniDisplay
PCAN-MiniDisplay

PCAN-MiniDisplay

por PEAK-System Technik
R$ 6.576,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

End of Life - The Product will be Discontinued (limited supply)

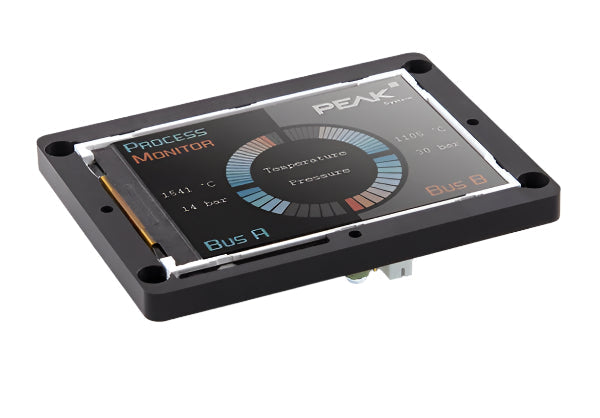

Both a high-speed and a single-wire CAN connector are provided to interface to the CAN bus. Received CAN data is graphically represented on a TFT display based on the configuration that is stored on the unit during the initial setup process.

In addition to displaying CAN data the PCAN-miniDisplay also supports CAN message logging. The data traffic is recorded to a microSD memory card which then can be analyzed on a PC later.

The PEAK PCAN-miniDisplay is available as an OEM-able version for direct insertion into customer designs but also with a plastic enclosure and push buttons. This latter option can be used to create and evaluate application-specific configurations. Furthermore, the user can switch between different configurations during operation.

Delivery Contents:

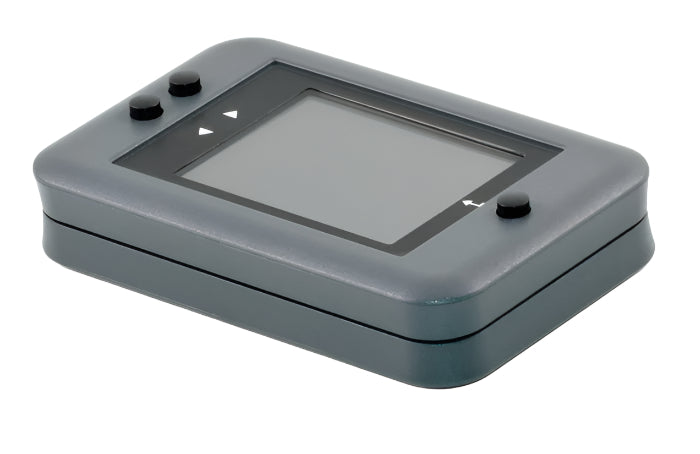

  • PCAN-MiniDisplay IPEH-002262 subassembly or PCAN-MiniDisplay in plastic casing (with part# IPEH-002262-KSM01)
  • Conversion software PEAK-Converter for Windows® 10, 8, 7 (32/64-bit)
  • Manual in PDF format
  • Cable set for power supply, CAN, and digital inputs (only with part# IPEH-002262-KSM01)
  • CAN connection via a High-speed CAN and a Single-wire CAN channel (ISO 11898-2, SAE J2411)
  • TFT display with 320 x 240-pixel resolution
  • High-speed USB 2.0 port for access to the memory card using a PC
  • Slot for microSD memory card (max. 32 GByte)
  • Freely configurable visualization of CAN data via text files
  • Running configurations from the memory card
  • Optional auto-start of a single configuration using a default name
  • Recording of incoming CAN messages to the internal memory card
  • Conversion of trace data to various output formats using Windows® software
  • Filtering of CAN IDs per CAN channel
  • Wake-up function via CAN
  • Dimensions: 70 x 50 mm
  • Voltage supply from 8 to 27 V
  • Operating temperature ranges from -20 to 70 °C (-4 to 158 °F)
  • Device in plastic casing with 3 push buttons for menu navigation and to switch between multiple display configurations

Power Supply Supply voltage: +7 … +30 VDC
Current consumption normal operation: 135mA @ 12V (typical)
Display Type: a-Si TFT active matrix
Resolution: 320 * 240 pixels
Active area: 57.6 * 43.2 mm (W * L)
Data Storage Memory card type: microSD
Max. capacity: 32 GByte
File system: FAT, FAT32 for capacity > 2GByte
Name of the USB device: PCAN-MiniDisplay
CAN Interface CAN Bus 1: High-speed CAN per ISO 11898-2, not terminated
CAN Bus 2: Single-wire CAN per SAE J2411
Dimensions 69.5 x 49.5 mm (L * W), see dimensional drawing in the User's Manual - attachment B
Weight 50 g (Circuit board with display)
Operating temperature -20 - +70 °C (-4 - +158 °F)
Storage temperature -30 - +80 °C (-22 - +180 °F)
Relative humidity 15% to 90% (non-condensing)
EMI/Protection EN 55024:2003-10
EN 55024:2007-04
EC directive 2004/108/EG
Certifications CE
PCAN-miniDisplay manual
User's Guide in English
PCAN-MiniDisplay package
The package includes the latest firmware, configuration examples, resources, the PEAK-Converter software, as well as the current device help and documentation.
PEAK-Converter
Conversion of trace data to various output formats using the conversion software PEAK-Converter for Windows® 10, 8.1, 7 (32/64-bit)
