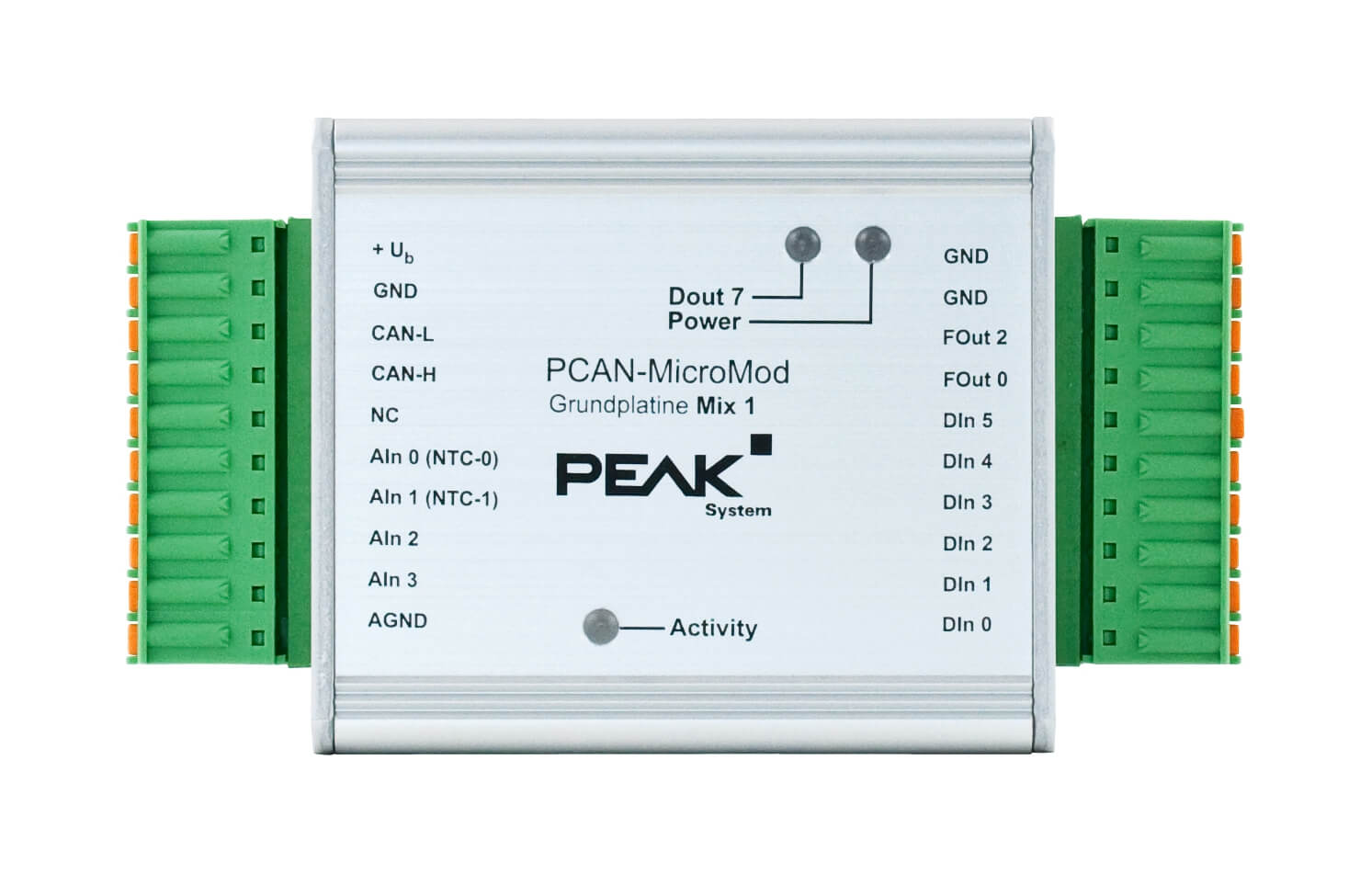

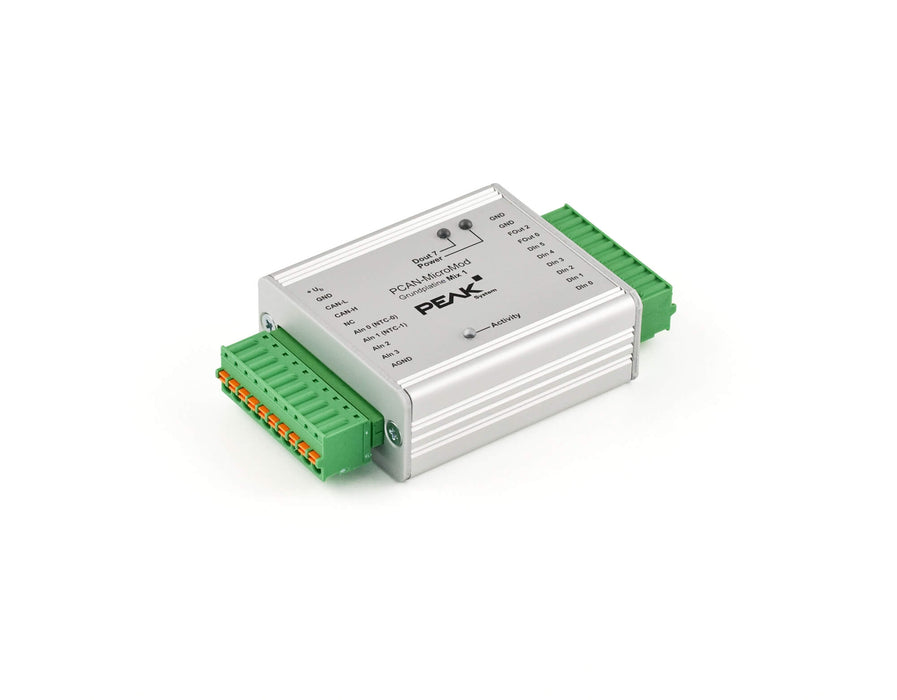

PCAN-MicroMod Mix 1 & 2
Clique ou role para ampliar
Toque ou belisque para ampliar
PCAN-MicroMod Mix 1 & 2
PCAN-MicroMod Mix 1 & 2

PCAN-MicroMod Mix 1 & 2

por PEAK-System Technik
R$ 4.152,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

The motherboards for the PCAN-MicroMod provide an application-oriented environment. Typical characteristics of this product group include a wide supply voltage range and the protective circuit for the inputs and outputs. CANopen®firmware is available for all PCAN-MicroMod motherboards.

The Mix 1 and Mix 2 motherboards combine general analog and digital requirements with temperature recording functions.

Requirements:

The configuration requires a PEAK CAN interface.

Specifications Mix 1

  • High-speed CAN connection (ISO 11898-2)
    • Bit rates from 10 kbit/s up to 1 Mbit/s
    • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • Completely configurable using the Windows® software PCAN-MicroMod Configuration
  • Operating voltage 8 to 26 V
  • Status LEDs for power supply and digital output
  • Aluminum casing with spring terminal connectors. Optional DIN rail fixing available
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
  • 2 analog inputs:
    • Measuring range unipolar 0 to 5 V
    • Resolution 10-bit, sample rate 1 kHz
    • Measuring range extension optional
    • Pull-down circuit
    • Protection against under- and overvoltages
  • 2 temperature inputs:
    • 2 connections for NTC resistors (type EC95F103W)
    • Measuring range 0 to 70 °C (32 to 158 °F)
  • 6 digital inputs:
    • Pull-up or pull-down circuit selectable in groups (3 groups)
    • Schmitt trigger behavior, inverting
    • Threshold High = 4.8 V, Low = 1.2 V
    • Low-pass behavior
    • Parallel connection of frequency inputs at 4 digital inputs for alternative use (e.g. on rapid state changes, counting)
  • 2 digital outputs/frequency outputs:
    • Fast Low-side switch, max. 55 V, 0.75 A
    • Short-circuit protection

Specifications Mix 2

  • High-speed CAN connection (ISO 11898-2)
    • Bit rates from 10 kbit/s up to 1 Mbit/s
    • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • Completely configurable using the Windows® software PCAN-MicroMod Configuration
  • Operating voltage 11 to 26 V
  • Status LEDs for power supply and digital output
  • Aluminum casing with spring terminal connectors. Optional DIN rail fixing available
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
  • 3 analog inputs:
    • Measuring range unipolar 0 to 4.1 V
    • Resolution 10-bit, sample rate 1 kHz
    • Measuring range extension optional
    • Pull-down circuit
    • Low-pass behavior
    • Protection against under- and overvoltage
  • 1 analog voltage output:
    • Voltage 0 to 10 V (based on 16-bit PWM)
    • Load ability 15 mA, short-circuit proof
  • 1 analog current output:
    • Current intensity 0 to 20 mA (based on 16-bit PWM)
  • 2 digital inputs:
    • Pull-up or pull-down circuit selectable for both together (1 group)
    • Schmitt trigger behavior, inverting
    • Threshold High = 4.8 V, Low = 1.2 V
    • Low-pass behavior
    • Parallel connection of a frequency input each for alternative use (e.g. on rapid state changes, counting)
  • 1 digital output:
    • Fast Low-side switch, max. 55 V, 0.75 A
    • Short-circuit protection
  • 2 temperature inputs:
    • 1 connection for a NTC resistor (type EC95F103W)
    • 1 connection for a platinum sensor PT1000
    • Measuring range 0 to 70 °C (32 to 158 °F)
PCAN-MicroMod Mix 1 Manual
Mix 1 Manual in PDF Format
PCAN-MicroMod Mix 2 Manual
Mix 2 Manual in PDF Format
PCAN-MicroMod CANopen® firmware manual
Firmware Manual in PDF Format
PCAN-MicroMod package
The package includes the configuration software PCAN-MicroMod Configuration for Windows®, the latest PCAN-MicroMod and the CANopen® firmware, all files for development, and documentation (German and English)
PCAN-MicroMod Configuration
PCAN-MicroMod Configuration software for Windows® 10, 8.1, 7 (32/64-bit)
