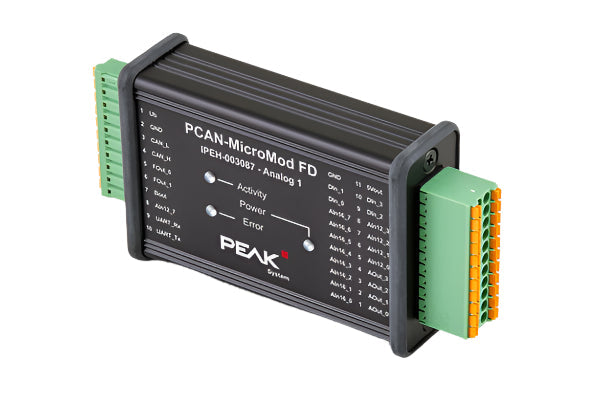

PCAN-MicroMod FD Analog 1
PCAN-MicroMod FD Analog 1

PCAN-MicroMod FD Analog 1

por PEAK-System Technik
R$ 6.852,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

The PCAN-MicroMod FD plug-in board can be purchased together with ready-to-use motherboards that provide peripherals for specific requirements.  The motherboard PCAN-MicroMod FD Analog 1 puts the emphasis on analog inputs and outputs, which are provided with appropriate protective circuitry.

The PCAN-MicroMod FD is configured using the supplied Windows software. In addition to simple I/O mapping to CAN IDs, function blocks are also available for processing the data. The configuration created on the computer is transferred via the CAN bus to the PCAN-MicroMod FD which then runs as an independent CAN node. Multiple modules can be configured independently on a CAN bus. (Requires a PCAN interface.)

All PCAN-MicroMod FD products can alternatively be operated with CANopen firmware. Licenses for the CANopen/CANopen FD firmware are available from our partner Embedded Systems Academy.
  • Completely configurable using the Windows® software PCAN-MicroMod Configuration
  • Communication through High-speed CAN
  • Operating voltage 8 - 26 V
  • Aluminum housing with spring terminal connectors. Optional DIN rail fixing option available
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
  • CANopen firmware available upon request
  • Board with plugged on PCAN-MicroMod FD
  • Configuration via the CAN bus with the Windows® software PCAN-MicroMod FD Configuration
  • High-speed CAN connection (ISO 11898-2)
    • Complies with CAN specifications 2.0 A/B and FD
    • CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 10 Mbit/s
    • CAN bit rates from 20 kbit/s up to 1 Mbit/s
    • Switchable CAN termination
  • 2 frequency outputs
    • Low-side switches
    • Adjustable frequency ranges from 0 to 20 kHz
  • 1 analog input for voltage monitoring up to 30 V, resolution 12 bit
  • 8 analog inputs
    • Resolution 16 bit
    • Measuring range adjustable: ±2.5 V, ±5 V, ±10 V, ±20 V
  • 4 analog inputs
    • Resolution 12 bit
    • Measuring range 0 - 10 V
  • 4 analog outputs
    • Resolution 12 bit
    • Voltage range adjustable: 0 - 5 V or 0 - 10 V
  • 4 digital inputs
    • Pull-up or pull-down configurable
  • 4-bit rotary coding switch for setting the module ID
  • 3 status LED
  • Aluminum casing with spring terminal connectors
  • Operating voltage 8 to 30 V
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)

PCAN-MicroMod FD Analog 1
FD Analog Users Manual in PDF format
PCAN-MicroMod FD User Manual
PCAN-MicroMod FD manual in PDF format
PCAN-MicroMod FD Configuration tutorial
PCAN-MicroMod FD Configuration Tutorial in PDF format
PCAN-MicroMod FD Configuration tutorial Examples Files
PCAN-MicroMod FD Configuration Tutorial Example Files
PCAN-MicroMod FD CANopen® firmware manual
PCAN-MicroMod FD CANopen® firmware manual in PDF format
PCAN-MicroMod FD Configuration
Configuration software for PCAN-MicroMod FD products for Windows® 11 (64-bit), 10 (32/64-bit).
PCAN-MicroMod FD CANopen package
Package with CANopen EDS files for the PCAN-MicroMod FD products.
PEAK-Flash
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (64-bit), 10 (32/64-bit).
