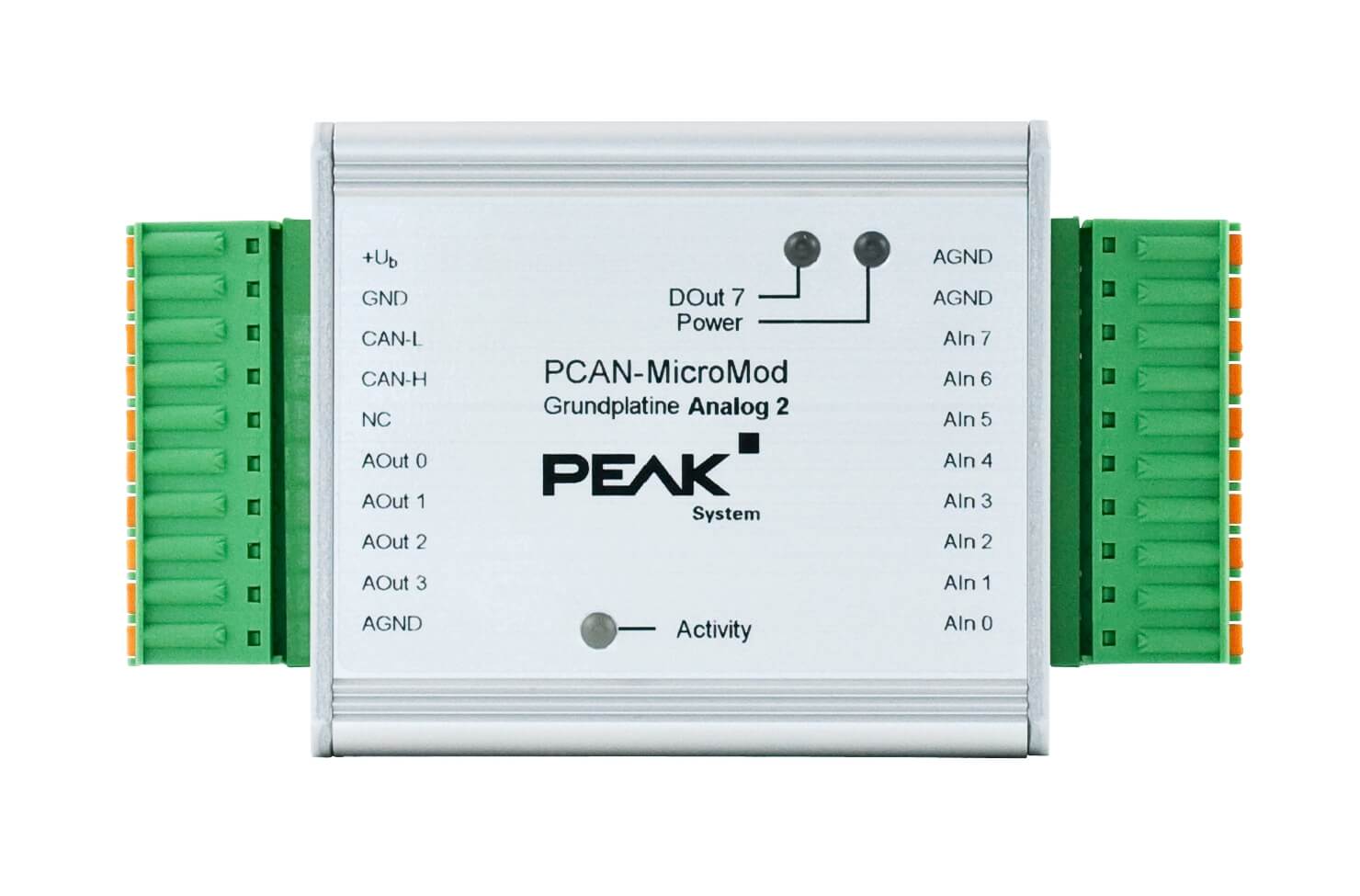

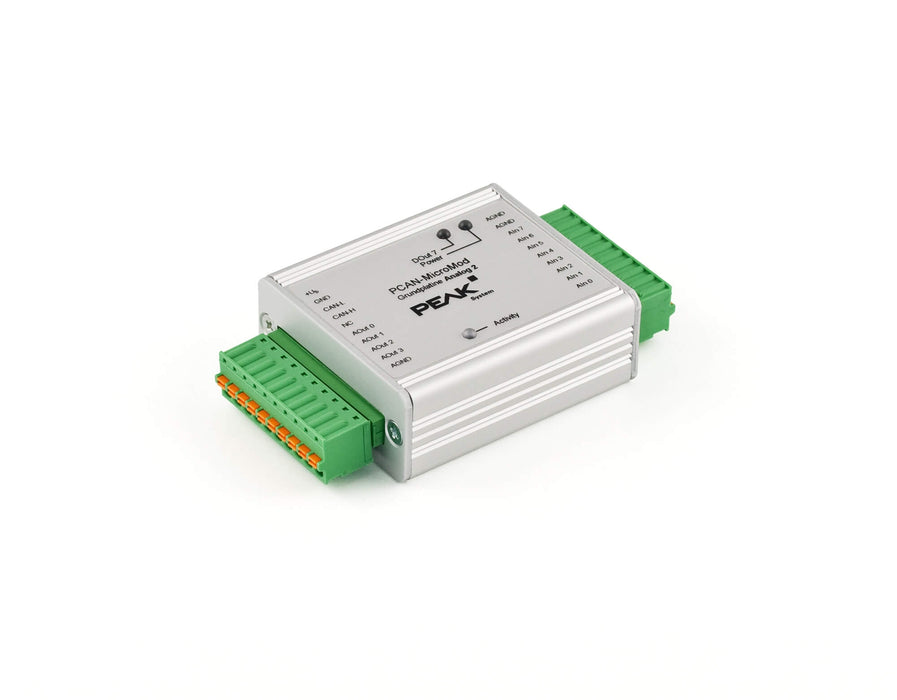

PCAN-MicroMod Analog 2
Clique ou role para ampliar
Toque ou belisque para ampliar
PCAN-MicroMod Analog 2
PCAN-MicroMod Analog 2

PCAN-MicroMod Analog 2

por PEAK-System Technik
R$ 5.784,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
