EOL PRODUCT: no longer available.
Informações e formas de pagamento
Estabelecemos parcerias com revendas
EOL PRODUCT: no longer available.
Please consider thisnewer versioninstead.Contact Sales@phytools.com for further assistance if needed.
Please note: The product is OBSOLETE, please use the long-term available I/O modules of thePCAN-MicroMod FD series for your new projects.

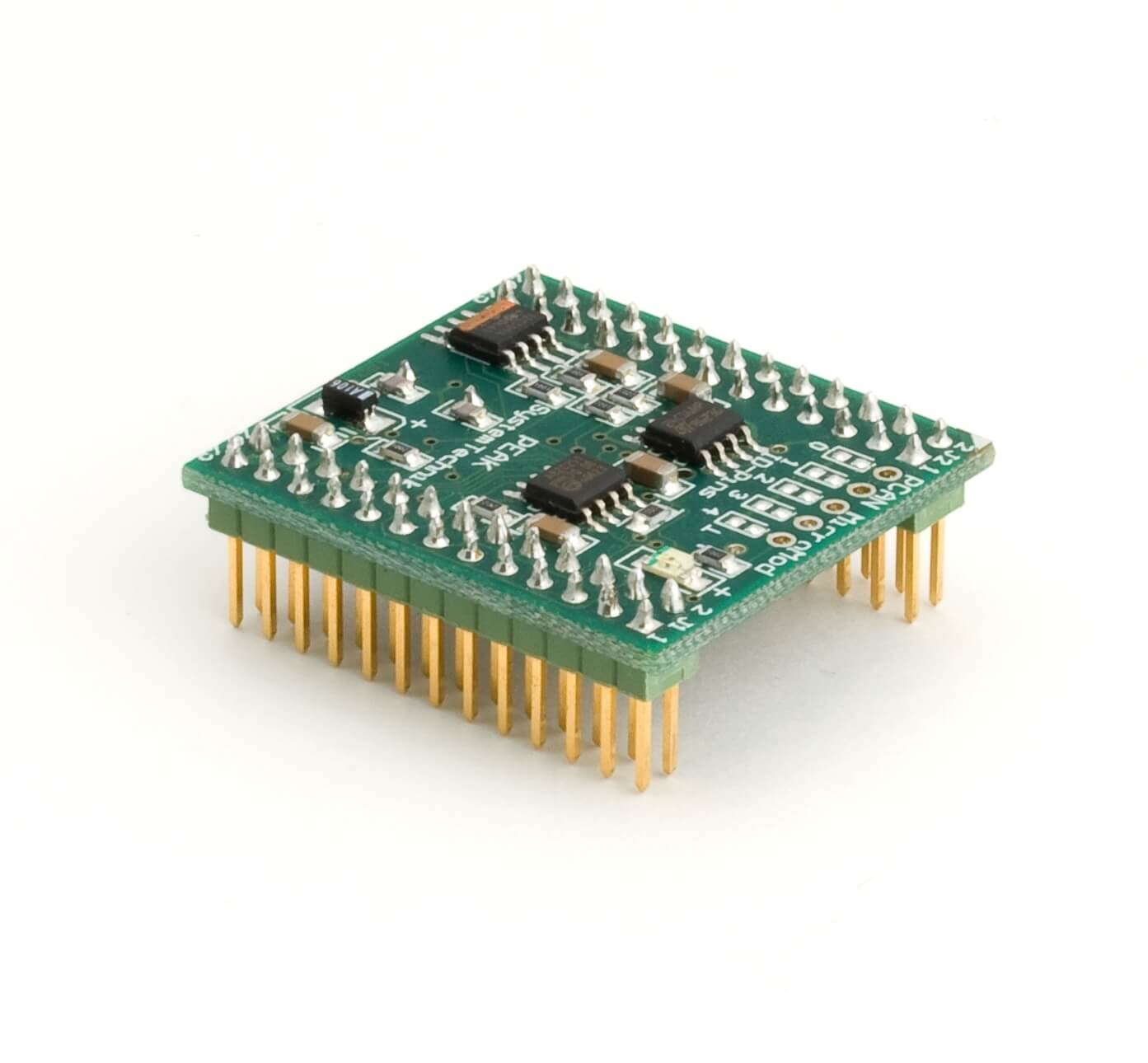

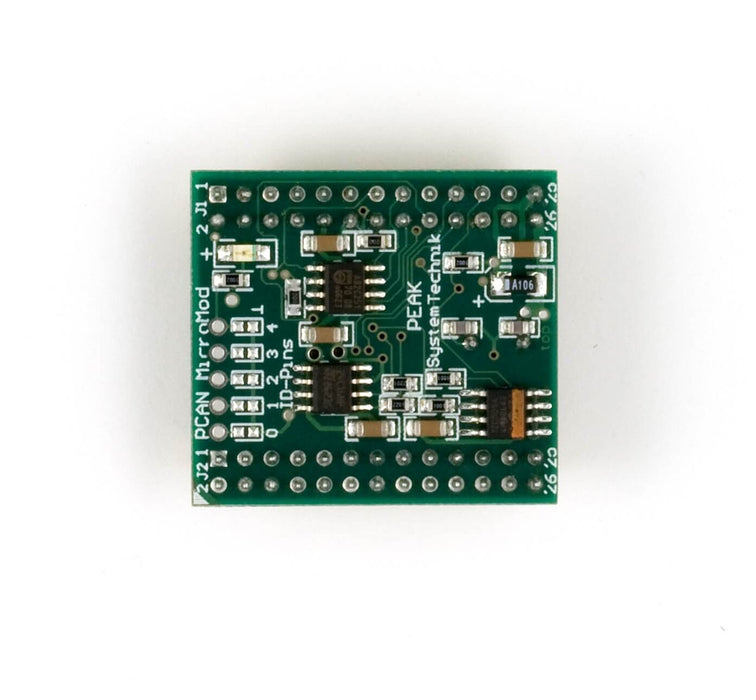

The PEAK PCAN-MicroMod is a subminiature (32 x 36 mm) insert-ready CAN node for OEM designs requiring a single regulated 5 VDC power supply. The integrated firmware allows for simple configuration of the target system with a Windows utility program. The configuration data is sent to the module via CAN. Up to 32 PCAN-MicroMods can be integrated in a single CAN network. Each individual module can be networked via CANbus, thus enabling its configuration data to be read, modified and stored.
A PCAN-MicroMod evaluation board is also available to simplify the development of custom application boards and firmware development. In addition, Analog 1&2, Digital 1&2, Mix 1&2 and Mix 3 PCAN-MicroMod motherboards are available which are application-ready CAN or CANopen I/O devices for use in a wide variety of distributed I/O systems.
MicroMod:
Subminiature dimensions (32 x 36 mm)
Fujitsu MB90-F497 CAN controller
8 x analog inputs, 10-bit, Vref 5V
8 x digital inputs
8 x digital outputs
4 x PWM/frequency outputs, range 1 Hz to 20 KHz
Maximum of 32 MicroMods in one CAN network
Configurable via software for Windows® 8,7/Vista (32/64-bit)
Configuration software:
Periodic and edge-triggered sending of CAN messages
Logical linking of digital inputs
Direct conversion from analog inputs to CAN IDs
Analog values can be processed using characteristic curves or hysteresis function
Direct evaluation of rotary encoders
Power Consumption
Supply voltage: +5 V DC Current consumption: max. 160 mA
Digital inputs
Count: 8 CMOS
Connectors
Connection strips: 2 double strips, each with 26 pins Pin spacing: 100 mil (2.54 mm)
Control and communication
Microcontroller: Fujitsu MB90F497G Standard firmware: Configuration via reserved CAN ID 0x7e7
Frequency inputs
Count: 4 CMOS
Analog inputs
Count: 8 resolution 10 bits reference voltage 5 V impedance 3.2 kΩ
Digital outputs
Count: 8 CMOS
Frequency/PWM outputs
Count: 4(depending on firmware)
Properties with standard firmware
Frequency inputs: Measuring range 1 Hz – 10 kHz (maximum depends on workload, min. 4 kHz) Frequency/PWM outputs: 4 PWM (8-bit mode): 32 - 100 Hz, 4 - 10 kHz, frequency-dependent resolution 1.3 - 1.0 % - or - 2 PWM (16-bit mode, from firmware 2.5): 1 Hz - 10 kHz, frequency-dependent resolution 0.205 - 0.005 % (see User's Manual for more details) - or - 2 frequency: 1 Hz - 10 kHz, minimum step width 1 Hz
CAN
Specification: ISO 11898-2, High-speed CAN (up to 1 Mbit/s); 2.0A (standard format); 2.0B (extended format) (from firmware 2.0) Transceiver: NXP PCA82C251 (can be disconnected for use of an alternative transceiver on the motherboard) Termination: none
Dimensions
32 x 35 x 13 mm (W x L x H) (see User's Manual for more details)
Weight
9 g
Operating temperature
-40 - +85 °C (-40 - +185 °F)
Storage temperature
-40 - +100 °C (-40 - +212 °F)
Relative humidity
15% - 90%, not condensing
PCAN-MicroMod manual
Manual in PDF format (English)
PCAN-MicroMod package
The package includes the configuration software PCAN-MicroMod Configuration for Windows®, the latest PCAN-MicroMod and the CANopen® firmware, all files for development, and documentation
PCAN-MicroMod Configuration
PCAN-MicroMod Configuration software for Windows® 10, 8.1,7 (32/64-bit)
