- Allows easy development of powerful software with CAN and CAN FD support
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
It includes all of the functions that an application needs in order to communicate with PCAN PC hardware. The cross-operating-system design makes it possible to easily port software projects between platforms.

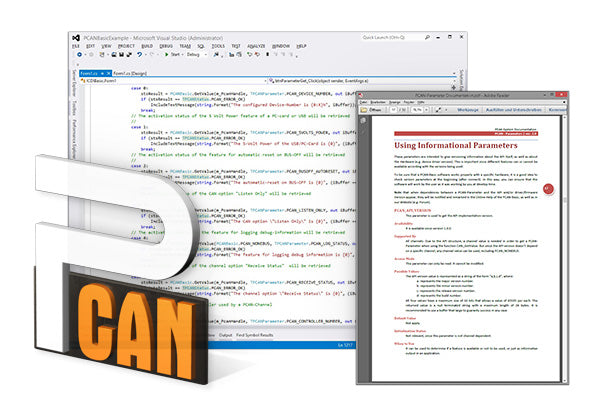

PCAN-Basic consists of the actual device driver and an interface DLL, which provides the API functions.
As the successor to PCAN-Light, PCAN-Basic offers increased functionality and extended language support. It provides various functions for developers under C++, C#, C++/CLR, Delphi, VB.NET, Java, and Python 3.x.
CAN FD
Beginning with version 4, PCAN-Basic for Windows® supports the new CAN FD standard (CAN with Flexible Data rate) which is primarily characterized by a higher bandwidth for data transfer.
*Note: PCAN-Basic for Windows® CE does not support the new CAN FD standard.
PCAN-Basic for Windows® CE
PEAK-System provides the PCAN-Basic API to allow the development of your own CAN applications for Windows® CE 6.x. Programmers can use the languages C++, C#, and VB.NET.
PCAN-Basic for Linux
PEAK-System provides the PCAN-Basic API to allow the development of your own CAN applications for Linux. Programmers can use the languages C++, Java, and Python 3.x.
- API for developing applications with CAN and CAN FD connections
- Support for CAN specifications 2.0 A/B and FD
- Supports the operating systems Windows® 10, 8.1, 7, (32/64-bit),
Windows® CE 6.x, and Linux (32/64-bit) - Multiple PEAK-System applications and your own can be operated on a physical channel at the same time
- Use of a single DLL for all supported hardware types
- Use of up to 16 channels for each hardware type (depending on the PEAK CAN interface used)
- Simple switching between channels of a PCAN PC hardware
- Access to the CAN channels of a PCAN-Gateway via the new PCAN-LAN hardware type
- Driver-internal buffering of up to 32,768 CAN messages per CAN channel
- Precision of time stamps on received messages up to 1 µs (depending on the PEAK CAN interface used)
- Supports PEAK-System‘s trace formats version 1.1 and 2.0 (for CAN FD applications)
- Access to specific hardware parameters, such as listen-only mode
- Notification of the application through Windows® events when a message is received
- Support of CAN error frames
- Extended system for debugging operations
| Delivery contents |
|
|---|
| PCAN-Basic API |
| API for the development of applications with CAN and CAN FD connections for Windows® 10, 8.1, 7 (32/64-Bit) |
| PCAN-API (Linux) |
| API for the development of applications with CAN connection for Linux |
| A comparison of our APIs |
| Comparison for the development of CAN FD and CAN applications |
| The new standard CAN FD |
| The new standard CAN FD support and compatible products |
| PEAK-System Forum |
| Section for the PCAN-Basic API for questions and support |
