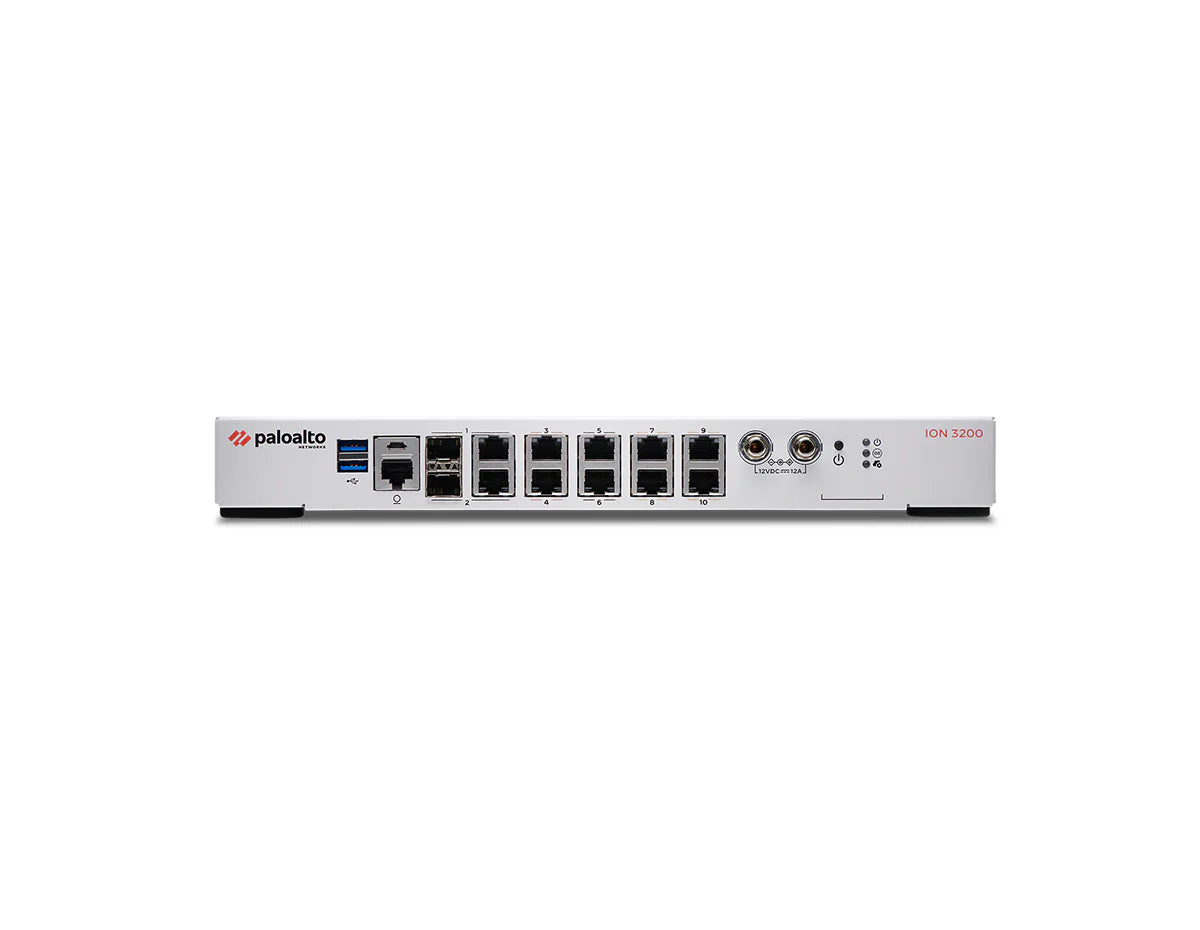

Palo Alto Prisma SD-WAN ION 3200 Application Accelerator

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc]

[specifications] [/specifications]

The ION 3200 is a high-performance, compact SD-WAN appliance from Palo Alto Networks designed for distributed branch offices that demand performance, uptime, and operational simplicity. Built for environments with high cloud application usage and edge device needs, the ION 3200 delivers up to 1.5 Gbps of throughput, integrates PoE++ switching, and supports WAN failover via combo and bypass ports—all in a fanless design optimized for quiet operation.

• 1.5 Gbps Throughput: Enables high-speed, secure SD-WAN performance for cloud-first environments and application-heavy branches.
• Combo and Bypass WAN Ports: Dual SFP/RJ-45 combo WAN ports and two RJ-45 bypass ports ensure link redundancy and hardware failover for always-on operations.
• PoE++ Capable Switch Ports: Six 1G RJ-45 ports with a combined PoE budget of 150W power access points, IP phones, and edge devices directly.
• Silent Fanless Design: Ideal for retail, healthcare, or financial environments where noise and space are a concern.
• Prisma SD-WAN Orchestration: Zero-touch provisioning, centralized policy control, and application-aware traffic steering simplify operations.
• FIPS 140-2 Compliant: Ensures encryption and compliance for security-conscious deployments.

• Branch offices that need high-throughput, secure, and silent SD-WAN connectivity
• Retail or healthcare deployments with multiple PoE-powered devices
• Organizations requiring WAN link redundancy and failover
• Enterprises standardizing on Prisma SD-WAN for centralized management

• Maximum Throughput: 1.5 Gbps (encrypted)
• WAN Ports: 2 x SFP/RJ-45 combo
• Bypass Ports: 2 x RJ-45 (fail-safe)
• LAN Ports: 6 x 1G RJ-45 with PoE++ support
• PoE Power Budget: 150W
• Power Supply: Dual internal (included)
• Form Factor: Fanless, External
• Dimensions: 13" W x 8.9" D x 1.7" H
• Weight: 8.82 lbs
• Certifications: FCC Class A, BIS, KCC, cULus, IEC 60950-1, FIPS 140-2

Upgrade your branch WAN with the Palo Alto Networks ION 3200. Deliver high-throughput SD-WAN, built-in PoE, and enterprise-grade reliability in one efficient platform. Order now.
