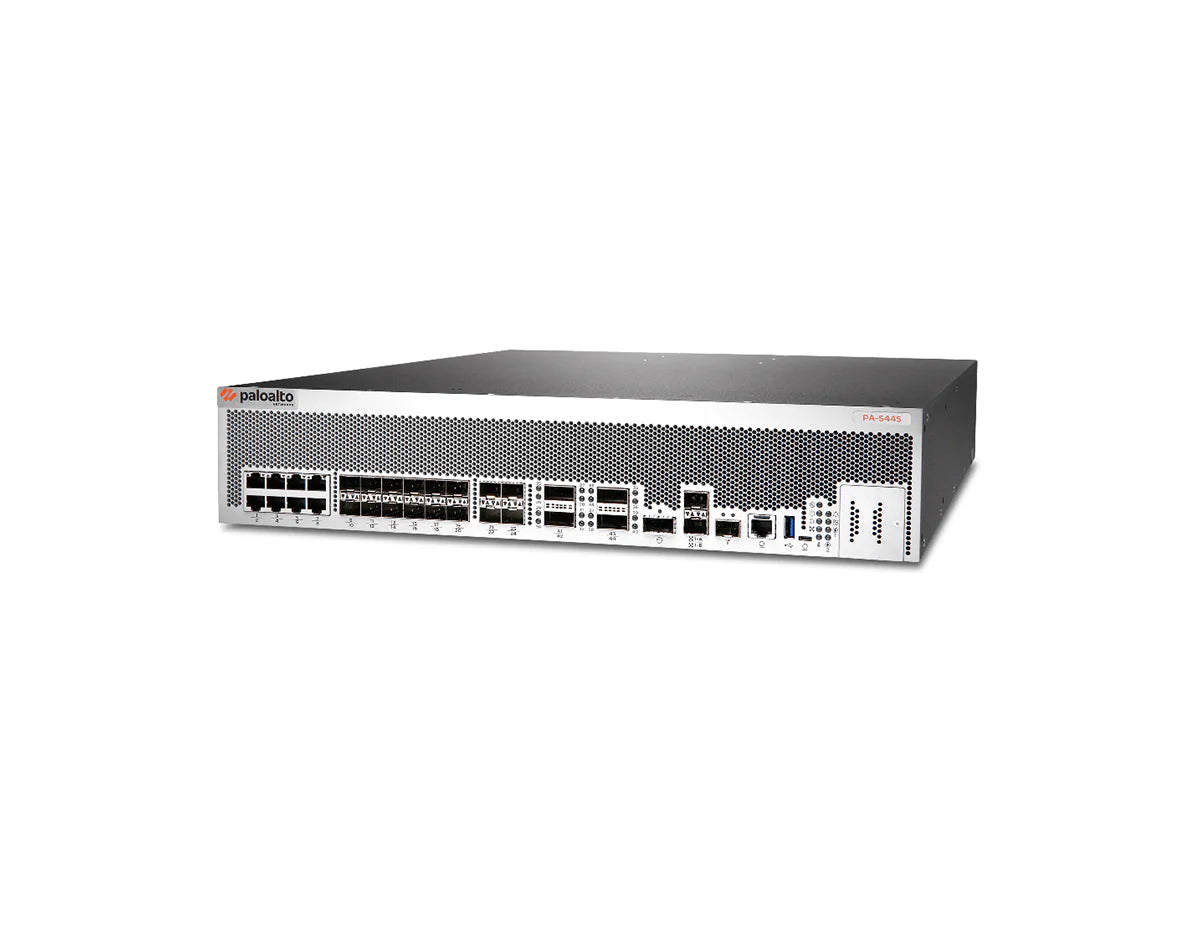

Palo Alto PA-5445-AC Next-Generation Firewall

[shortdesc]

A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc]

[properties]

Property	Details
Brand	Palo Alto Networks
Model	PA-5445
Product Series	PA-5400 Series
Product Type	ML-Powered Next-Generation Firewall
Deployment	High-speed data center, internet gateway, service provider
Rack Mount	2U, 19" standard rack
PAN-OS Version	11.2 and later

[/properties] [specifications]

Specification	Value
Firewall Throughput (Appmix)	90 Gbps
Threat Prevention Throughput (Appmix)	76 Gbps
IPsec VPN Throughput	64 Gbps
Max Concurrent Sessions	48 million
New Sessions per Second	449,000
Virtual Systems (Base/Max)	25 / 225
I/O Interfaces	8x 1G/2.5G/5G/10G, 12x 1G/10G SFP/SFP+, 4x 1G/10G/25G SFP/SFP+/SFP28, 4x 40G/100G QSFP+/QSFP28
Management I/O	1x 1G/10G SFP/SFP+ OOB mgmt, 2x 1G/10G SFP/SFP+ HA, 1x 40G QSFP+ HA, RJ-45 console, Micro USB
Storage	480 GB SSD pair
Power Supply (Avg/Max)	630 W / 760 W
AC Input Voltage	100–240 VAC, 50–60 Hz
Weight (Device / Shipping)	35.2 lbs / 48.8 lbs
Operating Temperature	0°C to 50°C
Airflow	Front to back

[/specifications] [accesories]

Accessory	Description
Power Supply Units	2x fully redundant hot-swappable AC power supplies (included in the box)
Rack Mount Kit	2U rack mounting kit for standard 19" racks (included in the box)
Console Cable	RJ-45 console cable for management access (included in the box)
Transceivers	SFP/SFP+/SFP28/QSFP+ modules (optional)

[/accesories]

High-performance networks face evolving cyber threats daily—and speed alone isn’t enough. The Palo Alto Networks PA-5445 addresses the need for ultra-fast, scalable, and intelligent firewall protection in modern enterprise, data center, and service provider environments. Delivering 90 Gbps of throughput and supporting up to 48 million concurrent sessions, it provides the deep security visibility and control today's high-throughput infrastructures demand.

Industry-Leading Performance for Massive Workloads

With 90 Gbps firewall throughput and 76 Gbps threat prevention performance, the PA-5445 delivers reliable protection even under full load. Its architecture supports up to 449,000 new sessions per second—ideal for enterprises scaling into multi-cloud, 5G, or real-time data environments.

AI-Powered Threat Prevention and Zero-Day Security

Equipped with inline ML and cloud-based AI, the PA-5445 identifies unknown threats and prevents zero-day attacks before they reach your network. Advanced Threat Prevention, WildFire®, and DNS Security are built-in for multi-layered defense.

High-Density Interface Options

This firewall features 8x RJ-45, 12x SFP+, 4x SFP28, and 4x QSFP28 ports, supporting up to 100G with breakout mode for QSFPs. Built-in high availability ports (HA1 and HSCI) allow for active/active or active/passive redundancy without sacrificing speed.

True Zero Trust with Dynamic User & App Controls

Using PAN-OS and App-ID™, the PA-5445 applies policies not just on ports or IPs, but on actual users and applications. It adapts automatically with dynamic user groups, helping you enforce Zero Trust Network Access (ZTNA) principles at scale.

Designed for Uptime and Resilience

Built into a 2U chassis with redundant AC/DC power supplies, 480 GB SSD storage, and a TPM module for secure boot, the PA-5445 is engineered for reliability. Its mean time between failure (MTBF) is 22 years, making it a long-term cornerstone of any secure infrastructure.

• Enterprise data centers processing high volumes of encrypted traffic
• Regional headquarters requiring scalable NGFW with high port density
• Cloud service providers or colocation facilities that demand AI-driven threat prevention
• Any organization transitioning to 5G or distributed edge computing

• Firewall Throughput: 90 Gbps
• Threat Prevention Throughput: 76 Gbps
• Max Concurrent Sessions: 48 million
• New Sessions per Second: 449,000
• Interfaces: 8x RJ-45, 12x SFP+, 4x SFP28, 4x QSFP28
• Storage: Dual 480 GB SSD
• Power Supplies: Redundant AC/DC, 630W avg / 760W max
• Rack Size: 2RU, 19” standard
• MTBF: 22 years

Secure your infrastructure with the Palo Alto PA-5445-AC, built for enterprises that refuse to compromise on speed or security. Order today or talk to our firewall specialists for tailored deployment advice.

The following subscription licenses are compatible with the Palo Alto PA-5445 Firewall.

License SKU	Subscription	License Type
PAN-PA-5445-ATP	1 Year	Advanced Threat Prevention
PAN-PA-5445-ATP-3YR	3 Year	Advanced Threat Prevention
PAN-PA-5445-ATP-5YR	5 Year	Advanced Threat Prevention
PAN-PA-5445-BND-PRECISIONAI	1 Year	Precision AI
PAN-PA-5445-BND-PRECISIONAI-3YR	3 Year	Precision AI
PAN-PA-5445-BND-PRECISIONAI-5YR	5 Year	Precision AI
