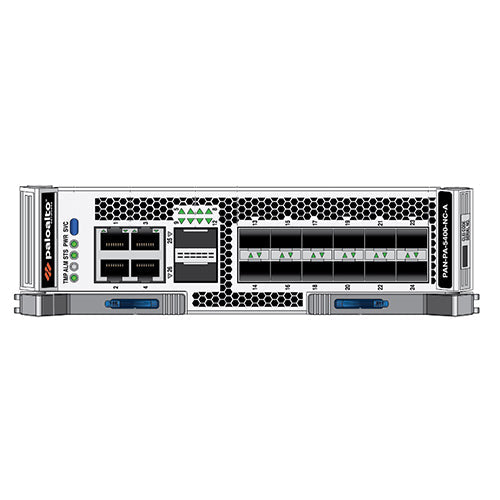

Palo Alto PA-5400-NC-A Module
Palo Alto PA-5400-NC-A Module

Palo Alto PA-5400-NC-A Module

por Palo Alto
Desconto de 10%
R$ 860.640,00
R$ 774.576,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.

[/shortdesc]

[properties]
Properties PAN-PA-5400-NC-A Module
Description The PA-5400 NC-A provides up to 100Gbps Ethernet connectivity
Product Family PA-5400 Series firewalls
Product Type Expansion Module
Card Status Up
Power (w) 100
Power Specification (Power Produced (+) or Rated Consumption (-)) (-120 Watts) Includes power allocation for
optics
Hardware Specifications 100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (12), 40G/100G QSFP28 (2); minimum 1 NC and maximum 2 NCs
per system; 2 NCs require 2 or more DPCs installed
[/properties] [specifications]
Specifications PA-5400 Series
Interface Modes L2, L3, tap, virtual wire (transparent mode)
Routing OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
Policy-based forwarding
Point-to-Point Protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
Bidirectional Forwarding Detection (BFD)
SD-WAN Path quality measurement (jitter, packet loss, latency)
Initial path selection (PBF)
Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
IPv6 L2, L3, tap, virtual wire (transparent mode)
Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
SLAAC
IPsec and SSL VPN Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3des, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
GlobalProtect Large Scale VPN for simplified configuration and management*
Secure access over IPsec and SSL VPN tunnels using GlobalProtect gateway and portals*
VLANs 802.1Q VLAN tags per device/per interface: 4,094/4,094
Aggregate interfaces (802.3ad), LACP
Network Address Translation NAT modes (IPv4): static IP, dynamic IP, Dynamic IP and Port (port address translation)
NAT64, NPTv6
Additional NAT features: dynamic IP reservation, tunable Dynamic IP and Port oversubscription
High Availability Modes: active/active, active/passive, HA clustering
Failure detection: path monitoring, interface monitoring
Mobile Network Infrastructure 5G Security
GTP Security
SCTP Security
* Requires GlobalProtect license
Hardware Specifications
PA-5400-NC-A Networking I/O 100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (12), 40G/100G QSFP28 (2); minimum 1 NC and maximum 2 NCs per system; 2 NCs require 2 or more DPCs installed
Management I/O 1G/10G SFP/SFP+ out-of-band management port (1),
1G/10G SFP/SFP+ high availability (2), 40G QSFP+ high availability (1),
RJ-45 console port (1), Micro USB
Storage Capacity 480 GB SSD pair, system storage
Power Supply (Avg/Max Power Consumption) 630/760 W
Max BTU/hr 1638
Power Supplies (Base/Max) 1:1 fully redundant (2/2)
AC Input Voltage (Input Hz) 100–240 VAC (50–60 Hz)
AC Power Supply Output 1,200 watts/power supply
Max Current Consumption AC: 7 A @ 100 VAC, 3 A @ 240 VAC
DC: 15 A @ -48 VDC, 12 A @ -60 VDC
Max Inrush Current AC: 50 A @ 230 VAC, 50 A @ 120 VAC
DC: 200 A @ 72 VDC
Mean Time Between Failure (MTBF) 22 years
Rack Mount Dimensions 2U, 19" standard rack (3.45" H x 22.5" D x 17.34" W)
Weight (Standalone Device/As Shipped) 35.2 lbs/48.8 lbs
Safety cTUVus, CB
EMI FCC Class A, CE Class A, VCCI Class A
Environment Operating temperature: 32°F to 122°F, 0°C to 50°C
Nonoperating temperature: -4°F to 158°F, -20°C to 70°C
Humidity tolerance: 10% to 90%
Maximum altitude: 10,000 ft/3,048 m
Airflow: front to back
[/specifications] [accesories] [/accesories]

The PA-5400-NC-A is a networking card (NC) that provides network connectivity for a PA-5450 firewall. You can install up to two NCs in a PA-5450 firewall. The PA-5400 NC-A provides up to 100Gbps Ethernet connectivity. Please note that at least one NC is required for the firewall to process network traffic.


Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.

[/shortdesc]

[properties]
Properties PAN-PA-5400-NC-A Module
Description The PA-5400 NC-A provides up to 100Gbps Ethernet connectivity
Product Family PA-5400 Series firewalls
Product Type Expansion Module
Card Status Up
Power (w) 100
Power Specification (Power Produced (+) or Rated Consumption (-)) (-120 Watts) Includes power allocation for
optics
Hardware Specifications 100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (12), 40G/100G QSFP28 (2); minimum 1 NC and maximum 2 NCs
per system; 2 NCs require 2 or more DPCs installed
[/properties] [specifications]
Specifications PA-5400 Series
Interface Modes L2, L3, tap, virtual wire (transparent mode)
Routing OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
Policy-based forwarding
Point-to-Point Protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
Bidirectional Forwarding Detection (BFD)
SD-WAN Path quality measurement (jitter, packet loss, latency)
Initial path selection (PBF)
Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
IPv6 L2, L3, tap, virtual wire (transparent mode)
Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption
SLAAC
IPsec and SSL VPN Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3des, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512
GlobalProtect Large Scale VPN for simplified configuration and management*
Secure access over IPsec and SSL VPN tunnels using GlobalProtect gateway and portals*
VLANs 802.1Q VLAN tags per device/per interface: 4,094/4,094
Aggregate interfaces (802.3ad), LACP
Network Address Translation NAT modes (IPv4): static IP, dynamic IP, Dynamic IP and Port (port address translation)
NAT64, NPTv6
Additional NAT features: dynamic IP reservation, tunable Dynamic IP and Port oversubscription
High Availability Modes: active/active, active/passive, HA clustering
Failure detection: path monitoring, interface monitoring
Mobile Network Infrastructure 5G Security
GTP Security
SCTP Security
* Requires GlobalProtect license
Hardware Specifications
PA-5400-NC-A Networking I/O 100/1000/10G Cu (4), 1G/10G SFP/ SFP+ (12), 40G/100G QSFP28 (2); minimum 1 NC and maximum 2 NCs per system; 2 NCs require 2 or more DPCs installed
Management I/O 1G/10G SFP/SFP+ out-of-band management port (1),
1G/10G SFP/SFP+ high availability (2), 40G QSFP+ high availability (1),
RJ-45 console port (1), Micro USB
Storage Capacity 480 GB SSD pair, system storage
Power Supply (Avg/Max Power Consumption) 630/760 W
Max BTU/hr 1638
Power Supplies (Base/Max) 1:1 fully redundant (2/2)
AC Input Voltage (Input Hz) 100–240 VAC (50–60 Hz)
AC Power Supply Output 1,200 watts/power supply
Max Current Consumption AC: 7 A @ 100 VAC, 3 A @ 240 VAC
DC: 15 A @ -48 VDC, 12 A @ -60 VDC
Max Inrush Current AC: 50 A @ 230 VAC, 50 A @ 120 VAC
DC: 200 A @ 72 VDC
Mean Time Between Failure (MTBF) 22 years
Rack Mount Dimensions 2U, 19" standard rack (3.45" H x 22.5" D x 17.34" W)
Weight (Standalone Device/As Shipped) 35.2 lbs/48.8 lbs
Safety cTUVus, CB
EMI FCC Class A, CE Class A, VCCI Class A
Environment Operating temperature: 32°F to 122°F, 0°C to 50°C
Nonoperating temperature: -4°F to 158°F, -20°C to 70°C
Humidity tolerance: 10% to 90%
Maximum altitude: 10,000 ft/3,048 m
Airflow: front to back
[/specifications] [accesories] [/accesories]
Palo Alto PA-5400-NC-A Module

The PA-5400-NC-A is a networking card (NC) that provides network connectivity for a PA-5450 firewall. You can install up to two NCs in a PA-5450 firewall. The PA-5400 NC-A provides up to 100Gbps Ethernet connectivity. Please note that at least one NC is required for the firewall to process network traffic.
