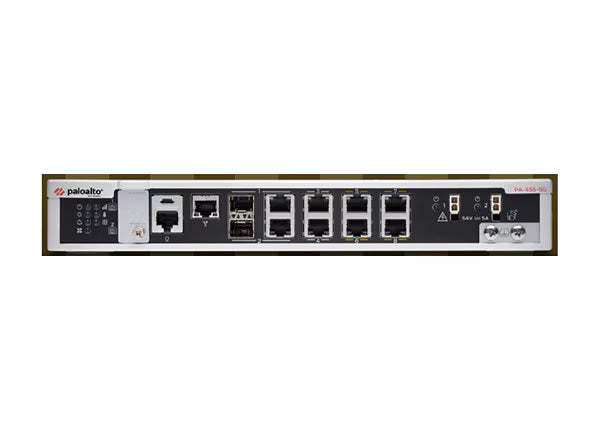

Palo Alto PA-455-5G Next-Generation Firewall with PoE

[shortdesc]

A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc] [properties]

Brand	Palo Alto Networks
Model	PA-455-5G
Product Type	ML-Powered Next-Generation Firewall with Integrated 5G
Form Factor	Desktop
Color	Black
Dimensions (H x W x D)	1RU H x 283 mm D x 303 mm W
Weight	9 lbs (TBD shipped)
Cooling	Passive

[/properties] [specifications]

Firewall Throughput (Appmix)	3.2 Gbps (preliminary)
Threat Prevention Throughput (Appmix)	1.8 Gbps (preliminary)
IPsec VPN Throughput	650 Mbps (preliminary)
Max Concurrent Sessions	300,000
New Sessions per Second	48,000
Virtual Systems (Base/Max)	1/5
Interfaces	Embedded 5G cellular module, 2 x 1G SFP/RJ45 combo, 6 x 1G RJ45, 4 x 1G RJ45 PoE
Management I/O	1 x SFP/RJ45 combo management, 1 x RJ45 console, 1 x USB
Storage Capacity	128 GB eMMC
PoE Support	4 x 1G RJ45 PoE ports, 151 W total budget, 60 W max per port
Average Power Consumption	195 W (with 151 W PoE output)
Max Power Consumption	212 W (with 151 W PoE output)
Input Voltage/Frequency	100–240 VAC, 50–60 Hz
Max Current Consumption	3.6 A @ 54 VDC
Max BTU/hr	655
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	5%–95% non-condensing
Supported RF Bands	5G NR Sub-6GHz: n2, n3, n5, n66, n71, n77, n78, n79; LTE: B1–B5, B7, B8, B12–B14, B17–B20, B25–B30, B32, B34, B38–B42, B46, B48, B66, B71; 3G: B1, B2, B4–B6, B8, B9, B19
Certifications	cTUVus, CB, FCC Class B, CE Class B, VCCI Class B

[/specifications] [accesories]

AC Power Adapter	Included in the box
Rack Mount Kit	Optional
Console Cable	Included in the box
Quick Start Guide	Included in the box

[/accesories]

Modern enterprises, mobile branches, and remote deployments demand more than speed—they demand intelligence, flexibility, and security on the move. The Palo Alto PA-455-5G answers this call with dual SIM 5G WAN connectivity, inline machine learning threat prevention, and enterprise-grade firewall performance.

Designed for PAN-OS 11.2.3 and beyond, this NGFW offers a fanless, rack-mountable chassis, PoE ports, and seamless zero-day protection—enabling rugged reliability and ultra-fast deployment for any location where cellular coverage is critical.

Embedded 5G WAN with Redundant SIM Support

With 4 multiband 5G antennas and dual nano SIM slots, the PA-455-5G ensures fast, failover-ready cellular connectivity. Use multiple carriers to maximize uptime in retail, industrial, or government field deployments.

AI-Driven Threat Detection in Real Time

Harness ML-Powered NGFW intelligence to instantly block novel phishing and malware attacks—without signatures. Leverage inline Advanced Threat Prevention, DNS Security, and WildFire® to stop threats before they spread.

Enterprise-Grade Performance in a Compact Form

With 3.2 Gbps firewall throughput, 1.8 Gbps threat prevention, and 56,000 sessions/sec, this appliance performs under pressure—even when security subscriptions are active.

4x PoE Ports with 151W Power Budget

Power APs, IP cameras, or VoIP phones directly via 4 PoE ports, with a 151W total PoE budget—no need for external switches at the edge.

Smart Management at Scale with Panorama®

Easily deploy, monitor, and enforce policies via Panorama or Strata™ Cloud Manager, gaining unified visibility across hundreds of sites and remote firewalls.

• Retail chains, construction, or logistics firms needing 5G WAN failover or primary uplink
• Public sector and emergency deployments where wired connections are unavailable
• Remote locations with limited infrastructure but high security needs
• Industries requiring high PoE output at the edge—like security surveillance or industrial IoT

• Firewall Throughput: 3.2 Gbps
• Threat Prevention Throughput: 1.8 Gbps
• IPsec VPN Throughput: 650 Mbps
• Max Concurrent Sessions: 300,000
• New Sessions per Second: 48,000
• 5G Antennas: 4 multiband
• SIM Slots: 2 nano SIM
• Ports: 2x SFP/RJ45 combo, 6x RJ45, 4x PoE
• PoE Budget: 151W total
• Power Consumption: 212W max
• Dimensions: 1RU H x 283 mm D x 303 mm W
• Operating System: PAN-OS 11.2.3+

The PA-455-5G lets you build 5G-secured networks faster, safer, and smarter. With robust throughput, next-gen threat prevention, and carrier-diverse cellular connectivity, it’s built for the edge—anywhere you need it. Deploy now and secure your wireless WAN.

The following subscription licenses are compatible with the Palo Alto PA-455-5G Firewall.

License SKU	Subscription	License Type
PAN-PA-455-5G-ATP	1 Year	Advanced Threat Prevention
PAN-PA-455-5G-ATP-3YR	3 Year	Advanced Threat Prevention
PAN-PA-455-5G-ATP-5YR	5 Year	Advanced Threat Prevention
PAN-PA-455-5G-BND-PRECISIONAI	1 Year	Precision AI
PAN-PA-455-5G-BND-PRECISIONAI-3YR	3 Year	Precision AI
PAN-PA-455-5G-BND-PRECISIONAI-5YR	5 Year	Precision AI
