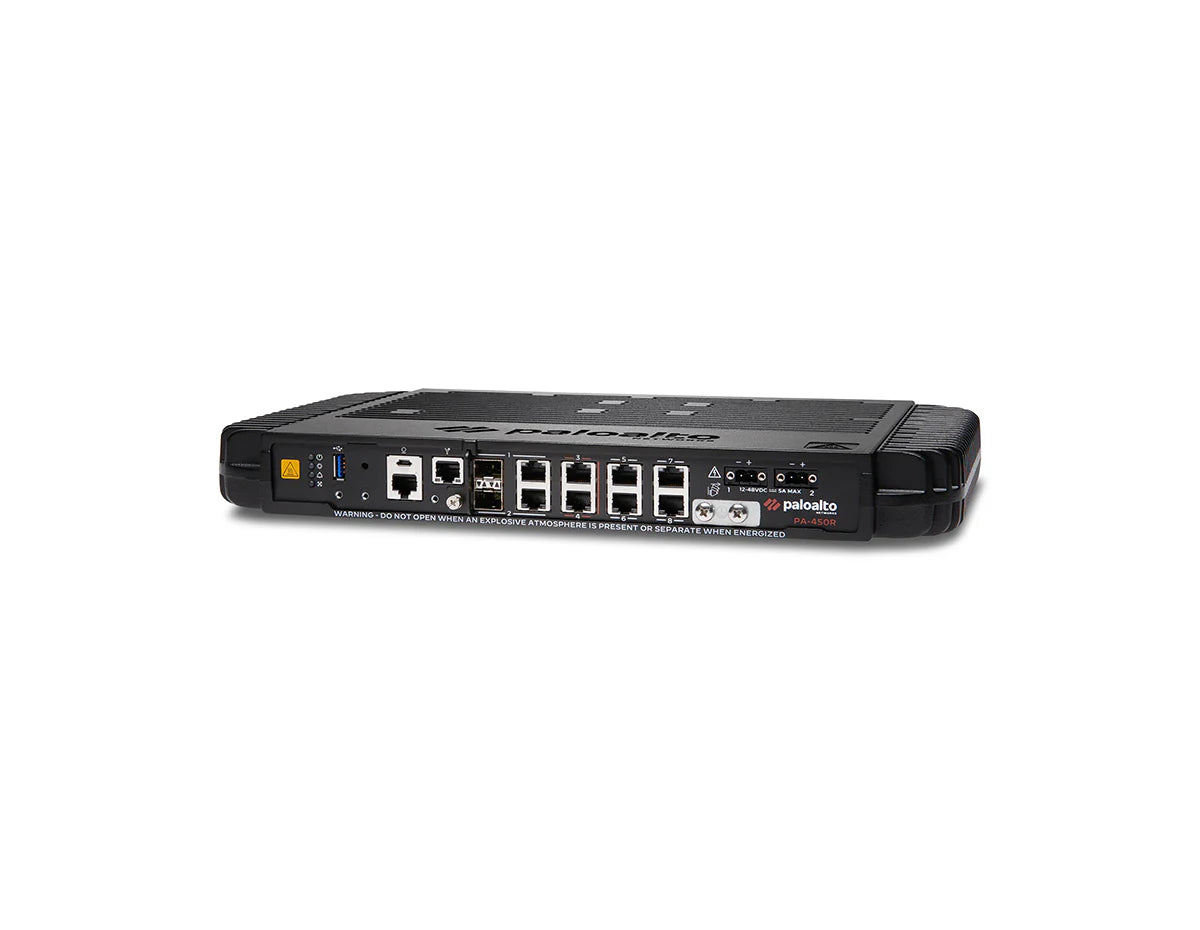

Palo Alto PA-450R Rugged Next-Gen Firewall

[shortdesc]

A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc] [properties]

Feature	Description
Form Factor	Ruggedized 1RU Appliance
Storage	128 GB
Passive Cooling	Fanless design with no moving parts
Input Voltage	12 V–48 VDC
Certifications	IEC 61850-3, IEEE 1613, UL 62368-1, CSA, IEC/EN
Temperature Range	Operating: -40°C to +70°C Non-operating: -40°C to +70°C
Weight	11 lbs (estimated)

[/properties] [specifications]

Specification	Value
Firewall Throughput (AppMix)	3.2 Gbps
Threat Prevention Throughput	1.4 Gbps
IPsec VPN Throughput	2.2 Gbps
Max Sessions	200,000
New Sessions per Second	10,000
Virtual Systems (Base/Max)	1 / 2
Networking Interfaces	6x 10/100/1000 + 2x Combo (SFP or Copper)
Management I/O	1x RJ45 Console, 1x USB, 1x 10/100/1000 Mgmt
Max BTU/hr	136
Max Current Consumption	6A @ 12VDC

[/specifications] [accesories]

Accessory	Description
Mounting Kit	Not explicitly listed; likely standard 1RU mounting rails (consult vendor)
Power Supply	External DC power (12–48 VDC); power adapter not included in datasheet
Transceivers	Compatible SFP transceivers for combo ports (sold separately)

[/accesories]

Industrial environments demand more than just performance—they require resilience. The Palo Alto Networks PA-450R is purpose-built to secure ICS/SCADA networks, substations, and field operations exposed to extreme conditions. With fanless design, ruggedized construction, and the power of PAN-OS, the PA-450R delivers dependable, AI-driven protection wherever you need it most.

High-Performance ML-Powered Firewall

The PA-450R delivers 3.2 Gbps of App-ID-enabled firewall throughput and 1.7 Gbps of threat prevention, ensuring consistent performance even with full security subscriptions enabled. Its Single-Pass Architecture processes traffic efficiently, scanning for threats and applying policies in real-time with minimal latency.

Ruggedized for Industrial-Grade Deployment

Engineered for the harshest environments, the PA-450R operates in temperatures from -40°C to 70°C, complies with IEC 61850-3 and IEEE 1613 standards, and features an IP40-rated enclosure. The fanless, solid-state design eliminates moving parts and reduces failure points, making it ideal for vibration-prone or high-dust areas.

Flexible Connectivity and Fail-Open Reliability

With six RJ-45 ports and two SFP/RJ-45 combo ports, including two fail-open ports, the PA-450R ensures traffic continuity in case of power loss. It's also DC-powered with redundant power support, making it perfect for mission-critical infrastructure.

Advanced Visibility and Control

The device runs PAN-OS 11.1+, offering App-ID, User-ID, SSL decryption, Zero Trust support, and IoT device visibility. Centralized management via Panorama® or Strata™ Cloud Manager enables unified policy enforcement across distributed environments.

• Utility substations and energy sites needing secure and rugged edge protection
• Industrial automation and SCADA networks requiring fanless, temperature-tolerant firewalls
• Government and defense agencies deploying zero-trust in field conditions
• Transportation, mining, and oil & gas environments with strict physical durability demands

• Firewall Throughput: 3.2 Gbps
• Threat Prevention Throughput: 1.7 Gbps
• Max Concurrent Sessions: 200,000
• New Sessions per Second: 48,000
• Ports: 6 x 1G RJ-45, 2 x 1G SFP/RJ-45 combo (includes 2 fail-open)
• Power Input: 12–48 VDC, 39.4 W max
• Cooling: Fanless
• Form Factor: 1RU, Wall, Surface, or Rack-mountable
• Operating Temperature: -40°C to 70°C
• Dimensions: 44.4 mm H x 390 mm W x 238 mm D
• Storage: 128 GB onboard
• Compliance: IP40, IEC 61850-3, IEEE 1613

Built for durability and powered by AI, the PA-450R delivers uncompromising security at the edge. Protect your critical infrastructure today. Order now or contact us for expert guidance.

The following subscription licenses are compatible with the Palo Alto PA-450R Firewall.

License SKU	Subscription	License Type
PAN-PA-450R-ATP	1 Year	Advanced Threat Prevention
PAN-PA-450R-ATP-3YR	3 Year	Advanced Threat Prevention
PAN-PA-450R-ATP-5YR	5 Year	Advanced Threat Prevention
PAN-PA-450R-BND-PRECISIONAI	1 Year	Precision AI
PAN-PA-450R-BND-PRECISIONAI-3YR	3 Year	Precision AI
PAN-PA-450R-BND-PRECISIONAI-5YR	5 Year	Precision AI
