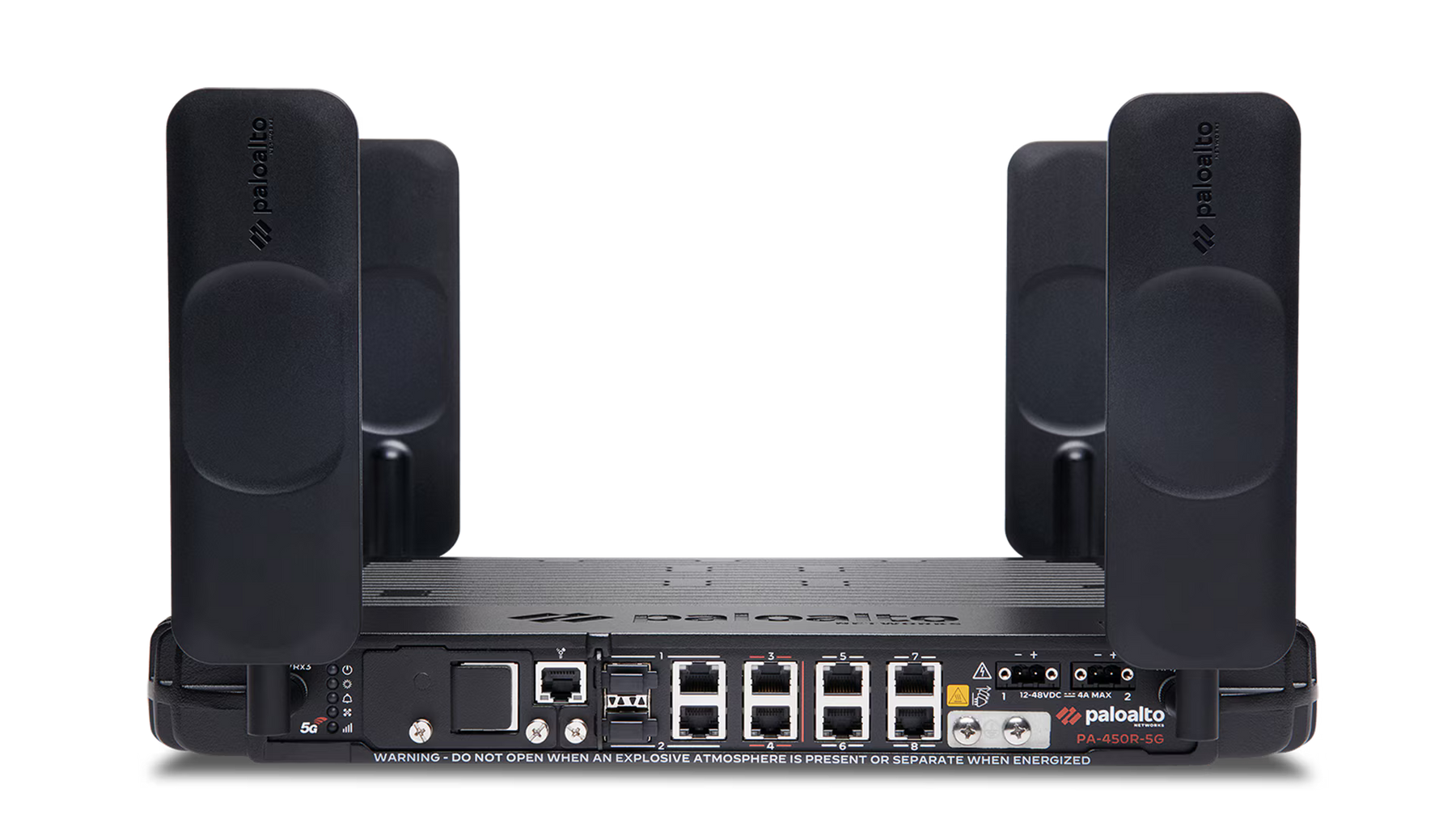

Palo Alto PA-450R-5G Rugged Cellular Next-Generation Firewall

[shortdesc]

A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc]

[properties]

Product Properties
Model	PA-450R-5G
Form Factor	Ruggedized, Fanless, 1RU
Use Case	Industrial environments (utilities, plants, healthcare, etc.)
Cooling	Passive (silent, no moving parts)
Storage Capacity	128 GB
Power Input	12 V–48 VDC
Max Current	6A at 12 VDC
BTU/hr	136
Weight	11 lbs (estimated)

[/properties] [specifications]

Technical Specifications
Firewall Throughput (App-ID)	3.2 Gbps
Threat Prevention Throughput	1.4 Gbps
IPsec VPN Throughput	2.2 Gbps
Max Sessions	200,000
New Sessions per Second	10,000
Virtual Systems (Base/Max)	1 / 2
I/O Ports	6x RJ-45 (10/100/1000), 2x Combo (SFP or Copper)
Management Ports	1x RJ-45, 1x USB, 1x Console
IPsec VPN Encryption	3DES, AES (128/192/256-bit)
Authentication Methods	MD5, SHA-1/256/384/512
Routing Protocols	OSPFv2/v3, BGP, RIP, Static
Interface Modes	L2, L3, Tap, Virtual Wire
IPv6 Features	SLAAC, SSL Decryption
SD-WAN Support	Yes (Dynamic Path Change, Path Quality)
Dimensions	44.4 mm x 390 mm x 238 mm
Operating Temp.	-40°C to +70°C

[/specifications] [accesories]

Included Accessories
Console Cable	Included in the box
Mounting Brackets	Included in the box
Power Connector	Included in the box
Quick Start Guide	Included in the box

[/accesories]

When uptime is mission-critical and deployment conditions are unforgiving, the PA-450R-5G delivers. This ruggedized, IP65-rated next-generation firewall from Palo Alto Networks empowers industrial, government, and commercial sites with secure, cellular-enabled perimeter protection. Designed for extreme temperature ranges, humidity, and remote environments, it brings Zero Trust security to locations traditional networking cannot reach.

Dual Cellular Connectivity with 5G Redundancy

The PA-450R-5G features four 5G multiband antennas and two nano SIM card slots, enabling failover between dual mobile network providers. This ensures consistent WAN connectivity in regions where wired internet is unavailable or unreliable.

Industrial-Grade Design for Harsh Environments

Its IP65 enclosure resists dust and moisture, while a fanless cooling architecture reduces points of failure. With DIN rail, wall, and flat-surface mounting options, it’s ideal for field cabinets, substations, and mission-critical edge deployments.

Secure ICS/SCADA Architecture Compliance

Engineered for operational technology networks, the PA-450R-5G integrates seamlessly into ICS and SCADA systems, delivering application-layer visibility and Zero Trust segmentation for industrial controls and automation assets.

Flexible I/O with Fail-Open Support

Equipped with six RJ-45 ports, including two fail-open ports that maintain traffic flow during power failure, and two SFP/RJ-45 combo ports, the firewall ensures uninterrupted operations and versatile connectivity options.

High-Performance Next-Gen Threat Prevention

Powered by PAN-OS and cloud-delivered security services, the PA-450R-5G supports up to 1.9 Gbps firewall throughput and offers advanced threat detection, URL filtering, and malware prevention even at the edge.

• Industrial and manufacturing plants with remote or unmanned sites
• Energy and utility infrastructure (power, oil, water, pipelines)
• Government field deployments and transportation hubs
• Any ICS/SCADA-controlled operation needing secure cellular WAN

• Firewall Throughput: Up to 1.9 Gbps
• Cellular Connectivity: 4x 5G multiband antennas, 2x nano SIM slots
• Interfaces: 2x SFP/RJ-45 combo ports, 6x RJ-45 ports (2 fail-open)
• Operating System: PAN-OS 11.1 and later
• Power: DC-powered, supports power redundancy
• Design: Fanless, IP65-rated, DIN rail/wall/flat mount
• ICS/SCADA Compliance: Yes

Harden your remote infrastructure with Palo Alto’s PA-450R-5G. Industrial-grade resilience and 5G performance in one device. Order now or contact us for tailored deployment guidance.
