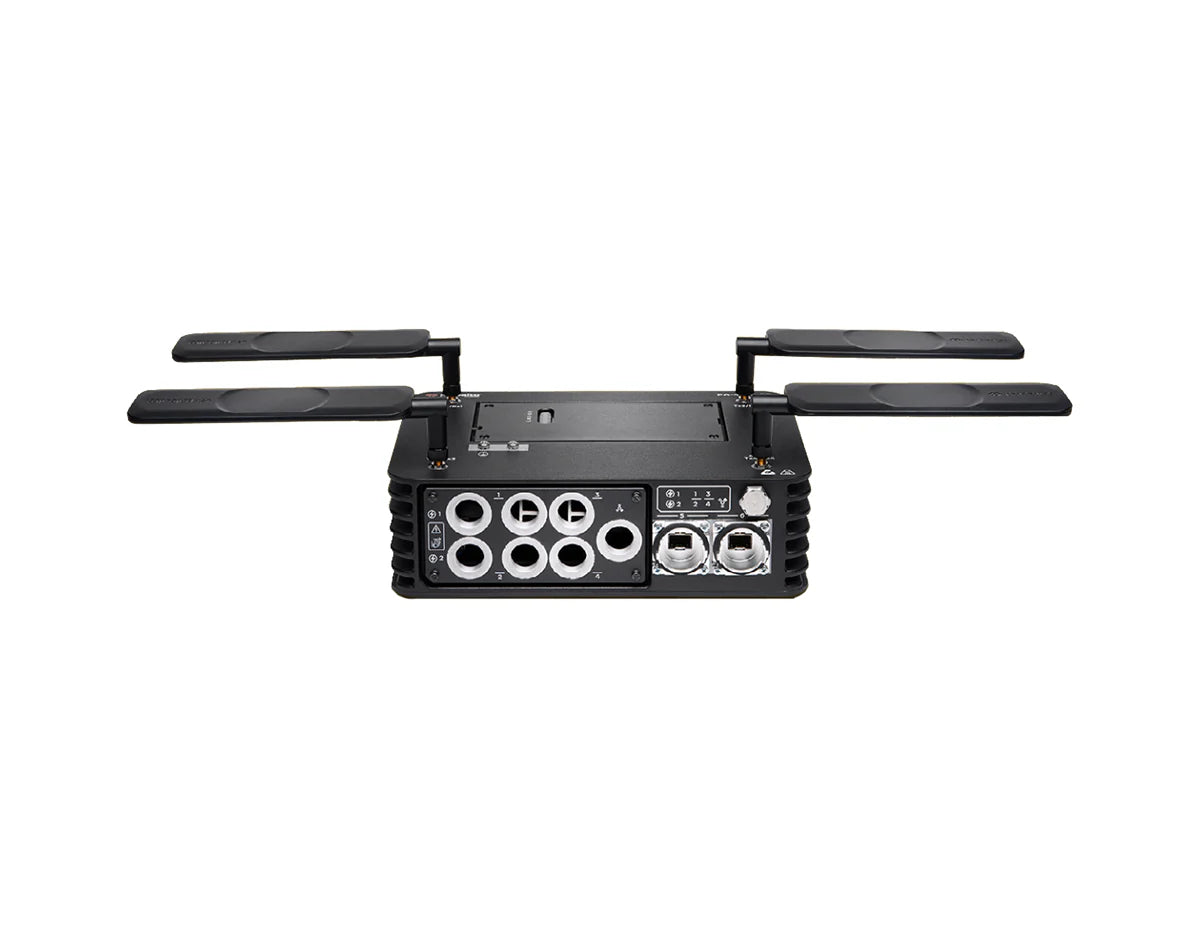

Palo Alto PA-410R-5G Rugged 5G Next-Generation Firewall

[shortdesc]

A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc] [properties]

Property	Details
Brand	Palo Alto Networks
Model	PA-410R-5G
Product Type	Ruggedized ML-Powered Next-Generation Firewall
License	5G Security Subscription Bundle
Deployment	Industrial / Harsh Environments (IP65, IEC 61850-3, IEEE 1613)
PAN-OS Support	11.1.4 and later versions

[/properties] [specifications]

Specification	Value
Firewall Throughput (appmix)	1.5 Gbps (preliminary)
Threat Prevention Throughput (appmix)	700 Mbps (preliminary)
IPsec VPN Throughput	TBD (some sources: ~650 Mbps)
Max Sessions	64 000
New Sessions per Second	4 500
Virtual Systems (VSYS)	Base 1 / Max 2
I/O Interfaces	4 x 1 Gb RJ-45 (2 fail-open), 2 x 1 Gb SFP, Integrated 5G modem (4 antennas, Dual SIM), Console RJ-45, USB, Fanless
Storage	128 GB SSD
Form Factor	Wall/DIN-rail mount, fanless, desktop rugged
Dimensions (HxWxD)	20.5 cm × 27 cm × 9.3 cm
Weight	4.08 kg (Shipping: ~5.8 kg)
Power	DC power, supports redundancy
Connectivity Features	Fail-open ports, IP65 rated, ICS/SCADA compliant

[/specifications] [accesories]

Accessory	Description
Power Supply Cable	External DC power cable (supports power redundancy)
Mounting Kit	Wall-mount or DIN-rail bracket options
Console Cable	RJ-45 serial console cable
SIM Slot Covers / Antenna Set	4 antennas + Dual SIM slot components
Quick Start Guide	Printed or PDF quick setup documentation

[/accesories]

Secure infrastructure located in unforgiving environments—where dust, moisture, vibration, and temperature extremes are the norm—requires hardened, zero-compromise network protection. The Palo Alto Networks PA-410R-5G delivers just that: a rugged, IP65-rated next-generation firewall with 5G WAN connectivity for fully mobile, always-secure deployments.

From energy grids and oil rigs to defense sites and smart cities, this DIN-rail or wall-mounted NGFW offers advanced threat prevention, inline ML-powered detection, and carrier-diverse 5G redundancy—all while meeting ICS/SCADA compliance.

Integrated 5G with Dual SIM Redundancy

With four multi-band 5G antennas and two nano SIM slots, the PA-410R-5G ensures WAN flexibility and reliability—ideal for edge locations without fixed-line access or requiring cellular failover. It supports simultaneous use of two mobile providers for uptime-critical operations.

Hardened for Industrial Environments

The chassis is fully IP65-rated and fanless, supporting operating temperatures from –40°C to +70°C, making it ideal for harsh field deployments. The device complies with IEC 61850-3 and IEEE 1613 standards for EMI, shock, and vibration resistance.

Fail-Open Port Resilience

Two of the four RJ-45 ports are fail-open, meaning if the firewall loses power, traffic will pass through uninspected—ensuring critical connectivity remains uninterrupted for time-sensitive applications like automation or monitoring.

Full Security Stack with Compact Power

Despite its size, the PA-410R-5G delivers 1.4 Gbps of firewall throughput and 650 Mbps of threat prevention, even when all security services (IPS, AV, DNS Security, WildFire) are active. It operates on DC power (12–48 VDC) and supports redundant input for uninterrupted protection.

• Remote industrial sites without fiber or fixed-line access
• Utility substations, pipelines, or grid nodes needing ICS/SCADA-compliant security
• Mobile or temporary deployments (e.g., disaster recovery units, military convoys)
• Transportation, mining, and energy sectors with rugged environmental demands
• Manufacturing control networks requiring Zero Trust segmentation and cellular backup

• Firewall Throughput: 1.4 Gbps
• Threat Prevention Throughput: 650 Mbps
• New Sessions/Second: 11,400
• Concurrent Sessions: 64,000
• Ports: 4x RJ-45 (2 fail-open), 2x 1G SFP
• 5G WAN: 4x antennas, 2x nano SIM slots
• Power: 12–48 VDC input, 28.9 W max
• Mounting: Wall or DIN rail
• Operating Temperature: –40°C to +70°C
• Certifications: IEC 61850-3, IEEE 1613, IP65-rated

The PA-410R-5G is the firewall of choice when fixed-line connections aren’t available, downtime is not an option, and the environment is mission-critical. Protect mobile infrastructure and industrial networks today—order the PA-410R-5G now.

The following subscription licenses are compatible with the Palo Alto PA-410R-5G Firewall.

License SKU	Subscription	License Type
PAN-PA-410R-5G-ATP	1 Year	Advanced Threat Prevention
PAN-PA-410R-5G-ATP-3YR	3 Year	Advanced Threat Prevention
PAN-PA-410R-5G-ATP-5YR	5 Year	Advanced Threat Prevention
PAN-PA-410R-5G-BND-PRECISIONAI	1 Year	Precision AI
PAN-PA-410R-5G-BND-PRECISIONAI-3YR	3 Year	Precision AI
PAN-PA-410R-5G-BND-PRECISIONAI-5YR	5 Year	Precision AI
