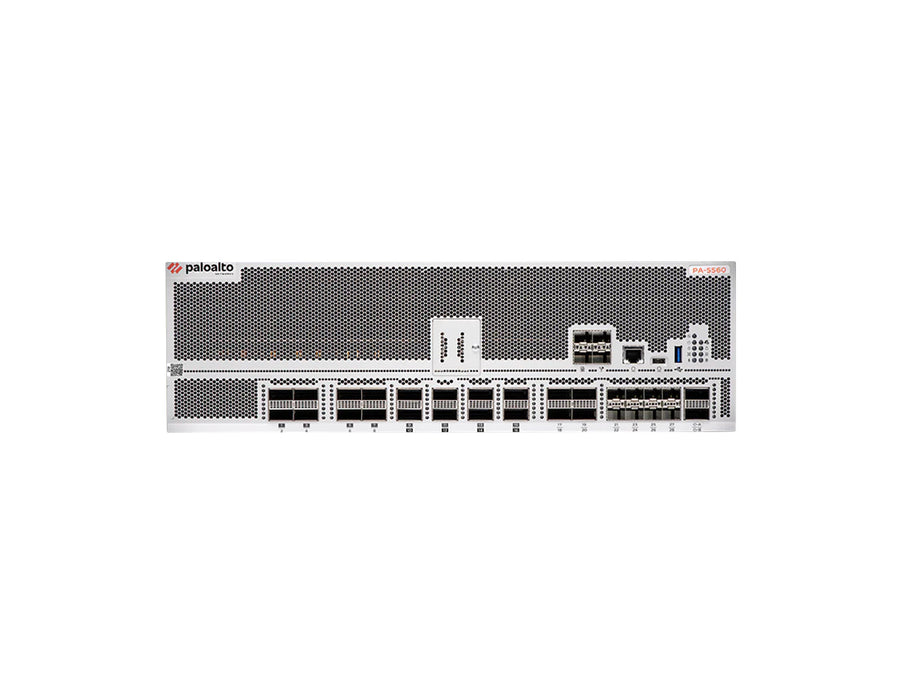

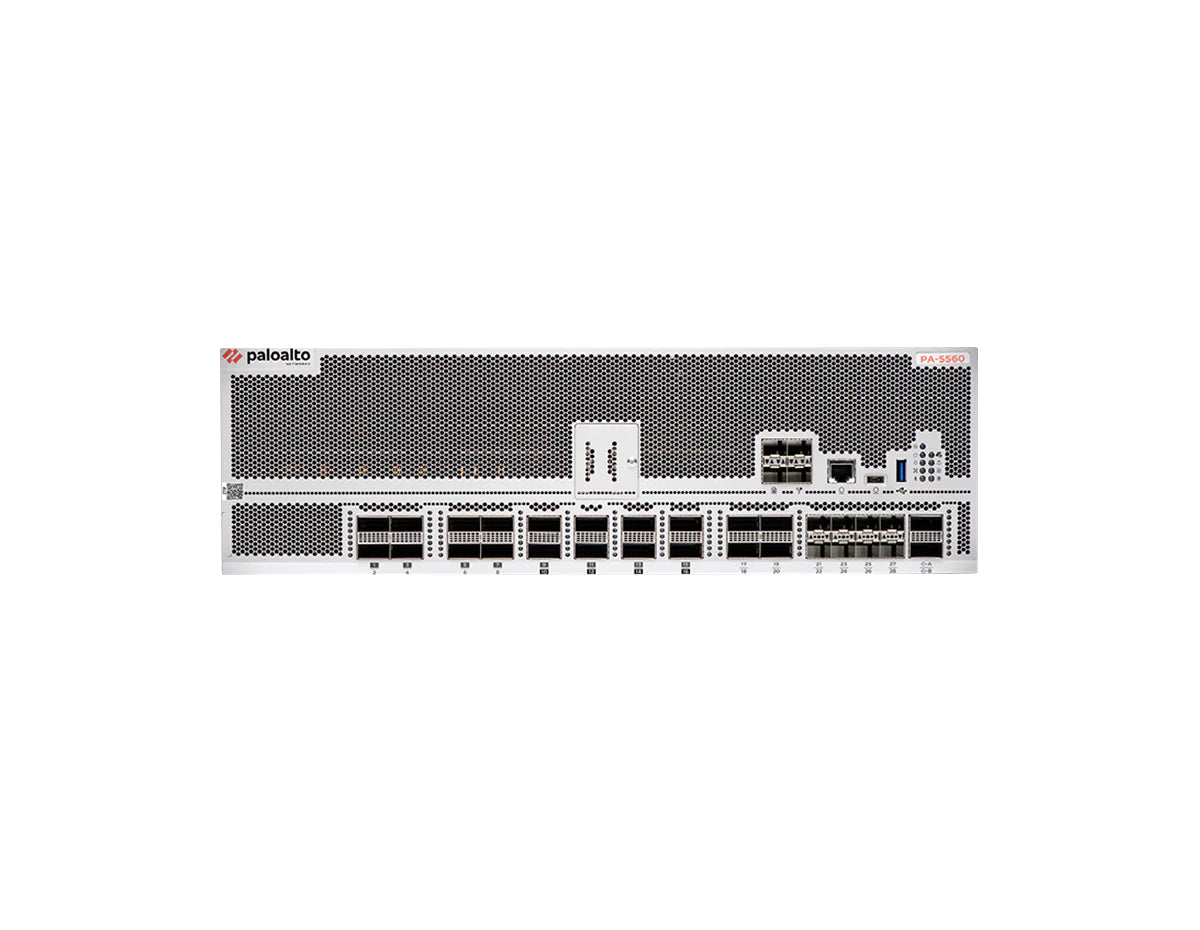

Palo Alto Networks PA-5560-DC Next-Gen Firewall 240 Gbps, Quantum-Optimized
Palo Alto Networks PA-5560-DC Next-Gen Firewall 240 Gbps, Quantum-Optimized

Palo Alto Networks PA-5560-DC Next-Gen Firewall 240 Gbps, Quantum-Optimized

por Palo Alto
Desconto de 10%
R$ 7.095.000,00
R$ 6.385.500,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc]

[properties]

Model PA-5560
SKU PAN-PA-5560-DC
Product Type Next-Generation Firewall (NGFW)
Form Factor / Rack Size 3U, 19" rack
Rack Mount Dimensions (H × D × W) 5.2" × 29.8" × 17.3"
Weight 70 lb (standalone); 116 lb (as shipped)
I/O Ports 8 × 10/25G SFP28; 12 × 40/100G QSFP28; 8 × 100/400G QSFP-DD
Management I/O 2 × 1G/10G SFP+ (OOB Mgmt); RJ-45 console; USB-C console; USB 3.2 Gen1 Type-A (bootstrap); 2 × HSCI 100G/400G QSFP-DD; 2 × 10G SFP+ (Log)
Power (Input) DC: −40 VDC to −60 VDC
Power Supplies 2+2 redundant (DC)
Avg / Max Power Consumption 2,100 W / 3,100 W
Max BTU/hr 1,638
Airflow Front to back (port side to power supply side)
MTBF 6.3 years (PA-5560/5570/5580)
Operating Temperature 0–50 °C (32–122 °F)
Non-Operating Temperature −20–70 °C (−4–158 °F)
Humidity 10%–90%
Maximum Altitude 3,048 m (10,000 ft)
Safety / EMI cTUVus, CB; FCC/CE/VCCI Class A
Notes Optional 3.84 TB RAID1 SSD pair supported (cold swap)

[/properties]

[specifications]

Firewall Throughput (Appmix) 240 Gbps
Threat Prevention Throughput (Appmix) 180 Gbps
IPsec VPN Throughput 125 Gbps
Max Concurrent Sessions 74 million
New Sessions per Second 2.5 million
Virtual Systems (base / max) 25 / 225
Post-Quantum Ready Hardware/software support with PAN-OS 12.1; PQC key exchanges (e.g., ML-KEM, HQC)
Interface Modes L2, L3, Tap, Virtual Wire (transparent)
Routing OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCP (client/server/relay)
IPv6 Features Dual-stack/IPv6-only; OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server
IPsec VPN IKEv1/IKEv2; 3DES/AES (128/192/256); MD5/SHA-1/SHA-256/SHA-384/SHA-512
High Availability NGFW clustering (A/A); HA A/P
Power Supply Output (DC) 2,200 W per PSU
Max Current (DC) 43.7 A @ 54 VDC
Max Inrush Current (DC) 25 A @ 54 VDC
Certifications / Compliance See vendor compliance page (Class A EMC)

[/specifications]

[accesories]

Included (DC Kit) 4 × PAN-PA-5500-PWR-2000-DC; 5 × PAN-PA-FAN-2RU-A; 1 × PAN-PA-5500-ACC-B accessory kit; 1 × PAN-PA-3RU-RACK-A; 2 × PAN-SFP-CG; 1 × PAN-PA-5500-SSD-3.84TB-PAIR
Optional – Storage PAN-PA-5500-SSD-3.84TB-PAIR (spare)
Optional – Accessory Kits PAN-PA-5500-ACC-A (AC kit); PAN-PA-5500-ACC-B (DC kit) – spares

[/accesories]

The Palo Alto Networks PA-5560 DC delivers ultra-high performance next-generation firewalling for modern data centers and internet gateways. Powered by Precision AI and a single-pass architecture, it inspects every session with predictable latency while enabling advanced threat prevention. Built on the PA-5500 Series platform, the PA-5560 is PQC-ready on PAN-OS 12.1 to help future-proof encrypted traffic inspection and VPNs as cryptography evolves.

  • High-throughput security: Up to 240 Gbps firewall and 180 Gbps Threat Prevention to keep critical applications responsive under load.
  • Precision AI threat defense: Inline prevention and automated response to stop evasive and zero-day attacks in real time.
  • Single-pass architecture: Consistent, predictable performance by processing networking, policy, and content inspection in one pass.
  • PQC-ready protection: Supports post-quantum algorithms for SSL/TLS inspection and site-to-site VPN on PAN-OS 12.1.
  • NGFW clustering and HA: Active/active clustering and high availability for resilient, horizontally scalable deployments.
  • High-speed data center edge or core requiring dense 100/400G connectivity
  • Internet gateway consolidation with AI-driven prevention at scale
  • Service provider and large enterprise backbones with multi-tenant segmentation
  • Encrypted traffic inspection with future-ready post-quantum capabilities
  • Zero Trust initiatives needing strong user, app, and content controls
  • Firewall Throughput (AppMix): 240 Gbps
  • Threat Prevention Throughput: 180 Gbps
  • IPsec VPN Throughput: 125 Gbps
  • Max Concurrent Sessions: 74 million
  • New Sessions per Second: 2.5 million
  • Interfaces: 8×10/25G SFP28, 12×40/100G QSFP28, 8×100/400G QSFP-DD
  • Management I/O: 2×1/10G SFP+ OOB, RJ-45 console, USB-C, USB 3.2 Type-A
  • Form Factor: 3U, 19" rack; front-to-back airflow
  • Storage: Optional 3.84 TB RAID1 SSD pair (cold swap)
  • Power (DC): Input −40 to −60 VDC; 2+2 redundant DC PSUs

Elevate your data center security posture with AI-powered prevention and PQC-ready controls. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc]

[properties]

Model PA-5560
SKU PAN-PA-5560-DC
Product Type Next-Generation Firewall (NGFW)
Form Factor / Rack Size 3U, 19" rack
Rack Mount Dimensions (H × D × W) 5.2" × 29.8" × 17.3"
Weight 70 lb (standalone); 116 lb (as shipped)
I/O Ports 8 × 10/25G SFP28; 12 × 40/100G QSFP28; 8 × 100/400G QSFP-DD
Management I/O 2 × 1G/10G SFP+ (OOB Mgmt); RJ-45 console; USB-C console; USB 3.2 Gen1 Type-A (bootstrap); 2 × HSCI 100G/400G QSFP-DD; 2 × 10G SFP+ (Log)
Power (Input) DC: −40 VDC to −60 VDC
Power Supplies 2+2 redundant (DC)
Avg / Max Power Consumption 2,100 W / 3,100 W
Max BTU/hr 1,638
Airflow Front to back (port side to power supply side)
MTBF 6.3 years (PA-5560/5570/5580)
Operating Temperature 0–50 °C (32–122 °F)
Non-Operating Temperature −20–70 °C (−4–158 °F)
Humidity 10%–90%
Maximum Altitude 3,048 m (10,000 ft)
Safety / EMI cTUVus, CB; FCC/CE/VCCI Class A
Notes Optional 3.84 TB RAID1 SSD pair supported (cold swap)

[/properties]

[specifications]

Firewall Throughput (Appmix) 240 Gbps
Threat Prevention Throughput (Appmix) 180 Gbps
IPsec VPN Throughput 125 Gbps
Max Concurrent Sessions 74 million
New Sessions per Second 2.5 million
Virtual Systems (base / max) 25 / 225
Post-Quantum Ready Hardware/software support with PAN-OS 12.1; PQC key exchanges (e.g., ML-KEM, HQC)
Interface Modes L2, L3, Tap, Virtual Wire (transparent)
Routing OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCP (client/server/relay)
IPv6 Features Dual-stack/IPv6-only; OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server
IPsec VPN IKEv1/IKEv2; 3DES/AES (128/192/256); MD5/SHA-1/SHA-256/SHA-384/SHA-512
High Availability NGFW clustering (A/A); HA A/P
Power Supply Output (DC) 2,200 W per PSU
Max Current (DC) 43.7 A @ 54 VDC
Max Inrush Current (DC) 25 A @ 54 VDC
Certifications / Compliance See vendor compliance page (Class A EMC)

[/specifications]

[accesories]

Included (DC Kit) 4 × PAN-PA-5500-PWR-2000-DC; 5 × PAN-PA-FAN-2RU-A; 1 × PAN-PA-5500-ACC-B accessory kit; 1 × PAN-PA-3RU-RACK-A; 2 × PAN-SFP-CG; 1 × PAN-PA-5500-SSD-3.84TB-PAIR
Optional – Storage PAN-PA-5500-SSD-3.84TB-PAIR (spare)
Optional – Accessory Kits PAN-PA-5500-ACC-A (AC kit); PAN-PA-5500-ACC-B (DC kit) – spares

[/accesories]

Scale Securely with AI Precision and Quantum-Safe Readiness

The Palo Alto Networks PA-5560 DC delivers ultra-high performance next-generation firewalling for modern data centers and internet gateways. Powered by Precision AI and a single-pass architecture, it inspects every session with predictable latency while enabling advanced threat prevention. Built on the PA-5500 Series platform, the PA-5560 is PQC-ready on PAN-OS 12.1 to help future-proof encrypted traffic inspection and VPNs as cryptography evolves.

Key Benefits & Features
  • High-throughput security: Up to 240 Gbps firewall and 180 Gbps Threat Prevention to keep critical applications responsive under load.
  • Precision AI threat defense: Inline prevention and automated response to stop evasive and zero-day attacks in real time.
  • Single-pass architecture: Consistent, predictable performance by processing networking, policy, and content inspection in one pass.
  • PQC-ready protection: Supports post-quantum algorithms for SSL/TLS inspection and site-to-site VPN on PAN-OS 12.1.
  • NGFW clustering and HA: Active/active clustering and high availability for resilient, horizontally scalable deployments.
Ideal Use Cases
  • High-speed data center edge or core requiring dense 100/400G connectivity
  • Internet gateway consolidation with AI-driven prevention at scale
  • Service provider and large enterprise backbones with multi-tenant segmentation
  • Encrypted traffic inspection with future-ready post-quantum capabilities
  • Zero Trust initiatives needing strong user, app, and content controls
Technical Specifications
  • Firewall Throughput (AppMix): 240 Gbps
  • Threat Prevention Throughput: 180 Gbps
  • IPsec VPN Throughput: 125 Gbps
  • Max Concurrent Sessions: 74 million
  • New Sessions per Second: 2.5 million
  • Interfaces: 8×10/25G SFP28, 12×40/100G QSFP28, 8×100/400G QSFP-DD
  • Management I/O: 2×1/10G SFP+ OOB, RJ-45 console, USB-C, USB 3.2 Type-A
  • Form Factor: 3U, 19" rack; front-to-back airflow
  • Storage: Optional 3.84 TB RAID1 SSD pair (cold swap)
  • Power (DC): Input −40 to −60 VDC; 2+2 redundant DC PSUs
Ready to Secure High-Speed Networks

Elevate your data center security posture with AI-powered prevention and PQC-ready controls. Order today.
