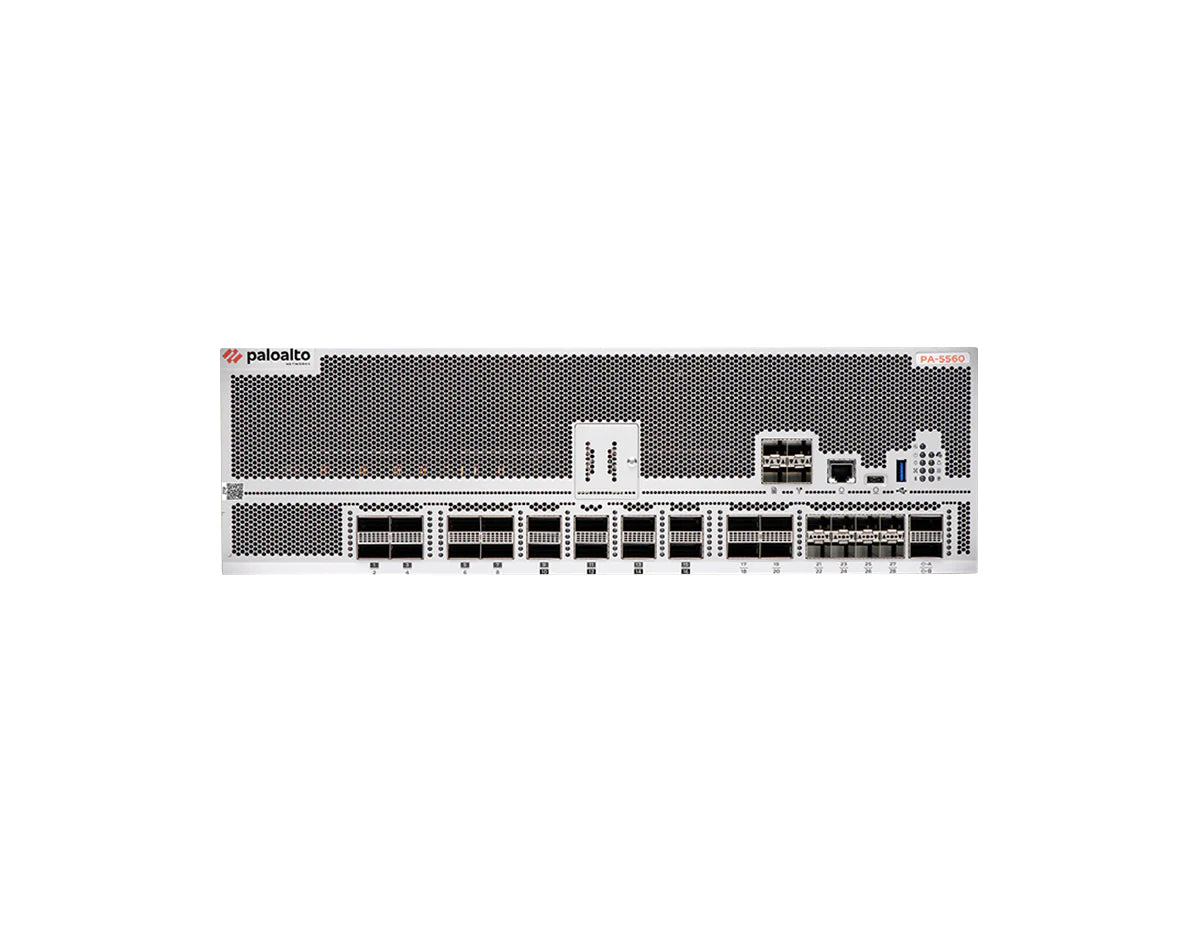

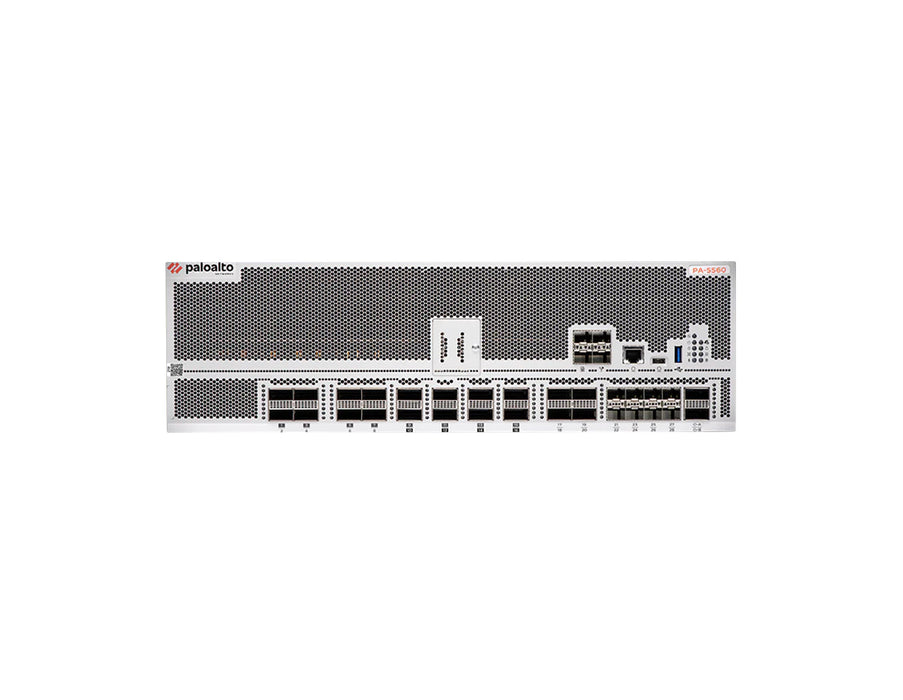

Palo Alto Networks PA-5560-AC Next-Gen Firewall 240 Gbps, Quantum-Optimized
Palo Alto Networks PA-5560-AC Next-Gen Firewall 240 Gbps, Quantum-Optimized

Palo Alto Networks PA-5560-AC Next-Gen Firewall 240 Gbps, Quantum-Optimized

por Palo Alto
Desconto de 10%
R$ 7.095.000,00
R$ 6.385.500,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model PA-5560-AC
Product Type Quantum Optimized Next-Generation Firewall (NGFW)
Firewall Throughput (appmix) 240 Gbps
Threat Prevention Throughput (appmix) 180 Gbps
IPsec VPN Throughput 125 Gbps
Max Concurrent Sessions 74M
New Sessions Per Second 2.5M
Rack Mount Dimensions 3U, 19" standard rack (5.2"H × 29.8"D × 17.3"W) with power supply inserted
Weight (Standalone Device) 70 lbs
Operating Temperature 32°F to 122°F, 0°C to 50°C
Nonoperating Temperature -4°F to 158°F, -20°C to 70°C
Humidity Tolerance 10%-90%
Maximum Altitude 10,000 ft/3,048 m
Airflow Front to back (port side to power supply side)
MTBF (Mean Time Between Failure) 6.3 years

[/properties]

[specifications]

Max Virtual Systems (Base/Max) 25/225
I/O Ports 10G/25G SFP28 (8), 40G/100G QSFP28 (12), and 100G/400G QSFP-DD (8)
Management I/O Out-of-band management: 1G/10G SFP+ (2); Console: RJ-45 console port (1); Console: USB-C; Bootstrap: USB 3.2 Gen1 Type A
HSCI Ports 100G/400G QSFP-DD (2)
Log Ports 10G SFP+ (2)
Optional Storage Capacity 3.84 TB RAID1 SSD pair for system and log storage supported as cold swap
Power Supply (AC) 2+2 redundant for 220 V; 3+1 redundant for 110 V
Power Supply Output (AC) 2,700 W/power supply with 220 V or 1,200 W/power supply with 110 V
Input Voltage (AC) 100-240 VAC (50-60 Hz)
Max Power Consumption (Avg/Max) 2,100 W/3,100 W
Max BTU/hr 1638
Max Current Consumption (AC) 20.3 A @ 110 VAC and 9.3 A @ 240 VAC
Max Inrush Current (AC) 50 A @ 230 VAC and 50 A @ 120 VAC
VLANS 802.1Q VLAN tags per device or per interface: 4,094/4,094

[/specifications]

[accesories]

Included in PAN-PA-5560-AC SKU 4x PAN-PA-5500-PWR-2700-AC, 5x PAN-PA-FAN-2RU-A, 1x PAN-PA-5500-ACC-A accessory kit, 1x PAN-PA-3RU-RACK-A, 2x PAN-SFP-CG, 1x PAN-PA-5500-SSD-3.84TB-PAIR
PAN-PA-5500-ACC-A Accessory Kit Contents 4x PAN-PWR-C19-US-120V cable, 1x USB cable, and 1x Cat6 cable
Spare Replacement Drive PAN-PA-5500-SSD-3.84TB-PAIR

[/accesories]

Large campuses and internet edge gateways need high throughput without giving up deep security. The Palo Alto Networks PA-5560 delivers precisely that: a quantum-optimized next-generation firewall built on single-pass architecture and Precision AI to inspect, prevent, and enforce at wire speed—so security never becomes the bottleneck.

The PA-5560 brings enterprise-grade protections with predictable performance, simple operations, and hardware headroom for future cryptography and clustering.

High Performance You Can Count On

Designed for data center and internet edge use, the PA-5560 provides 240 Gbps firewall (AppMix), 180 Gbps Threat Prevention, 125 Gbps IPsec VPN, and scales to 74 million sessions with 2.5 million new sessions per second—performance that holds with security services enabled.

Precision AI with Single-Pass Architecture

Inline machine learning and a single-pass pipeline analyze applications, content, and users once, enabling signatureless prevention of zero-day phishing and malware while minimizing latency and maximizing consistency under load.

Quantum-Ready and Encrypted Traffic Visibility

Be ready for PQC transitions with support for NIST algorithms (ML-KEM, ML-DSA, SLH-DSA) and options for PQC VPN and SSL/TLS controls. Gain policy and decryption visibility across TLS 1.3 and legacy protocols to safely manage encrypted traffic at scale.

Clustering & Unified Cloud Management

Build resilient, horizontally scalable security using NGFW clustering and HA. Operate at scale with Strata Cloud Manager and Copilot for unified policy, best-practice checks, and AI-assisted troubleshooting across your estate.

  • High-speed internet gateways requiring full NGFW + Threat Prevention
  • Data centers consolidating security with predictable performance
  • Large campuses and service providers needing HA/clustering and 100/400G IO
  • Organizations preparing for post-quantum cryptography
  • Firewall Throughput (AppMix): 240 Gbps
  • Threat Prevention Throughput: 180 Gbps
  • IPsec VPN Throughput: 125 Gbps
  • Max Concurrent Sessions: 74 million
  • New Sessions per Second: 2.5 million
  • Virtual Systems (Base/Max): 25/225
  • Interfaces: 8× 10/25G SFP28, 12× 40/100G QSFP28, 8× 100/400G QSFP-DD
  • Form Factor & Power: 3U rack, front-to-back airflow; AC model with redundant PSUs

Equip your edge with quantum-ready, AI-powered protection. Request a quote for the PA-5560-AC today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model PA-5560-AC
Product Type Quantum Optimized Next-Generation Firewall (NGFW)
Firewall Throughput (appmix) 240 Gbps
Threat Prevention Throughput (appmix) 180 Gbps
IPsec VPN Throughput 125 Gbps
Max Concurrent Sessions 74M
New Sessions Per Second 2.5M
Rack Mount Dimensions 3U, 19" standard rack (5.2"H × 29.8"D × 17.3"W) with power supply inserted
Weight (Standalone Device) 70 lbs
Operating Temperature 32°F to 122°F, 0°C to 50°C
Nonoperating Temperature -4°F to 158°F, -20°C to 70°C
Humidity Tolerance 10%-90%
Maximum Altitude 10,000 ft/3,048 m
Airflow Front to back (port side to power supply side)
MTBF (Mean Time Between Failure) 6.3 years

[/properties]

[specifications]

Max Virtual Systems (Base/Max) 25/225
I/O Ports 10G/25G SFP28 (8), 40G/100G QSFP28 (12), and 100G/400G QSFP-DD (8)
Management I/O Out-of-band management: 1G/10G SFP+ (2); Console: RJ-45 console port (1); Console: USB-C; Bootstrap: USB 3.2 Gen1 Type A
HSCI Ports 100G/400G QSFP-DD (2)
Log Ports 10G SFP+ (2)
Optional Storage Capacity 3.84 TB RAID1 SSD pair for system and log storage supported as cold swap
Power Supply (AC) 2+2 redundant for 220 V; 3+1 redundant for 110 V
Power Supply Output (AC) 2,700 W/power supply with 220 V or 1,200 W/power supply with 110 V
Input Voltage (AC) 100-240 VAC (50-60 Hz)
Max Power Consumption (Avg/Max) 2,100 W/3,100 W
Max BTU/hr 1638
Max Current Consumption (AC) 20.3 A @ 110 VAC and 9.3 A @ 240 VAC
Max Inrush Current (AC) 50 A @ 230 VAC and 50 A @ 120 VAC
VLANS 802.1Q VLAN tags per device or per interface: 4,094/4,094

[/specifications]

[accesories]

Included in PAN-PA-5560-AC SKU 4x PAN-PA-5500-PWR-2700-AC, 5x PAN-PA-FAN-2RU-A, 1x PAN-PA-5500-ACC-A accessory kit, 1x PAN-PA-3RU-RACK-A, 2x PAN-SFP-CG, 1x PAN-PA-5500-SSD-3.84TB-PAIR
PAN-PA-5500-ACC-A Accessory Kit Contents 4x PAN-PWR-C19-US-120V cable, 1x USB cable, and 1x Cat6 cable
Spare Replacement Drive PAN-PA-5500-SSD-3.84TB-PAIR

[/accesories]

Stop Advanced Threats at Data Center Scale

Large campuses and internet edge gateways need high throughput without giving up deep security. The Palo Alto Networks PA-5560 delivers precisely that: a quantum-optimized next-generation firewall built on single-pass architecture and Precision AI to inspect, prevent, and enforce at wire speed—so security never becomes the bottleneck.

Key Benefits & Features

The PA-5560 brings enterprise-grade protections with predictable performance, simple operations, and hardware headroom for future cryptography and clustering.

High Performance You Can Count On

Designed for data center and internet edge use, the PA-5560 provides 240 Gbps firewall (AppMix), 180 Gbps Threat Prevention, 125 Gbps IPsec VPN, and scales to 74 million sessions with 2.5 million new sessions per second—performance that holds with security services enabled.

Precision AI with Single-Pass Architecture

Inline machine learning and a single-pass pipeline analyze applications, content, and users once, enabling signatureless prevention of zero-day phishing and malware while minimizing latency and maximizing consistency under load.

Quantum-Ready and Encrypted Traffic Visibility

Be ready for PQC transitions with support for NIST algorithms (ML-KEM, ML-DSA, SLH-DSA) and options for PQC VPN and SSL/TLS controls. Gain policy and decryption visibility across TLS 1.3 and legacy protocols to safely manage encrypted traffic at scale.

Clustering & Unified Cloud Management

Build resilient, horizontally scalable security using NGFW clustering and HA. Operate at scale with Strata Cloud Manager and Copilot for unified policy, best-practice checks, and AI-assisted troubleshooting across your estate.

Ideal Use Cases
  • High-speed internet gateways requiring full NGFW + Threat Prevention
  • Data centers consolidating security with predictable performance
  • Large campuses and service providers needing HA/clustering and 100/400G IO
  • Organizations preparing for post-quantum cryptography
Technical Specifications
  • Firewall Throughput (AppMix): 240 Gbps
  • Threat Prevention Throughput: 180 Gbps
  • IPsec VPN Throughput: 125 Gbps
  • Max Concurrent Sessions: 74 million
  • New Sessions per Second: 2.5 million
  • Virtual Systems (Base/Max): 25/225
  • Interfaces: 8× 10/25G SFP28, 12× 40/100G QSFP28, 8× 100/400G QSFP-DD
  • Form Factor & Power: 3U rack, front-to-back airflow; AC model with redundant PSUs
Ready to Secure at 240 Gbps?

Equip your edge with quantum-ready, AI-powered protection. Request a quote for the PA-5560-AC today.
