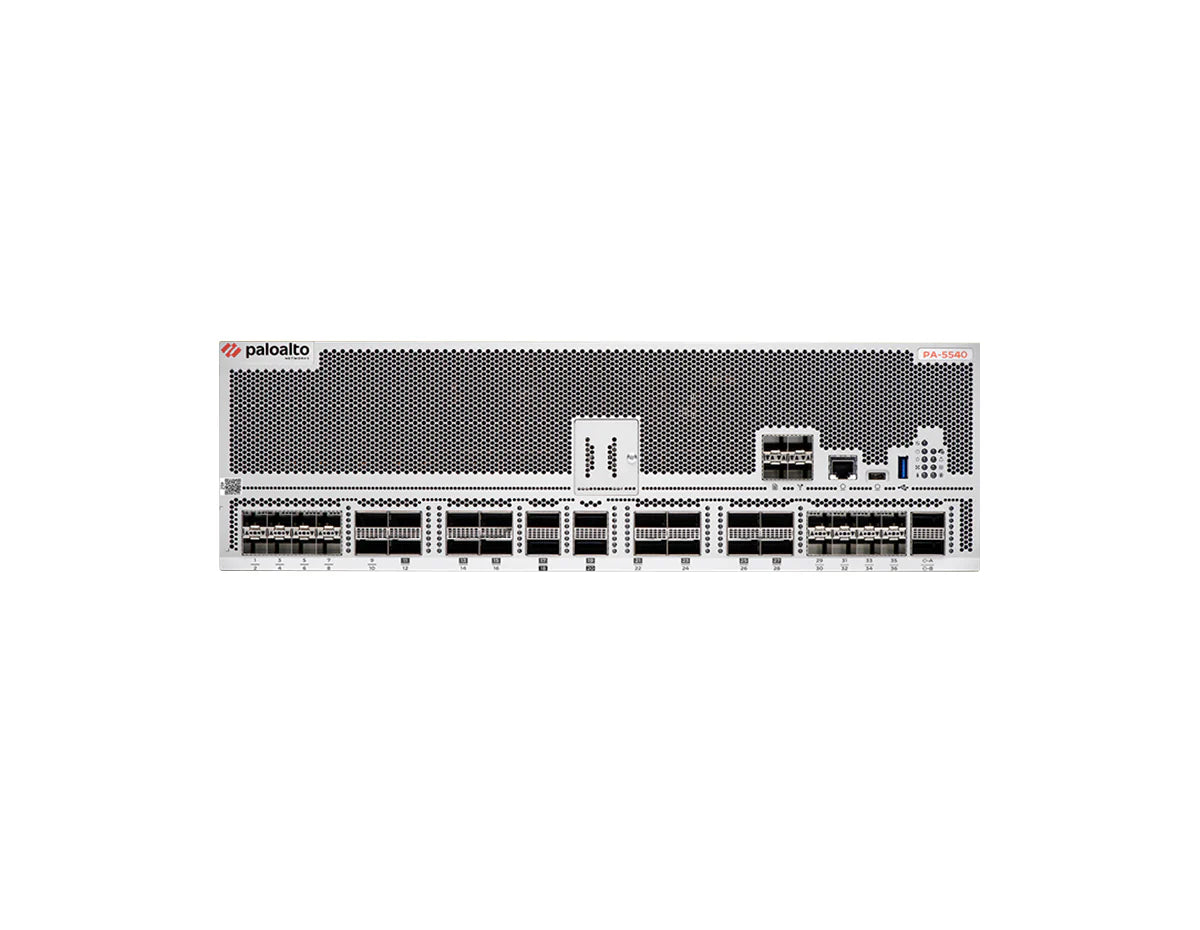

Palo Alto Networks PA-5540-DC Next-Gen Firewall 150 Gbps, Quantum-Optimized
Palo Alto Networks PA-5540-DC Next-Gen Firewall 150 Gbps, Quantum-Optimized

Palo Alto Networks PA-5540-DC Next-Gen Firewall 150 Gbps, Quantum-Optimized

por Palo Alto
Desconto de 10%
R$ 3.753.480,00
R$ 3.378.132,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model PA-5540
Product Type Quantum Optimized Next-Generation Firewall (NGFW)
Operating System PAN-OS
Firewall Throughput (appmix) 150 Gbps
Threat Prevention Throughput (appmix) 90 Gbps
IPsec VPN Throughput 80 Gbps
Max Concurrent Sessions 39 Million (39M)
New Sessions per Second 1.33 Million (1.33M)
Virtual Systems (Base/Max) 25 / 225
Form Factor / Dimensions 3U, 19” standard rack; 5.2” H × 29.8” D × 17.3” W
I/O Ports 16× 10G/25G SFP28; 16× 40G/100G QSFP28; 4× 100G/400G QSFP-DD
Management I/O 2× 1G/10G SFP+ (OOB Mgmt); RJ-45 console; USB-C console; USB 3.2 Gen1 Type-A (bootstrap); 2× 100G/400G QSFP-DD (HSCI); 2× 10G SFP+ (Log)
Storage Optional 3.84 TB RAID1 SSD pair (cold swap)
Power Type DC (Direct Current)
Input Voltage (DC) −40 VDC to −60 VDC
Power Consumption (Avg/Max) 2,100 W / 3,100 W
Power Supplies 2+2 redundant for DC
Power Supply Output (DC) 2,200 W per power supply
Max Current (DC) 43.7 A @ 54 VDC
Thermal (Max BTU/hr) 1638
Airflow Front to back (port side to power supply side)
Operating Temperature 32 °F to 122 °F (0 °C to 50 °C)
Non-operating Temperature −4 °F to 158 °F (−20 °C to 70 °C)
Humidity 10%–90%
Maximum Altitude 10,000 ft (3,048 m)
MTBF 8.1 years
Safety / EMI cTUVus, CB / FCC Class A, CE Class A, VCCI Class A

[/properties]

[specifications]

Interface Modes L2, L3, tap, virtual wire (transparent) (L2 not available on MC-LAG aggregate interfaces)
Routing Advanced routing engine; OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; PPPoE, DHCP client; DHCPv4 server/relay; Multicast (PIM-SM/SSM, IGMPv2/v3); BFD & multihop BFD
Advanced SD-WAN Path quality (jitter, loss, latency) measurement, bandwidth monitoring, manual/IKEv1/IKEv2 key exchange, post-quantum PPK, multi-VR/LR support over overlay, Prisma Access Hub, ADEM support
IPv6 L2/L3/tap/virtual wire inspection; dual-stack & IPv6-only; IPv6 geolocation, OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 client (PD) & SLAAC server
IPsec VPN Manual, IKEv1/IKEv2; Encryption: 3DES, AES-128/192/256; Authentication: MD5, SHA-1/256/384/512; GlobalProtect Large Scale VPN; Secure access over IPsec/SSL VPN tunnels via GlobalProtect
VLANs / LAG 802.1Q VLAN tags: 4,094 per device or per interface; 802.3ad aggregate interfaces & LACP
NAT Static IP, dynamic IP, dynamic IP & port (PAT); NAT64, NPTv6; dynamic IP reservation, tunable dynamic IP, port oversubscription
High Availability / Clustering NGFW clustering (active/active); HA active/passive
Mobile Network 5G security (Future release; not supported with NGFW clustering)
Management Managed with Strata™ Cloud Manager, the industry's first AI-powered unified management and operations solution.

[/specifications]

[accesories]

Included in the box (DC SKU) 4× PAN-PA-5500-PWR-2000-DC; 5× PAN-PA-FAN-2RU-A; 1× PAN-PA-5500-ACC-B accessory kit; 1× PAN-PA-3RU-RACK-A; 2× PAN-SFP-CG; 1× PAN-PA-5500-SSD-3.84TB-PAIR
Spare – SSD Pair PAN-PA-5500-SSD-3.84TB-PAIR (spare replacement drive)
Spare – Accessory Kit (AC) PAN-PA-5500-ACC-A (includes 4× PAN-PWR-C19-US-120V cable, 1× USB cable, and 1× Cat6 cable)
Spare – Accessory Kit (DC) PAN-PA-5500-ACC-B (includes 4× PAN-PWR-DC-CBL-C cable, 1× USB cable, and 1× Cat6 cable)

[/accesories]

Growing east-west traffic, encrypted threats, and 100/400G uplinks put pressure on legacy edge firewalls. The Palo Alto Networks PA-5540-DC delivers data-center-class performance in a compact 3U chassis with Precision AI defenses and post-quantum cryptography readiness, giving you predictable security at scale without compromising throughput.

Quantum-Optimized & PQC-Ready NGFW

Designed as the world's first quantum-optimized Next-Generation Firewall (NGFW), the PA-5500 Series supports PQC use cases (PQC TLS decryption and PQC site-to-site VPN) and includes a PCIe slot for future PQ capabilities—ideal for long-lived data and compliance roadmaps.

Inline Prevention at Data-Center Speeds

Achieve 150 Gbps firewall throughput (AppMix) and 90 Gbps Threat Prevention, plus 80 Gbps IPsec VPN, 39M max concurrent sessions, and 1.33M new sessions per second—built for large east-west and internet edge workloads.

100/400G I/O for Modern Fabrics

Connect fabrics and spines with a high-density I/O of 16 × 10G/25G SFP28, 16 × 40G/100G QSFP28, and 4 × 100G/400G QSFP-DD ports; dedicated management and logging ports simplify operations.

Unified, AI-Powered Operations with Strata Cloud Manager

Operate at scale with Strata Cloud Manager, the industry's first AI-powered unified management solution. Leverage Strata Copilot for policy hygiene, anomaly detection, proactive issue resolution, and faster troubleshooting, unified across NGFW, SASE, and security services.

App- and User-Aware Control

PAN-OS natively classifies all traffic, including applications, threats, and content, tying them to the user regardless of location. App-ID and identity-based policies deliver precise Layer-7 control, safe SaaS access, and zero-trust segmentation without port-based guesswork.

  • Internet Gateways and Data-Center Edges consolidating high-bandwidth threat prevention with 100G/400G connectivity.
  • Service Provider POPs needing predictable, low-latency performance and massive session scale.
  • 5G-Native and Encrypted Traffic Environments planning for PQC migration and requiring 5G identifier-based visibility.
  • Enterprises standardizing on AI-assisted, centralized policy and lifecycle management to strengthen their security posture.
  • Firewall Throughput (AppMix): 150 Gbps
  • Threat Prevention Throughput: 90 Gbps
  • IPsec VPN Throughput: 80 Gbps
  • Max Concurrent Sessions / New SPS: 39M / 1.33M
  • Interfaces: 16 × 10/25G SFP28; 16 × 40/100G QSFP28; 4 × 100/400G QSFP-DD
  • Form Factor & Airflow: 3U, front-to-back
  • Power (DC Model): −40 to −60 VDC input, 2+2 redundant DC PSUs
  • High Availability: NGFW clustering (Active/Active) and HA (Active/Passive)

Ready for quantum-safe futures and 400G fabrics, the Palo Alto Networks PA-5540-DC delivers the performance, visibility, and manageability modern, high-speed network edges demand.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model PA-5540
Product Type Quantum Optimized Next-Generation Firewall (NGFW)
Operating System PAN-OS
Firewall Throughput (appmix) 150 Gbps
Threat Prevention Throughput (appmix) 90 Gbps
IPsec VPN Throughput 80 Gbps
Max Concurrent Sessions 39 Million (39M)
New Sessions per Second 1.33 Million (1.33M)
Virtual Systems (Base/Max) 25 / 225
Form Factor / Dimensions 3U, 19” standard rack; 5.2” H × 29.8” D × 17.3” W
I/O Ports 16× 10G/25G SFP28; 16× 40G/100G QSFP28; 4× 100G/400G QSFP-DD
Management I/O 2× 1G/10G SFP+ (OOB Mgmt); RJ-45 console; USB-C console; USB 3.2 Gen1 Type-A (bootstrap); 2× 100G/400G QSFP-DD (HSCI); 2× 10G SFP+ (Log)
Storage Optional 3.84 TB RAID1 SSD pair (cold swap)
Power Type DC (Direct Current)
Input Voltage (DC) −40 VDC to −60 VDC
Power Consumption (Avg/Max) 2,100 W / 3,100 W
Power Supplies 2+2 redundant for DC
Power Supply Output (DC) 2,200 W per power supply
Max Current (DC) 43.7 A @ 54 VDC
Thermal (Max BTU/hr) 1638
Airflow Front to back (port side to power supply side)
Operating Temperature 32 °F to 122 °F (0 °C to 50 °C)
Non-operating Temperature −4 °F to 158 °F (−20 °C to 70 °C)
Humidity 10%–90%
Maximum Altitude 10,000 ft (3,048 m)
MTBF 8.1 years
Safety / EMI cTUVus, CB / FCC Class A, CE Class A, VCCI Class A

[/properties]

[specifications]

Interface Modes L2, L3, tap, virtual wire (transparent) (L2 not available on MC-LAG aggregate interfaces)
Routing Advanced routing engine; OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; PPPoE, DHCP client; DHCPv4 server/relay; Multicast (PIM-SM/SSM, IGMPv2/v3); BFD & multihop BFD
Advanced SD-WAN Path quality (jitter, loss, latency) measurement, bandwidth monitoring, manual/IKEv1/IKEv2 key exchange, post-quantum PPK, multi-VR/LR support over overlay, Prisma Access Hub, ADEM support
IPv6 L2/L3/tap/virtual wire inspection; dual-stack & IPv6-only; IPv6 geolocation, OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 client (PD) & SLAAC server
IPsec VPN Manual, IKEv1/IKEv2; Encryption: 3DES, AES-128/192/256; Authentication: MD5, SHA-1/256/384/512; GlobalProtect Large Scale VPN; Secure access over IPsec/SSL VPN tunnels via GlobalProtect
VLANs / LAG 802.1Q VLAN tags: 4,094 per device or per interface; 802.3ad aggregate interfaces & LACP
NAT Static IP, dynamic IP, dynamic IP & port (PAT); NAT64, NPTv6; dynamic IP reservation, tunable dynamic IP, port oversubscription
High Availability / Clustering NGFW clustering (active/active); HA active/passive
Mobile Network 5G security (Future release; not supported with NGFW clustering)
Management Managed with Strata™ Cloud Manager, the industry's first AI-powered unified management and operations solution.

[/specifications]

[accesories]

Included in the box (DC SKU) 4× PAN-PA-5500-PWR-2000-DC; 5× PAN-PA-FAN-2RU-A; 1× PAN-PA-5500-ACC-B accessory kit; 1× PAN-PA-3RU-RACK-A; 2× PAN-SFP-CG; 1× PAN-PA-5500-SSD-3.84TB-PAIR
Spare – SSD Pair PAN-PA-5500-SSD-3.84TB-PAIR (spare replacement drive)
Spare – Accessory Kit (AC) PAN-PA-5500-ACC-A (includes 4× PAN-PWR-C19-US-120V cable, 1× USB cable, and 1× Cat6 cable)
Spare – Accessory Kit (DC) PAN-PA-5500-ACC-B (includes 4× PAN-PWR-DC-CBL-C cable, 1× USB cable, and 1× Cat6 cable)

[/accesories]

Solve High-Speed Edge Risk with Quantum-Ready Security

Growing east-west traffic, encrypted threats, and 100/400G uplinks put pressure on legacy edge firewalls. The Palo Alto Networks PA-5540-DC delivers data-center-class performance in a compact 3U chassis with Precision AI defenses and post-quantum cryptography readiness, giving you predictable security at scale without compromising throughput.

Key Benefits & Features

Quantum-Optimized & PQC-Ready NGFW

Designed as the world's first quantum-optimized Next-Generation Firewall (NGFW), the PA-5500 Series supports PQC use cases (PQC TLS decryption and PQC site-to-site VPN) and includes a PCIe slot for future PQ capabilities—ideal for long-lived data and compliance roadmaps.

Inline Prevention at Data-Center Speeds

Achieve 150 Gbps firewall throughput (AppMix) and 90 Gbps Threat Prevention, plus 80 Gbps IPsec VPN, 39M max concurrent sessions, and 1.33M new sessions per second—built for large east-west and internet edge workloads.

100/400G I/O for Modern Fabrics

Connect fabrics and spines with a high-density I/O of 16 × 10G/25G SFP28, 16 × 40G/100G QSFP28, and 4 × 100G/400G QSFP-DD ports; dedicated management and logging ports simplify operations.

Unified, AI-Powered Operations with Strata Cloud Manager

Operate at scale with Strata Cloud Manager, the industry's first AI-powered unified management solution. Leverage Strata Copilot for policy hygiene, anomaly detection, proactive issue resolution, and faster troubleshooting, unified across NGFW, SASE, and security services.

App- and User-Aware Control

PAN-OS natively classifies all traffic, including applications, threats, and content, tying them to the user regardless of location. App-ID and identity-based policies deliver precise Layer-7 control, safe SaaS access, and zero-trust segmentation without port-based guesswork.

Ideal Use Cases for the PA-5540-DC
  • Internet Gateways and Data-Center Edges consolidating high-bandwidth threat prevention with 100G/400G connectivity.
  • Service Provider POPs needing predictable, low-latency performance and massive session scale.
  • 5G-Native and Encrypted Traffic Environments planning for PQC migration and requiring 5G identifier-based visibility.
  • Enterprises standardizing on AI-assisted, centralized policy and lifecycle management to strengthen their security posture.
Technical Specifications at a Glance
  • Firewall Throughput (AppMix): 150 Gbps
  • Threat Prevention Throughput: 90 Gbps
  • IPsec VPN Throughput: 80 Gbps
  • Max Concurrent Sessions / New SPS: 39M / 1.33M
  • Interfaces: 16 × 10/25G SFP28; 16 × 40/100G QSFP28; 4 × 100/400G QSFP-DD
  • Form Factor & Airflow: 3U, front-to-back
  • Power (DC Model): −40 to −60 VDC input, 2+2 redundant DC PSUs
  • High Availability: NGFW clustering (Active/Active) and HA (Active/Passive)
Lock Down Your Edge with Headroom to Grow

Ready for quantum-safe futures and 400G fabrics, the Palo Alto Networks PA-5540-DC delivers the performance, visibility, and manageability modern, high-speed network edges demand.
