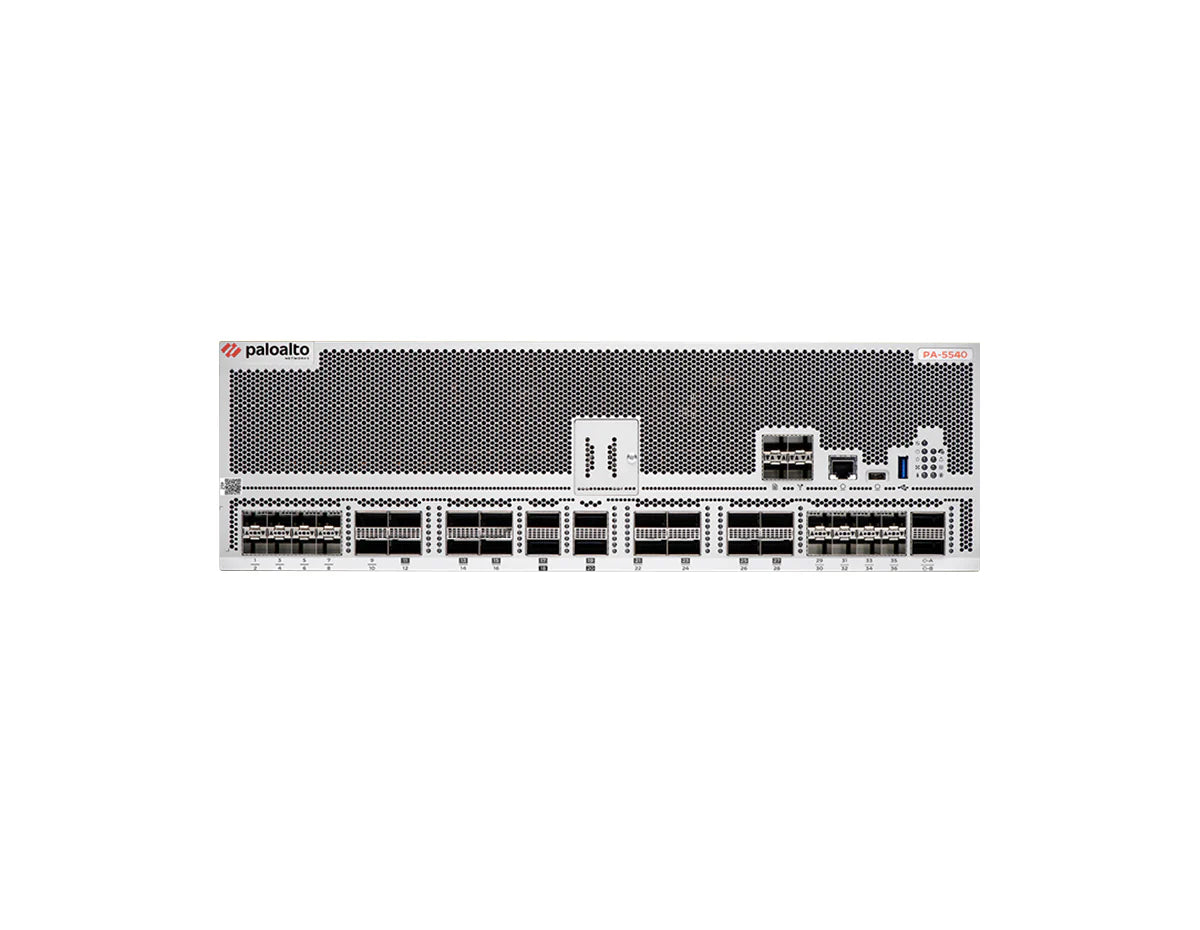

Palo Alto Networks PA-5540-AC Next-Gen Firewall 150 Gbps, PQC-Ready
Palo Alto Networks PA-5540-AC Next-Gen Firewall 150 Gbps, PQC-Ready

Palo Alto Networks PA-5540-AC Next-Gen Firewall 150 Gbps, PQC-Ready

por Palo Alto
Desconto de 10%
R$ 3.753.480,00
R$ 3.378.132,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model PA-5540
Series PA-5500 Series
Product Type Next-Generation Firewall (Quantum-optimized)
Operating System PAN-OS® (measurements cited on PAN-OS 12.1)
Form Factor 3U, 19" rack
Dimensions (H × D × W) 5.2 in × 29.8 in × 17.3 in (3U)
Weight 70 lb (standalone)
Airflow Front to back (port side to power supply side)
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature −20 °C to 70 °C (−4 °F to 158 °F)
Humidity (Operating) 10%–90%
Max Operating Altitude 3,048 m (10,000 ft)
I/O (Data) 16 × 10/25G SFP28; 16 × 40/100G QSFP28; 4 × 100/400G QSFP-DD
Management / Console I/O 2 × 1G/10G SFP+ (OOB mgmt); RJ-45 console; USB-C console; USB 3.2 Gen1 Type-A (bootstrap); 2 × 10G SFP+ (Log); 2 × 100G/400G QSFP-DD (HSCI)
Storage Optional 3.84 TB RAID1 SSD pair (cold swap)
Power (Input) AC 100–240 VAC (50–60 Hz); DC −40 to −60 VDC
Power Supplies AC: 2+2 redundant (220 V) / 3+1 (110 V); DC: 2+2 redundant
Power – Avg / Max 2,100 W / 3,100 W
Max BTU/hr 1,638
MTBF 8.1 years
Safety / EMI cTUVus, CB; FCC Class A, CE Class A, VCCI Class A

[/properties]

[specifications]

Firewall Throughput (appmix) 150 Gbps
Threat Prevention Throughput (appmix) 90 Gbps
IPsec VPN Throughput 80 Gbps
Max Concurrent Sessions 39 million
New Sessions per Second 1.33 million
Virtual Systems 25 base / 225 max
VLANs 802.1Q VLAN tags per device/per interface: 4,094 / 4,094
Routing OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCPv4 server/relay; PPPoE; Multicast (PIM-SM/SSM, IGMPv2/v3); BFD & multihop BFD
Network Address Translation IPv4: Static, Dynamic IP, Dynamic IP & Port (PAT); NAT64; NPTv6; plus dynamic IP reservation and oversubscription
IPv6 Inspection in L2/L3/tap/virtual wire; dual-stack & IPv6-only; OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server; geolocation
IPsec VPN IKEv1/IKEv2; manual key; Encryption: 3DES, AES-128/192/256; Authentication: MD5, SHA-1/256/384/512; GlobalProtect® VPN support
High Availability / Clustering NGFW clustering (A/A) and HA A/P (note: some elements are roadmap-dependent)
TLS/Decryption Outbound/inbound SSL/TLS (v1.1/1.2/1.3); classical RSA/ECDHE/DHE and post-quantum ML-KEM/HQC key exchanges; policy-based controls
Management Strata™ Cloud Manager; single-pass architecture; App-ID™, User-ID, Precision AI® services (CDSS)

[/specifications]

[accesories]

Included (PA-5540-AC bundle) 4 × PAN-PA-5500-PWR-2700-AC; 5 × PAN-PA-FAN-2RU-A; 1 × PAN-PA-5500-ACC-A accessory kit; 1 × PAN-PA-3RU-RACK-A; 2 × PAN-SFP-CG; 1 × PAN-PA-5500-SSD-3.84TB-PAIR
Spare / Optional PAN-PA-5500-SSD-3.84TB-PAIR (spare); PAN-PA-5500-ACC-A (AC kit: 4 × PAN-PWR-C19-US-120V + USB cable + Cat6); PAN-PA-5500-ACC-B (DC kit: 4 × PAN-PWR-DC-CBL-C + USB cable + Cat6)

[/accesories]

The Palo Alto Networks PA-5540 delivers data center grade throughput with deep security inspection in a compact 3U chassis. It brings ML powered defenses, predictable latency, and unified operations so you can scale east west and internet edge security without sacrificing performance or manageability.

  • Quantum ready decryption and VPN: Post quantum cryptography support in PAN-OS helps future proof SSL/TLS inspection and site to site VPN while maintaining strong performance.
  • Single pass architecture for consistency: Networking, policy lookup, application decoding, and signature matching run in one pass to keep latency low even with full security services enabled.
  • AI assisted operations and visibility: Strata Cloud Manager and Strata Copilot provide real time insights, best practice guidance, and proactive issue detection across deployments.
  • Application and identity aware control: App-ID and User-ID enforce precise policies by application and user to secure SaaS, reduce lateral movement, and align with Zero Trust.
  • Built to scale and stay online: High availability and clustering options increase resiliency, while rich routing and SD-WAN features integrate cleanly into complex networks.
  • Data centers and internet gateways requiring high throughput with deep inspection
  • Large campus cores consolidating advanced security at scale
  • Enterprises standardizing on centralized, cloud managed operations
  • Zero Trust initiatives needing app and identity based control across encrypted traffic
  • Firewall Throughput: up to 150 Gbps
  • Threat Prevention Throughput: up to 90 Gbps
  • IPsec VPN Throughput: up to 80 Gbps
  • Max Concurrent Sessions: up to 39,000,000
  • New Sessions per Second: up to 1,330,000
  • Interfaces: 16x10/25G SFP28, 16x40/100G QSFP28, 4x100/400G QSFP-DD
  • Form Factor: 3U 19 inch rack mount, front to back airflow
  • Management: Strata™ Cloud Manager; single-pass architecture; App-ID™, User-ID, Precision AI® services (CDSS)

Upgrade to the PA-5540 for high speed, low latency protection with AI assisted operations. Contact us for a tailored quote and deployment guidance.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model PA-5540
Series PA-5500 Series
Product Type Next-Generation Firewall (Quantum-optimized)
Operating System PAN-OS® (measurements cited on PAN-OS 12.1)
Form Factor 3U, 19" rack
Dimensions (H × D × W) 5.2 in × 29.8 in × 17.3 in (3U)
Weight 70 lb (standalone)
Airflow Front to back (port side to power supply side)
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature −20 °C to 70 °C (−4 °F to 158 °F)
Humidity (Operating) 10%–90%
Max Operating Altitude 3,048 m (10,000 ft)
I/O (Data) 16 × 10/25G SFP28; 16 × 40/100G QSFP28; 4 × 100/400G QSFP-DD
Management / Console I/O 2 × 1G/10G SFP+ (OOB mgmt); RJ-45 console; USB-C console; USB 3.2 Gen1 Type-A (bootstrap); 2 × 10G SFP+ (Log); 2 × 100G/400G QSFP-DD (HSCI)
Storage Optional 3.84 TB RAID1 SSD pair (cold swap)
Power (Input) AC 100–240 VAC (50–60 Hz); DC −40 to −60 VDC
Power Supplies AC: 2+2 redundant (220 V) / 3+1 (110 V); DC: 2+2 redundant
Power – Avg / Max 2,100 W / 3,100 W
Max BTU/hr 1,638
MTBF 8.1 years
Safety / EMI cTUVus, CB; FCC Class A, CE Class A, VCCI Class A

[/properties]

[specifications]

Firewall Throughput (appmix) 150 Gbps
Threat Prevention Throughput (appmix) 90 Gbps
IPsec VPN Throughput 80 Gbps
Max Concurrent Sessions 39 million
New Sessions per Second 1.33 million
Virtual Systems 25 base / 225 max
VLANs 802.1Q VLAN tags per device/per interface: 4,094 / 4,094
Routing OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCPv4 server/relay; PPPoE; Multicast (PIM-SM/SSM, IGMPv2/v3); BFD & multihop BFD
Network Address Translation IPv4: Static, Dynamic IP, Dynamic IP & Port (PAT); NAT64; NPTv6; plus dynamic IP reservation and oversubscription
IPv6 Inspection in L2/L3/tap/virtual wire; dual-stack & IPv6-only; OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server; geolocation
IPsec VPN IKEv1/IKEv2; manual key; Encryption: 3DES, AES-128/192/256; Authentication: MD5, SHA-1/256/384/512; GlobalProtect® VPN support
High Availability / Clustering NGFW clustering (A/A) and HA A/P (note: some elements are roadmap-dependent)
TLS/Decryption Outbound/inbound SSL/TLS (v1.1/1.2/1.3); classical RSA/ECDHE/DHE and post-quantum ML-KEM/HQC key exchanges; policy-based controls
Management Strata™ Cloud Manager; single-pass architecture; App-ID™, User-ID, Precision AI® services (CDSS)

[/specifications]

[accesories]

Included (PA-5540-AC bundle) 4 × PAN-PA-5500-PWR-2700-AC; 5 × PAN-PA-FAN-2RU-A; 1 × PAN-PA-5500-ACC-A accessory kit; 1 × PAN-PA-3RU-RACK-A; 2 × PAN-SFP-CG; 1 × PAN-PA-5500-SSD-3.84TB-PAIR
Spare / Optional PAN-PA-5500-SSD-3.84TB-PAIR (spare); PAN-PA-5500-ACC-A (AC kit: 4 × PAN-PWR-C19-US-120V + USB cable + Cat6); PAN-PA-5500-ACC-B (DC kit: 4 × PAN-PWR-DC-CBL-C + USB cable + Cat6)

[/accesories]

High Speed Protection for Modern Data Centers

The Palo Alto Networks PA-5540 delivers data center grade throughput with deep security inspection in a compact 3U chassis. It brings ML powered defenses, predictable latency, and unified operations so you can scale east west and internet edge security without sacrificing performance or manageability.

Key Benefits & Features
  • Quantum ready decryption and VPN: Post quantum cryptography support in PAN-OS helps future proof SSL/TLS inspection and site to site VPN while maintaining strong performance.
  • Single pass architecture for consistency: Networking, policy lookup, application decoding, and signature matching run in one pass to keep latency low even with full security services enabled.
  • AI assisted operations and visibility: Strata Cloud Manager and Strata Copilot provide real time insights, best practice guidance, and proactive issue detection across deployments.
  • Application and identity aware control: App-ID and User-ID enforce precise policies by application and user to secure SaaS, reduce lateral movement, and align with Zero Trust.
  • Built to scale and stay online: High availability and clustering options increase resiliency, while rich routing and SD-WAN features integrate cleanly into complex networks.
Ideal Use Cases
  • Data centers and internet gateways requiring high throughput with deep inspection
  • Large campus cores consolidating advanced security at scale
  • Enterprises standardizing on centralized, cloud managed operations
  • Zero Trust initiatives needing app and identity based control across encrypted traffic
Technical Specifications
  • Firewall Throughput: up to 150 Gbps
  • Threat Prevention Throughput: up to 90 Gbps
  • IPsec VPN Throughput: up to 80 Gbps
  • Max Concurrent Sessions: up to 39,000,000
  • New Sessions per Second: up to 1,330,000
  • Interfaces: 16x10/25G SFP28, 16x40/100G QSFP28, 4x100/400G QSFP-DD
  • Form Factor: 3U 19 inch rack mount, front to back airflow
  • Management: Strata™ Cloud Manager; single-pass architecture; App-ID™, User-ID, Precision AI® services (CDSS)
Scale Security With Confidence

Upgrade to the PA-5540 for high speed, low latency protection with AI assisted operations. Contact us for a tailored quote and deployment guidance.
