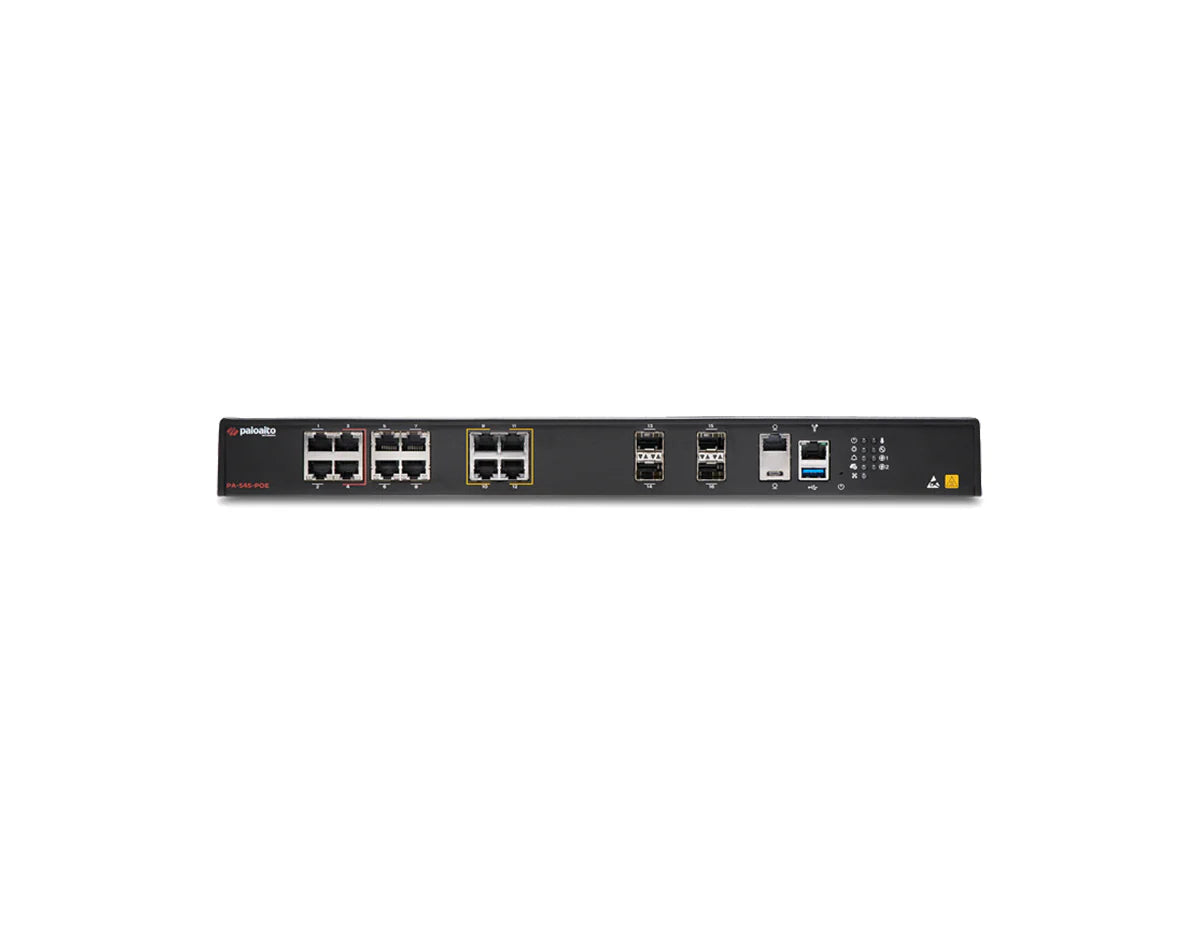

Palo Alto Networks PA-545-PoE Next-Generation Firewall 5 Gbps
Palo Alto Networks PA-545-PoE Next-Generation Firewall 5 Gbps

Palo Alto Networks PA-545-PoE Next-Generation Firewall 5 Gbps

por Palo Alto
Desconto de 10%
R$ 72.360,00
R$ 65.124,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model PA-545-POE
Product Type Next-Generation Firewall (NGFW)
Firewall Throughput (Appmix) 5.0 Gbps
Threat Prevention Throughput (Appmix) 3.0 Gbps
IPsec VPN Throughput 3.0 Gbps
Max Concurrent Sessions 298K
New Sessions per Second 55K
Virtual Systems (Base / Max) 1 / 2
Interfaces (Data) 1G RJ45 (8); 1G/2.5G RJ45 PoE (4); 1G SFP (4)
Management I/O 10/100/1000 Mgmt (1); USB (1); RJ45 Console (1); USB-C Console (1)
Storage Capacity 120 GB
PoE Total budget 181 W; PoE ports 4; up to 90 W per port
Max Power Consumption 336 W (with 181 W PoE output)
Max Heat (BTU/hr) 1145 (with 181 W PoE output)
Input Voltage / Frequency 100–240 VAC, 50–60 Hz
Max Current Consumption 6 A @ 54 VDC
Dimensions (H × D × W) 1.75″ H × 12.6″ D × 16.1″ W (43.9 mm H × 314 mm D × 409 mm W)
Weight (Standalone / As Shipped) 13.5 lb / 19.8 lb
Operating Temperature 0–40 °C (32–104 °F)
Non-operating Temperature −20–70 °C (−4–158 °F)
Cooling Passive
Safety cTUVus, CB
EMI FCC Class A, CE Class A, VCCI Class A

[/properties]

[specifications]

Interface Modes L2, L3, TAP, Virtual Wire (transparent)
Routing OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCPv4 server; PPPoE and DHCP clients
Multicast PIM-SM, PIM-SSM, IGMPv2/v3
Advanced SD-WAN Path quality measurement, bandwidth monitoring, manual key/IKEv1/IKEv2, post-quantum PPK, multi-VR/LR, Prisma Access Hub, ADEM
IPv6 Dual-stack and IPv6-only; IPv6 geolocation, OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server
IPsec / SSL VPN Key exchange: Manual, IKEv1, IKEv2; Encryption: 3DES, AES-128/192/256; Auth: MD5, SHA-1/256/384/512; GlobalProtect gateway and portals*
TLS/Decryption (Overview) Inspection of SSL/TLS including TLS 1.3; classic key exchanges (RSA, ECDHE, DHE) and post-quantum ML-KEM/HQC supported
Management & Operations Strata Cloud Manager with AI-assisted operations and best-practice recommendations

[/specifications]

[accesories]

Compatible Power Adapters PAN-PWR-350W-54V-AC-A (spare power adapter)
Rack Mount Options PAN-1RU-4POST-RACK-12 (1RU 4-post rack for one PA-545-POE and two power adapters)

[/accesories]

The Palo Alto Networks PA-545-PoE delivers advanced next-generation firewall performance with integrated Power over Ethernet (PoE) for branch offices and midsize enterprises. Built on the powerful Strata™ platform and driven by Precision AI®, it combines real-time threat prevention, streamlined Zero Touch Provisioning (ZTP), and energy-efficient operation in a single 1RU appliance.

AI-Driven Threat Prevention

Powered by Precision AI®, the PA-545-PoE analyzes and blocks zero-day malware, ransomware, and phishing attempts with inline signatureless attack prevention, stopping file-based attacks and never-before-seen threats. With 3 Gbps threat prevention throughput, it safeguards users, applications, and data across hybrid environments.

High-Performance, PoE-Enabled Connectivity

Delivering up to 5 Gbps firewall throughput and a total PoE budget of 181 W across four ports (max 90 W each), the PA-545-PoE consolidates security and power for IP phones, cameras, and access points—ideal for distributed sites.

Zero Touch Provisioning & Unified Management

Deployment is effortless with Zero Touch Provisioning (ZTP) and centralized visibility through Strata Cloud Manager. Manage firewalls, SD-WAN, and SASE environments under one unified, AI-powered console.

Quantum-Ready Encryption & SSL/TLS Inspection

Future-proof your network with post-quantum cryptography (PQC) support for SSL/TLS and VPNs, while maintaining visibility into encrypted traffic without performance compromise.

Energy-Efficient and Silent Operation

Designed for office and retail deployments, the PA-545-PoE features passive cooling and efficient 336 W max power draw (including PoE), ensuring low noise and operational reliability.

  • Enterprise branch and retail edge sites needing unified NGFW + PoE connectivity
  • Mid-market organizations deploying secure SD-WAN with integrated policy control
  • IoT-rich environments powering PoE endpoints under a single security platform
  • IT teams pursuing zero-touch, AI-assisted management at the edge
  • Firewall Throughput (AppMix): 5.0 Gbps
  • Threat Prevention Throughput: 3.0 Gbps
  • IPsec VPN Throughput: 3.0 Gbps
  • Max Concurrent Sessions: 298,000
  • New Sessions per Second: 55,000
  • Virtual Systems (Base/Max): 1 / 2
  • Interfaces: 8 × 1 G RJ45, 4 × 1 G / 2.5 G PoE, 4 × 1 G SFP
  • PoE Budget: 181 W (90 W max per port)
  • Storage: 120 GB SSD with TPM security
  • Cooling: Passive (fanless)
  • Dimensions: 1.75″ H × 12.6″ D × 16.1″ W / 13.5 lbs
  • Power: 336 W max (6 A @ 54 VDC)
  • Certifications: FCC Class A, CE Class A, VCCI Class A
  • Operating Temperature: 32°F – 104°F (0°C – 40°C)

Protect your distributed edge with the PA-545-PoE NGFW, the perfect balance of performance, AI-driven defense, and integrated PoE flexibility.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model PA-545-POE
Product Type Next-Generation Firewall (NGFW)
Firewall Throughput (Appmix) 5.0 Gbps
Threat Prevention Throughput (Appmix) 3.0 Gbps
IPsec VPN Throughput 3.0 Gbps
Max Concurrent Sessions 298K
New Sessions per Second 55K
Virtual Systems (Base / Max) 1 / 2
Interfaces (Data) 1G RJ45 (8); 1G/2.5G RJ45 PoE (4); 1G SFP (4)
Management I/O 10/100/1000 Mgmt (1); USB (1); RJ45 Console (1); USB-C Console (1)
Storage Capacity 120 GB
PoE Total budget 181 W; PoE ports 4; up to 90 W per port
Max Power Consumption 336 W (with 181 W PoE output)
Max Heat (BTU/hr) 1145 (with 181 W PoE output)
Input Voltage / Frequency 100–240 VAC, 50–60 Hz
Max Current Consumption 6 A @ 54 VDC
Dimensions (H × D × W) 1.75″ H × 12.6″ D × 16.1″ W (43.9 mm H × 314 mm D × 409 mm W)
Weight (Standalone / As Shipped) 13.5 lb / 19.8 lb
Operating Temperature 0–40 °C (32–104 °F)
Non-operating Temperature −20–70 °C (−4–158 °F)
Cooling Passive
Safety cTUVus, CB
EMI FCC Class A, CE Class A, VCCI Class A

[/properties]

[specifications]

Interface Modes L2, L3, TAP, Virtual Wire (transparent)
Routing OSPFv2/v3, MP-BGP, RIP, static; policy-based forwarding; DHCPv4 server; PPPoE and DHCP clients
Multicast PIM-SM, PIM-SSM, IGMPv2/v3
Advanced SD-WAN Path quality measurement, bandwidth monitoring, manual key/IKEv1/IKEv2, post-quantum PPK, multi-VR/LR, Prisma Access Hub, ADEM
IPv6 Dual-stack and IPv6-only; IPv6 geolocation, OSPFv3, MP-BGP, NAT64, NPTv6; DHCPv6 PD; SLAAC server
IPsec / SSL VPN Key exchange: Manual, IKEv1, IKEv2; Encryption: 3DES, AES-128/192/256; Auth: MD5, SHA-1/256/384/512; GlobalProtect gateway and portals*
TLS/Decryption (Overview) Inspection of SSL/TLS including TLS 1.3; classic key exchanges (RSA, ECDHE, DHE) and post-quantum ML-KEM/HQC supported
Management & Operations Strata Cloud Manager with AI-assisted operations and best-practice recommendations

[/specifications]

[accesories]

Compatible Power Adapters PAN-PWR-350W-54V-AC-A (spare power adapter)
Rack Mount Options PAN-1RU-4POST-RACK-12 (1RU 4-post rack for one PA-545-POE and two power adapters)

[/accesories]

Enterprise-Grade Security Meets Edge Simplicity

The Palo Alto Networks PA-545-PoE delivers advanced next-generation firewall performance with integrated Power over Ethernet (PoE) for branch offices and midsize enterprises. Built on the powerful Strata™ platform and driven by Precision AI®, it combines real-time threat prevention, streamlined Zero Touch Provisioning (ZTP), and energy-efficient operation in a single 1RU appliance.

Key Benefits & Features

AI-Driven Threat Prevention

Powered by Precision AI®, the PA-545-PoE analyzes and blocks zero-day malware, ransomware, and phishing attempts with inline signatureless attack prevention, stopping file-based attacks and never-before-seen threats. With 3 Gbps threat prevention throughput, it safeguards users, applications, and data across hybrid environments.

High-Performance, PoE-Enabled Connectivity

Delivering up to 5 Gbps firewall throughput and a total PoE budget of 181 W across four ports (max 90 W each), the PA-545-PoE consolidates security and power for IP phones, cameras, and access points—ideal for distributed sites.

Zero Touch Provisioning & Unified Management

Deployment is effortless with Zero Touch Provisioning (ZTP) and centralized visibility through Strata Cloud Manager. Manage firewalls, SD-WAN, and SASE environments under one unified, AI-powered console.

Quantum-Ready Encryption & SSL/TLS Inspection

Future-proof your network with post-quantum cryptography (PQC) support for SSL/TLS and VPNs, while maintaining visibility into encrypted traffic without performance compromise.

Energy-Efficient and Silent Operation

Designed for office and retail deployments, the PA-545-PoE features passive cooling and efficient 336 W max power draw (including PoE), ensuring low noise and operational reliability.

Ideal Use Cases
  • Enterprise branch and retail edge sites needing unified NGFW + PoE connectivity
  • Mid-market organizations deploying secure SD-WAN with integrated policy control
  • IoT-rich environments powering PoE endpoints under a single security platform
  • IT teams pursuing zero-touch, AI-assisted management at the edge
Technical Specifications
  • Firewall Throughput (AppMix): 5.0 Gbps
  • Threat Prevention Throughput: 3.0 Gbps
  • IPsec VPN Throughput: 3.0 Gbps
  • Max Concurrent Sessions: 298,000
  • New Sessions per Second: 55,000
  • Virtual Systems (Base/Max): 1 / 2
  • Interfaces: 8 × 1 G RJ45, 4 × 1 G / 2.5 G PoE, 4 × 1 G SFP
  • PoE Budget: 181 W (90 W max per port)
  • Storage: 120 GB SSD with TPM security
  • Cooling: Passive (fanless)
  • Dimensions: 1.75″ H × 12.6″ D × 16.1″ W / 13.5 lbs
  • Power: 336 W max (6 A @ 54 VDC)
  • Certifications: FCC Class A, CE Class A, VCCI Class A
  • Operating Temperature: 32°F – 104°F (0°C – 40°C)
Secure. Scalable. Ready for the Future.

Protect your distributed edge with the PA-545-PoE NGFW, the perfect balance of performance, AI-driven defense, and integrated PoE flexibility.
