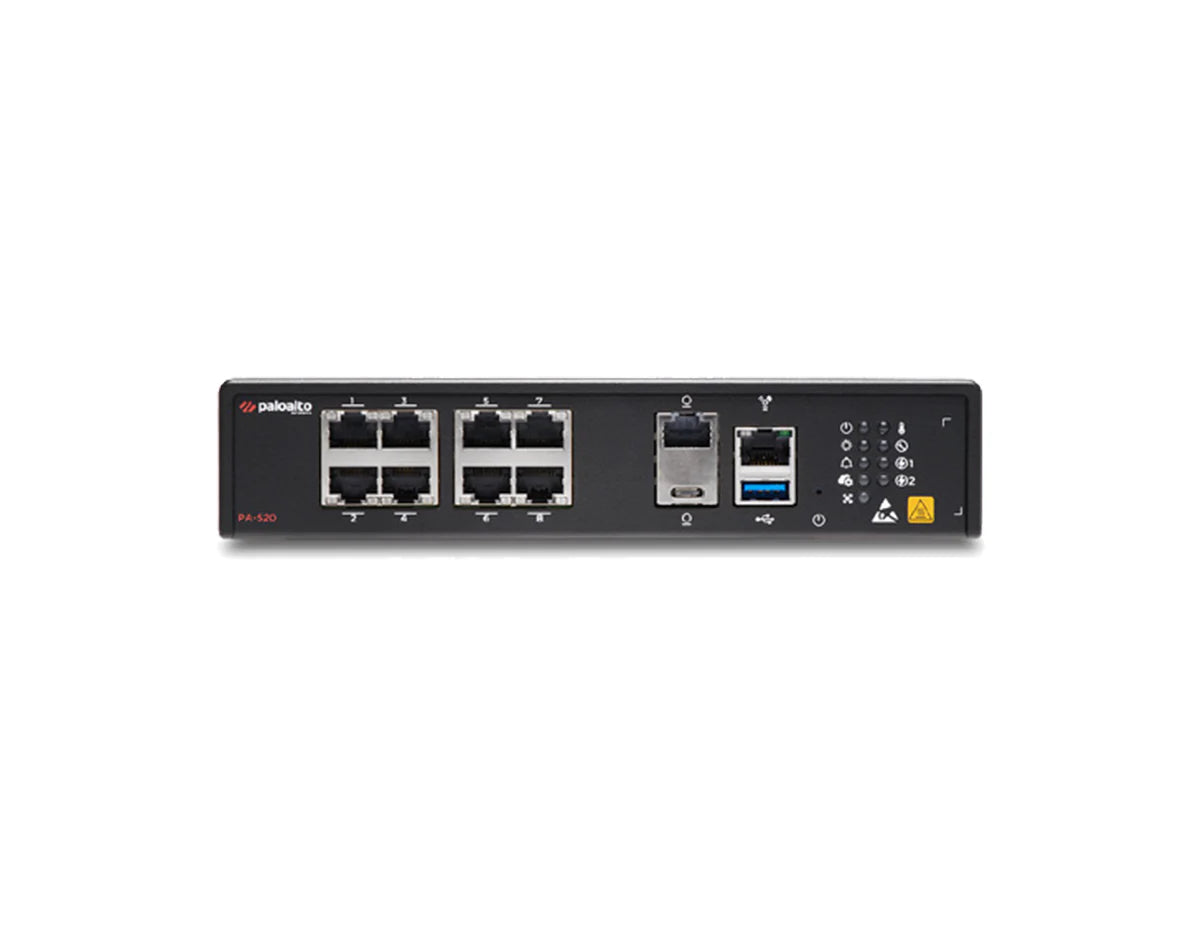

Palo Alto Networks PA-520 Next-Generation Firewall 2.8 Gbps
Palo Alto Networks PA-520 Next-Generation Firewall 2.8 Gbps

Palo Alto Networks PA-520 Next-Generation Firewall 2.8 Gbps

por Palo Alto
Desconto de 10%
R$ 22.200,00
R$ 19.980,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need. [/shortdesc]

[properties]

Model Palo Alto Networks PA-520
Product Type Next-Generation Firewall (Security Appliance)
Firewall Throughput (appmix) 2.8 Gbps
Threat Prevention Throughput (appmix) 1.8 Gbps
IPsec VPN Throughput 1.5 Gbps
Max Concurrent Sessions 148,000
New Sessions per Second 25,000
Virtual Systems (base / max) 1/2
I/O (Data) 8 × 1G RJ45
Management I/O 1 × 10/100/1000 (OOB mgmt), 1 × USB, 1 × RJ45 console, 1 × USB-C console
Storage Capacity 120 GB
Trusted Platform Module Integrated TPM (secure boot, hardware root of trust)
Max Power Consumption 30 W
Input Voltage / Frequency 100–240 VAC, 50–60 Hz
Max Heat (BTU/hr) 102
Dimensions (H × D × W) 1.74 in × 10.4 in × 8.0 in (43.9 mm × 265 mm × 203 mm)
Weight 5.8 lb (Standalone Device)
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Nonoperating Temperature −4 °F to 158 °F (−20 °C to 70 °C)
Cooling Passive
EMI FCC Class A, CE Class A, VCCI Class A
Safety cTUVus, CB
Form Factor 1RU, rack-mountable

[/properties]

[specifications]

Interface Modes L2, L3, Tap, Virtual Wire (transparent)
Routing OSPFv2/v3, MP-BGP, RIP, Static; Policy-based forwarding
SD-WAN Path quality measurement (jitter, loss, latency), bandwidth monitoring
IPv6 Features Dual-stack & IPv6-only; IPv6 inspection; OSPFv3, MP-BGP; NAT64, NPTv6; DHCPv6 PD; SLAAC server
VPN (IPsec / SSL) IKEv1/v2 (PSK & cert), Manual key; Encryption 3DES, AES-128/192/256; Auth MD5, SHA-1/256/384/512
VLANs & LAG 802.1Q (4094 per device / 4094 per interface); 802.3ad, LACP
Decryption / TLS Support Inbound & outbound SSL/TLS decryption; SSLv3, TLS 1.1/1.2/1.3; classic RSA/ECDHE/DHE and PQC key exchanges (ML-KEM, HQC)
AI/Management Strata™ Cloud Manager; Zero Touch Provisioning (ZTP); single-pass architecture
Security Services (Platform) Advanced Threat Prevention, Advanced WildFire®, Advanced URL Filtering, Advanced DNS Security, Device/SaaS/AI Access Security (service-dependent)
Storage / Logging Onboard SSD 120 GB
Compliance/Certs See vendor compliance list (EMI/Safety as above)

[/specifications]

[accesories]

Power Adapters PAN-PWR-150W-12V-AC-A - 150W spare AC power adapter (compatible with PA-520)
Rack Mounts PAN-1RU-4POST-RACK-11 - 1RU 4-post rack (supports two PA-520 units & four adapters)

[/accesories]

The Palo Alto Networks PA-520 is part of the next-generation PA-500 Series, purpose-built for distributed enterprise branches and midsize organizations that require high-performance security in a compact, rack-mountable form. Powered by Precision AI® and PAN-OS® 12.1, the PA-520 delivers a proven 2.8 Gbps firewall throughput and 1.8 Gbps threat prevention, blending machine learning with deep Layer 7 visibility. Designed for zero-touch deployment and centralized management via Strata™ Cloud Manager, it gives network teams complete control with minimal complexity.

Engineered with Palo Alto’s single-pass architecture and inline ML-driven analysis, the PA-520 protects against advanced threats while maintaining predictable performance even with full security services enabled.

AI-Driven Threat Prevention

With Precision AI®, the PA-520 analyzes and prevents threats in real time, blocking zero-day malware, ransomware, and phishing attacks before they reach users. Inline ML and Advanced WildFire® deliver proactive defense across all traffic.

Cloud-Managed Simplicity

Through Strata Cloud Manager, the PA-520 provides unified visibility and lifecycle management across firewalls, SASE, and SD-WAN environments. Built-in analytics help detect and resolve policy gaps, latency issues, and vulnerabilities rapidly.

High-Performance Single-Pass Architecture

The single-pass architecture processes networking, policy lookup, and threat inspection in one flow, reducing latency and ensuring predictable throughput even under heavy load. This approach enables consistent App-ID™ and User-ID™ enforcement across all traffic.

Quantum-Ready Encryption Support

The PA-520 supports post-quantum cryptography (PQC) options for decryption and VPN, helping future-proof data in transit as cryptographic standards evolve.

  • Enterprise branch offices needing high-throughput NGFW protection in a compact form factor.
  • Retail and healthcare sites requiring quiet, energy-efficient security devices (Passive Cooling).
  • Service providers and managed networks that depend on centralized cloud management.
  • Organizations pursuing Zero Trust with user- and application-aware security policies.
  • Firewall Throughput (AppMix): 2.8 Gbps
  • Threat Prevention Throughput: 1.8 Gbps
  • IPsec VPN Throughput: 1.5 Gbps
  • Max Concurrent Sessions: 148,000
  • New Sessions per Second: 25,000
  • Interfaces: 8 × 1 GbE RJ-45, 1 × Mgmt RJ-45, USB-C console, USB
  • Storage: 120 GB SSD
  • Power Consumption: 30 W max
  • Cooling: Passive (fanless)
  • Form Factor: 1U rack-mountable (1.74 in H × 10.4 in D × 8 in W)
  • Operating Temperature: 32 °F – 104 °F (0 °C – 40 °C)
  • Certifications: FCC Class A, CE Class A, VCCI Class A

Empower your network edge with AI-powered, cloud-managed defense. The Palo Alto Networks PA-520 delivers enterprise-class performance, Precision AI security, and simplified operations in one compact platform.
