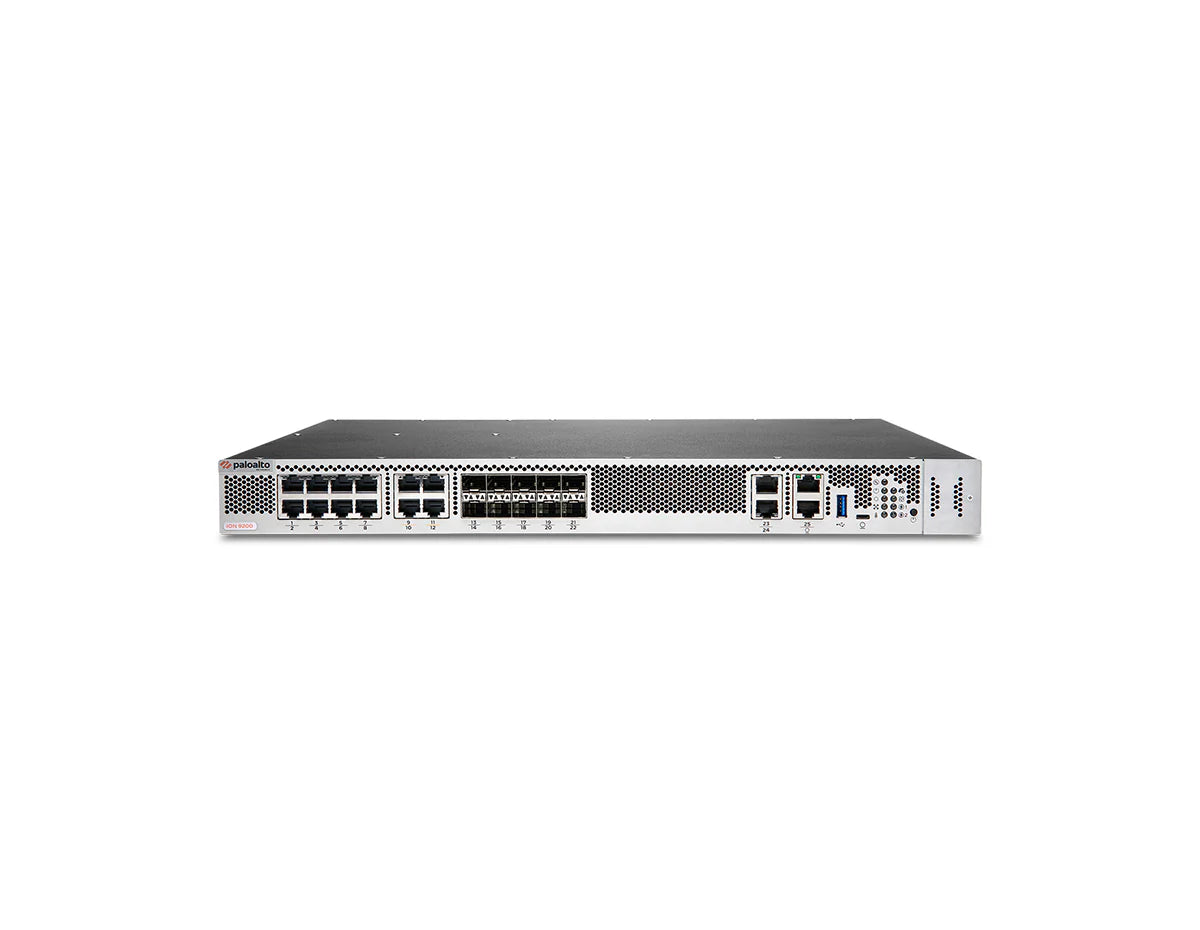

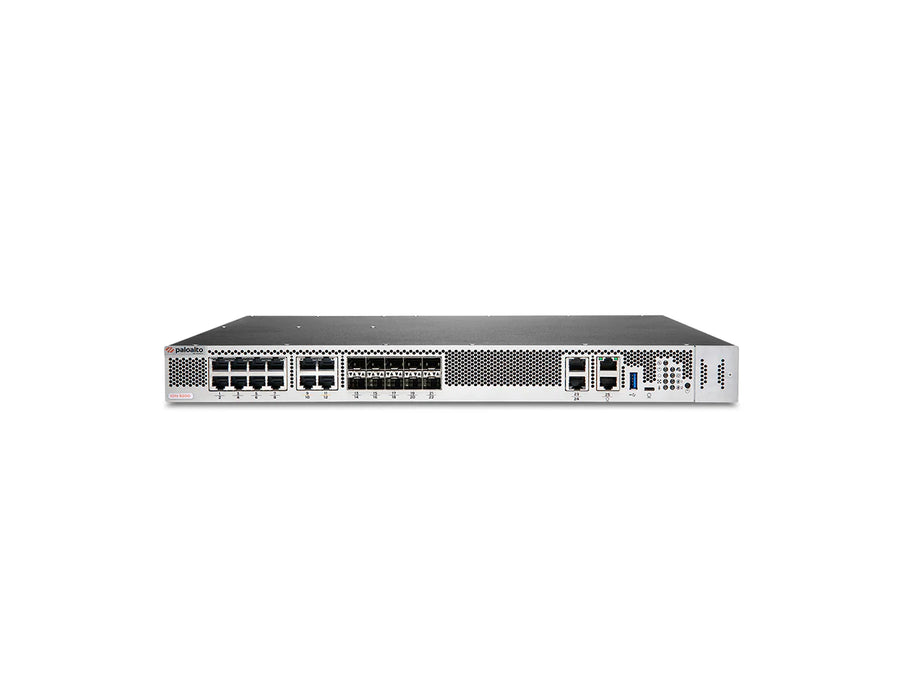

Palo Alto ION 9200 Secure SD-WAN Edge Appliance
Palo Alto ION 9200 Secure SD-WAN Edge Appliance

Palo Alto ION 9200 Secure SD-WAN Edge Appliance

por Palo Alto
Desconto de 10%
R$ 144.000,00
R$ 129.114,12
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc]

[properties]

Brand Palo Alto Networks
Model ION 9200
Product Type Prisma SD-WAN Data Center Appliance
Form Factor 1U Rack-mount
Rack Mount Dimensions (H x D x W) 1.70" x 17.15" x 14.15"
Weight 15.5 lbs (7.03 kg)
Cooling Front-to-rear airflow, 4 x fans

[/properties] [specifications]

Console Ports 1 x RJ-45 UART, 1 x Micro USB Type-B
WAN/LAN Ports 11 x 1G RJ-45, 10 x 10G/1G SFP+, 4 x MGig 1G/2.5G/5G PoE++
USB Ports 1 x Type-A
Bypass Ports Ports 1–8 (4 pairs) – 1G RJ-45
PoE Ports Ports 9–12, MGig ports, 150W total system, max 90W per port
SFP+ Ports Ports 13–22, 10G/1G
Flash Storage 480GB Internal + 480GB External (field-replaceable NVMe SSD)
Memory 64GB
Power Supply 2 x 450W AC (100–240V, 50–60Hz), hot-swappable, redundant
Certifications IEC 62368-1, cTUVus, FCC & CE Class A, TEC, KCC
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 5%–90% non-condensing
Storage Humidity 5%–95% non-condensing
Mounting Options Four-post rack mount

[/specifications] [accesories]

Rack Mount Kit Included in the box
Mounting Brackets (Adjustable, Left & Right) Included in the box
Rear Support Brackets Included in the box
Power Cords 2 x AC power cords (region-specific)
Shielded Ethernet Cable 1 x RJ-45 CAT6
Rack-Mount Screws 13 x #6-32 x 5/16”, 9 x #10-32 x 3/4”, 9 x #12-24 x 1/2”
Nut Cages 8 x #10-32
Documentation End User License Agreement

[/accesories]

The Palo Alto Networks ION 9200 is designed for enterprises, large campuses, and data centers that require robust throughput, reliable uptime, and scalable performance. It offers multi-gigabit capacity, versatile port options, and enterprise-grade redundancy, ensuring dependable, high-speed connectivity for critical operations.

  • Flexible Multi-Speed Connectivity: 22 Ethernet ports including 11 x 1G RJ-45, 10 x 10G/1G SFP+, and 4 x Multi-Gigabit PoE++ ports delivering up to 90W per port (150W total).
  • Enterprise-Grade Performance: 64GB memory with 480GB internal and 480GB field-replaceable NVMe SSD for high-demand SD-WAN functions.
  • Advanced PoE++ Capability: Ports 9–12 power devices like access points, cameras, and VoIP systems directly.
  • Operational Efficiency: Forced-air cooling with four fans and compliance with IEC 62368-1, FCC & CE Class A, TEC, and KCC standards.
  • Large enterprises managing multiple WAN uplinks and network segmentation
  • Campus networks requiring PoE++ for connected devices
  • Data centers needing high-port-density SD-WAN with redundant power
  • Ports: 11 x 1G RJ-45, 10 x 10G/1G SFP+, 4 x 1G/2.5G/5G PoE++
  • PoE Budget: 150W total, 90W max per port
  • Storage: 480GB internal NVMe SSD + 480GB field-replaceable NVMe SSD
  • Memory: 64GB
  • Power Supply: Dual 450W AC (hot-swappable)
  • Cooling: Forced air, 4 fans, front-to-rear airflow
  • Dimensions: 14.15” x 17.15” x 1.70”
  • Weight: 15.5 lbs
  • Mounting: Four-post rack mount

Upgrade your network edge with the Palo Alto Networks ION 9200 for speed, resilience, and intelligent routing. Order now to optimize your enterprise SD-WAN performance.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]A support service contract is required unless your organization has an active Enterprise Support Agreement (ESA). 1-year, 3-year, and 5-year support options are available. Please contact us before fulfillment to confirm the correct support option or any additional Palo Alto licenses you may need.[/shortdesc]

[properties]

Brand Palo Alto Networks
Model ION 9200
Product Type Prisma SD-WAN Data Center Appliance
Form Factor 1U Rack-mount
Rack Mount Dimensions (H x D x W) 1.70" x 17.15" x 14.15"
Weight 15.5 lbs (7.03 kg)
Cooling Front-to-rear airflow, 4 x fans

[/properties] [specifications]

Console Ports 1 x RJ-45 UART, 1 x Micro USB Type-B
WAN/LAN Ports 11 x 1G RJ-45, 10 x 10G/1G SFP+, 4 x MGig 1G/2.5G/5G PoE++
USB Ports 1 x Type-A
Bypass Ports Ports 1–8 (4 pairs) – 1G RJ-45
PoE Ports Ports 9–12, MGig ports, 150W total system, max 90W per port
SFP+ Ports Ports 13–22, 10G/1G
Flash Storage 480GB Internal + 480GB External (field-replaceable NVMe SSD)
Memory 64GB
Power Supply 2 x 450W AC (100–240V, 50–60Hz), hot-swappable, redundant
Certifications IEC 62368-1, cTUVus, FCC & CE Class A, TEC, KCC
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 5%–90% non-condensing
Storage Humidity 5%–95% non-condensing
Mounting Options Four-post rack mount

[/specifications] [accesories]

Rack Mount Kit Included in the box
Mounting Brackets (Adjustable, Left & Right) Included in the box
Rear Support Brackets Included in the box
Power Cords 2 x AC power cords (region-specific)
Shielded Ethernet Cable 1 x RJ-45 CAT6
Rack-Mount Screws 13 x #6-32 x 5/16”, 9 x #10-32 x 3/4”, 9 x #12-24 x 1/2”
Nut Cages 8 x #10-32
Documentation End User License Agreement

[/accesories]

High-Performance SD-WAN for Enterprise Demands

The Palo Alto Networks ION 9200 is designed for enterprises, large campuses, and data centers that require robust throughput, reliable uptime, and scalable performance. It offers multi-gigabit capacity, versatile port options, and enterprise-grade redundancy, ensuring dependable, high-speed connectivity for critical operations.

Key Benefits & Features
  • Flexible Multi-Speed Connectivity: 22 Ethernet ports including 11 x 1G RJ-45, 10 x 10G/1G SFP+, and 4 x Multi-Gigabit PoE++ ports delivering up to 90W per port (150W total).
  • Enterprise-Grade Performance: 64GB memory with 480GB internal and 480GB field-replaceable NVMe SSD for high-demand SD-WAN functions.
  • Advanced PoE++ Capability: Ports 9–12 power devices like access points, cameras, and VoIP systems directly.
  • Operational Efficiency: Forced-air cooling with four fans and compliance with IEC 62368-1, FCC & CE Class A, TEC, and KCC standards.
Ideal Use Cases
  • Large enterprises managing multiple WAN uplinks and network segmentation
  • Campus networks requiring PoE++ for connected devices
  • Data centers needing high-port-density SD-WAN with redundant power
Technical Specifications
  • Ports: 11 x 1G RJ-45, 10 x 10G/1G SFP+, 4 x 1G/2.5G/5G PoE++
  • PoE Budget: 150W total, 90W max per port
  • Storage: 480GB internal NVMe SSD + 480GB field-replaceable NVMe SSD
  • Memory: 64GB
  • Power Supply: Dual 450W AC (hot-swappable)
  • Cooling: Forced air, 4 fans, front-to-rear airflow
  • Dimensions: 14.15” x 17.15” x 1.70”
  • Weight: 15.5 lbs
  • Mounting: Four-post rack mount
Drive Your Network Forward Today

Upgrade your network edge with the Palo Alto Networks ION 9200 for speed, resilience, and intelligent routing. Order now to optimize your enterprise SD-WAN performance.
