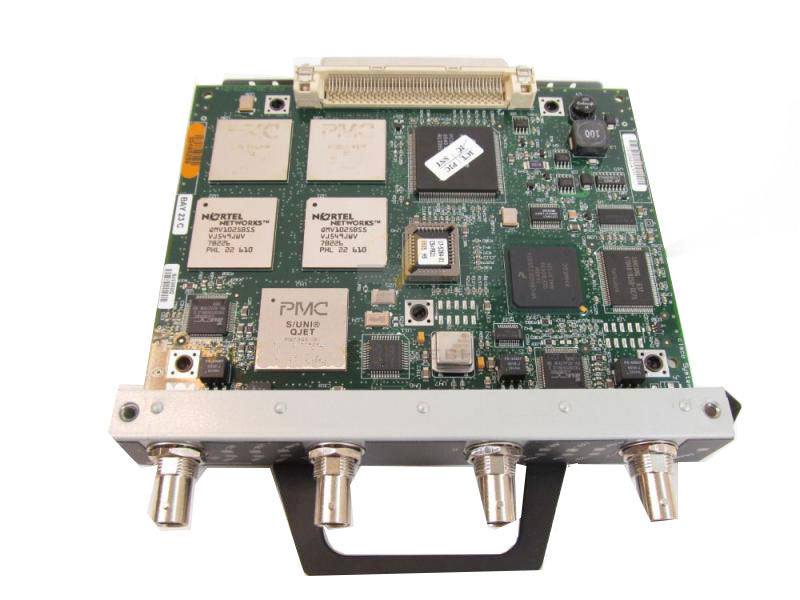

The Cisco PA-MC-2T3+ Dual Multichannel T3+/DS3+ Port Adapter is a high-performance WAN interface module designed for Cisco 7200, Cisco 7300, and Cisco 7500 Series routers. Featuring two enhanced multichannel T3+/DS3+ ports, the adapter provides reliable, carrier-grade WAN connectivity for enterprise, service provider, and telecommunications networks requiring high-speed leased-line communications.
Each port supports T3/DS3 line rates of up to 45 Mbps, providing an aggregate bandwidth of up to 90 Mbps. The module supports both channelized and unchannelized T3/DS3 operation, allowing organizations to allocate bandwidth efficiently and deploy flexible WAN architectures that can adapt to changing network requirements.
The Cisco PA-MC-2T3+ supports industry-standard M23 and C-Bit Parity framing, B3ZS line coding, and multiple WAN encapsulation protocols including HDLC, PPP, and Frame Relay. These capabilities enable seamless integration with carrier networks while supporting secure and reliable point-to-point and leased-line connectivity.
Powered by Cisco IOS, the adapter supports advanced networking features such as Multilink PPP, Quality of Service (QoS), traffic management, and comprehensive network monitoring, depending on the router platform and software configuration. The integrated hardware processing architecture ensures efficient packet forwarding and dependable WAN performance for business-critical applications.
Designed as a modular plug-in port adapter, the PA-MC-2T3+ is compatible with Cisco 7200, 7300, and 7500 Series routers and can be hot-swapped on supported platforms, simplifying maintenance and reducing downtime. The module is powered directly by the host router, eliminating the need for an external power source.
Ideal for enterprise WAN connectivity, service provider networks, carrier Ethernet backhaul, branch office aggregation, high-speed leased-line access, and telecommunications infrastructure, the Cisco PA-MC-2T3+ Dual Multichannel T3+/DS3+ WAN Port Adapter delivers scalable performance, flexible bandwidth allocation, and enterprise-grade reliability for demanding WAN deployments.
Product Specifications – Cisco PA-MC-2T3+ Dual Multichannel T3+/DS3+ Port Adapter for Cisco 7200, 7300 & 7500 Series Routers
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco PA-MC-2T3+ Dual Multichannel T3+/DS3+ Port Adapter |
| Manufacturer |
Cisco Systems |
| Part Number |
PA-MC-2T3+ |
| Product Type |
Multichannel T3+/DS3+ WAN Port Adapter |
| Product Family |
Cisco Port Adapter (PA) Series |
| WAN Port Configuration |
2 × Enhanced Multichannel T3+/DS3+ Ports |
| Interface Type |
T3+/DS3+ WAN |
| Connector Type |
BNC Connectors |
| Line Rate |
DS3/T3 (44.736 Mbps / 45 Mbps) |
| Port Speed |
Up to 45 Mbps per Port |
| Aggregate Bandwidth |
Up to 90 Mbps |
| Channelized T3 Support |
Yes |
| Unchannelized T3 Support |
Yes |
| DS3 Support |
Yes |
| Framing Formats |
M23 and C-Bit Parity |
| Line Coding |
B3ZS |
| Encapsulation |
HDLC, PPP and Frame Relay |
| WAN Services |
Point-to-Point, Leased Line and Carrier WAN Connectivity |
| Clocking |
Internal and Line Clock Supported |
| Error Detection |
CRC Support |
| Performance |
High-Speed Hardware-Based WAN Processing |
| Quality of Service (QoS) |
Supported (Platform and Cisco IOS Dependent) |
| Traffic Management |
Supported |
| Multilink PPP |
Supported |
| Network Management |
SNMP and Cisco IOS Management Tools |
| Hot-Swappable |
Yes (Platform Dependent) |
| Compatibility |
Cisco 7200 Series Routers |
| Additional Compatibility |
Cisco 7300 Series Routers |
| Additional Platform Support |
Cisco 7500 Series Routers |
| Operating System |
Cisco IOS |
| Installation Type |
Modular Plug-in Port Adapter |
| Form Factor |
Port Adapter Module |
| Power Source |
Powered by the Host Router |
| Reliability |
Enterprise-Class and Carrier-Grade |
| Application |
High-Speed WAN Connectivity and Network Aggregation |
| Deployment Type |
Enterprise, Service Provider and Telecommunications Networks |
| Condition |
Refurbished |
| Use Cases |
Enterprise WAN Connectivity, Service Provider Networks, Carrier Ethernet Backhaul, Branch Office Aggregation, High-Speed Leased Line Access, Telecommunications Infrastructure |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. Which Cisco routers support the PA-MC-2T3+?
The adapter is compatible with Cisco 7200, 7300, and 7500 Series routers that support Cisco port adapters.
Q2. How many interfaces does the PA-MC-2T3+ provide?
It provides two enhanced multichannel T3+/DS3+ interfaces for high-speed WAN connectivity.
Q3. Does this adapter support channelized T3 operation?
Yes. Each port can be independently configured for either channelized or unchannelized T3 operation, providing flexible bandwidth management.
Q4. What is the maximum data rate supported by the adapter?
The adapter supports full-rate T3/DS3 connectivity with data transfer rates of up to 44.736 Mbps per interface.
Q5. What applications is the PA-MC-2T3+ best suited for?
It is ideal for WAN aggregation, leased line connectivity, service provider infrastructure, enterprise backbone networks, and other high-capacity networking applications.
