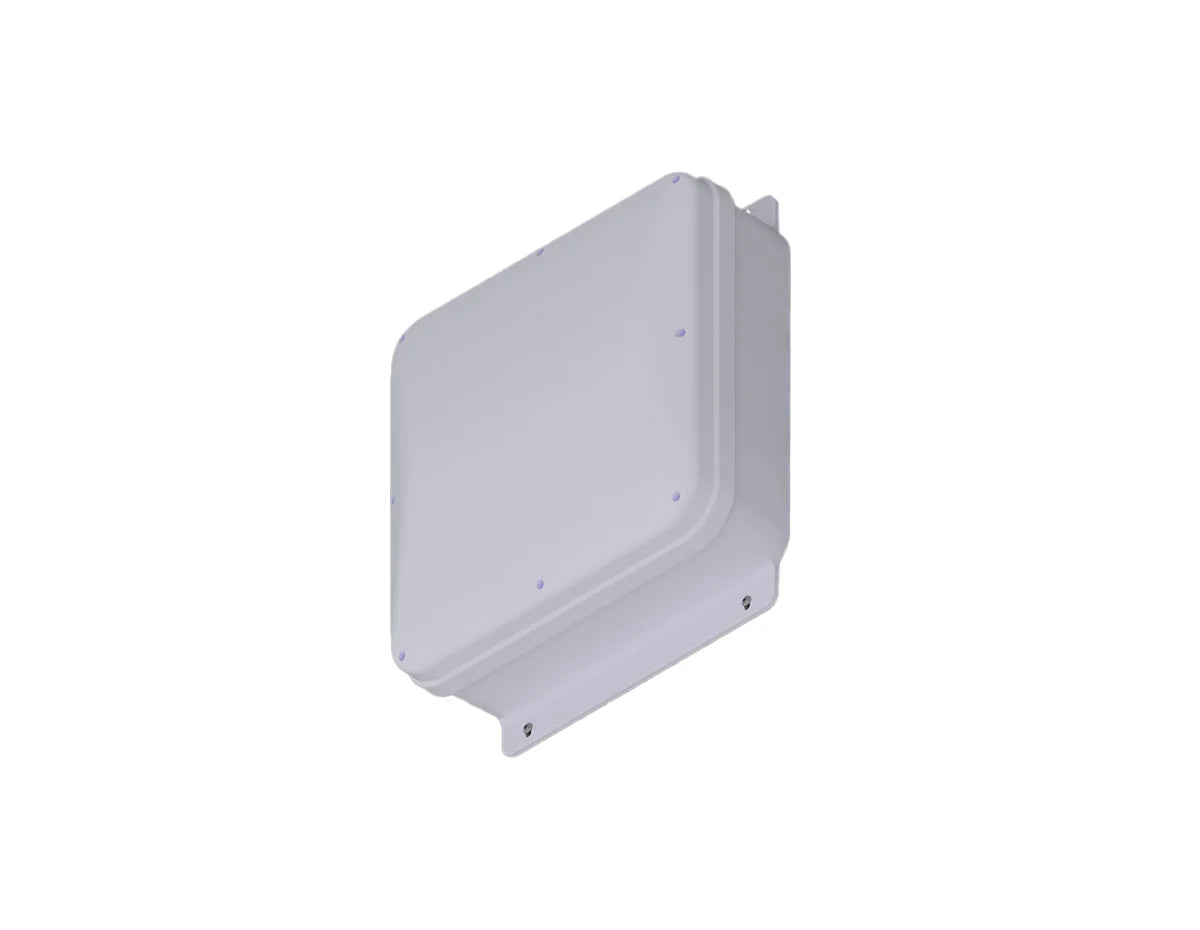

Oberon Skybar Environmental Wireless AP Enclosure (1020-12125)
Oberon Skybar Environmental Wireless AP Enclosure (1020-12125)

Oberon Skybar Environmental Wireless AP Enclosure (1020-12125)

por Oberon
R$ 4.500,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] NEMA 4X rated, RF transparent polycarbonate enclosure with internal mounting panel. Designed for Oberon Skybar 1020 series applications, including indoor and outdoor wireless AP protection. [/shortdesc]

[properties]

Model Oberon 1020-12125
Product Type Wireless Access Point Enclosure
Series Oberon Skybar Environmental Enclosures 1020
Application Indoor and outdoor AP protection
Mounting Type T-Bar ceiling mount, wall mount
Material Gray Textured UL94-V0 Polycarbonate (Enclosure); Light Gray ABS UL-94HB (Internal Panel)
Cover Type Opaque (Standard) or Clear (C SKU)
Environmental Rating NEMA 1, 2, 4, 4X, 12, 13; IEC 529-IP66
Special Protection Protection against weather, dust, liquid spills, pressure spray, and impacts
Wireless Transparency Transparent to wireless signals
UV Resistance UV stabilized for outdoor exposure
Color Light gray (to reduce solar loading)
Compatibility Cisco AIR-AP-BRACKET-1 or -2, Meraki MR series, and most vendor APs

[/properties]

[specifications]

Design Larger rugged Skybar enclosure for AP protection in stadiums, gyms, and industrial areas
Installation Options Ceiling mount, wall mount, pole mounting (with accessory), or right-angle mount
Mounting Hardware Integrated 18 Ga. White Powder Coated Steel T-bar bracket
Internal Components Includes Universal Mounting Panel for versatile AP attachment
Ingress Protection Designed for wet, dusty, and corrosive environments (IP66)
Solar Considerations Light gray color minimizes solar load; paintable surface
Temperature Impact AP operating temperature de-rating of approx. 8°C required inside enclosure
Cover Design Screw-on cover with gasket and recessed tamper-resistant screws
Customization Polycarbonate material is easily drilled for custom cable entry
Mounting Compatibility Supports Cisco, Meraki, and universal T-bar mounting patterns

[/specifications]

[accesories]

Included (1) Enclosure; (1) T-Bar Bracket; (1) Universal Mounting Panel; (4) M4 x 20 mm Captive Phillips Lid Screws; (4) M4 x 20 mm Captive Torx Lid Screws; (4) #6 x 5/16 in. Pan Head Screws; (4) #6 x 5/16 in. Flat Head Screws; (4) Cushioning Washers
Optional Mounting Right angle bracket (39-1020-12125-RAB); Pole mount bracket (39-1020-PMK)
Related Models 1020-00 (Compact Opaque); 1020-C (Compact Clear); 1020-12125-C (Large Clear)

[/accesories]

The Oberon 1020-12125 Skybar Environmental Enclosure is the larger-format solution for safeguarding wireless access points in demanding indoor and outdoor deployments. Engineered by Chatsworth Products, this rugged NEMA 4X enclosure shields APs from dust, moisture, corrosive agents, and impacts while ensuring peak wireless performance through its RF-transparent polycarbonate construction.

  • NEMA 4X and IP66 Protection: Designed for harsh environments, offering superior resistance against water, dust, corrosion, and pressure spray.
  • RF-Transparent Polycarbonate: High-quality UL94-V0 material ensures minimal signal attenuation for internal antenna APs.
  • Universal Internal Mounting: This larger 12125 variant includes an internal ABS mounting panel to accommodate a wide range of vendor APs.
  • Industrial Durability: UV-stabilized light gray surface reduces solar loading, while the heavy-duty T-bar bracket provides a secure ceiling or wall interface.
  • Tamper-Resistant Security: Features a gasketed screw-on cover with recessed Phillips and Torx captive screws to prevent unauthorized access.
  • Stadiums and Auditoriums: Overhead or wall-mounted deployments requiring impact and weather protection.
  • Industrial & Manufacturing: High-exposure areas subject to dust, moisture, or chemical washdown.
  • Outdoor Public Spaces: Campus-wide WiFi and smart city infrastructure requiring UV-stabilized housing.
  • Warehouses: Protection from accidental impacts in high-traffic logistics environments.
  • Product Type: NEMA 4X Wireless Access Point Enclosure
  • Model: 1020-12125 (Large Skybar)
  • Material: UL94-V0 Polycarbonate enclosure with ABS internal panel
  • Environmental Rating: NEMA 1, 2, 4, 4X, 12, 13 and IP66 compliant
  • Mounting Options: T-Bar, wall, or optional pole and right-angle bracket mounting
  • Wireless Compatibility: Fully RF transparent for internal or small detachable antennas
  • Included Hardware: Enclosure, T-bar bracket, internal panel, captive screws, and washers
  • Design: Compact Skybar aesthetic with paintable exterior surface

Maintain the integrity and longevity of your network hardware with the Oberon 1020-12125. Deploy with confidence in any environment. Order today to ensure your wireless infrastructure is protected against the elements.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] NEMA 4X rated, RF transparent polycarbonate enclosure with internal mounting panel. Designed for Oberon Skybar 1020 series applications, including indoor and outdoor wireless AP protection. [/shortdesc]

[properties]

Model Oberon 1020-12125
Product Type Wireless Access Point Enclosure
Series Oberon Skybar Environmental Enclosures 1020
Application Indoor and outdoor AP protection
Mounting Type T-Bar ceiling mount, wall mount
Material Gray Textured UL94-V0 Polycarbonate (Enclosure); Light Gray ABS UL-94HB (Internal Panel)
Cover Type Opaque (Standard) or Clear (C SKU)
Environmental Rating NEMA 1, 2, 4, 4X, 12, 13; IEC 529-IP66
Special Protection Protection against weather, dust, liquid spills, pressure spray, and impacts
Wireless Transparency Transparent to wireless signals
UV Resistance UV stabilized for outdoor exposure
Color Light gray (to reduce solar loading)
Compatibility Cisco AIR-AP-BRACKET-1 or -2, Meraki MR series, and most vendor APs

[/properties]

[specifications]

Design Larger rugged Skybar enclosure for AP protection in stadiums, gyms, and industrial areas
Installation Options Ceiling mount, wall mount, pole mounting (with accessory), or right-angle mount
Mounting Hardware Integrated 18 Ga. White Powder Coated Steel T-bar bracket
Internal Components Includes Universal Mounting Panel for versatile AP attachment
Ingress Protection Designed for wet, dusty, and corrosive environments (IP66)
Solar Considerations Light gray color minimizes solar load; paintable surface
Temperature Impact AP operating temperature de-rating of approx. 8°C required inside enclosure
Cover Design Screw-on cover with gasket and recessed tamper-resistant screws
Customization Polycarbonate material is easily drilled for custom cable entry
Mounting Compatibility Supports Cisco, Meraki, and universal T-bar mounting patterns

[/specifications]

[accesories]

Included (1) Enclosure; (1) T-Bar Bracket; (1) Universal Mounting Panel; (4) M4 x 20 mm Captive Phillips Lid Screws; (4) M4 x 20 mm Captive Torx Lid Screws; (4) #6 x 5/16 in. Pan Head Screws; (4) #6 x 5/16 in. Flat Head Screws; (4) Cushioning Washers
Optional Mounting Right angle bracket (39-1020-12125-RAB); Pole mount bracket (39-1020-PMK)
Related Models 1020-00 (Compact Opaque); 1020-C (Compact Clear); 1020-12125-C (Large Clear)

[/accesories]

Protect Critical Wireless Infrastructure in Harsh Environments

The Oberon 1020-12125 Skybar Environmental Enclosure is the larger-format solution for safeguarding wireless access points in demanding indoor and outdoor deployments. Engineered by Chatsworth Products, this rugged NEMA 4X enclosure shields APs from dust, moisture, corrosive agents, and impacts while ensuring peak wireless performance through its RF-transparent polycarbonate construction.

Key Benefits & Features
  • NEMA 4X and IP66 Protection: Designed for harsh environments, offering superior resistance against water, dust, corrosion, and pressure spray.
  • RF-Transparent Polycarbonate: High-quality UL94-V0 material ensures minimal signal attenuation for internal antenna APs.
  • Universal Internal Mounting: This larger 12125 variant includes an internal ABS mounting panel to accommodate a wide range of vendor APs.
  • Industrial Durability: UV-stabilized light gray surface reduces solar loading, while the heavy-duty T-bar bracket provides a secure ceiling or wall interface.
  • Tamper-Resistant Security: Features a gasketed screw-on cover with recessed Phillips and Torx captive screws to prevent unauthorized access.
Ideal Use Cases
  • Stadiums and Auditoriums: Overhead or wall-mounted deployments requiring impact and weather protection.
  • Industrial & Manufacturing: High-exposure areas subject to dust, moisture, or chemical washdown.
  • Outdoor Public Spaces: Campus-wide WiFi and smart city infrastructure requiring UV-stabilized housing.
  • Warehouses: Protection from accidental impacts in high-traffic logistics environments.
Technical Specifications
  • Product Type: NEMA 4X Wireless Access Point Enclosure
  • Model: 1020-12125 (Large Skybar)
  • Material: UL94-V0 Polycarbonate enclosure with ABS internal panel
  • Environmental Rating: NEMA 1, 2, 4, 4X, 12, 13 and IP66 compliant
  • Mounting Options: T-Bar, wall, or optional pole and right-angle bracket mounting
  • Wireless Compatibility: Fully RF transparent for internal or small detachable antennas
  • Included Hardware: Enclosure, T-bar bracket, internal panel, captive screws, and washers
  • Design: Compact Skybar aesthetic with paintable exterior surface
Secure Your Wireless Network Infrastructure Today

Maintain the integrity and longevity of your network hardware with the Oberon 1020-12125. Deploy with confidence in any environment. Order today to ensure your wireless infrastructure is protected against the elements.
