Overview

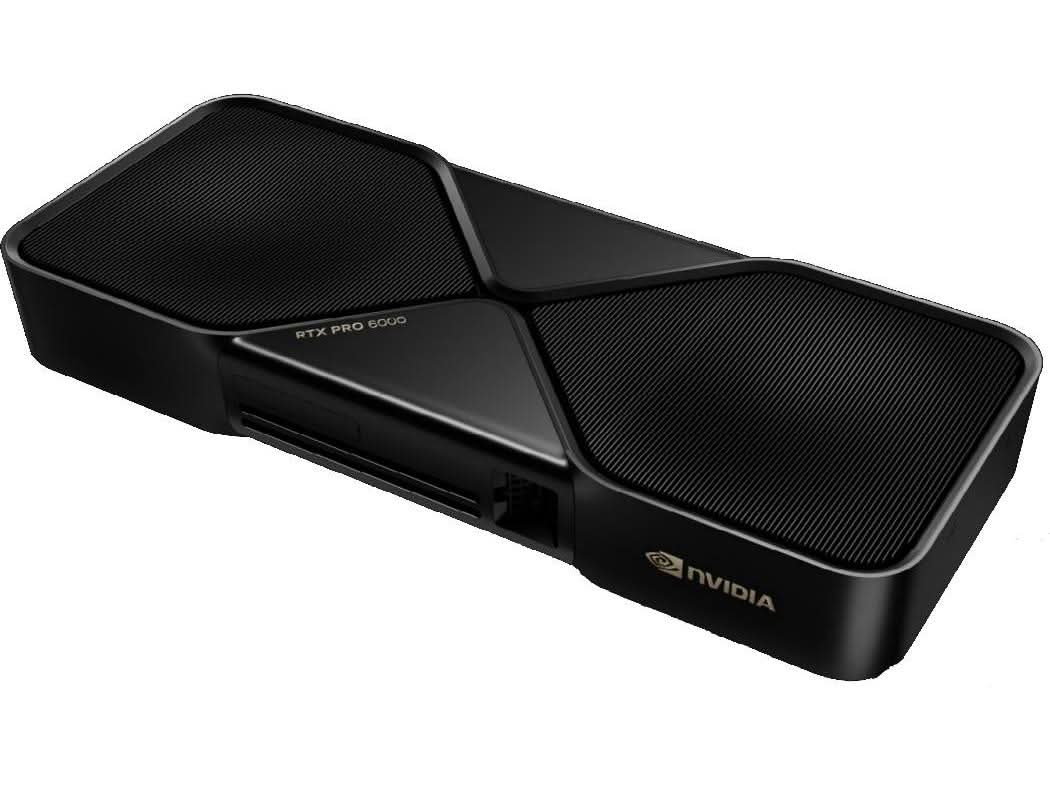

NVIDIA RTX PRO 6000 Blackwell Workstation Edition 900-5G144-2200-000-01 features 96GB GDDR7 memory, 512-bit bus, and 1792 GB/sec bandwidth, delivering extreme performance for AI, ray tracing, and mega-geometry workloads. Equipped with DisplayPort 2.1b, PCIe 5.0 x16, fifth-gen Tensor cores, and fourth-gen RT cores, it supports up to 4 monitors at 7680×4320 resolution with advanced RTX optimizations.
Specifications
Model Number:900-5G144-2200-000-01
Brand: NVIDIA
Alt Part Number(s): 900-5G144-2200-000-01
Product Type: Video Card
Technical Description
Brand: NVIDIA
Model:900-5G144-2200-000-01
Form Factor: Dual Slot
Video Interface: DisplayPort
Thermal Solution: Double-flow-through
Graphics Controller: NVIDIA RTX PRO 6000 Blackwell
Video Memory / Installed Size: 96 GB
Max Power Consumption: 600 Watt
Features: Fifth-Gen Tensor Cores; Max AI performance with FP4 and DLSS 4; New Streaming Multiprocessors; Optimized for RTX Neural Shaders; Fourth-Gen Ray Tracing Cores; Built for RTX Mega Geometry
Graphics Processor Manufacturer: NVIDIA
API Supported: DirectX 1; OpenCL 3.0; Vulkan 1.3; OpenGL 4.6; DirectCompute; Shader Model 6.6; CUDA 11.6
Max Resolution (external): 7680 x 4320
Max Monitors Supported: 4
Video Memory / Technology: GDDR7
Video Memory / Data Width: 512-bit
Memory Bandwidth: 1.75 TB/sec
Interfaces & Connections: DisplayPort 2.1b
DisplayPort Qty: 4
PCI/PCI-E: PCI Express 5.0 x16
*
