NVIDIA InfiniBand MMS1W50-HM Compatible QSFP56 200G FR4 InfiniBand HPC Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM)
The NVIDIA InfiniBand MMS1W50-HM Compatible QSFP56 Optical Transceiver is designed for use in 200Gb/s HDR InfiniBand systems throughput up to 2km single mode fiber (SMF) using a wavelength of 1310nm via a duplex LC connector. This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as InfiniBand, data centers, high-performance computing networks, enterprise core and distribution layer applications.

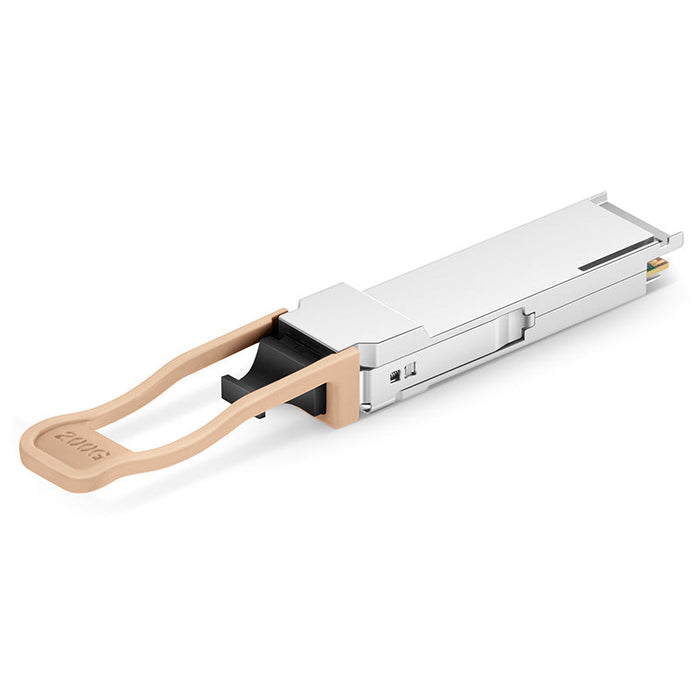

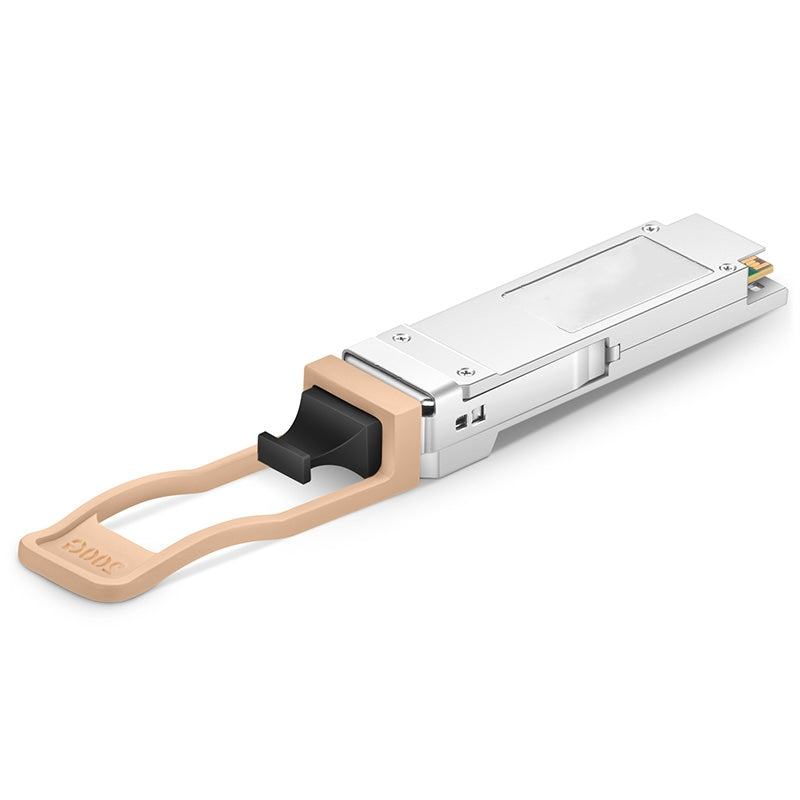

QSFP56-SR4-200G Specifications
| NVIDIA InfiniBand Compatible |
MMA1T00-HS
|
Vendor Name |
opticswaves |
| Form Factor |
QSFP56 |
Max Data Rate |
200Gbps |
| Wavelength |
850nm |
Max Cable Distance
|
100m |
| Connector |
MTP/MPO-12 UPC |
Media |
MMF |
| Transmitter Type |
VCSEL |
Receiver Type |
PIN |
| TX Power |
-6.5~4dBm |
Receiver Sensitivity |
-6.5dBm |
| Power Consumption |
<5W |
Extinction Ratio |
>3dB |
| Modulation Format |
PAM4 |
Protocols |
QSFP56 MSA, SFF-8636, IEEE 802.3bs |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
Application |
Infiniband HDR |
NVIDIA InfiniBand MMS1W50-HM Compatible QSFP56 200G FR4 InfiniBand HPC Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM)
The NVIDIA InfiniBand MMS1W50-HM Compatible QSFP56 Optical Transceiver is designed for use in 200Gb/s HDR InfiniBand systems throughput up to 2km single mode fiber (SMF) using a wavelength of 1310nm via a duplex LC connector. This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as InfiniBand, data centers, high-performance computing networks, enterprise core and distribution layer applications.
QSFP56-FR4-200G Specifications
| NVIDIA InfiniBand Compatible |
MMS1W50-HM
|
Vendor Name |
opticswaves |
| Form Factor |
QSFP56 |
Max Data Rate |
200Gbps (4x50Gbps) |
| Wavelength |
1271nm, 1291nm, 1311nm and 1331nm |
Max Cable Distance
|
2km
|
| Connector |
Duplex LC |
Media |
SMF |
| Transmitter Type |
DFB |
Receiver Type |
PIN |
| TX Power |
-4.2~4.7dBm
|
Receiver Sensiti |
< -8.2dBm
|
| Power Consumption |
≤6.5W
|
Receiver overload |
4.7dBm |
| Powerbudget |
4dB
|
Extinction Ratio |
>3.5dB |
| DDM/DOM |
Supported |
Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Protocols |
IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, SFF-8679 |
Warranty |
5 Years |
