Overview

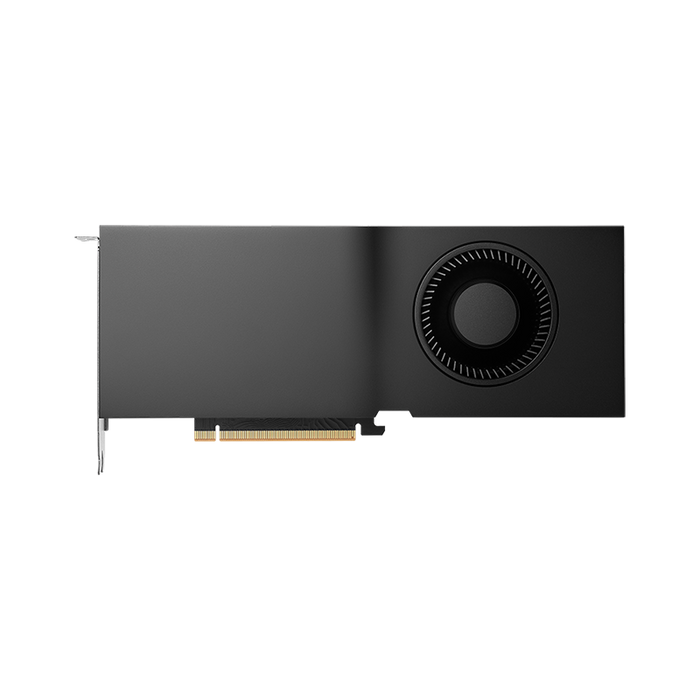

NVIDIA 900-5G132-2540-000 Quadro RTX 5000 Ada graphic card features 32 GB GDDR6 memory with 12,800 CUDA cores and PCI Express 4.0 x16 interface. It supports 4 DisplayPort 1.4a outputs, a maximum resolution of 7680 x 4320 at 60Hz, and has a memory bandwidth of 576 GB/s with 250 Watt power consumption.
Specifications
Model Number: 900-5G132-2540-000
Brand: NVIDIA
Alt Part Number(s): 900-5G132-2540-000
Product Type: Graphic Card
Technical Description
Brand: NVIDIA
Model: 900-5G132-2540-000
Form Factor: Dual Slot
Video Interface: PCI Express 4.0 x16
Thermal Solution: Active
Graphics Controller: NVIDIA RTX 5000
Video Memory Installed Size: 32 GB
Max Power Consumption: 250 Watt
Features: PCIe Gen4; Four DisplayPort 1.4a connectors; AV1 encode and decode support; DisplayPort with audio; 3D stereo support with stereo connector; NVIDIA GPUDirect for Video support; NVIDIA GPUDirect remote direct memory access (RDMA) support
API Supported: CUDA 12.2; Shader Model 6.7; Vulkan; OpenGL 3.0; DirectX 12; OpenGL 4.6; DirectCompute
Max Resolution External: 7680 x 4320 @ 60Hz
Max Monitors Supported: 4
Video Memory Technology: GDDR6
Video Memory Data Width: 256-bit
Memory Bandwidth: 576 GB/s
Interfaces & Connections: 4 DisplayPort 1.4a
DisplayPort Quantity: 4
PCI/PCI-E: PCI Express 4.0 x16
*
