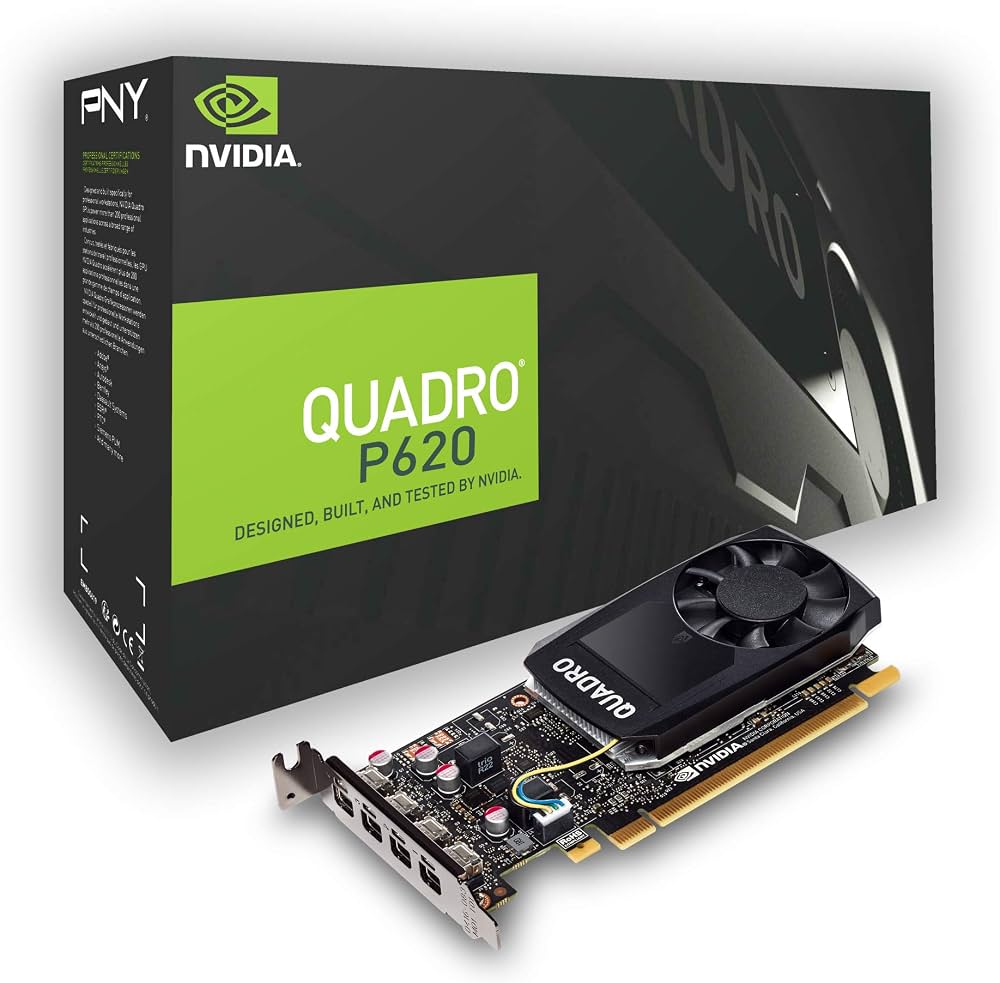

The NVIDIA Quadro P620 VCQP620-PB brings professional graphics and multi-monitor connectivity to a compact workstation. Its low-profile, single-slot design makes it a practical choice when expansion space is limited, while dedicated GDDR5 memory supports graphics workloads without relying on shared system memory. For buyers refreshing a workstation or building a focused desktop workspace, it offers a compact platform for professional visualization and multiple displays.
Key Features
- Professional Quadro graphics for workstation visualization workflows.
- Compact design suited to space-conscious workstation upgrades.
- Multi-display connectivity for expanded desktop workspaces.
- Active cooling with a modest maximum power requirement.
Product Specifications
- Part Number: VCQP620-PB
- Model: NVIDIA Quadro P620
- Product Category: Professional workstation graphics card
- GPU Memory: 2GB
- Memory Type: GDDR5
- Memory Interface: 128-bit
- Memory Bandwidth: Up to 80GB/s
- CUDA Cores: 512
- System Interface: PCI Express 3.0 x16
- Display Connectors: 4 × Mini DisplayPort 1.4
- Maximum Simultaneous Displays: 4
- Multi-Stream Support: DisplayPort 1.4 MST
- Supported Display Configuration: 4 × 4096 × 2160 at 60Hz
- Supported Display Configuration: 4 × 5120 × 2880 at 60Hz
- Maximum Power Consumption: 40W
- Cooling: Active
- Form Factor: Low profile
- Slot Width: Single slot
- Card Height: 2.713 inches
- Card Length: 5.7 inches
- Graphics API Support: OpenGL 4.5, DirectX 12.0, Vulkan 1.0
- Shader Model: 5.1
Use Cases
- CAD and design workstations handling professional graphics applications.
- Multi-monitor office setups that keep documents, dashboards, and communication tools visible together.
- Compact workstation refreshes where card clearance is an important purchasing consideration.
Compatibility
Requires a motherboard with a PCI Express x16 slot, sufficient chassis clearance, an appropriate mounting bracket, and a power budget suitable for the card. Displays must support the card's Mini DisplayPort outputs or use compatible adapters. Check driver availability for your operating system and application requirements before purchase; achievable display resolutions depend on the connected displays and connection hardware.
Frequently Asked Questions
- Does this card have full-size DisplayPort or HDMI connections?
- The native outputs are Mini DisplayPort. Displays using other connector types require suitable connection cables or adapters.
- Is this the same physical version as the P620 V2?
- No. VCQP620-PB identifies the original P620 listed by PNY with a 5.7-inch card length. Verify the exact part number when planning chassis clearance.
- Can I assume it will fit any small-form-factor computer?
- No. Check the expansion slot, internal clearance, mounting bracket configuration, and system power capacity before ordering.
- Should I check my software before upgrading?
- Yes. Confirm that your application's GPU requirements and available drivers match your operating system and intended workload.
Choose the VCQP620-PB when you need a workstation-focused graphics upgrade that fits a compact expansion layout and supports an organized, multi-screen workspace. Matching the card's interface, mounting arrangement, and display connections to your system before ordering helps ensure that the upgrade fits both your hardware and the way you work.
