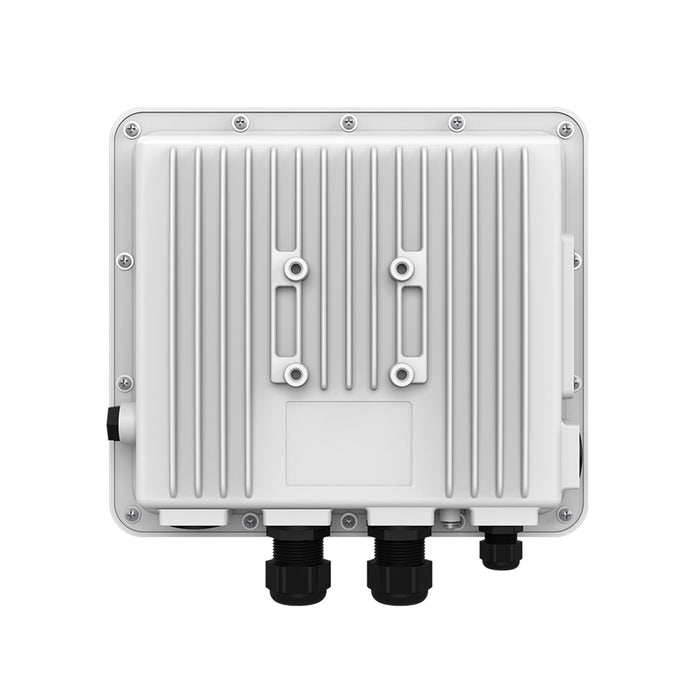

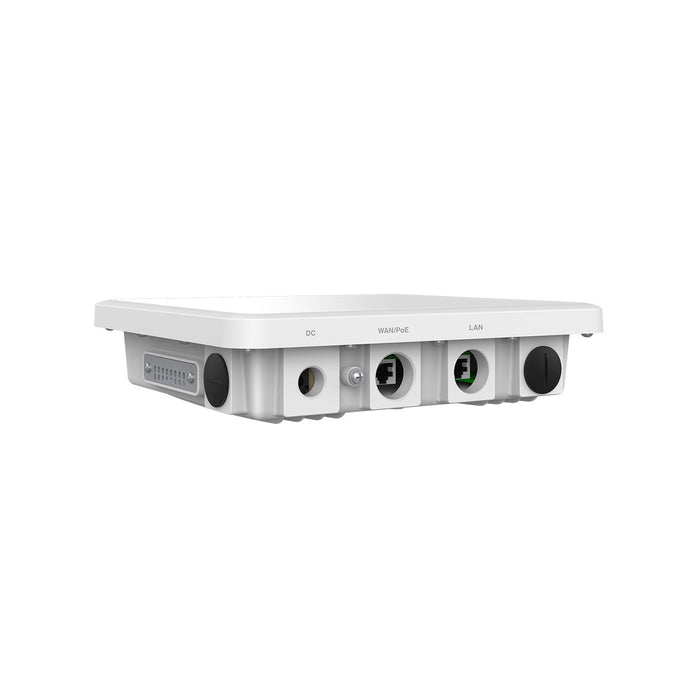

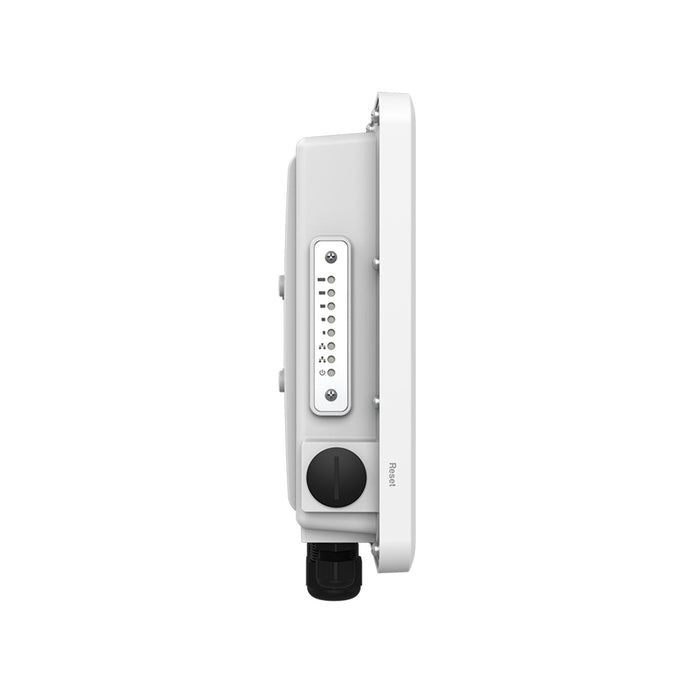

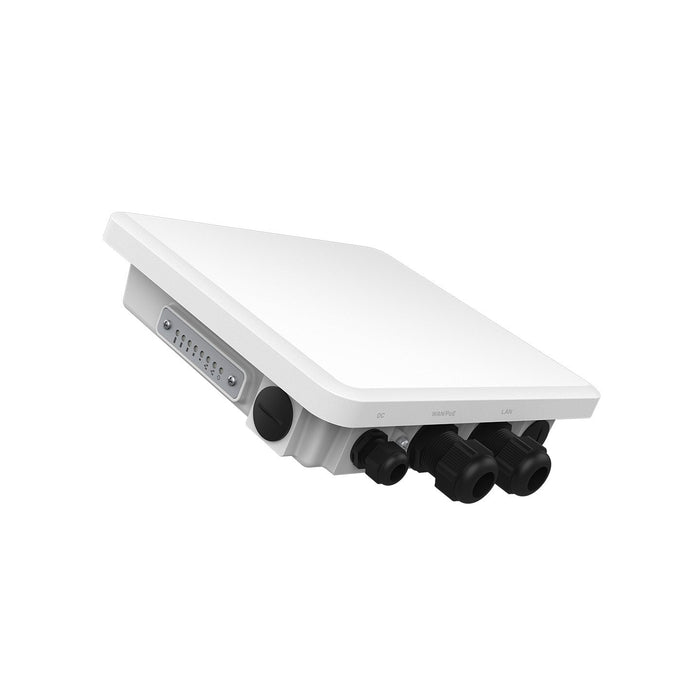

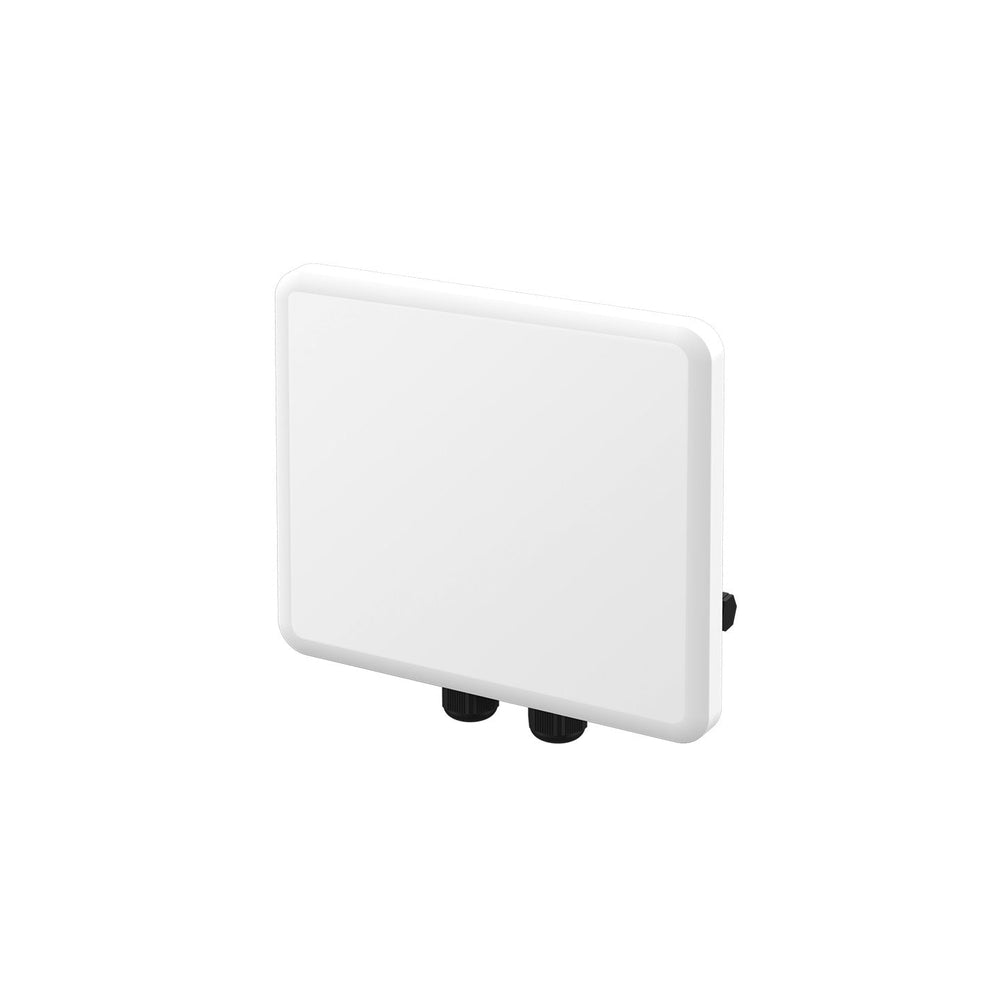

NSComm WB6axH6-N WiFi 6E 6GHz AX2882 Long-Range Industrial Wireless Bridge
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS WB6axH6-N WiFi 6E 6GHz Industrial Wireless Bridge
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The NS WB6axH6-N is a WiFi 6E (802.11ax, 6 GHz) industrial-grade wireless bridge designed for ultra-stable, long-distance point-to-point (PTP) and point-to-multipoint (PTMP) wireless transmission in demanding outdoor environments.
Operating in the 6 GHz band and delivering up to 2882 Mbps wireless throughput, the WB6axH6-N features 2×2 MIMO, optional external high-gain antennas, and a rugged IP67 metal enclosure. With transmission distances of up to 35 km, it is ideal for critical backhaul links, industrial networks, surveillance transmission, and spectrum-constrained deployments.
Overview
Highlights
-
WiFi 6E Performance on 6 GHz Spectrum
Leverages the 6 GHz band to deliver cleaner channels, lower interference, and higher link stability compared to traditional 5 GHz bridges. -
High-Throughput Long-Distance Transmission
Supports up to 2882 Mbps wireless data rates, enabling high-bandwidth applications such as video surveillance and enterprise backhaul. -
PTP / PTMP Deployment Flexibility
Supports point-to-point and point-to-multipoint topologies with optional external antennas, achieving transmission distances of up to 35 km (line-of-sight). -
Flexible Ethernet & Fiber Connectivity
Equipped with 2× Gigabit Ethernet ports and optional Gigabit SFP fiber port, allowing seamless integration with mixed network infrastructures. -
Industrial-Grade IP67 Metal Housing
Rugged metal enclosure with IP67 protection ensures reliable operation under rain, dust, UV exposure, and extreme outdoor conditions. -
Centralized Management & Cloud Control
Supports AC management, cloud platform control, and mobile APP management for simplified monitoring and maintenance.
Comparison with Similar Models
| Feature | NS WB6axH6-N | NS WB5axH6-N | H3C WA7xxx-6E Bridge | Huawei AirEngine 5762-6E Bridge |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6E (802.11ax) | WiFi 6 (802.11ax) | WiFi 6E | WiFi 6E |
| Operating Band | 6 GHz | 5 GHz | 6 GHz | 6 GHz |
| Wireless Rate | 2882 Mbps | 2400 Mbps | ~2800 Mbps | ~2800 Mbps |
| MIMO | 2×2 | 2×2 | 2×2 | 2×2 |
| Max Transmission Distance | Up to 35 km | Up to 35 km | ~30-35 km | ~30-35 km |
| Interfaces | 2×GE + optional SFP | 2×GE + optional SFP | GE | GE |
| Enclosure | IP67 metal | IP67 metal | Industrial | Industrial |
| Power Supply | 48 V PoE / 12 V DC | 48 V PoE / 12 V DC | PoE | PoE |
| Typical Positioning | Low-interference industrial bridge | Standard WiFi 6 bridge | Enterprise bridge | Enterprise bridge |
Positioning Summary:
-
WB6axH6-N: WiFi 6E 6 GHz industrial wireless bridge for ultra-stable, low-interference long-distance links.
-
WB5axH6-N: WiFi 6 5 GHz bridge for general industrial backhaul.
-
H3C / Huawei: Comparable enterprise-grade WiFi 6E bridges for outdoor backhaul.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6E) |
| Operating Band | 6 GHz |
| Maximum Data Rate | 2882 Mbps |
| MIMO | 2×2 |
| Antenna | Optional external high-gain antenna |
| Transmission Distance | Up to 35 km (line-of-sight) |
| Ethernet Interfaces | 2× Gigabit Ethernet |
| Fiber Interface | Optional 1× Gigabit SFP |
| Power Supply | 48 V PoE / 12 V DC |
| Management | AC management, cloud platform, APP |
| Protection Rating | IP67 metal enclosure |
| Installation | Pole-mounted or wall-mounted |
| Protection Features | Lightning & surge protection |
| Application Scenarios | Industrial backhaul, surveillance links, campus interconnects, spectrum-constrained environments |
