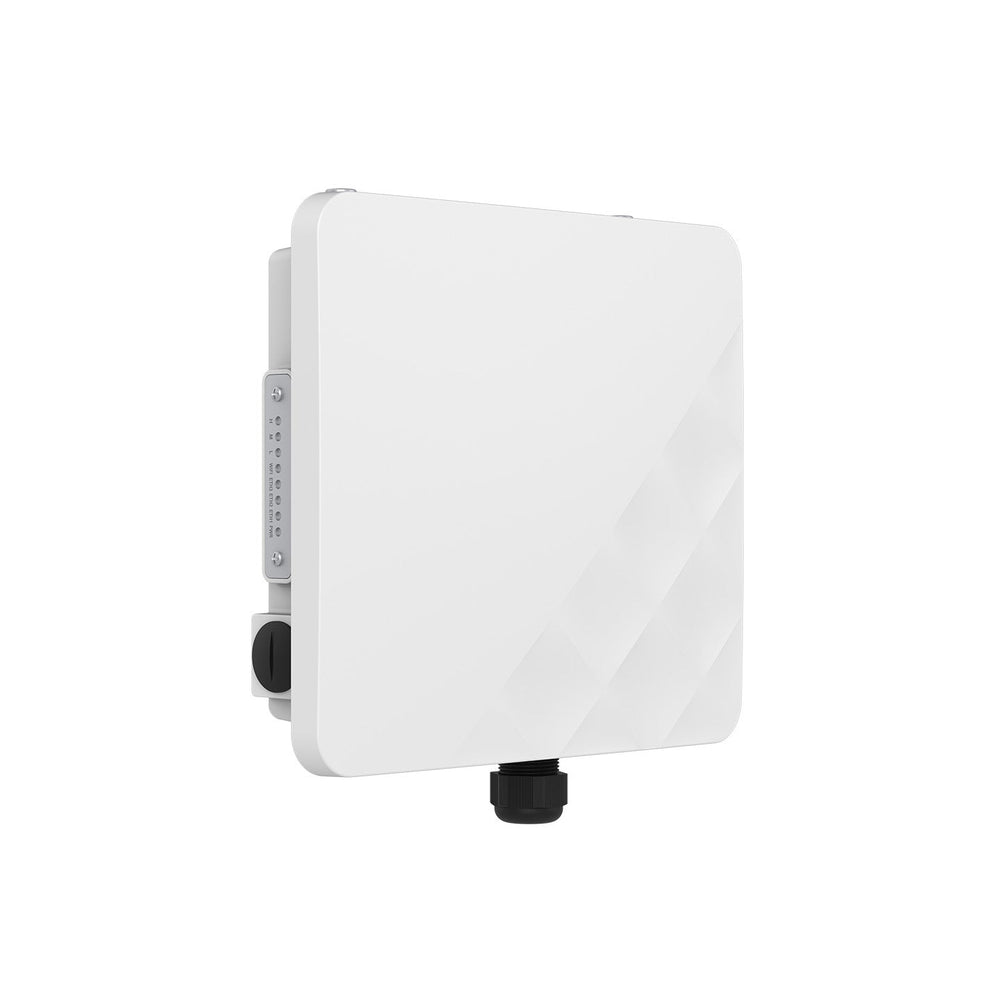

The NS WB5axH6-N is a WiFi 6 (802.11ax) industrial-grade wireless bridge designed for high-throughput, long-distance point-to-point (PTP) and point-to-multipoint (PTMP) wireless transmission.
Operating on the 5 GHz band and delivering up to 2400 Mbps wireless throughput, the WB5axH6-N features 2×2 MIMO, optional external high-gain antennas, and a rugged IP67 metal enclosure. With a maximum transmission distance of up to 35 km, it is ideal for enterprise backhaul, video surveillance, industrial networking, and outdoor broadband extension.
Overview
Highlights
-
High-Performance WiFi 6 Wireless Backhaul
Built on WiFi 6 (802.11ax) technology, delivering up to 2400 Mbps wireless throughput with improved efficiency and stability over long distances. -
5 GHz Single-Band Optimized Transmission
Operating in the 5 GHz band, ideal for long-range outdoor links with reduced interference and stable channel availability. -
Long-Distance PTP/PTMP Capability
Supports point-to-point and point-to-multipoint deployments with optional external antennas, achieving transmission distances of up to 35 km. -
Flexible Ethernet & Fiber Interfaces

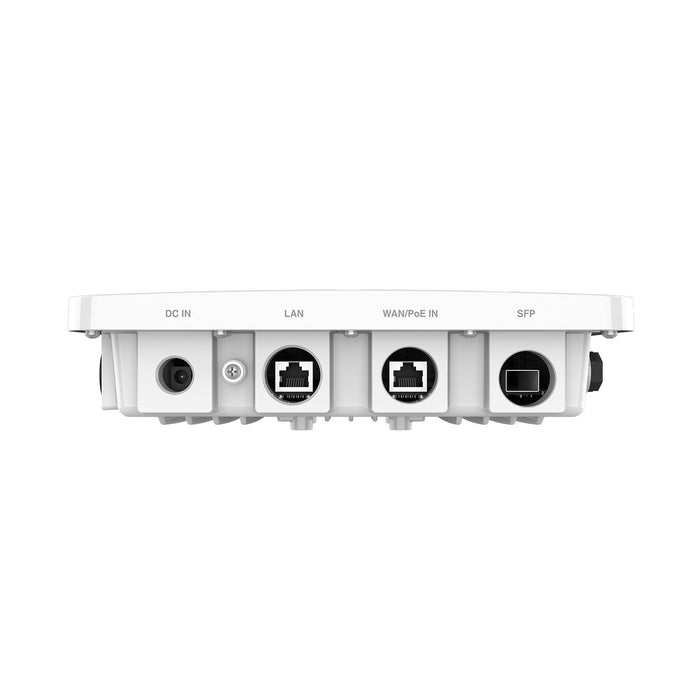

Equipped with 2× Gigabit Ethernet ports and optional Gigabit SFP fiber port, supporting flexible integration into different network architectures. -
Industrial-Grade IP67 Metal Housing
Rugged metal enclosure with IP67 protection ensures reliable operation in harsh outdoor environments. -
Lightning & Surge Protection
Integrated port-level lightning and surge protection safeguards equipment in exposed outdoor installations. -
Centralized Management & Cloud Platform
Supports AC management, cloud platform control, and mobile APP management for simplified deployment and monitoring.
Comparison with Similar Models
| Feature | NS WB5axH6-N | NS WB6axH6-N | H3C WA7xxx-Bridge | Huawei AirEngine 5762-Bridge |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6E (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Frequency Band | 5 GHz | 6 GHz | 5 GHz | 5 GHz |
| Wireless Rate | 2400 Mbps | 2882 Mbps | ~2400 Mbps | ~2400 Mbps |
| MIMO | 2×2 | 2×2 | 2×2 | 2×2 |
| Max Transmission Distance | Up to 35 km | Up to 35 km | ~30 km | ~30 km |
| Interfaces | 2×GE + optional SFP | 2×GE + optional SFP | GE | GE |
| Enclosure | IP67 metal | IP67 metal | Industrial | Industrial |
| Power Supply | 48V PoE / 12V DC | 48V PoE / 12V DC | PoE | PoE |
| Typical Positioning | Industrial WiFi 6 bridge | 6GHz low-interference bridge | Enterprise bridge | Enterprise bridge |
Positioning Summary:
-
WB5axH6-N: WiFi 6 5GHz industrial wireless bridge optimized for long-range, high-throughput outdoor transmission.
-
WB6axH6-N: WiFi 6E bridge for cleaner spectrum and lower interference.
-
H3C / Huawei: Comparable enterprise-grade wireless bridges for outdoor backhaul.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Operating Band | 5 GHz |
| Maximum Data Rate | 2400 Mbps |
| MIMO | 2×2 |
| Antenna | Optional external high-gain antenna |
| Transmission Distance | Up to 35 km (line-of-sight) |
| Ethernet Interfaces | 2× Gigabit Ethernet |
| Fiber Interface | Optional 1× Gigabit SFP |
| Power Supply | 48 V PoE / 12 V DC |
| Management | AC management, cloud platform, APP |
| Protection Rating | IP67 metal enclosure |
| Installation | Pole-mounted or wall-mounted |
| Protection Features | Lightning & surge protection |
| Application Scenarios | Surveillance backhaul, campus interconnect, industrial networking, rural broadband |
