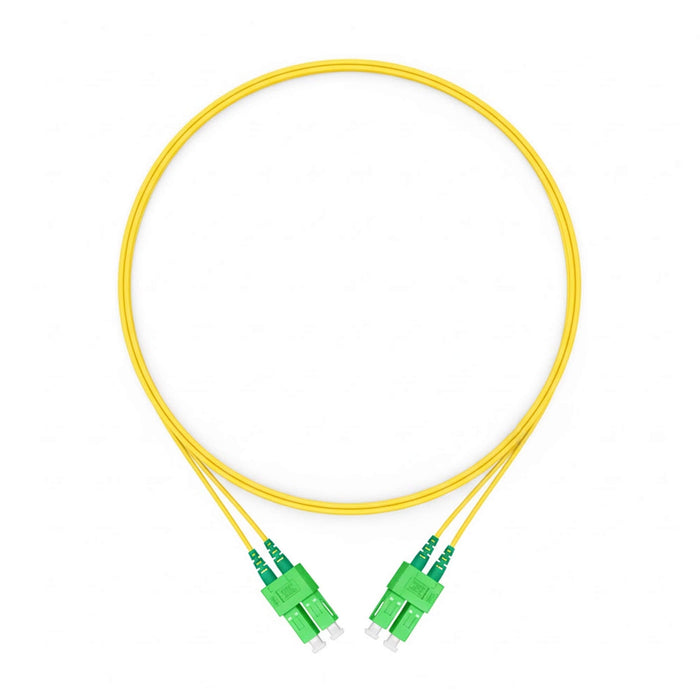

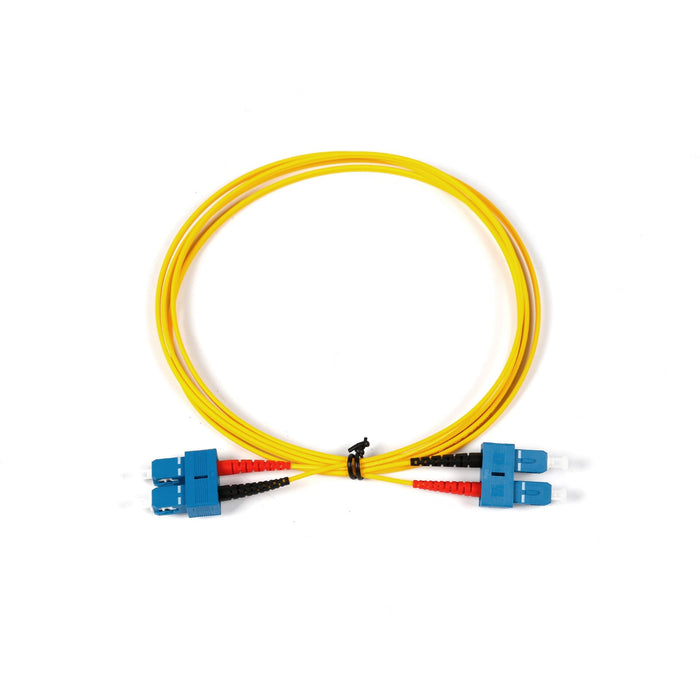

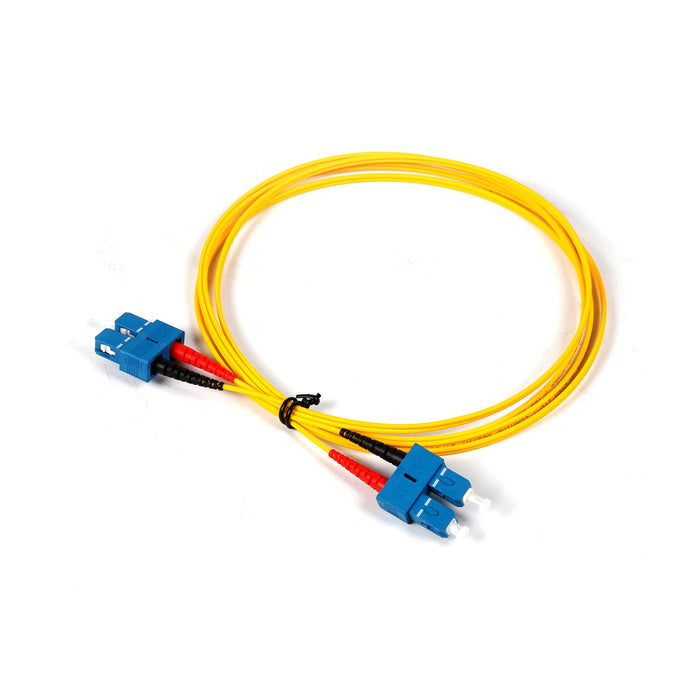

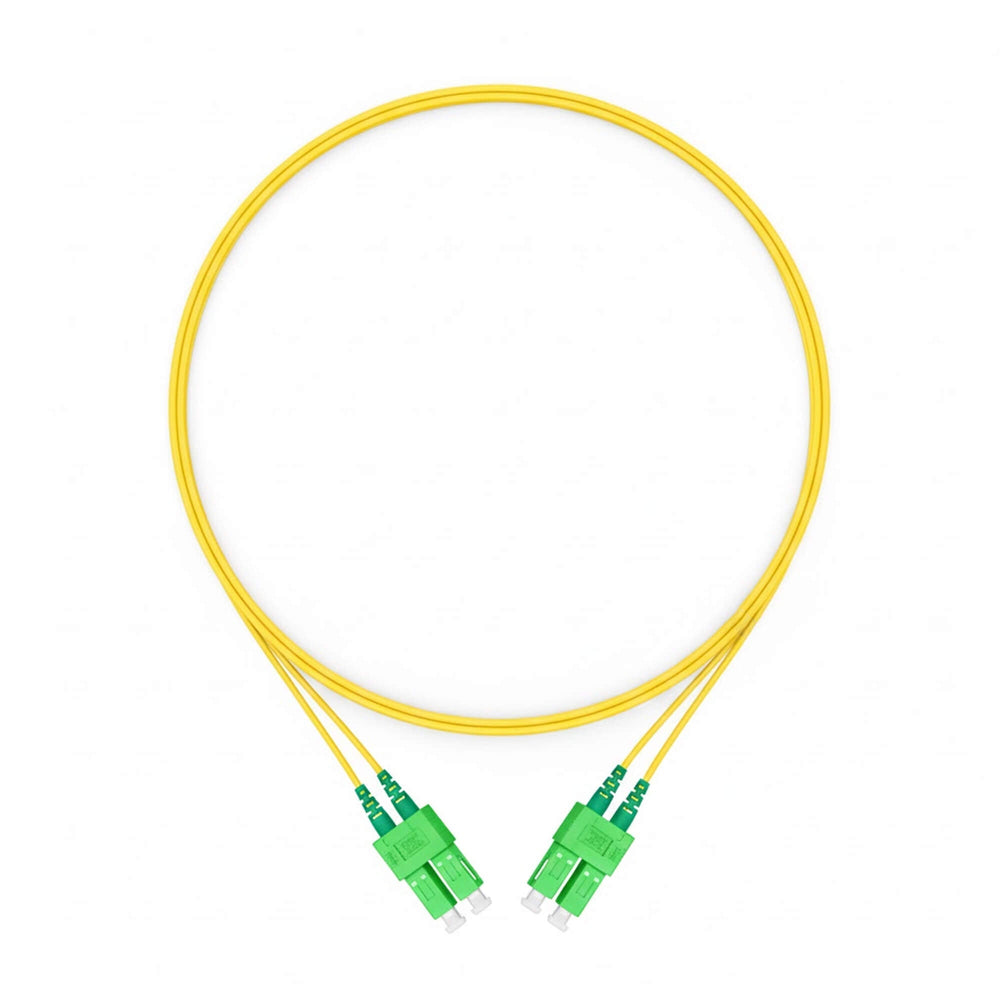

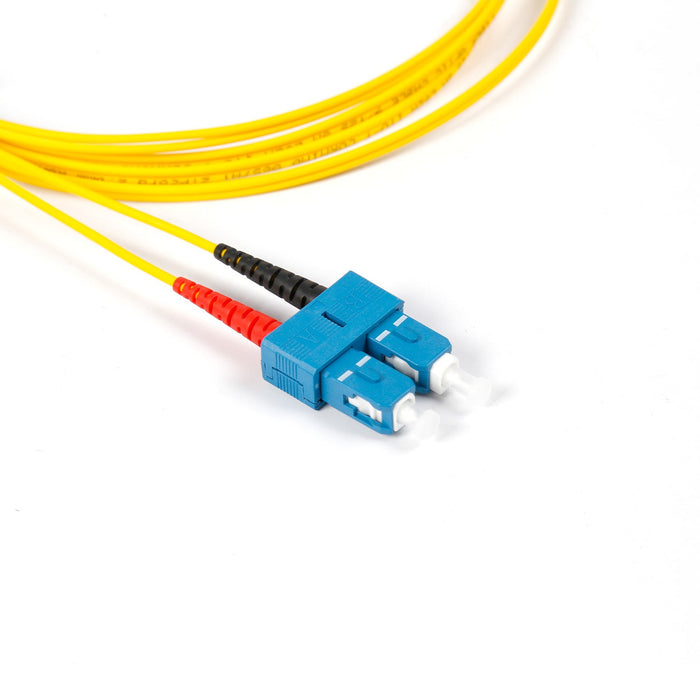

NSComm SC APC to SC APC Duplex Single Mode Fiber Patch Cable, 2.0mm OFNR
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm SC APC to SC APC Duplex Single Mode Fiber Patch Cable is a high-performance OS2 interconnect solution designed for long-distance, high-bandwidth applications across data centers, telecommunication rooms, enterprise networks, and backbone environments. Featuring SC APC duplex connectors on both ends with an angled 8° polish, this cable delivers ultra-low back reflection and low insertion loss, making it ideal for long-reach optical links and return-loss-sensitive systems such as DWDM, OTN, and high-speed Ethernet up to 400G.
Constructed with bend-insensitive G.657.A1 fiber and a slim 1.2mm riser-rated (OFNR) tight-buffered jacket, this duplex patch cable provides excellent flexibility, reduced attenuation under bending, and easier routing through dense trays and cable pathways. Its compact diameter enables high-density patching while maintaining mechanical durability and optical stability, making installation faster and more efficient in modern network environments.
Need assistance selecting optimal lengths, connector types, or polarity mapping for your SC APC links? Contact us now and our engineering team will help validate your design before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | SC APC to SC APC Duplex Single Mode Fiber Patch Cable |
| Connector A | SC APC Duplex |
| Connector B | SC APC Duplex |
| Fiber Count | 2 Fibers (Duplex) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125 μm |
| Wavelength | 1310 nm / 1550 nm |
| Flame Rating | Riser (OFNR) |
| Cable Outside Diameter (OD) | 1.2 mm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight-buffered |
| Min. Bend Radius (Optical Fiber) | 10 mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 mating cycles |
| Tensile Strength | 40/80 N (Long/Short Term) |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 60 dB (APC) |
| Attenuation @ 1310 nm | 0.4 dB/km |
| Attenuation @ 1550 nm | 0.3 dB/km |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Applications | 1G–400G Ethernet, SC-based panels, long-distance OS2 links, DWDM/OTN & optical backbones |
Why Choose NSComm SC APC to SC APC Duplex OS2 Patch Cables?
-
Ultra-low reflection APC performance – 8° angled SC APC connectors provide ≥60 dB return loss, ideal for long-reach and DWDM applications.
-
Slim 1.2mm high-density design – Thin profile saves space on patch panels and improves airflow in dense racks.
-
Bend-insensitive G.657.A1 fiber – Reduces attenuation under tight bends, improving installation flexibility and system reliability.
-
Long-distance OS2 capability – Suitable for up to 10 km @ 1310 nm and 40 km @ 1550 nm transmission distances.
-
Riser-rated OFNR construction – Durable tight-buffered cable for safe use in riser spaces, racks, trays, and conduits.
Length Options
Standard stocked lengths:
Available in commonly used patch cord lengths for ODF-to-ODF, rack-to-rack, and equipment-to-panel connections.
Custom lengths:
Custom lengths, labeling, colors, and polarity options available to match your exact cabling architecture and deployment standards.
