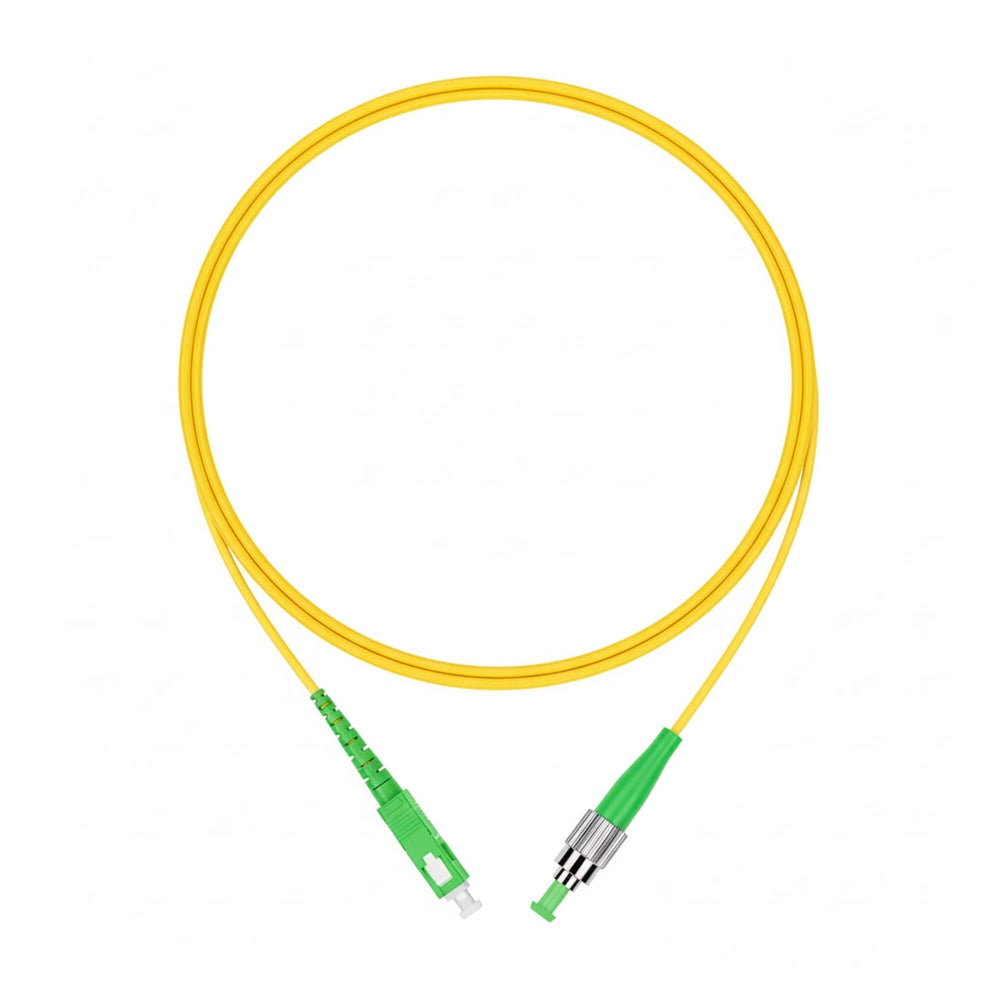

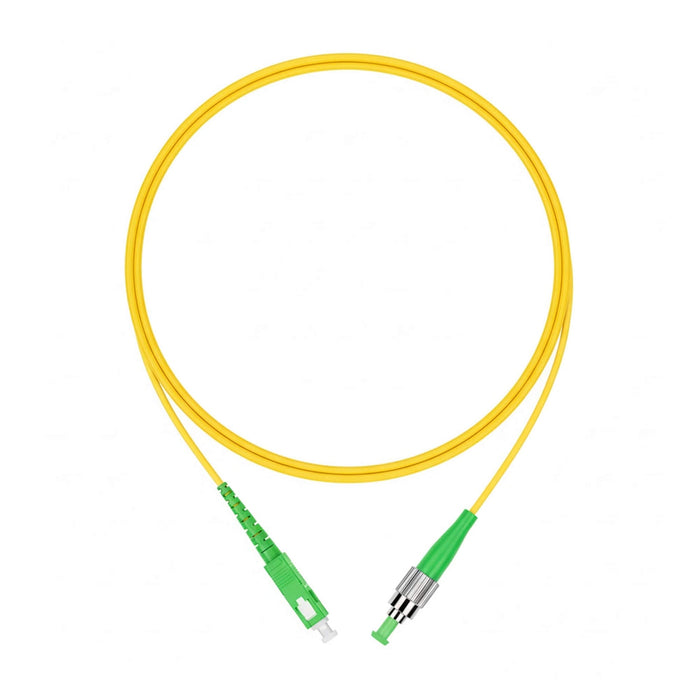

NSComm SC APC to FC APC Simplex Single Mode Fiber Patch Cable, 2.0mm OFNR
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm SC APC to FC APC Simplex Single Mode Fiber Patch Cable is a high-performance OS2 interconnect designed for long-distance, point-to-point links across entrance facilities, telecommunications rooms, data centers, and lab or test environments. With an SC APC connector on one end and an FC APC connector on the other, this cable provides a reliable interface between SC-based patch panels or equipment and FC-based transmission systems that require secure, threaded terminations.
Equipped with bend-insensitive G.657.A1 fiber and a 2.0mm riser-rated (OFNR) tight-buffered jacket, this simplex patch cable delivers low insertion loss, ultra-high return loss, and robust mechanical durability. The angled APC polish (8°) on both ends minimizes back reflection, making the cable especially suitable for long-distance OS2 applications up to 10 km at 1310 nm or up to 40 km at 1550 nm, while reduced attenuation under bending and twisting helps simplify installation and ongoing maintenance.
Need help confirming SC–FC APC compatibility, link budget, or length selection? Contact us now and our team will help validate your design before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | SC APC to FC APC Simplex Single Mode Fiber Patch Cable |
| Connector A | SC APC Simplex |
| Connector B | FC APC Simplex |
| Fiber Count | 1 Fiber (Simplex) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125 μm |
| Wavelength | 1310 nm / 1550 nm |
| RoHS Compliancy Status | Compliant |
| Cable Type | Tight-buffered |
| Cable Outside Diameter (OD) | 2.0 mm |
| Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10 mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 mating cycles |
| Tensile Strength | 60/100 N (Long/Short Term) |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 60 dB (APC) |
| Attenuation @ 1310 nm | 0.4 dB/km |
| Attenuation @ 1550 nm | 0.3 dB/km |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Recommended Distance @ 1310 nm | Up to 10 km (application dependent) |
| Recommended Distance @ 1550 nm | Up to 40 km (application dependent) |
| Applications | 1G/10G/25G/40G/100G/400G Ethernet, SC panel to FC equipment, DWDM/OTN, DC/telecom links |
Why Choose NSComm SC APC to FC APC Simplex OS2 Patch Cables?
-
APC-to-APC ultra-low reflection – 8° angled SC APC and FC APC connectors deliver very high return loss (≥60 dB) for sensitive long-reach links.
-
Interoperability between SC and FC – Ideal for bridging SC-based panels or ODFs to FC-based transport shelves, amplifiers, or test gear.
-
Long-distance OS2 single mode capability – Supports up to 10 km @ 1310 nm and 40 km @ 1550 nm for extended reach deployments.
-
Bend-insensitive G.657.A1 fiber – Reduced attenuation under bends and twists simplifies routing in dense cable management environments.
-
Riser-rated 2.0mm construction – Tight-buffered OFNR jacket provides durability and easy handling in riser spaces, racks, and conduits.
Length Options
Standard stocked lengths:
Available in a variety of common simplex lengths suited for equipment-to-frame, panel-to-panel, and long-reach patching in telecom rooms and data centers.
Custom lengths:
Custom lengths, jacket colors, labeling, and connector orientation options are available on request to align with your exact rack layout, plant design, and routing paths.
