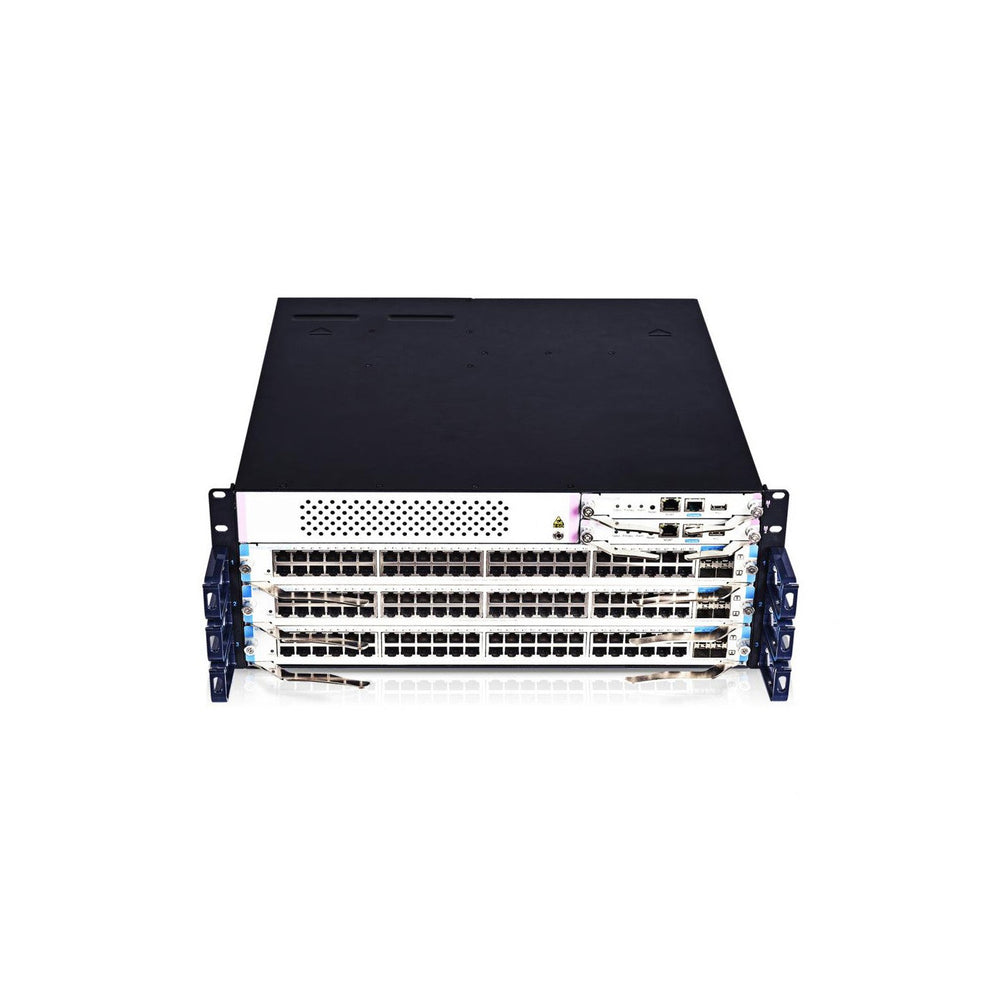

NSComm S7805C Modular Campus Core Switch 5 Slot (Chassis Only)
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS-S7805C 5-Slot Modular Campus Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NS-S7805C is a versatile 4 RU, 5-slot chassis designed to serve as the backbone of modern campus and metropolitan networks. It accommodates two supervisor engine modules and three service-slot line cards, giving you the flexibility to mix and match 1/10/25/40 GbE or 100 GbE interfaces as your traffic profile evolves.
Powered by Ruijie’s RGOS 11.X multi-processing OS, the NS-S7805C delivers advanced virtualization (VSU 3.0 & VSD), integrated security, and SDN-ready OpenFlow 1.3 support, perfect for converged voice, video, wireless, and data service deployments.
Highlights
-
Flexible Slot Architecture
• 2 supervisor engine slots + 3 service slots for line cards, supporting a wide range of port modules (1/10/25/40/100 GbE) -
High-Performance Fabric
• 6 Tbps non-blocking switching capacity; up to 4 500 Mpps packet forwarding -
Carrier-Grade Virtualization
• VSU 3.0 for sub-200 ms failover and logical device clustering
• VSD for on-demand resource pooling and simplified O&M -
Advanced L2/L3 Services
• MPLS, VXLAN/EVPN, OSPF/BGP, QoS, ACL, ERPS (G.8032), LLDP, Jumbo Frames -
Enterprise Resilience
• Dual hot-swappable PSUs (1+1 redundancy), dual-boot flash modules, and redundant fan modules
• OpenFlow 1.3 SDN support and granular telemetry via gRPC
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA150IB-F | AC Power Module | 150 W hot-swap PSU (100–240 VAC) |
| NS-PD300IB-F | DC Power Module | –48 V DC, 300 W hot-swap PSU |
| NS-RMK-2U | Rack Mount Kit | 19″ 2 RU mounting brackets |
| Line-Card Modules | Service Slot Modules | Mix of 10/25/40/100 GbE interface cards |
Compare with Similar Models
| Model | Slots & Port Modules | Switching Capacity | Forwarding Rate | Redundancy Features |
|---|---|---|---|---|
| Ruijie RG-S7805C | 2 engines + 3 service slots; mix of 10/25/40/100 GbE cards | 6 Tbps | 4 800 Mpps | 1+1 PSUs; 1+1 flash; redundant fans |
| NS-S7805C | Same | Same | Same | Same |
| Ruijie RG-S7808C | 2 engines + 6 service slots; mix of 1/10/25/40/100 GbE cards | 40.72 Tbps | 14 400 Mpps | 1+1 PSUs; 2+1 flash; 4+2 fans |
| NS-S7808C | Same | Same | Same | Same |
| Ruijie RG-S7810C | 2 engines + 8 service slots; supports up to 400 GbE cards | 47.7 Tbps | 10 065 Mpps | 1+1 PSUs; 2+1 flash; 6+2 fans |
| NS-S7810C | Same | Same | Same | Same |
| Ruijie RG-S7810C-X | Same chassis as S7810C with extended-capacity backplane | 86.4 Tbps | 11 610 Mpps | 2+2 PSUs; 2+1 flash; 8+2 fans |
| NS-S7810C-X | Same | Same | Same | Same |
