- 128×400 GbE QSFP112 + 2×10 GbE SFP+ Fixed Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
As a manufacturer alongside leading brands like Cisco, H3C, Huawei, and Ruijie, NSComm delivers high-performance data-center and core/aggregation switches under the NS-S6990/6980/6930/6920/6910 series.
These devices match Ruijie’s RG-S6990, RG-S6980, RG-S6930, RG-S6920, and RG-S6910 Series in port density, non-blocking throughput, virtualization (VSU, EVPN-VXLAN), hardware redundancy, and advanced telemetry/management, all under your own branding.
Overview

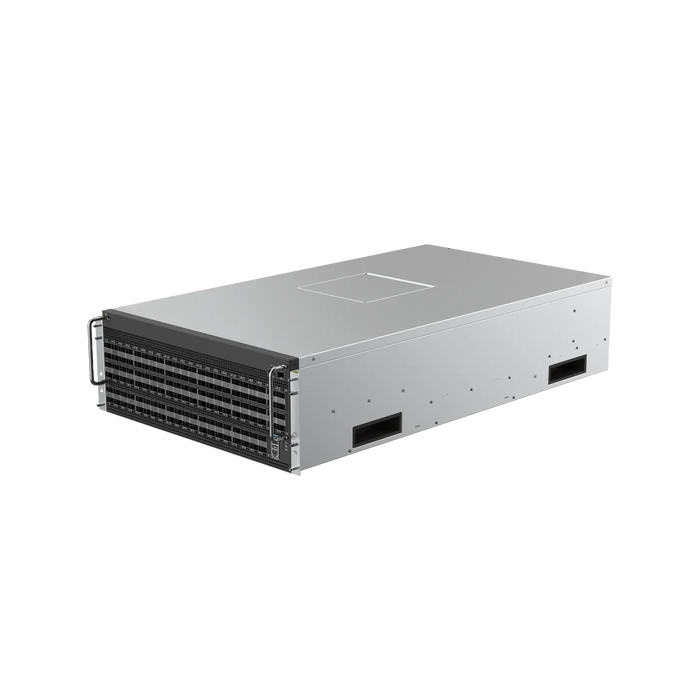

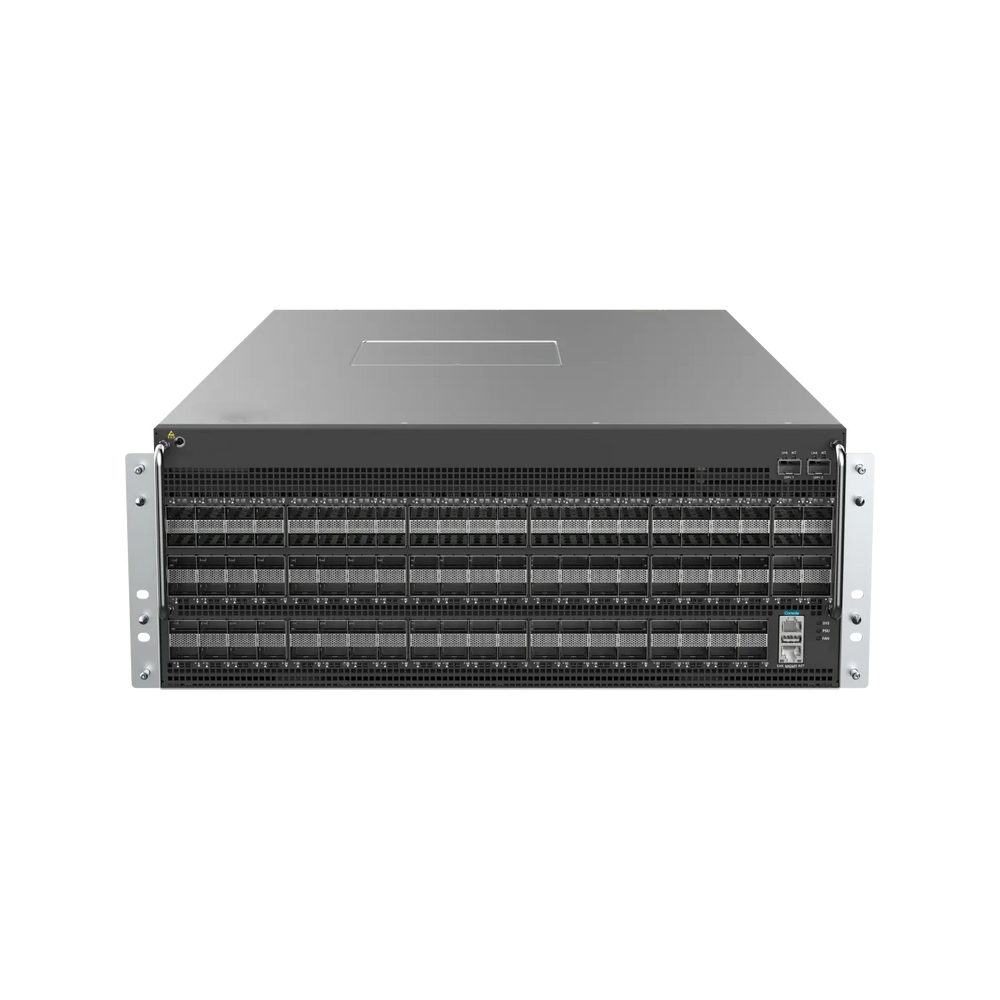

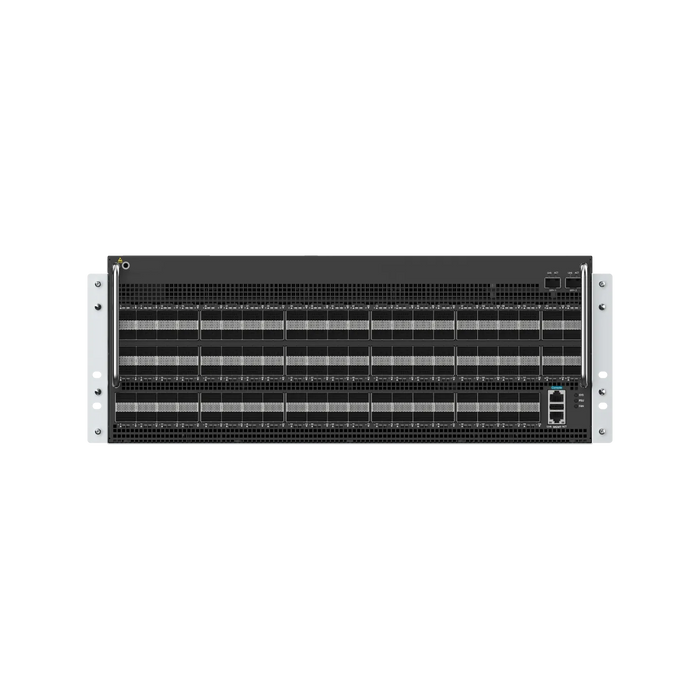

The NS-S6990-128QC2XS brings ultra-dense 400 GbE fabric to the data center with 128 QSFP112 ports and 2 SFP+ management ports in a 4 RU chassis. It leverages AI-Fabric load balancing (RDLB/GDLB), PFC/ECN for lossless RDMA, and nanosecond-level hardware failover for AIGC and HPC traffic.
Highlights
-
102.4 Tbps switching capacity
-
21 000 Mpps forwarding rate
-
128×100/200/400 GbE QSFP112 & 2×GE/10 GbE SFP+
-

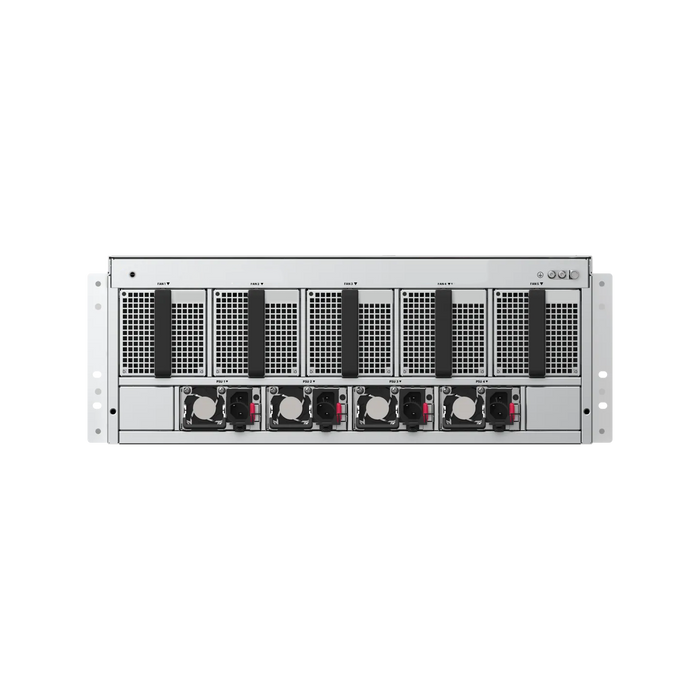

2+2 hot-swap PSUs; 4+1 hot-swap fans
-
AI-powered telemetry & gRPC for sub-second analytics
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA1600II-F | AC Power Module | 1 600 W hot-swap PSU (AC/HVDC) |
| FAN80-180F | Fan Module | Hot-swap 4+1 fan redundancy |
| NS-RMK-1U | Rack Mount Kit | 19″ 4 RU mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Cap. | Forwarding Rate | Redundancy Features |
|---|---|---|---|---|
| Ruijie RG-S6990-128QC2XS | 128×400 GbE QSFP112 + 2×10 GbE SFP+ | 102.4 Tbps | 21 000 Mpps | 2+2 PSUs; 4+1 fans |
| NS-S6990-128QC2XS | Same | Same | Same | Same |
| Ruijie RG-S6980-64QC | 64×400 GbE QSFP-DD | 51.2 Tbps | 10 300 Mpps | 2+2 PSUs; 7+1 fans |
| NS-S6980-64QC | Same | Same | Same | Same |
| Ruijie RG-S6980-128DC | 128×200 GbE QSFP56 | 51.2 Tbps | 10 300 Mpps | 2+2 PSUs; 7+1 fans |
| NS-S6980-128DC | Same | Same | Same | Same |
| Ruijie RG-S6930-2C | 2 slots (72×100 GbE or 36×200 GbE each) | 28.8 Tbps | 5 400 Mpps | 2+2 PSUs; 7+1 fans |
| NS-S6930-2C | Same | Same | Same | Same |
| Ruijie RG-S6920-4C | 4 slots (32×100 GbE each; up to 128×100 GbE) | 25.6 Tbps | 8 000 Mpps | 2+2 PSUs; 5+1 fans |
| NS-S6920-4C | Same | Same | Same | Same |
| Ruijie RG-S6910-3C | 3 slots (32×100 GbE each; up to 96×100 GbE) | 19.2 Tbps | 4 000 Mpps | 2+2 PSUs; 5+1 fans |
| NS-S6910-3C | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS-S6990-128QC2XS |
| Service Ports | 128×100/200/400 GbE QSFP112; 2×GE/10 GbE SFP+ |
| Switching Capacity | 102.4 Tbps |
| Forwarding Rate | 21 000 Mpps |
| Power Modules | 4 slots, 2+2 redundancy |
| Fan Modules | 5 slots, 4+1 redundancy |
| Dimensions (W×D×H) | 446×800×173.6 mm (4 RU) |
| Weight | 37.6 kg empty / 45 kg full |
| Power Consumption | Max 3 160 W; Typical 2 432 W; Static 433 W |
| Temp & Humidity | 0 °C–40 °C; 10%–90% RH non-condensing |
| Management | CLI, SNMP, Web UI, gRPC, Telemetry |
