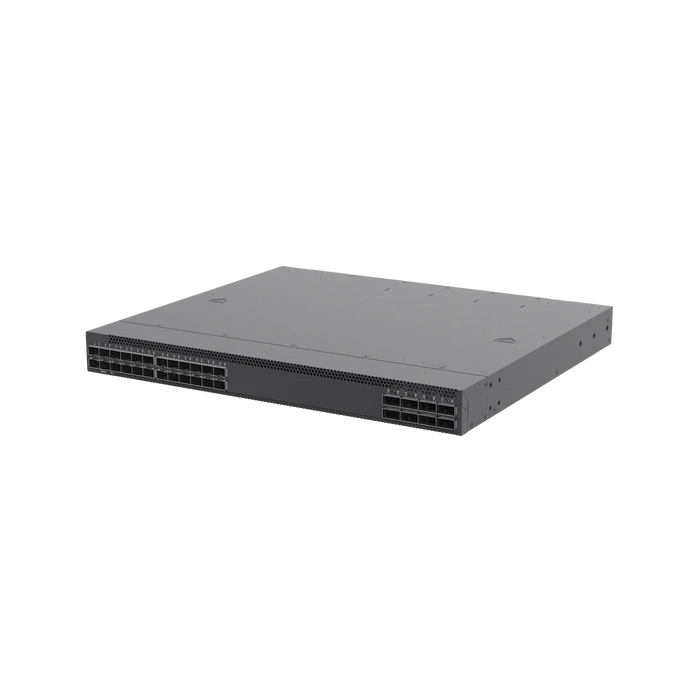

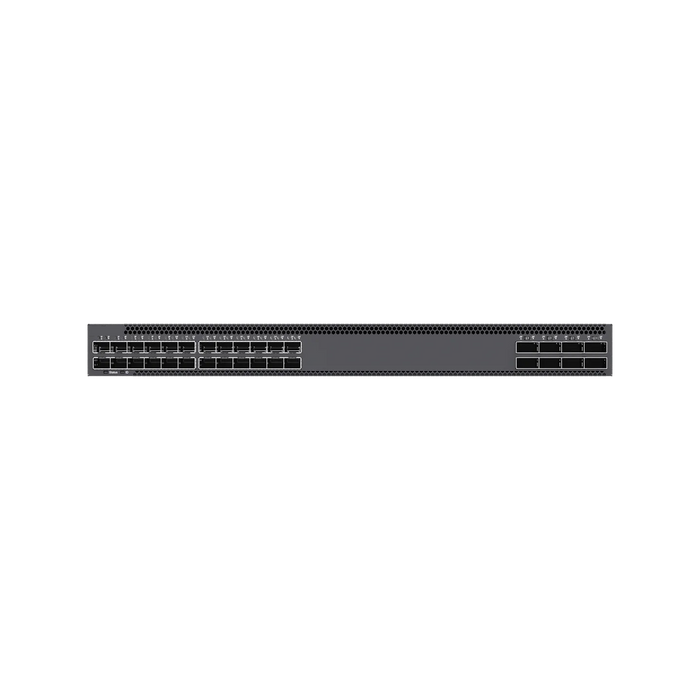

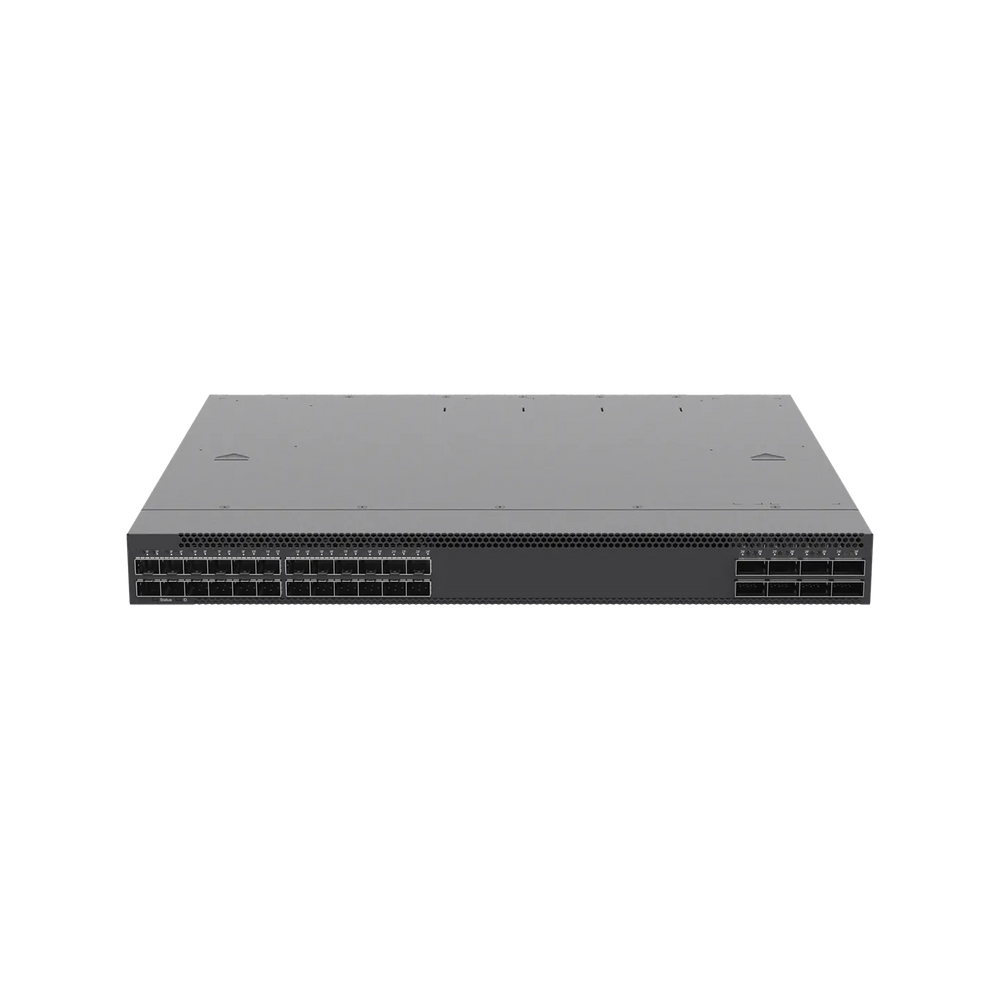

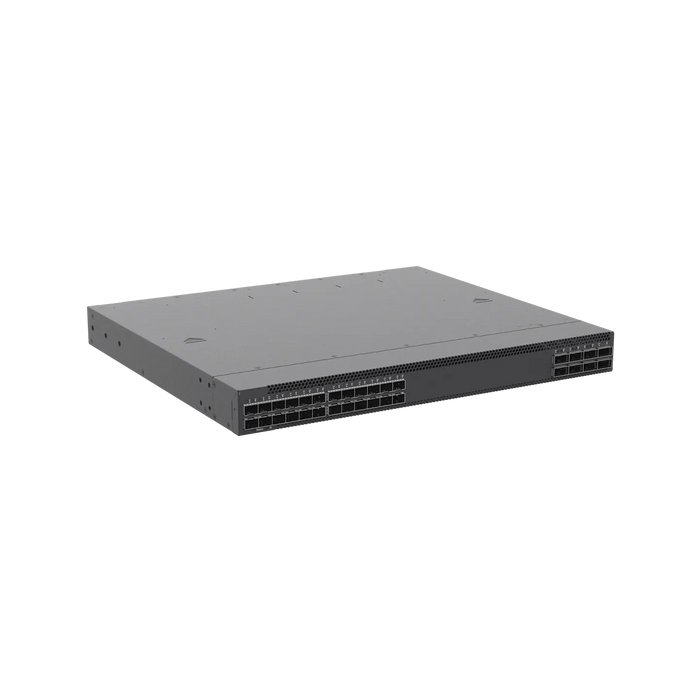

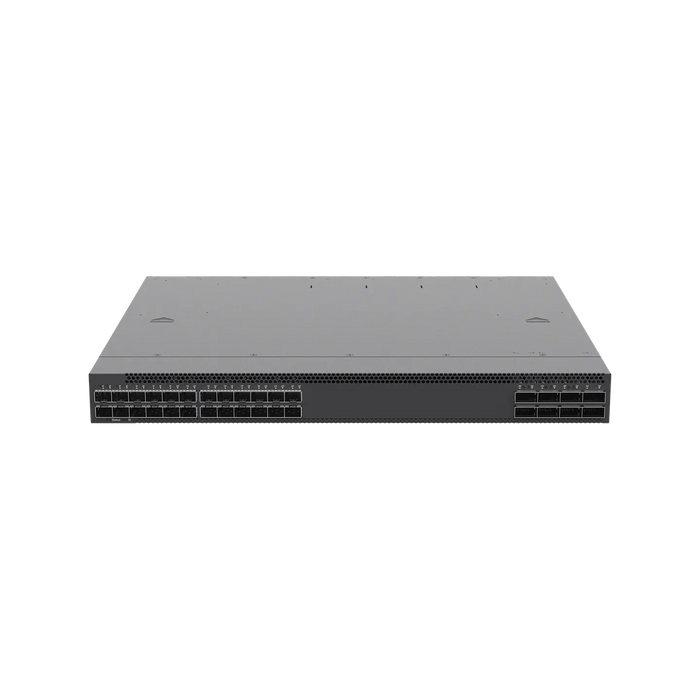

NSComm S6150-24VS8CQ-X 24x10/25G Optical & 8x40/100G Uplink Core Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- 24×1/10/25 Gbps SFP28 + 8×40/100 Gbps QSFP28 Core & Aggregation Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
Built for evolving to 25 GbE campus networks, the NS-S6150-24VS8CQ-X offers 24 all-optical SFP28 ports (1/10/25 GbE) plus eight 40/100 GbE QSFP28 uplinks, delivering 2.8 Tbps of switching capacity and millisecond-level VSU failover.
Highlights
-
High-Density Optical Access: 24×1/10/25 GbE SFP28 & 8×40/100 GbE QSFP28
-
2.8 Tbps Switching with quad-core 2.2 GHz CPU, 4 GB DDR4, 8 GB flash
-
VSU Virtualization for unified management and sub-50 ms failover
-

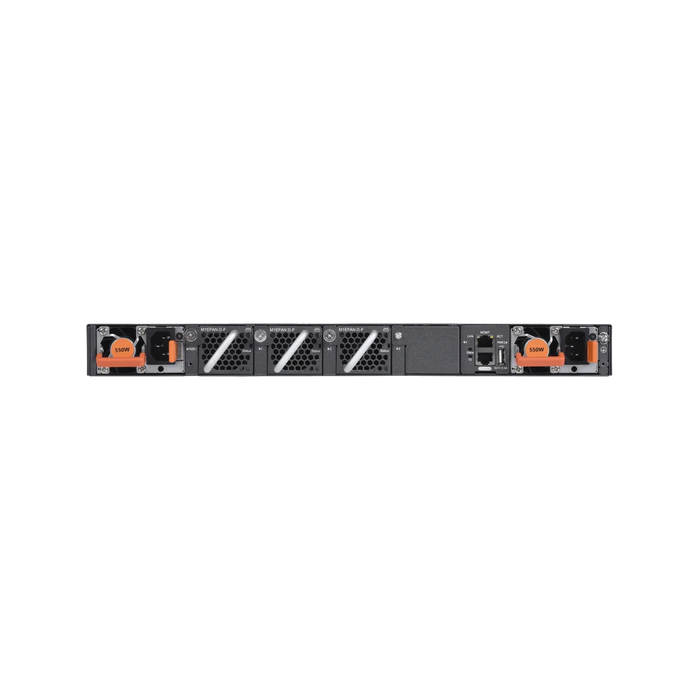

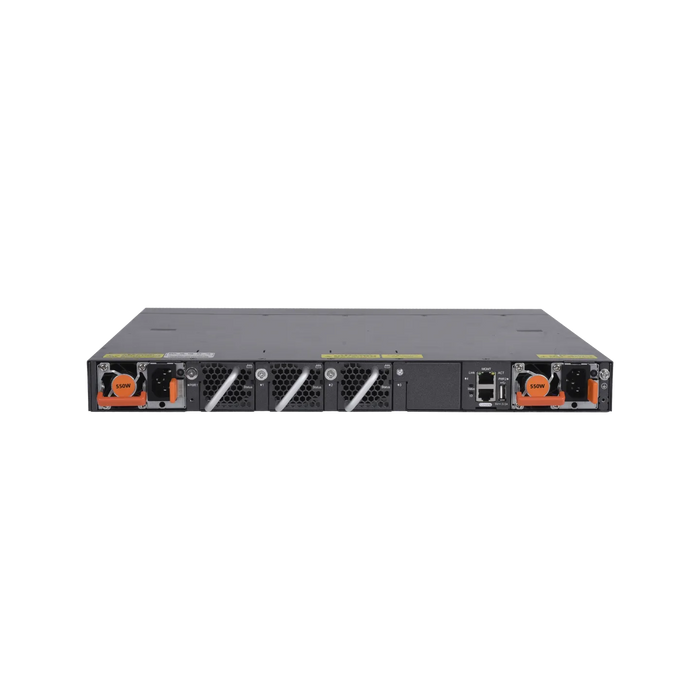

Hardware Redundancy: Dual pluggable PSUs, 4 pre-installed fan modules, dual-flash boot
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA550II-F | AC Power Module | 550 W hot-swappable PSU |
| NS-RMK-1U | Rack Mount Kit | 19″ 1U mounting brackets |
| NS-24VS-LIC | 25GE Port License | Enables full-rate 25 GbE on SFP28 ports |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG-S6000C-48GT4XS-E | 48×1 GbE RJ45, 4×10 GbE SFP+ | 256 Gbps | 192 Mpps | None | Dual PSU slots, dual-boot flash, 1 fan slot |
| NS-S6000C-48GT4XS-E | Same | Same | Same | None | Same |
| Ruijie RG-S6150-24VS8CQ-X | 24×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 | 2.8 Tbps | — | None | Dual PSU, 4 fan modules, dual-boot flash |
| NS-S6150-24VS8CQ-X | Same | Same | Same | None | Same |
| Ruijie RG-S6150-48VS8CQ-X | 48×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 | 4 Tbps | — | None | Dual PSU, 4 fan modules, dual-boot flash |
| NS-S6150-48VS8CQ-X | Same | Same | Same | None | Same |
| Ruijie RG-S6110-48MG4VS2QXS-UP | 48×100 Mb–5 GbE PoE/PoE+, 4×25 GbE SFP28, 2×40 GbE QSFP28 | 840 Gbps | 625 Mpps | Up to 1 600 W PoE++ | Dual PSU slots, 3 fan slots |
| NS-S6110-48MG4VS2QXS-UP | Same | Same | Same | Same | Same |
| Ruijie RG-S6120-24XMG4XS4VS-UP-H | 24×100 Mb–10 GbE PoE/PoE+/PoE++, 4×10 GbE SFP+, 4×25 GbE SFP28 | 760 Gbps | 565 Mpps | Up to 1 650 W PoE++ | Dual PSU slots, 3 fan slots |
| NS-S6120-24XMG4XS4VS-UP-H | Same | Same | Same | Same | Same |
| Ruijie RG-S6120-20XS4VS2QXS | 20×1/2.5/10 GbE SFP+, 4×10/25 GbE SFP28, 2×40 GbE QSFP+ | 912 Gbps | 678 Mpps | None | Dual PSU slots, 2 fan slots |
| NS-S6120-20XS4VS2QXS | Same | Same | Same | None | Same |
Specification Summary
| Parameter | NS-S6150-24VS8CQ-X |
|---|---|
| Service Ports | 24×1/10/25 Gbps SFP28 (25 GbE license required) |
| Uplink Ports | 8×40/100 Gbps QSFP28 (4×10G/4×25G breakout) |
| Switching Capacity | 2.8 Tbps |
| CPU / Memory / Flash | Quad-core 2.2 GHz / 4 GB DDR4 / 8 GB |
| MAC / ARP / ND Tables | 128 K / 96 K / 80 K entries |
| IPv4 / IPv6 Unicast Routes | 350 K / 65 K |
| Multicast Routes | IPv4: 4 K, IPv6: 2 K |
| ACEs | Ingress: 28 K, Egress: 4 K |
| VSU Members | Up to 8 |
| Power Supply & Consumption | 2×RG-PA550II-F (550 W each); 270 W |
| Dimensions (W×D×H) | 442×387×44 mm; 8.5 kg |
| Operating Temp. | 0 °C – 45 °C |
| Redundancy | 1+1 PSU, 3+1 fan hot-swap |
