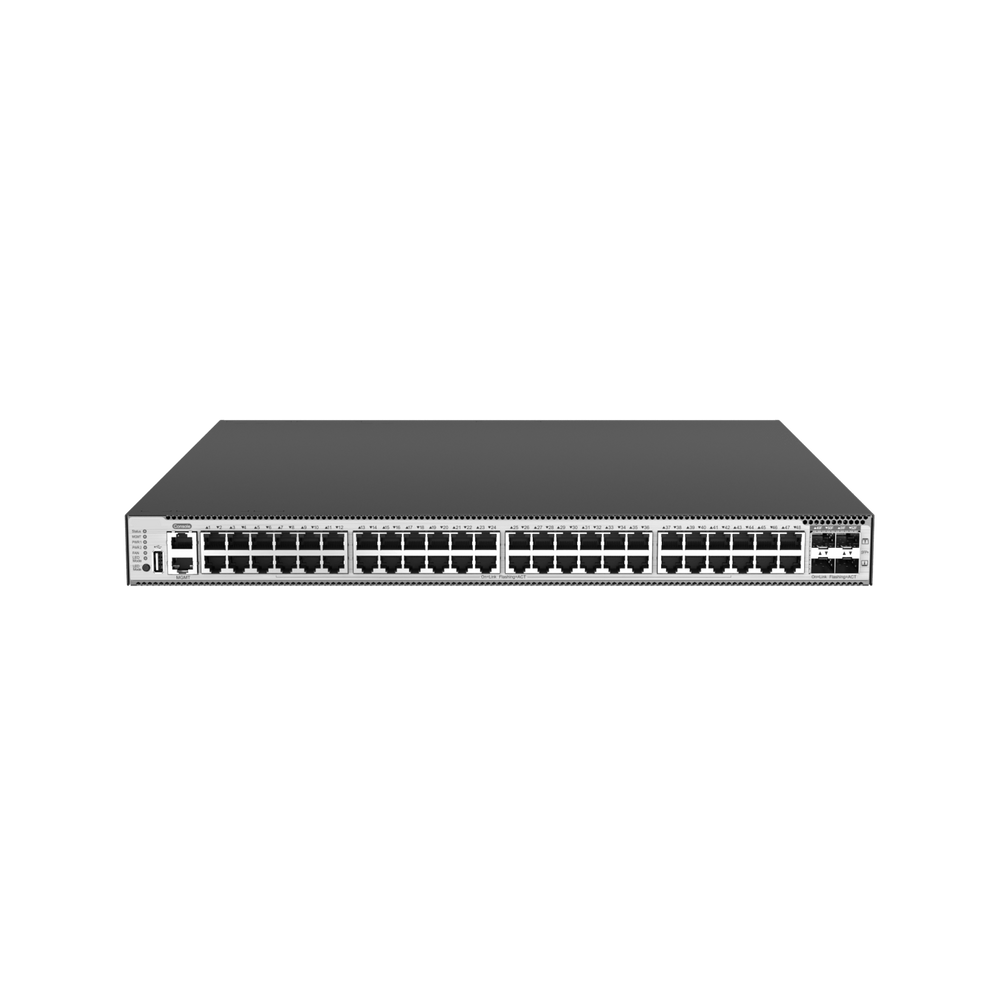

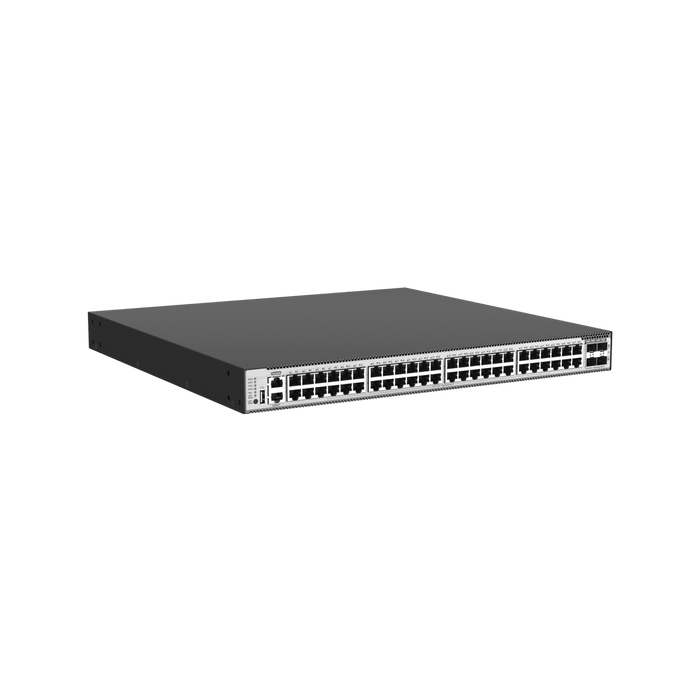

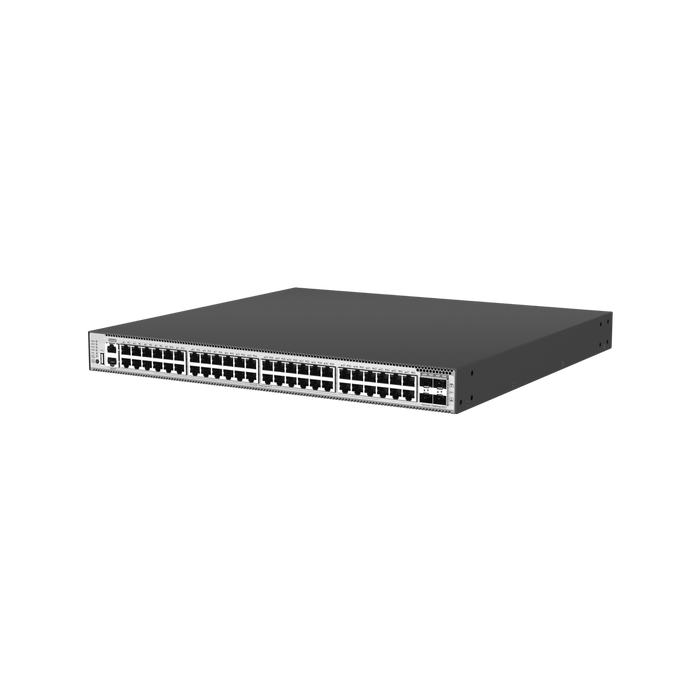

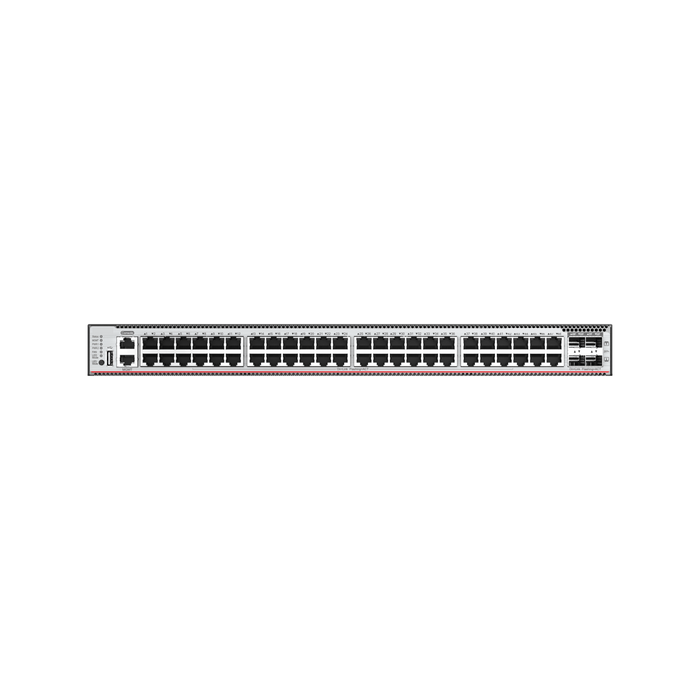

NSComm S5760C-48GT4XS-HP-X 48x1G (PoE+) & 4x10G SFP+ L3 PoE Aggregation Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS‑S5760C‑48GT4XS‑HP‑X, 48×1 Gbps RJ45 PoE+ + 4×10 Gbps SFP+, PoE Core/Aggregation Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
Offers 48 × 1 GbE PoE+ ports (≤30 W/port), plus 4×1/2.5/10 GbE SFP+ uplinks, backed by dual hot-swap power modules and fan redundancy. Supports 1.2 GHz dual-core CPU, 2 GB SDRAM.
Highlights
-
Full Layer 2+/Layer 3 support (IPv4/IPv6: static, RIP, OSPF, IS‑IS, BGP)
-
Virtual Switch Unit (VSU) virtualization for unified logical switching
-
Security features: ACLs, DHCP snooping, ARP inspection, SSH, SNMPv3
-
Hot-swappable PSU, fan redundancy, expansion slot—ensuring 24/7 uptime
-
Efficient management via CLI, Web, Telnet, USB, Ruijie INC/cloud provisioning
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA600I‑P‑F | AC Power Module | 600 W hot-plug AC redundant PSU |
| NS‑PA1000I‑P‑F | AC Power Module | 1000 W PSU for high PoE budget |
| NS‑M5000X Module | Expansion Module | Adds QSFP28 + SFP+ uplink flexibility |
| NS‑XG‑SFP‑SR | 10 G SFP+ Transceiver | Multimode SR module, 850 nm |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG‑S5760C‑24GT8XS‑X | 24×1GbE RJ45, 8×10GbE SFP+ | 880 Gbps | 426 Mpps | None | Dual PSU, dual-flash boot, redundant fans |
| NS‑S5760C‑24GT8XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48GT4XS‑X | 48×1GbE RJ45, 4×10GbE SFP+ | 880 Gbps | 402 Mpps | None | Dual PSU, dual-flash boot, redundant fans |
| NS‑S5760C‑48GT4XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑24SFP/8GT8XS‑X | 24×1GbE SFP, 8 Combo RJ45, 8×10GbE SFP+ | 688 Gbps | 512 Mpps | None | Dual PSU slots, fan redundancy, modular expansion |
| NS‑S5760C‑24SFP/8GT8XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48SFP4XS‑X | 48×1GbE SFP, 4×10GbE SFP+ | 880 Gbps | 660 Mpps | None | Dual PSU slots, triple fan redundancy |
| NS‑S5760C‑48SFP4XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48GT4XS‑HP‑X | 48×1GbE RJ45 PoE+, 4×10GbE SFP+ | 880 Gbps | 402 Mpps | ≤30 W/port, up to 1565 W total | Dual PSU slots, redundant fans |
| NS‑S5760C‑48GT4XS‑HP‑X | Same | Same | Same | Same | Same |
| Ruijie RG‑S5750‑24SFP4XS24DP‑UP | 24×1GbE SFP, 4×10GbE SFP+, 24×PoF hybrid ports | 1.28 Tbps | 396 Mpps | ≤100 W per PoF port, ≤2400 W total | Triple PSU slots, triple fan redundancy |
| NS‑S5750‑24SFP4XS24DP‑UP | Same | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model | NS‑S5760C‑48GT4XS‑HP‑X |
| Ports | 48×GE PoE+ RJ45 ports, 4×10 GE SFP+ uplinks |
| CPU / Memory | Dual‑core 1.2 GHz CPU, 2 GB SDRAM, 4 GB Flash |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | ~402 Mpps |
| PoE Capability | ≤30 W per port, total depends on PSU config (~1565 W max) |
| MAC / ARP Tables | 64K / 24K |
| Routing Capacity | Supports full IPv4/IPv6 protocols |

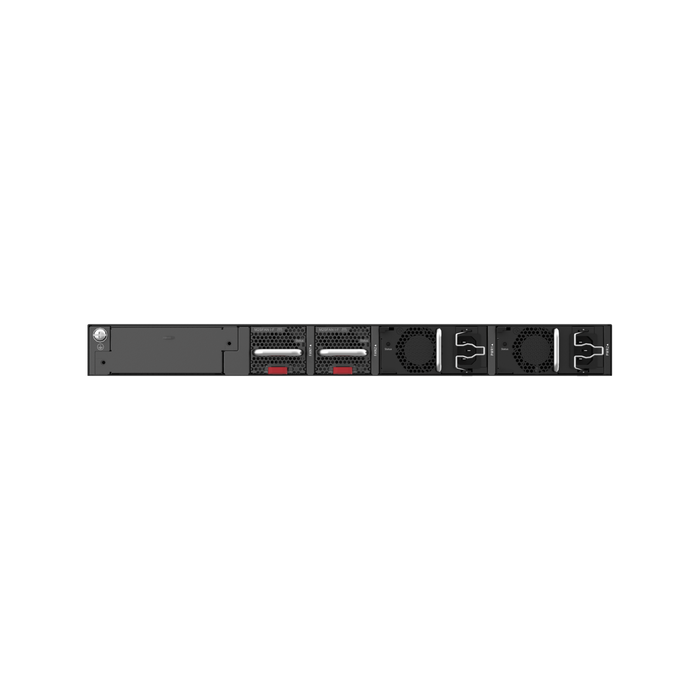

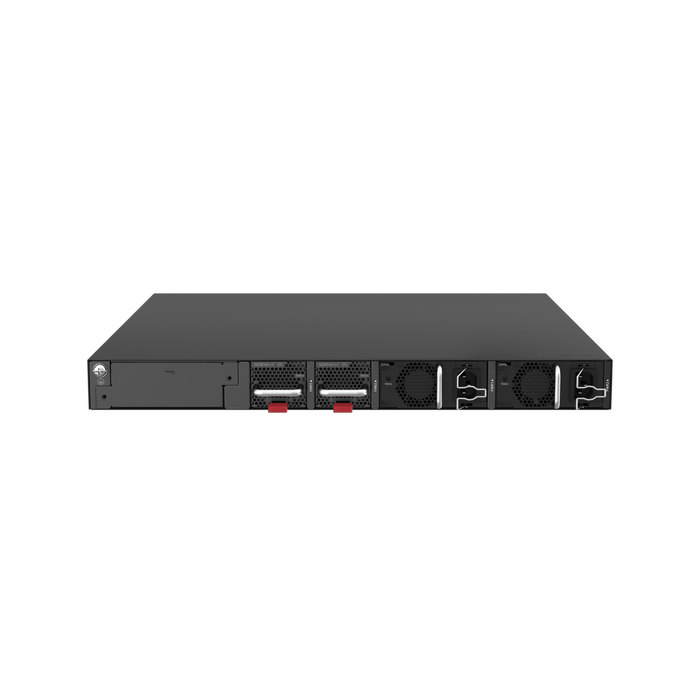

| Redundancy Features | Dual PSU slots, dual fan slots, hot-swap modules |
| Dimensions & Weight | 442×420×43.6 mm; ~5.7 kg |
| Operating Conditions | 0 °C–45 °C (altitude up to 1800 m); temperature derate above altitude |
| Surge Protection | Standard industry-level surge protections |
| Management Interfaces | SNMP v1/2/3, CLI, Web, SSH, Telnet, RMON, TR‑069, optional cloud management |
