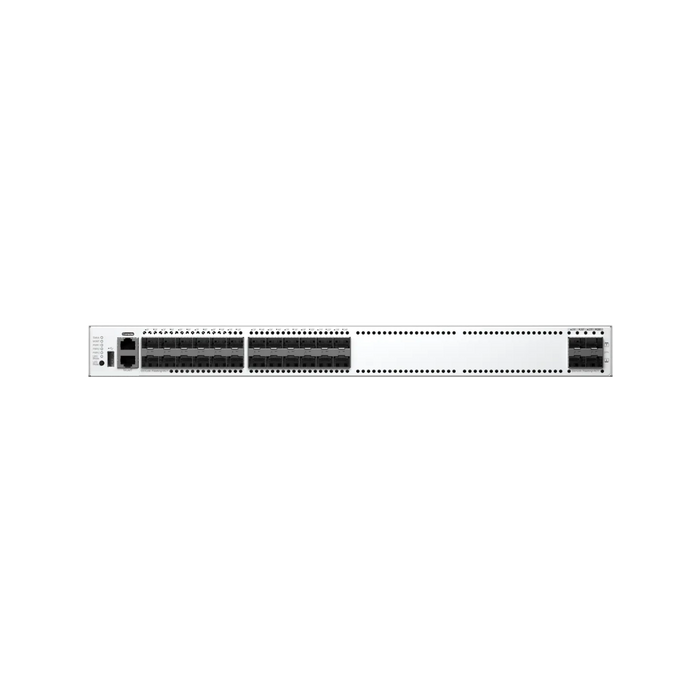

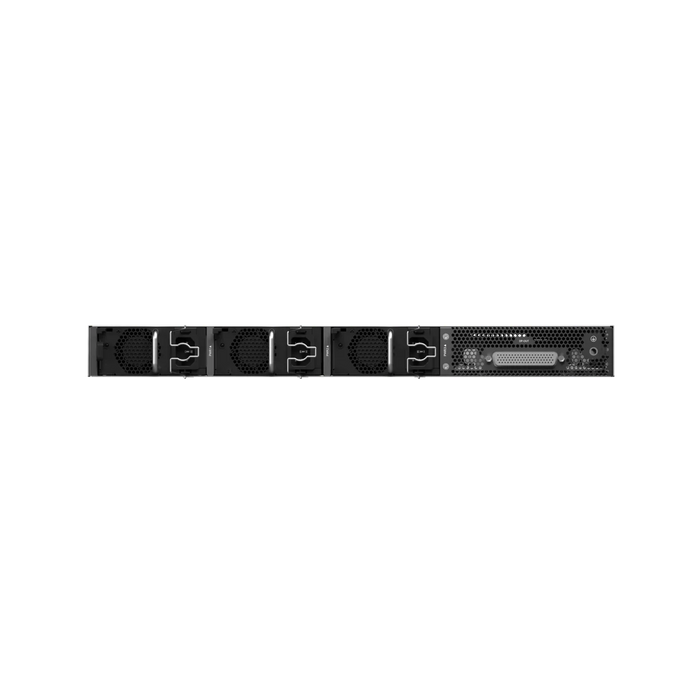

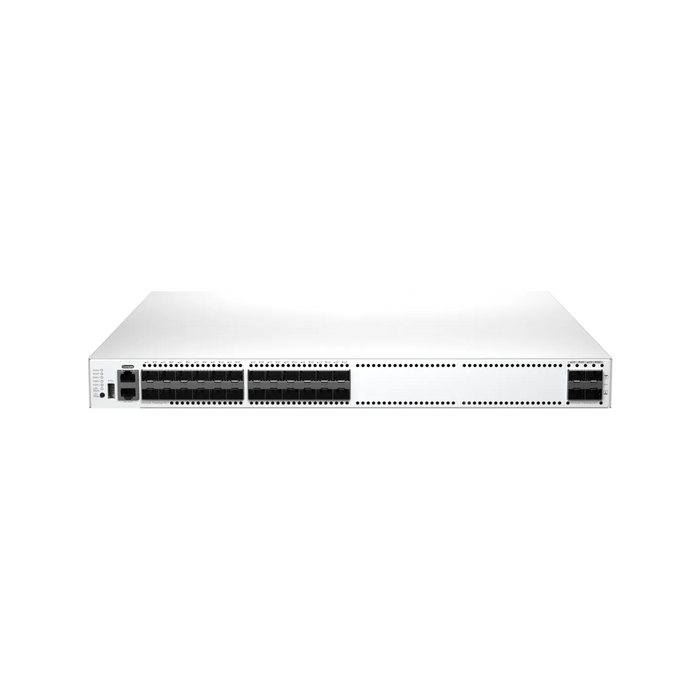

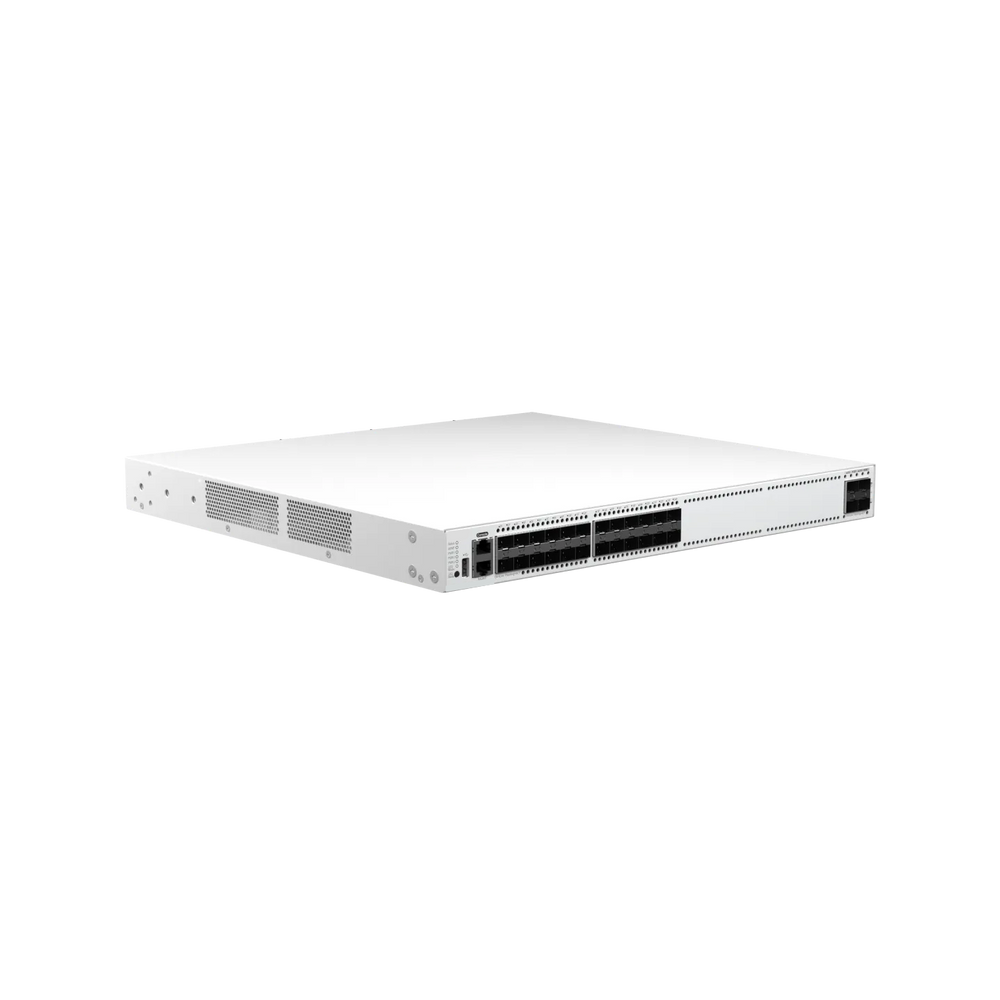

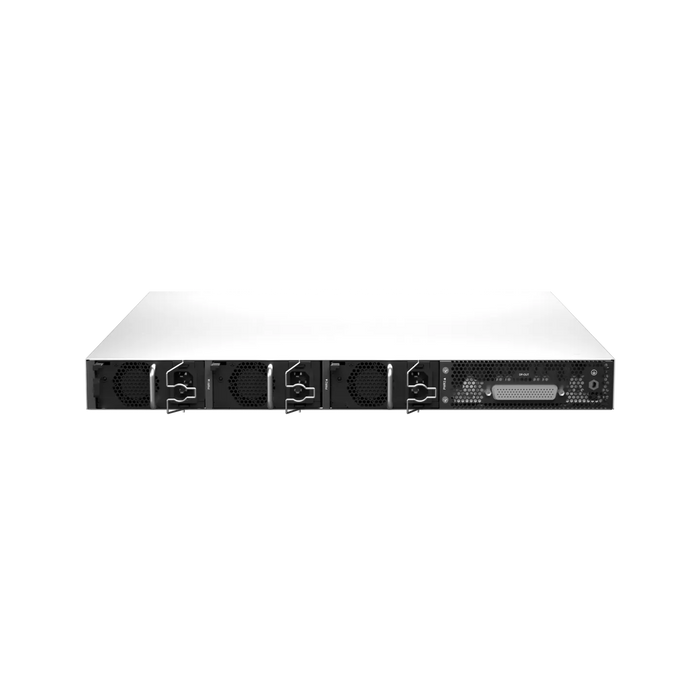

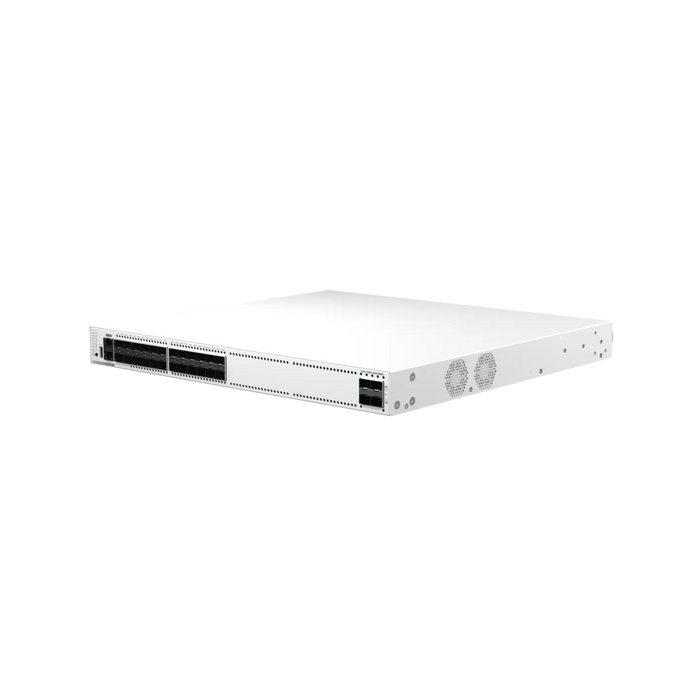

NSComm S5750-24SFP4XS24DP-UP 24x1G Optical PoF & 4x10G SFP+ Uplink Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS‑S5750‑24SFP4XS24DP‑UP, 24×1 Gigabit SFP + 4×10 Gigabit SFP+ PoF‑Capable Layer 3 Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
This fiber‑wide switch integrates 24 × 1 GbE SFP downlinks, 4 × 10 GbE SFP+ uplinks, and 24 PoF ports delivering up to 100 W per port. Provides 1.28 Tbps switching and 396 Mpps forwarding.
Highlights
-
Supports hybrid PoF ports to power end devices over fiber or copper
-
Ideal for buildings or campuses requiring both access and power delivery
-
Full Layer 3 routing (IPv4/IPv6, BGP, OSPF, RIP), multicast support, ACLs
-
High reliability with 3 modular fans and multiple PSU redundancy slots
-
Wide security and SCN support, manageable via standard interfaces
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA600I‑P‑F | AC Power Module | 600 W hot-plug PSU supporting PoF budgets |
| NS‑PA1000I‑P‑F | AC Power Module | 1000 W PSU for expanded power needs |
| NS‑XG‑SFP‑SR | 10 G SFP+ Transceiver | Multimode SR module for uplinks |
| NS‑XG‑SFP‑LR | 10 G SFP+ Transceiver | Single-mode LR module for long-reach |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG‑S5760C‑24GT8XS‑X | 24×1GbE RJ45, 8×10GbE SFP+ | 880 Gbps | 426 Mpps | None | Dual PSU, dual-flash boot, redundant fans |
| NS‑S5760C‑24GT8XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48GT4XS‑X | 48×1GbE RJ45, 4×10GbE SFP+ | 880 Gbps | 402 Mpps | None | Dual PSU, dual-flash boot, redundant fans |
| NS‑S5760C‑48GT4XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑24SFP/8GT8XS‑X | 24×1GbE SFP, 8 Combo RJ45, 8×10GbE SFP+ | 688 Gbps | 512 Mpps | None | Dual PSU slots, fan redundancy, modular expansion |
| NS‑S5760C‑24SFP/8GT8XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48SFP4XS‑X | 48×1GbE SFP, 4×10GbE SFP+ | 880 Gbps | 660 Mpps | None | Dual PSU slots, triple fan redundancy |
| NS‑S5760C‑48SFP4XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48GT4XS‑HP‑X | 48×1GbE RJ45 PoE+, 4×10GbE SFP+ | 880 Gbps | 402 Mpps | ≤30 W/port, up to 1565 W total | Dual PSU slots, redundant fans |
| NS‑S5760C‑48GT4XS‑HP‑X | Same | Same | Same | Same | Same |
| Ruijie RG‑S5750‑24SFP4XS24DP‑UP | 24×1GbE SFP, 4×10GbE SFP+, 24×PoF hybrid ports | 1.28 Tbps | 396 Mpps | ≤100 W per PoF port, ≤2400 W total | Triple PSU slots, triple fan redundancy |
| NS‑S5750‑24SFP4XS24DP‑UP | Same | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model | NS‑S5750‑24SFP4XS24DP‑UP |
| Ports | 24×1 GbE SFP downlinks, 4×10 GbE SFP+ uplinks, 24× PoF output ports |
| Switching Capacity | 1.28 Tbps (full duplex) |
| Forwarding Rate | 396 Mpps |
| MAC / ARP / Routing | 64K / 24K / 24K IPv4 routes, IPv6 14K routes |
| Redundancy Features | 3 hot-pluggable fans, 3 PSU slots, redundancy support |
| Dimensions & Weight | 442×420×43.6 mm, ~10 kg |
| Power Input | AC 100–240 V & HVDC 192–288 V support |
| Operating Temp. | 0 °C–45 °C, non-condensing |
| Management Interfaces | SNMP, CLI, Web, Telnet, USB logs, TR‑069 via INC/cloud |
