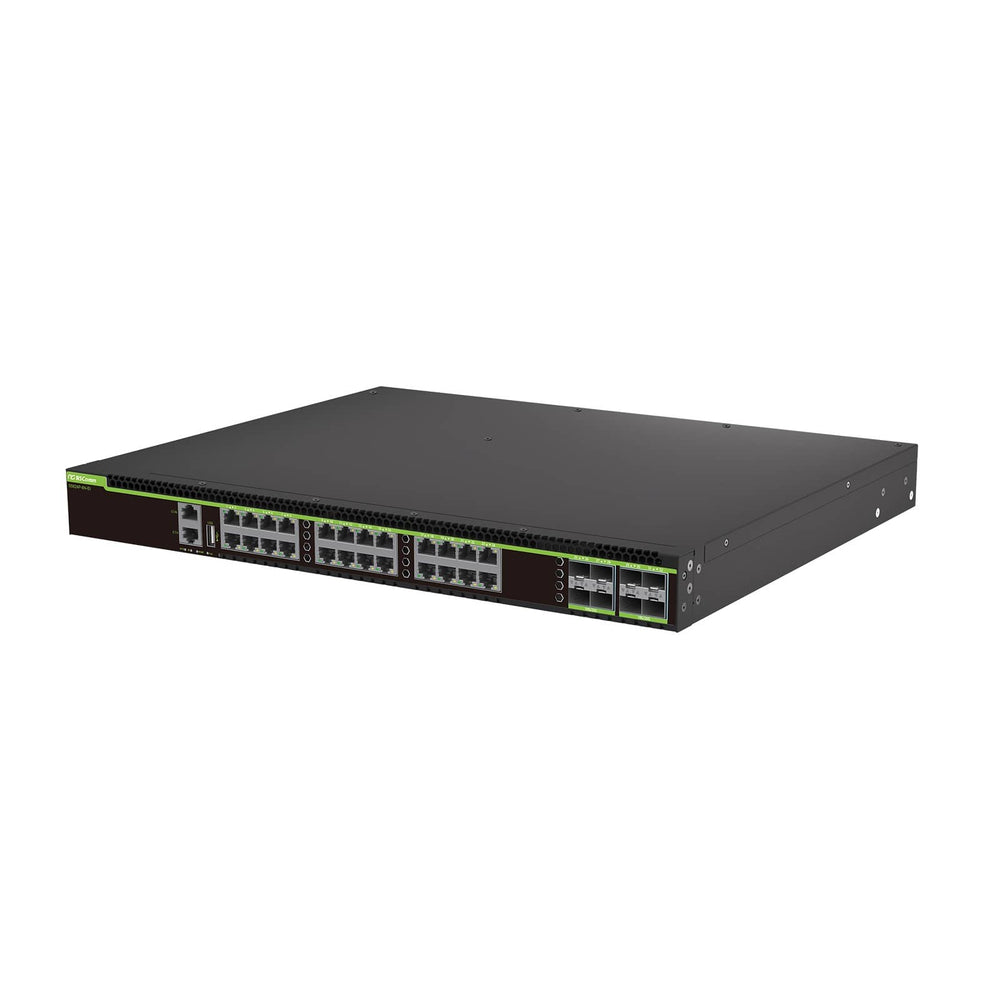

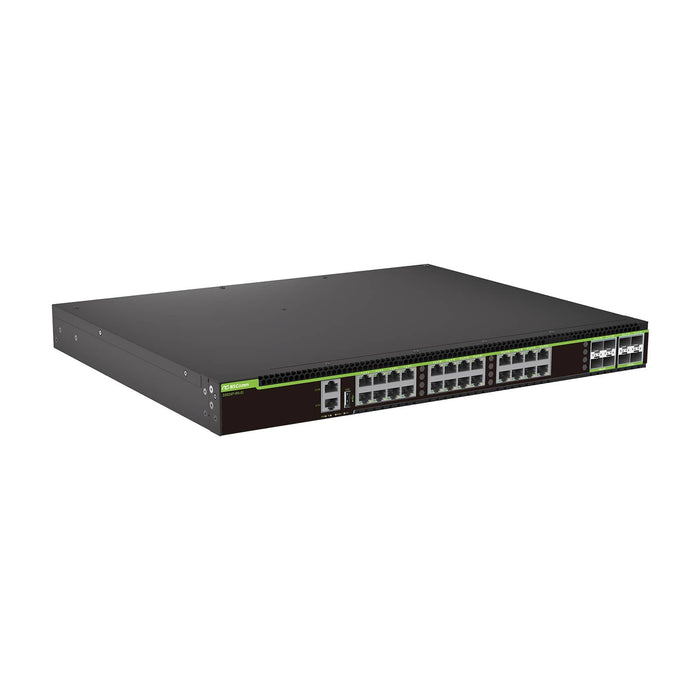

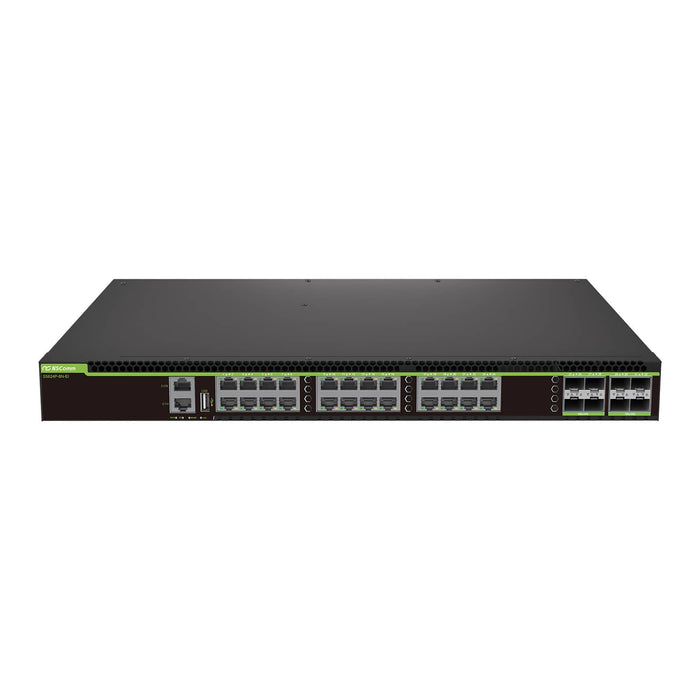

NSComm S5624P-8N-EI 24-Port Multi-Gig PoE++ Campus Access Switch

Overview

The NSComm S5624P-8N-EI is a Layer 3 managed access switch for small and medium businesses and compact campus networks. It combines 24 multi-gigabit PoE++ access ports with 8 x 25G SFP28 uplinks, giving high-power endpoints and bandwidth-intensive access deployments a clear path to the aggregation layer.

Core Highlights

• 24 multi-gigabit PoE++ access ports: 24 x 100M/1G/2.5G/5G/10G Base-T ports deliver up to 90W per port for high-power Wi-Fi access points, cameras, displays and other powered endpoints.
• 1,000W PoE budget: Supports dense PoE++ endpoint deployments while simplifying power planning at the access layer.
• 8 x 25G SFP28 uplinks: High-speed uplinks support resilient aggregation connectivity and future access-layer growth.
• Wire-speed performance: 880 Gbps bidirectional switching capacity and 1,309.44 Mpps bidirectional L2/L3 forwarding performance.
• Enterprise Layer 2 and Layer 3: Supports IPv4/IPv6, OSPF, BGP, PIM, MPLS L2/L3 VPN, VXLAN, BGP EVPN, MACsec and PTP features.

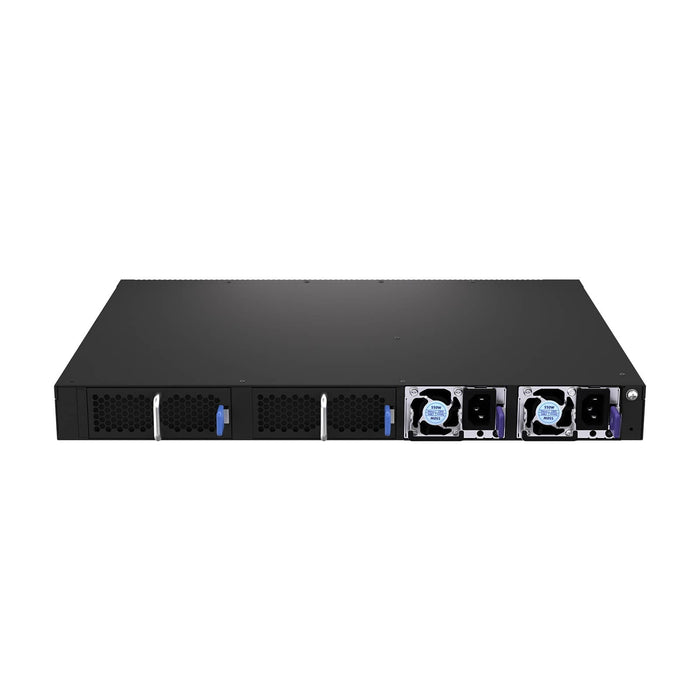

• High availability by design: MLAG, ERPS, dual CRPS power slots and two hot-swappable front-to-back fan modules support resilient deployments.

Application Scenarios

• Multi-gigabit access for small and medium business headquarters
• Campus access networks for Wi-Fi 6/6E access points and high-power endpoints
• PoE++ access for IP cameras, digital signage, IP phones, IoT and building systems
• High-bandwidth access closets requiring 25G uplinks to the aggregation layer

Comparison with Similar Models

Specifications

Why Choose NSComm S5624P-8N-EI?

• 24-port multi-gigabit PoE++ access with up to 90W per port
• 1,000W PoE budget for dense high-power endpoint deployments
• 8 x 25G SFP28 uplinks for high-bandwidth aggregation
• Advanced Layer 2/Layer 3, MPLS, VXLAN, MACsec and PTP support
• Dual CRPS power slots and hot-swappable fans for resilient enterprise access
