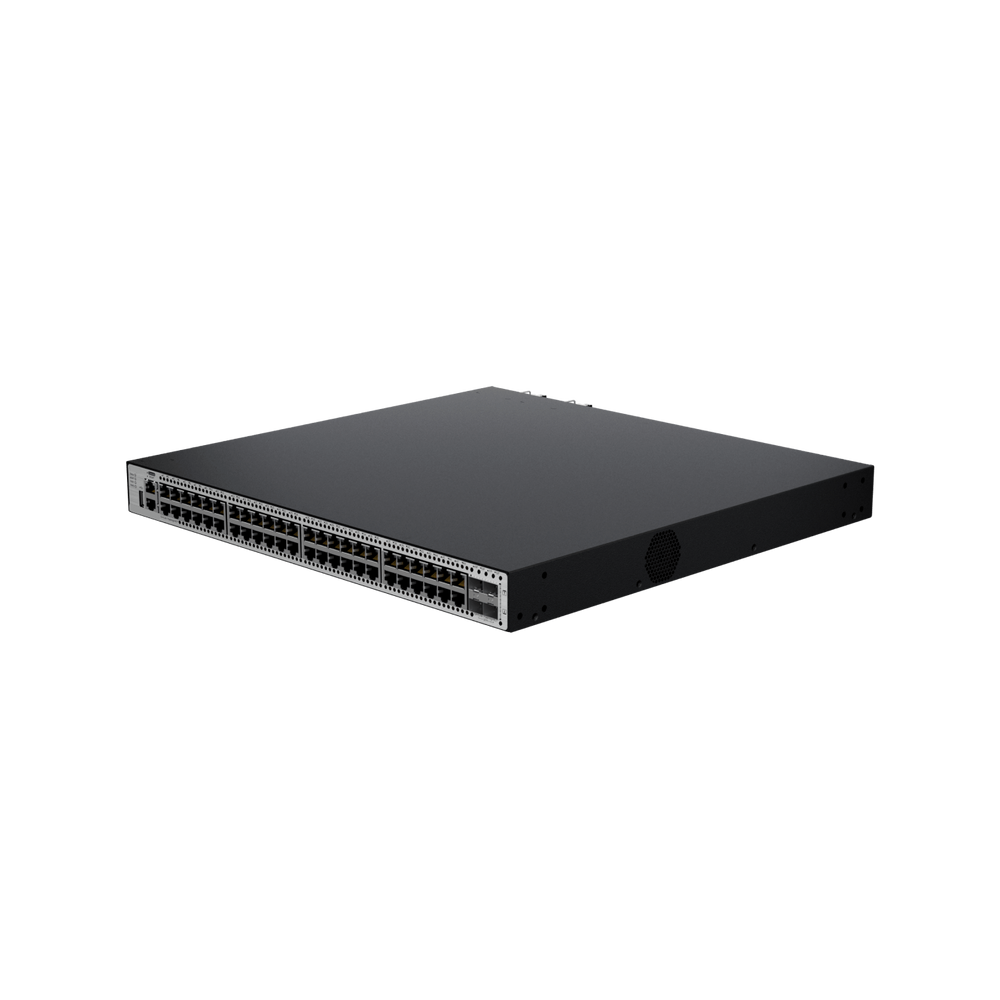

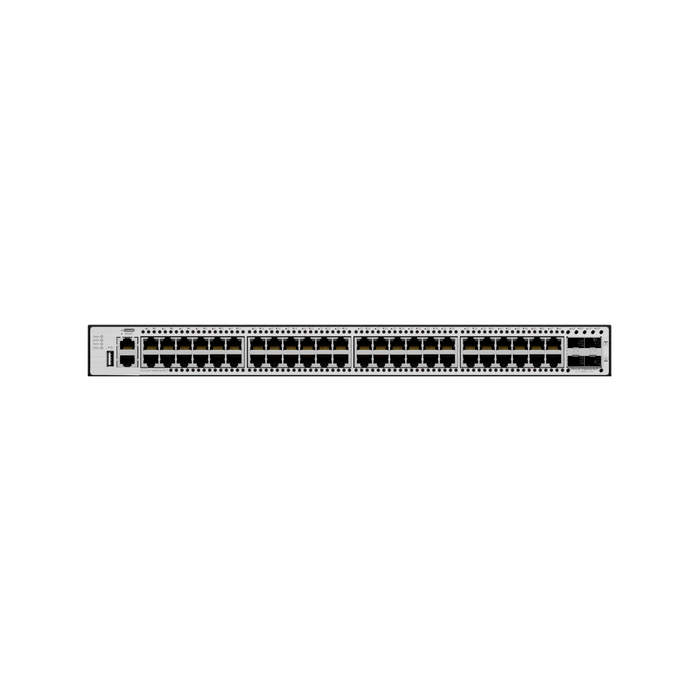

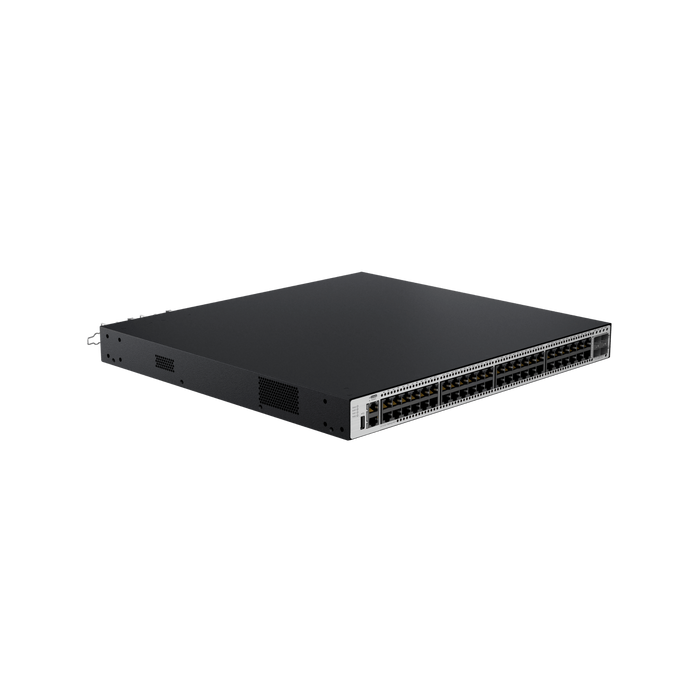

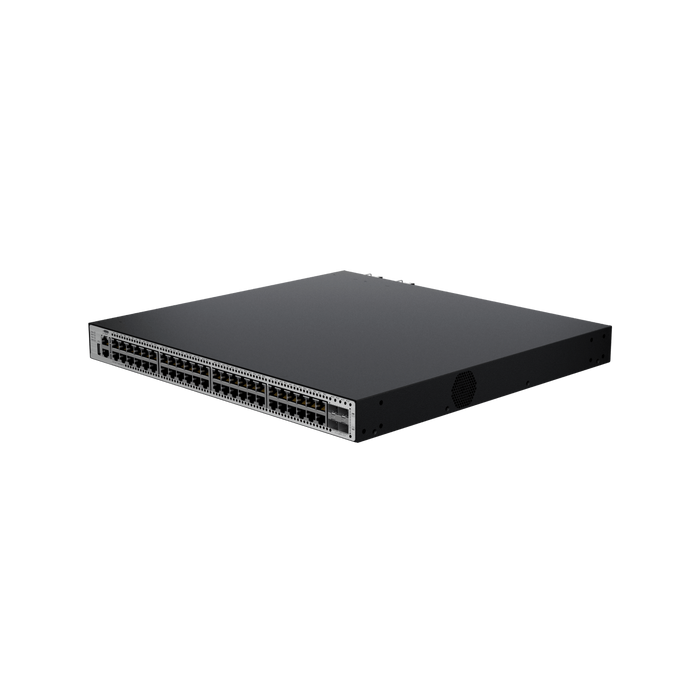

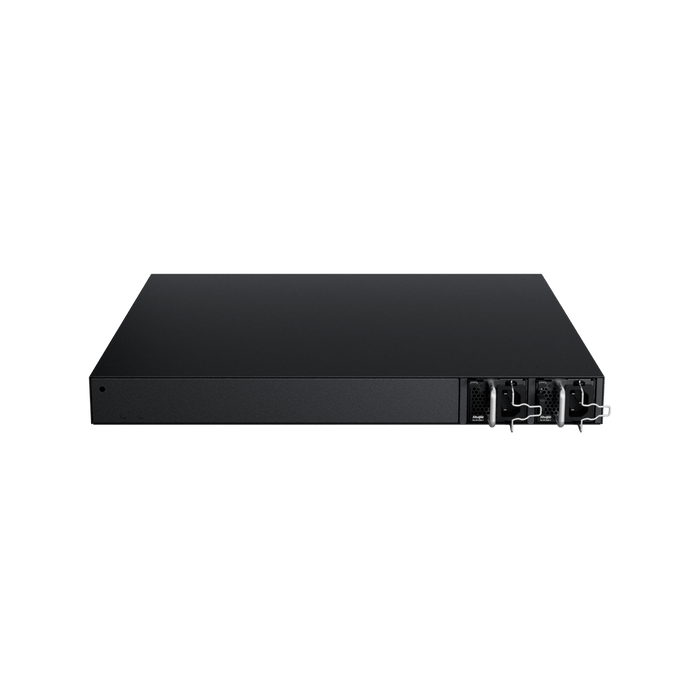

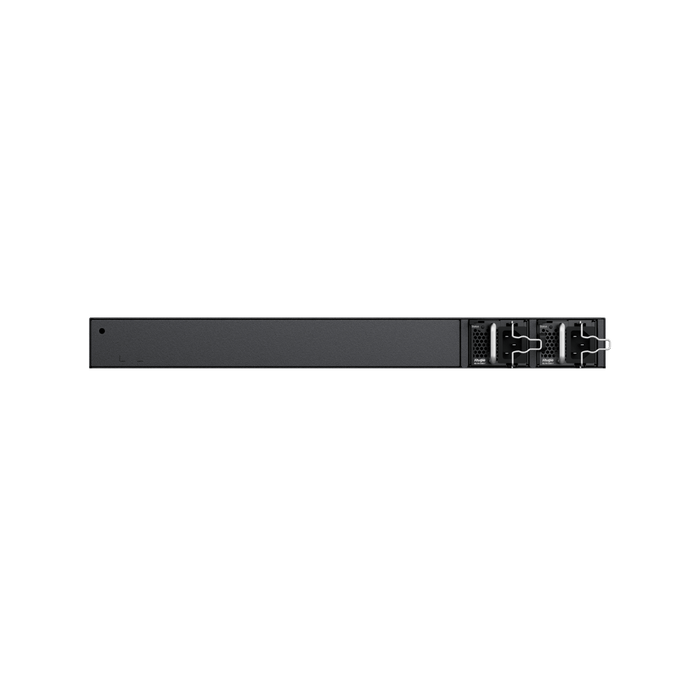

NSComm S5310-48GT4XS-E 48x1G & 4x10G SFP+ L3 Managed Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS‑S5310‑48GT4XS‑E – 48×Gigabit RJ45 + 4×10 Gbps SFP+ Layer 3 Access Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
As one of the world’s leading OEM manufacturers alongside Cisco, H3C, Huawei, and Ruijie, NSComm delivers the same enterprise‑grade performance, reliability, and feature sets-under your own brand.
Our NS‑S5310‑E series fully mirrors Ruijie’s RG‑S5310‑E lineup in port densities, Layer 3 routing, virtualization (VSU), industrial‑grade surge protection, PoE capabilities, and energy‑efficient design.
Overview
The NS‑S5310‑48GT4XS‑E provides 48 Gigabit downlinks and 4 SFP+ uplinks with full Layer 3 capabilities, including IPv4/IPv6 routing and VXLAN. Dual power modules and intelligent cooling enable continuous operation in demanding campus backbones.
Highlights
-
176 Gbps switching capacity & 131 Mpps forwarding rate for dense deployments.
-
Complete L3 feature set: Static routing, RIP, OSPF, IS‑IS, BGP4/+ (IPv6 dual‑stack).
-
VSU stacking: Simplifies large‑scale rollouts and maintenance.
-
Comprehensive QoS & Security: 802.1p, DSCP, ACLs, DHCP snooping.
-
Energy saving: Temperature‑based fan control and low‑loss hardware.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA150IB‑F | AC Power Module | 150 W AC slot module |
| NS‑PD150IB‑F | DC Power Module | 150 W DC slot module |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode fiber |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single‑mode fiber |
| NS‑RMK‑1U | Rack Mount Kit | 1U mounting bracket |
| NS‑Console‑Cable | Console Cable | RJ45 console management |
Compare with Similar Models
| Model | Downlinks | Uplinks | PoE | Capacity | Forwarding | Brand |
|---|---|---|---|---|---|---|
| Ruijie RG‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch (OEM) |
| Ruijie RG‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| NSComm NS‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| NSComm NS‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Ruijie |
| NSComm NS‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Network‑Switch |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5310‑48GT4XS‑E |
| Downlink Ports | 48 × 10/100/1000 BASE‑T |
| Uplink Ports | 4 × 1 Gbps/10 Gbps SFP+ |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 131 Mpps |
| Power Slots | 2 |
| MAC Address Table | 128,000 entries |
| VLAN Support | 4,094 VLANs |
| Layer 3 Protocols | Static, RIP/OSPF, IS‑IS, BGP4, IPv6 stack |
| Virtualization (VSU) | Yes |
| Security Features | 802.1X, ACLs, DHCP snooping, ARP inspection |
| Power Input | AC 100–240 V |
| Operating Temp. | –10 °C to +55 °C |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight | ~4.3 kg |
| MTBF | > 200,000 hours |
