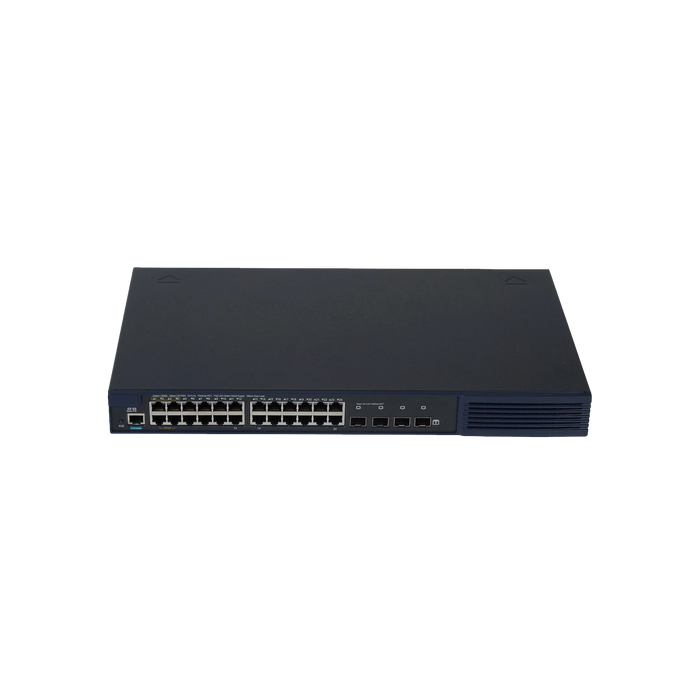

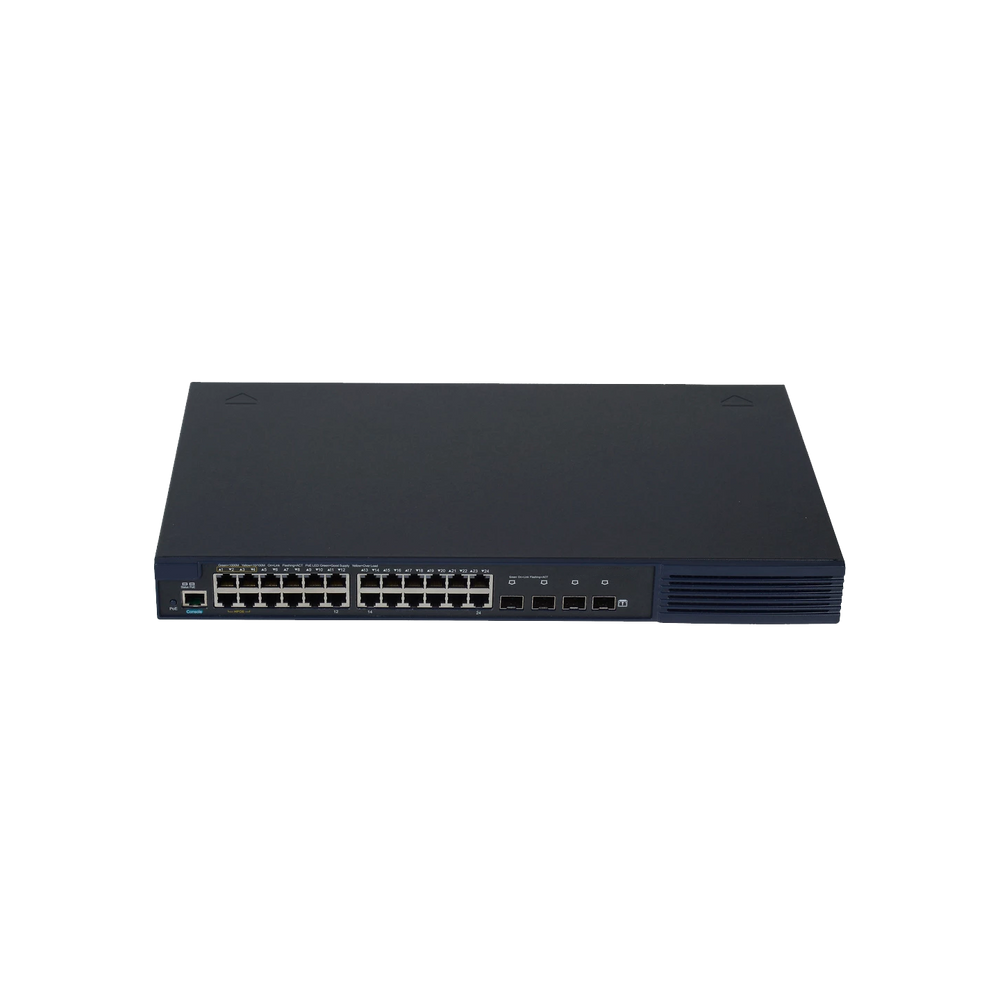

NSComm S2910-24GT4XS-UP-H 24x1G (PoE+) & 4x10G SFP+ HPoE Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS‑S2910‑24GT4XS‑UP‑H, 24‑Port Gigabit PoE+ Switch with 4×10 Gbps SFP+ Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
As a key manufacturing partner alongside Cisco, H3C, Huawei, and Ruijie, NSComm delivers the same high quality and performance as leading brands.
Our NS‑S2910 series matches the capabilities of Ruijie’s RG-S2910XS-E models, offering brand-equivalent switches with your own branding and full-feature support.
Overview
For deployments requiring both high-power PoE and high-speed uplinks, NS‑S2910‑24GT4XS‑UP‑H delivers 24 PoE+ ports plus 4×SFP+ (1/10 Gbps) ports. Equivalent to Ruijie’s RG‑S2910‑24GT4XS‑UP‑H, it combines PoE bt support, 256 Gbps backplane, virtualization, and advanced routing/security.
Highlights
-
370 W total PoE budget, IEEE 802.3bt support on ports 1–4.
-
High switch capacity: 256 Gbps, forwarding up to 96 Mpps.
-
Complete L2/L3 feature set, VSU, SDN/OpenFlow, and energy-saving.
-
Strong deployment flexibility with PoE scheduling, redundancy, and remote deployment readiness.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA370-PoE+ | PoE+ Power Module | 370W high-efficiency power module with PoE+/PoE++ (IEEE 802.3bt) support |
| NS-SFP-10G-SR-MM850 | SFP+ Transceiver | 10G SFP+ short-range fiber (850nm) |
| NS-SFP-10G-LR-SM1310 | SFP+ Transceiver | 10G SFP+ long-range fiber (1310nm, up to 10km) |
| NS-UPS-MINI | UPS Adapter | Optional DC backup adapter for power redundancy |
| NS-RMK-1U | Rack Mount Kit | Universal 1U steel rack kit for cabinet installation |
| NS-PoE-SPLITTER | PoE Splitter | Splits PoE+ input into separate data + power (for non-PoE devices) |
Compare with Similar Models
| Brand & Model | Downlink Ports (Gigabit) | Uplinks | PoE Support | Switch Capacity | Forwarding Rate | Key Selling Points |
|---|---|---|---|---|---|---|
| Ruijie RG-S2910‑24GT4XS‑E | 24 | 4×1/10 Gbps SFP+ | No | Up to 264 Gbps | 96 Mpps | L3, VSU, CPP/NFPP, SDN support |
| NSComm NS‑S2910‑24GT4XS‑E | 24 | 4×1/10 Gbps SFP+ | No | Same as above | Same | Brand equivalent to Ruijie under own label |
| Ruijie RG-S2910‑48GT4XS‑E | 48 | 4×1/10 Gbps SFP+ | No | 264 Gbps | 96 Mpps | High-density access with full L3 & VSU |
| NSComm NS‑S2910‑48GT4XS‑E | 48 | 4×1/10 Gbps SFP+ | No | Same | Same | Equivalent performance, more flexible branding |
| Ruijie RG‑S2910‑24GT4SFP‑UP‑H | 24 | 4×1 Gbps SFP | PoE+/PoE/PoE BT | 256 Gbps | 42–96 Mpps | Up to 60 W per port, enterprise PoE switch |
| NSComm NS‑S2910‑24GT4SFP‑UP‑H | 24 | 4×1 Gbps SFP | Same as above | Same | Same | Same capabilities under your brand identity |
| Ruijie RG‑S2910‑24GT4XS‑UP‑H | 24 | 4×1/10 Gbps SFP+ | PoE+/PoE/PoE BT | 256 Gbps | ~96 Mpps | High‑speed uplinks plus PoE capability |
| NSComm NS‑S2910‑24GT4XS‑UP‑H | 24 | 4×1/10 Gbps SFP+ | Same as above | Same | Same | PoE+ and 10G uplinks under your branding |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S2910‑24GT4XS‑UP‑H |
| Downlink Ports | 24 × 10/100/1000BASE‑T with PoE/PoE+/PoE++ |
| Uplink Ports | 4 × 1G/10G SFP+ |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | Up to 96 Mpps |
| PoE Standard | IEEE 802.3af / at / bt |
| PoE Budget | 370 W Max (60W on select ports) |
| Layer Support | Layer 2 + Static / OSPF / RIP Routing |
| MAC Address Table | 32,000 entries |
| VLAN Support | Up to 4,096 VLANs |
| VSU Support | Supported |
| Security | 802.1X, ACLs, IP Source Guard, CPP/NFPP, ARP Protection |
| Power Input | AC + DC Redundant PSU Support |
| Operating Temp. | –10 °C to 50 °C |
| Management | CLI / Web / SNMP / RMON / Cloud Platform |
| Dimensions | 440 × 360 × 44 mm |
| Weight | ~4.8 kg |
| MTBF | >200,000 hours |
