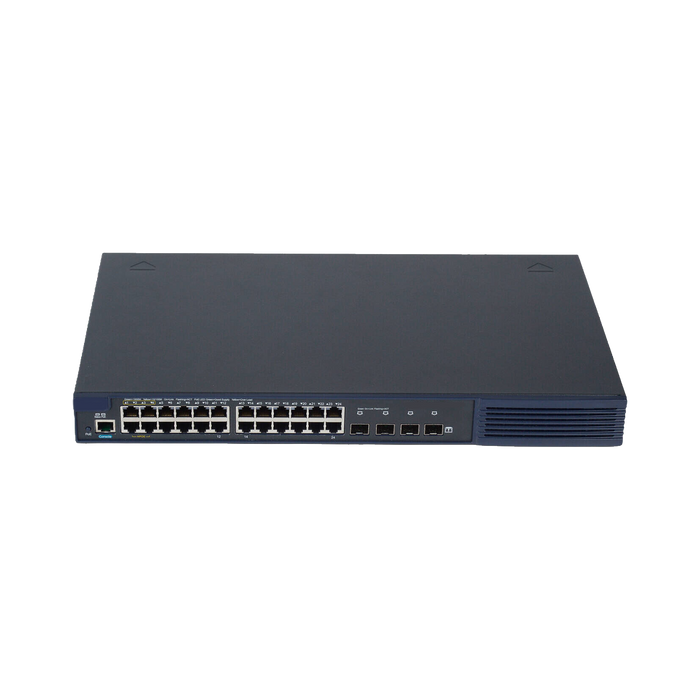

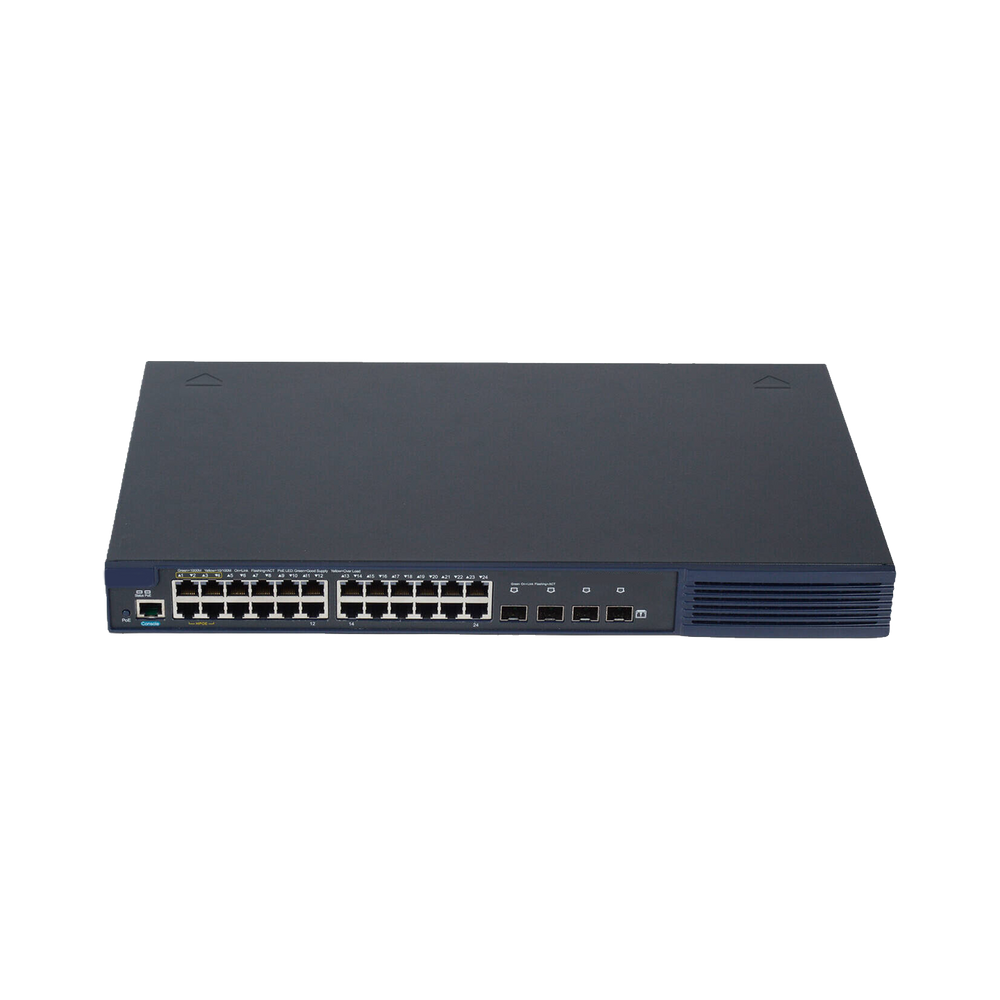

NSComm S2910-24GT4SFP-UP-H 24x1G (PoE+) & 4x1G SFP Managed Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS‑S2910‑24GT4SFP‑UP‑H, 24‑Port Gigabit PoE+ Switch with 4×Gigabit SFP Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
As a key manufacturing partner alongside Cisco, H3C, Huawei, and Ruijie, NSComm delivers the same high quality and performance as leading brands.
Our NS‑S2910 series matches the capabilities of Ruijie’s RG-S2910XS-E models, offering brand-equivalent switches with your own branding and full-feature support.
Overview
The NS‑S2910‑24GT4SFP‑UP‑H is a high‑power PoE switch offering 24 RJ45 ports with IEEE 802.3af/at/bt support and 4 Gigabit SFP uplinks. Feature-set mirrors Ruijie’s RG‑S2910‑24GT4SFP‑UP‑H model: up to 60 W per port, stacked power redundancy, VSU virtualization, and intelligent energy-saving.
Highlights
-
High-Power PoE Ports: Port‑1 to port‑4 support up to IEEE 802.3bt (60 W per port).
-
Ultra‑High Throughput: 256 Gbps switching capacity and up to 42 Mpps, or 96 Mpps depending on configuration.
-
VSU Virtualization and Simplified Maintenance: Key for campus deployments.
-
Advanced Security & Power Protection: CPP, NFPP, ERPS, loop prevention, port isolation.
-
Flexible Management: Same management stack as others, with PoE scheduling and diagnostics.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA370-PoE | PoE Power Supply | 370W external power module, supports PoE/PoE+/PoE++ (bt) |
| NS-SFP-1G-SX-MM850 | SFP Transceiver | 1G SFP fiber module for short-range connectivity |
| NS-SFP-1G-LX-SM1310 | SFP Transceiver | 1G SFP fiber module for long-range single-mode fiber |
| NS-PWR-CORD | Power Cable | Standard power cord for AC input |
| NS-RMK-1U | Rack Mount Kit | 19-inch rack-mount brackets |
| NS-PoE-DIAG | PoE Diagnostic Tool | PoE load tester and power analyzer (for maintenance or deployment testing) |
Compare with Similar Models
| Brand & Model | Downlink Ports (Gigabit) | Uplinks | PoE Support | Switch Capacity | Forwarding Rate | Key Selling Points |
|---|---|---|---|---|---|---|
| Ruijie RG-S2910‑24GT4XS‑E | 24 | 4×1/10 Gbps SFP+ | No | Up to 264 Gbps | 96 Mpps | L3, VSU, CPP/NFPP, SDN support |
| NSComm NS‑S2910‑24GT4XS‑E | 24 | 4×1/10 Gbps SFP+ | No | Same as above | Same | Brand equivalent to Ruijie under own label |
| Ruijie RG-S2910‑48GT4XS‑E | 48 | 4×1/10 Gbps SFP+ | No | 264 Gbps | 96 Mpps | High-density access with full L3 & VSU |
| NSComm NS‑S2910‑48GT4XS‑E | 48 | 4×1/10 Gbps SFP+ | No | Same | Same | Equivalent performance, more flexible branding |
| Ruijie RG‑S2910‑24GT4SFP‑UP‑H | 24 | 4×1 Gbps SFP | PoE+/PoE/PoE BT | 256 Gbps | 42–96 Mpps | Up to 60 W per port, enterprise PoE switch |
| NSComm NS‑S2910‑24GT4SFP‑UP‑H | 24 | 4×1 Gbps SFP | Same as above | Same | Same | Same capabilities under your brand identity |
| Ruijie RG‑S2910‑24GT4XS‑UP‑H | 24 | 4×1/10 Gbps SFP+ | PoE+/PoE/PoE BT | 256 Gbps | ~96 Mpps | High‑speed uplinks plus PoE capability |
| NSComm NS‑S2910‑24GT4XS‑UP‑H | 24 | 4×1/10 Gbps SFP+ | Same as above | Same | Same | PoE+ and 10G uplinks under your branding |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S2910‑24GT4SFP‑UP‑H |
| Downlink Ports | 24 × 10/100/1000BASE‑T (PoE/PoE+/PoE++ supported) |
| Uplink Ports | 4 × 1G SFP |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | Up to 96 Mpps |
| PoE Standard | IEEE 802.3af / 802.3at / 802.3bt |
| PoE Budget | 370 W total; 60 W max per port (1–4) |
| Layer Support | Layer 2 / Basic Layer 3 Routing |
| MAC Address Table | 32,000 entries |
| VLAN Support | 4,096 VLANs |
| Security | IP Source Guard, ARP Detection, DHCP Snooping, CPP, NFPP |
| Power Input | AC 100–240V + optional redundant input |
| Operating Temp. | –10 °C to 50 °C |
| Management | CLI / Web / SNMP / Telnet / SSH / Cloud Ready |
| Dimensions | 440 × 360 × 44 mm |
| Mounting | Standard 19″ rack |
| Weight | ~4.6 kg |
| MTBF | >200,000 hours |
