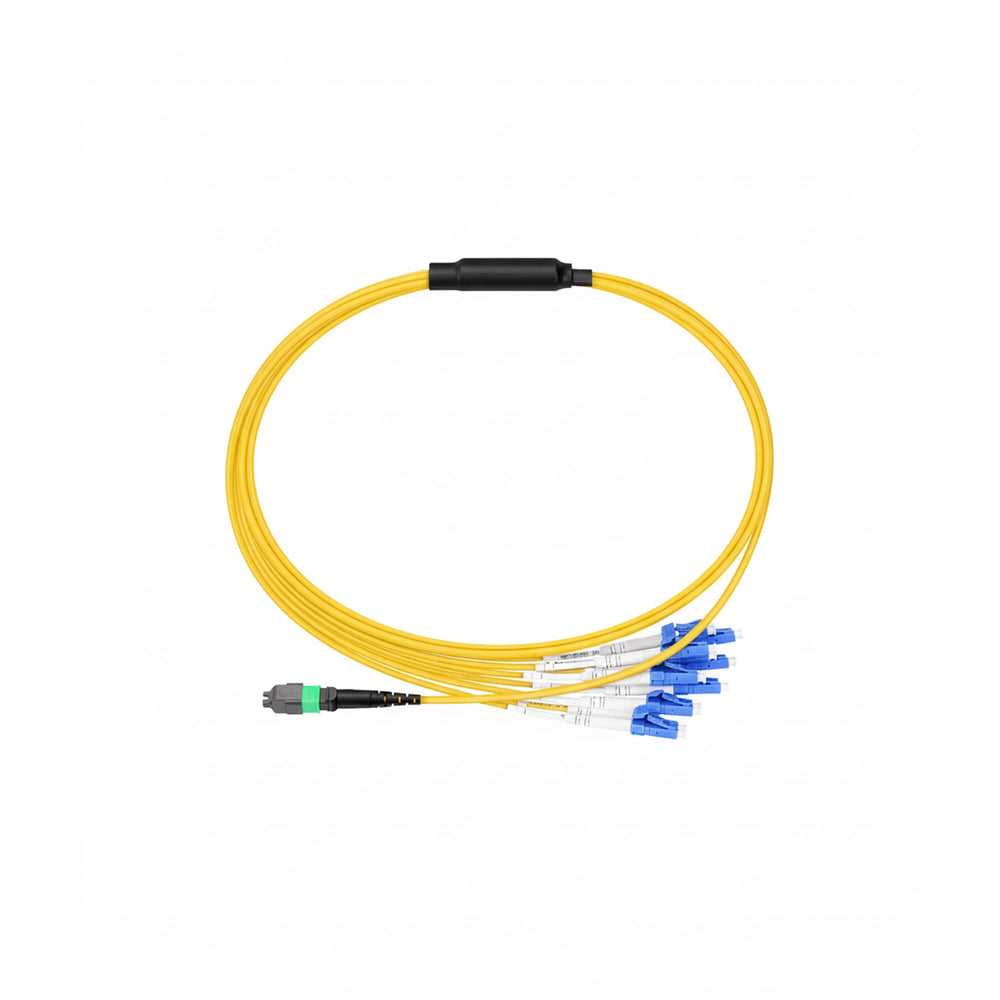

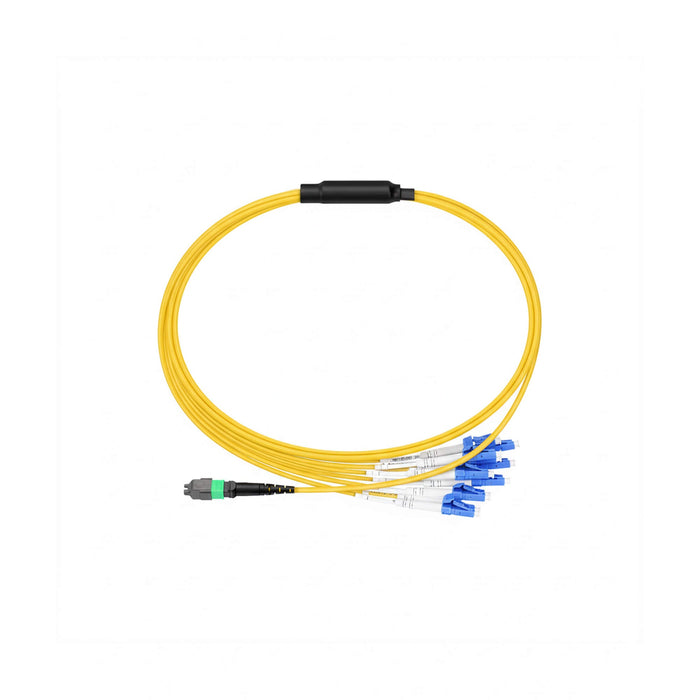

NSComm MPO 16F APC to 8xLC UPC Duplex Harness Cables, 16 Fibers, Singlemode (OS2, G.657.A1), OFNR, Crossover
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm MPO 16F APC to 8xLC UPC Duplex harness cable is a high-density single mode breakout solution engineered for next-generation 400G/800G data center networks. With one 16-fiber MPO-16 APC (Female) trunk breaking out to eight LC UPC duplex connectors, this harness provides sixteen active fibers for connecting switches, servers, and patch panels that still rely on LC interfaces while supporting OS2 G.657.A1 bend-insensitive performance.
Factory-terminated and fully tested, the MPO–LC harness ensures verified low insertion loss and high return loss to maintain optical integrity in large-scale distributed compute and storage environments. Designed for seamless migration from duplex-based 50/100G Ethernet to parallel 400/800G Ethernet architectures, this harness is ideal for high-density racks, structured cabling systems, equipment rooms, and telecommunication rooms where space optimization and clean cable management are essential.
Need help confirming crossover polarity or mapping to your 400G/800G transceivers? Contact us now, our engineering team can validate compatibility before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | MPO 16F APC to 8xLC UPC Duplex Singlemode Harness Cable |
| Connector A | MPO-16 APC Female (Pinless) with Offset Key, Low Loss |
| Connector B | 8 × LC UPC Duplex connectors |
| Polish Type | APC (MPO) to UPC (LC) |
| Glass Fiber | G.657.A1 bend-insensitive single mode |
| Fiber Mode | OS2 9/125 μm |
| Wavelength | 1310 nm / 1550 nm |
| Fiber Count | 16 Active Fibers (8×LC duplex) |
| Polarity | Crossover |
| Cable Outside Diameter (OD) | 3.0 mm (trunk, typical) |
| Breakout Outside Diameter (OD) | 2.0 mm (LC legs, typical) |
| Breakout Length | 0.5 m (typical) |
| Cable Jacket | Riser-rated, OFNR |
| Minimum Bend Radius | 10 mm |
| MPO Connector Insertion Loss | ≤ 0.35 dB (Typ. 0.15 dB) |
| MPO Connector Return Loss | ≥ 60 dB |
| LC Connector Insertion Loss | ≤ 0.20 dB |
| LC Connector Return Loss | ≥ 50 dB |
| Attenuation @ 1310 nm | ≤ 0.32 dB/km |
| Attenuation @ 1550 nm | ≤ 0.18 dB/km |
| Long-term Tensile Load | 80 N |
| Short-term Tensile Load | 240 N |
| Operating Temperature | -10 to 60 °C (14 to 140 °F) |
| Storage Temperature | -10 to 70 °C (14 to 158 °F) |
| Standards Compliance | MPO interface standards, OS2, RoHS compliant |
| Applications | Duplex-to-parallel migration, 50G/100G to 400G/800G, high-density LC breakout in racks |
Why Choose NSComm MPO 16F to 8xLC UPC Duplex Harness Cables?
-
High-density breakout design – One MPO-16 trunk to eight LC duplex legs enables large port fan-outs while minimizing cable clutter.
-
Ideal for 50/100G → 400/800G migration – Designed for transitions from duplex LC links to parallel optics-based architectures.
-
Low insertion loss performance – Factory-terminated MPO and LC connectors ensure tight optical budgets across all links.
-
Bend-insensitive OS2 G.657.A1 fiber – Maintains signal integrity in tight routing and dense pathways within racks.
-
Crossover polarity for correct channel mapping – Pre-engineered polarity simplifies LC port alignment and reduces errors.
-
Riser-rated OFNR construction – Appropriate for in-cabinet routing and structured cabling in enterprise and cloud data centers.
Length Options
Standard stocked lengths:
Available in optimized lengths for top-of-rack, end-of-row, and structured cabling scenarios with balanced trunk and breakout leg lengths.
Custom lengths:
Custom trunk lengths, breakout leg lengths, LC labeling, and connector configurations are available upon request to match your switching layout and rack-level cable design.
