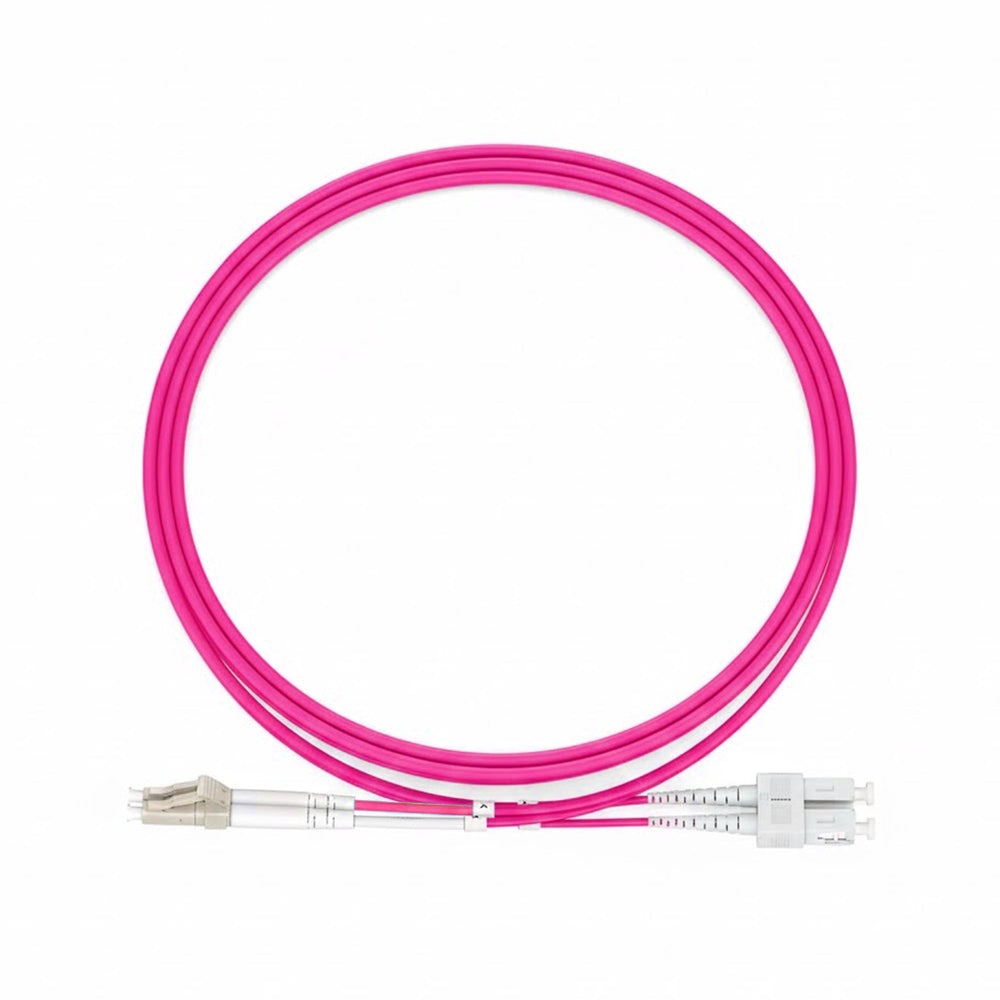

NSComm LC UPC to SC UPC Duplex Multimode(OM4) Fiber Patch Cable, 2 Fibers, 2.0mm OFNR
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm LC UPC to SC UPC Duplex Multimode (OM4) Fiber Patch Cable is designed for high-bandwidth, short-reach connections across entrance facilities, telecommunications rooms, data centers, and office work areas. With LC UPC duplex connectors on one end and SC UPC duplex connectors on the other, it provides a convenient bridge between high-density LC-based equipment and SC-based patch panels or legacy infrastructure.
Using bend-insensitive OM4 50/125 μm multimode fiber and a 2.0mm riser-rated (OFNR) tight-buffered jacket, this patch cable delivers reliable performance for 10/40/100G Ethernet applications. It is ideal for connecting 40G BiDi SR, 10G SR, QSFP+, SFP+ and other multimode transceivers, and is the preferred multimode fiber specification for 40G/100G deployments. Reduced attenuation under bending and twisting makes installation and maintenance more efficient in high-density environments.
If you need help validating LC–SC interoperability, distance, or cable selection for your OM4 multimode links, contact us and our team can assist before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | LC UPC to SC UPC Duplex Multimode (OM4) Fiber Patch Cable |
| Connector A | LC UPC Duplex |
| Connector B | SC UPC Duplex |
| Fiber Count | 2 Fibers (Duplex) |
| Fiber Grade | Bend-insensitive multimode fiber |
| Fiber Mode | OM4 50/125 μm Multimode |
| Wavelength | 850 nm / 1300 nm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight-buffered |
| Cable Outside Diameter (OD) | 2.0 mm |
| Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 7.5 mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 mating cycles |
| Tensile Strength | 90/150 N (Long/Short Term) |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 30 dB |
| Attenuation @ 850 nm | 3.5 dB/km |
| Attenuation @ 1300 nm | 1.5 dB/km |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Applications | 40G BiDi SR, 10G SR, QSFP+, SFP+, 10/40/100G MM links, LC device to SC panel |
Why Choose NSComm LC UPC to SC UPC Duplex OM4 Patch Cables?
-
LC–SC multimode interoperability – Ideal for linking LC-based switches, servers, and optics to SC-based patch panels and distribution frames.
-
Preferred for 40G/100G applications – OM4 multimode fiber offers higher bandwidth and longer reach than OM3 for SR and BiDi links.
-
Bend-insensitive OM4 fiber – Maintains low attenuation when routed through tight bends, improving reliability in dense cable management.
-
Riser-rated 2.0mm construction – Durable OFNR jacket suitable for structured cabling in riser spaces and equipment rooms.
-
Pre-terminated and tested – Ensures plug-and-play deployment with consistent, predictable optical performance.
Length Options
Standard stocked lengths:
Available in a range of common OM4 duplex lengths suitable for switch-to-panel, panel-to-panel, and horizontal cabling runs in data centers and telecom rooms.
Custom lengths:
Custom lengths, jacket colors, labeling, and polarity options can be provided on request to match your exact cabling architecture and design standards.
