Overview

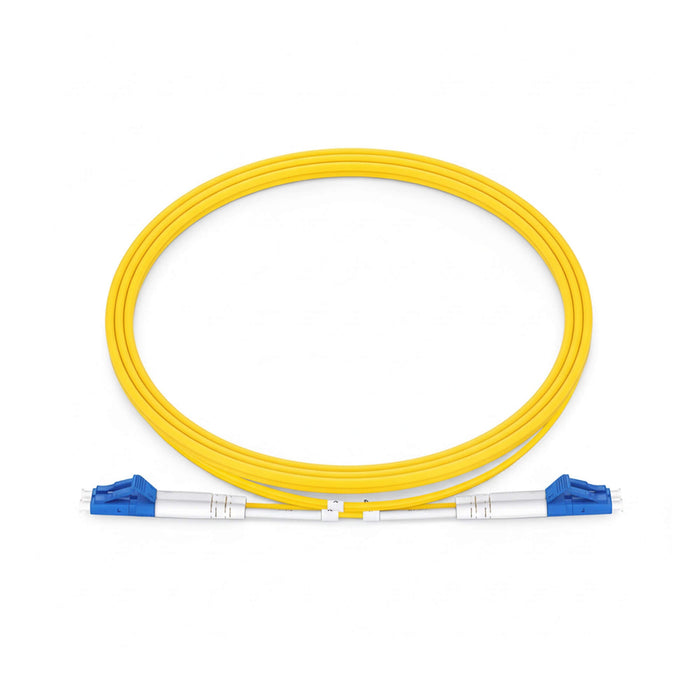

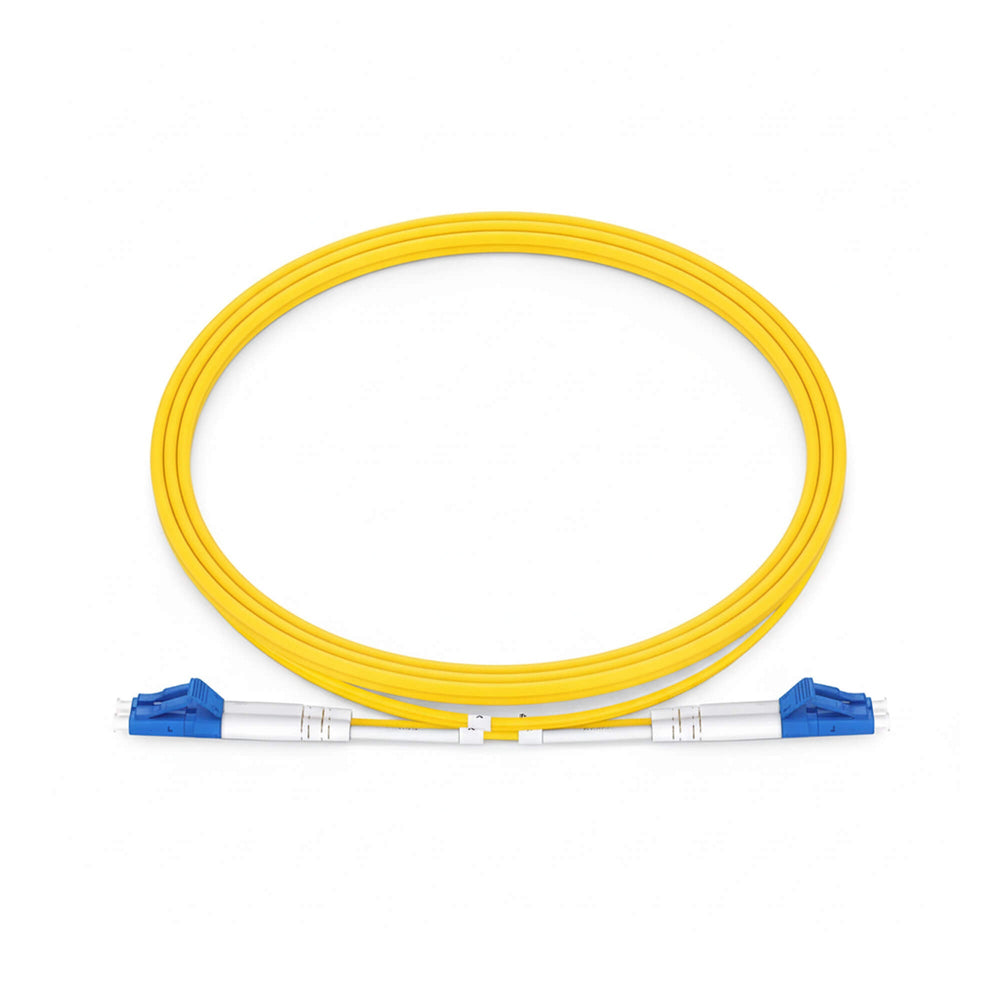

The NSComm LC UPC to LC UPC Duplex Single Mode Fiber Patch Cable is a high-performance OS2 interconnect solution designed for reliable, long-distance links in data centers, telecom networks, and enterprise environments. Using duplex LC UPC connectors on both ends and bend-insensitive G.657.A1 fiber, this patch cable delivers low attenuation and high return loss, making it ideal for high-bandwidth applications over single mode infrastructure.
With a 2.0mm riser-rated (OFNR) tight-buffered jacket, this duplex cable is well-suited for in-rack, cross-connect, and horizontal cabling where robust mechanical performance and easy handling are essential. Pre-terminated and factory-tested, it supports 1G/10G/25G/40G/100G/400G Ethernet connections, enabling Plug & Play deployment of new links and rapid expansion of existing cabling systems while minimizing installation time and ongoing maintenance effort.
Need help verifying polarity, length selection, or compatibility with your patch panels and optics? Contact us now and our team will assist in validating your design before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | LC UPC to LC UPC Duplex Single Mode Fiber Patch Cable |
| Connector A | LC UPC Duplex |
| Connector B | LC UPC Duplex |
| Fiber Count | 2 Fibers (Duplex) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125 μm |
| Wavelength | 1310 nm / 1550 nm |
| Flame Rating | Riser (OFNR) |
| Cable Outside Diameter (OD) | 2.0 mm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight-buffered |
| Min. Bend Radius (Optical Fiber) | 10 mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 mating cycles |
| Tensile Strength | 90/150 N (Long/Short Term) |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB |
| Attenuation @ 1310 nm | 0.4 dB/km |
| Attenuation @ 1550 nm | 0.3 dB/km |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Applications | 1G/10G/25G/40G/100G/400G Ethernet, interconnect & cross-connect in DC/telecom/enterprise |
Why Choose NS LC UPC to LC UPC Duplex OS2 Patch Cables?
-
High-bandwidth OS2 single mode performance – Suitable for 1G up to 400G Ethernet over long-distance links.
-
Bend-insensitive G.657.A1 fiber – Reduced attenuation when bent or routed in tight spaces, improving installation flexibility.
-
Low-loss LC UPC connectivity – Tight insertion loss and high return loss help maintain robust link budgets.
-
Riser-rated 2.0mm tight-buffered design – Durable construction optimized for in-rack, riser, and horizontal cabling runs.
-
Pre-terminated, Plug & Play deployment – Factory-tested duplex assemblies speed up installation and reduce field work.
Length Options
Standard stocked lengths:
Available in a range of common lengths suited for switch-to-switch, switch-to-panel, and panel-to-panel connections in racks and telecom rooms.
Custom lengths:
Custom lengths, jacket colors, labeling, and polarity options are available on request to match specific rack layouts, pathways, and design standards.
