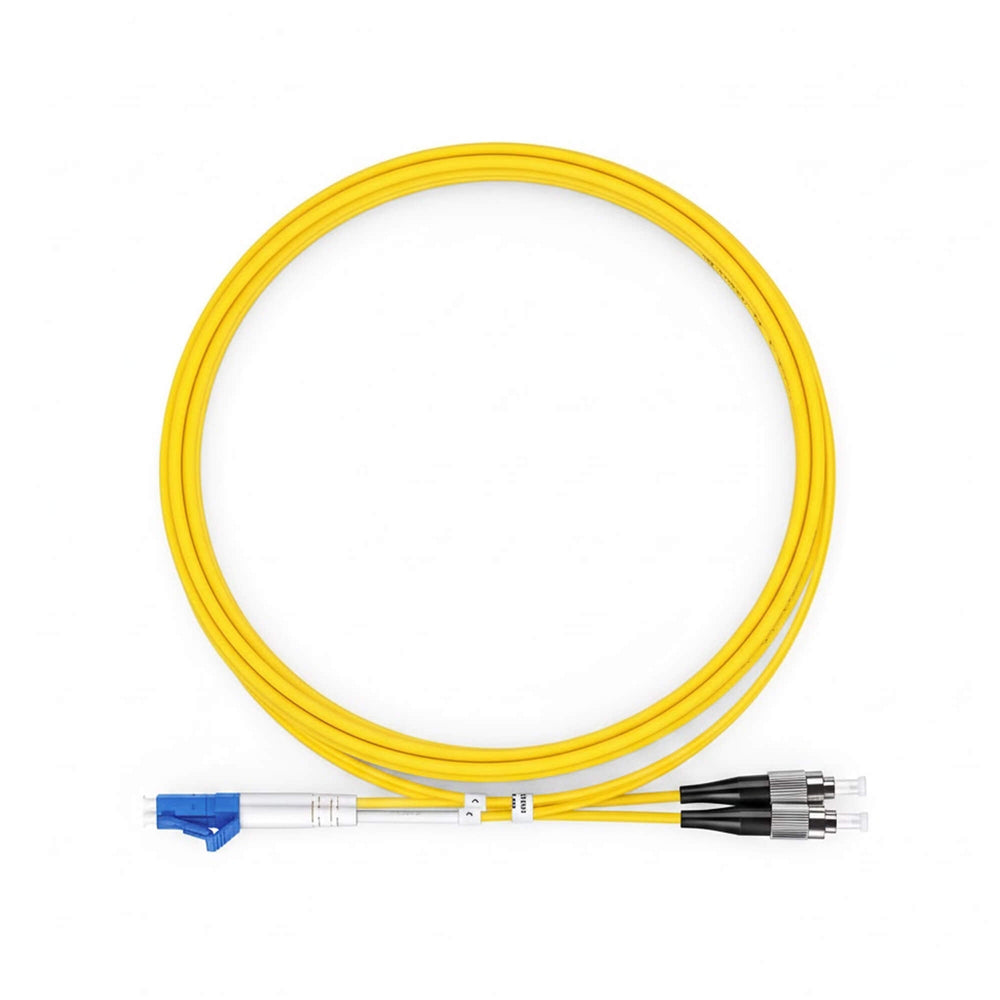

NSComm LC UPC to FC UPC Duplex Single Mode Fiber Patch Cable, 2.0mm OFNR
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm LC UPC to FC UPC Duplex Single Mode Fiber Patch Cable is a high-performance OS2 interconnect designed for reliable long-distance links in data centers, telecom networks, and enterprise environments. With LC UPC duplex connectors on one end and FC UPC duplex connectors on the other, this cable provides an efficient bridge between compact LC-based equipment and FC-based distribution frames, test gear, or transport platforms that need secure, threaded connections.
Using bend-insensitive G.657.A1 fiber and a 2.0mm riser-rated (OFNR) tight-buffered jacket, this duplex patch cable combines low signal attenuation, high return loss, and robust mechanical durability. It supports 1G/10G/25G/40G/100G/400G Ethernet connections and is well-suited for long-distance transmission, offering high bandwidth performance over OS2 single mode links. Reduced attenuation under bending and twisting makes installation and maintenance more efficient, especially in dense routing environments.
Need help checking LC–FC compatibility, polarity, or recommended length for your link? Contact us now and our team will assist in validating your design before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | LC UPC to FC UPC Duplex Single Mode Fiber Patch Cable |
| Connector A | LC UPC Duplex |
| Connector B | FC UPC Duplex |
| Fiber Count | 2 Fibers (Duplex) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125 μm |
| Wavelength | 1310 nm / 1550 nm |
| Flame Rating | Riser (OFNR) |
| Cable Outside Diameter (OD) | 2.0 mm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight-buffered |
| Min. Bend Radius (Optical Fiber) | 10 mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 mating cycles |
| Tensile Strength | 90/150 N (Long/Short Term) |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB |
| Attenuation @ 1310 nm | 0.4 dB/km |
| Attenuation @ 1550 nm | 0.3 dB/km |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Applications | 1G/10G/25G/40G/100G/400G Ethernet, LC device to FC frame/test gear, DC/telecom links |
Why Choose NSComm LC UPC to FC UPC Duplex OS2 Patch Cables?
-
LC–FC interoperability – Ideal for linking LC-based switches, routers or NICs to FC-based ODFs, transport shelves, or lab equipment.
-
High-bandwidth OS2 performance – Supports a full range of Ethernet speeds up to 400G over long-distance single mode links.
-
Bend-insensitive G.657.A1 fiber – Reduced attenuation when bent or twisted makes routing in dense cable trays and racks easier.
-
Low-loss UPC terminations – High return loss and low insertion loss help preserve link budgets on high-speed services.
-
Riser-rated 2.0mm construction – Tight-buffered OFNR jacket provides durability and easy handling in riser spaces and equipment rooms.
Length Options
Standard stocked lengths:
Available in a range of common lengths suitable for switch-to-frame, frame-to-frame, and equipment-to-panel connections in data centers and telecom rooms.
Custom lengths:
Custom lengths, jacket colors, labeling, and polarity options are available on request to align with your specific cabling standards, rack layouts, and routing paths.
