- NSComm NS‑IS5200‑24GT4XS‑UP‑DC High-Power Industrial PoE+ Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
As a manufacturer alongside leading brands like Cisco, H3C, Huawei, and Ruijie, NSComm offers high-performance industrial-grade switches under the NS‑IS5200 series.
These devices match Ruijie’s RG‑IS5200 Series in durability, port layout, environmental resilience, PoE/PoE++ support, VSU stacking, and advanced industrial protections—all under your own branding.
Overview

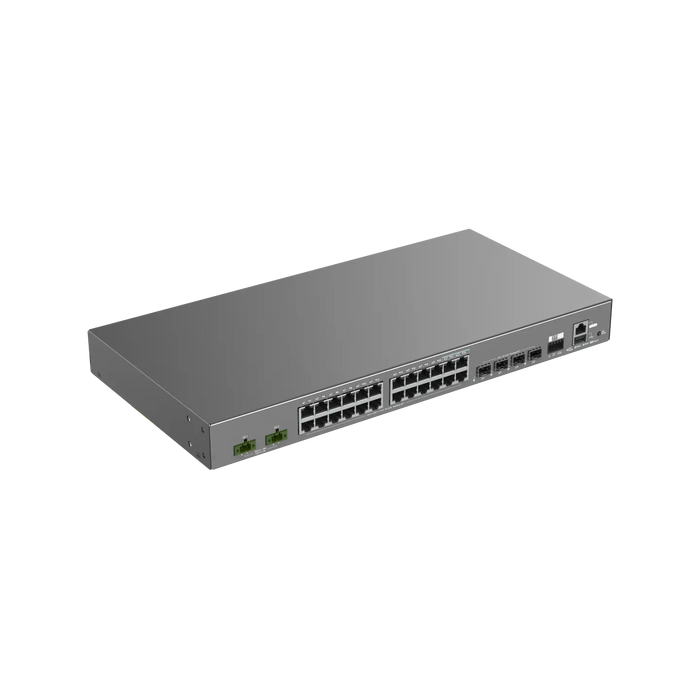

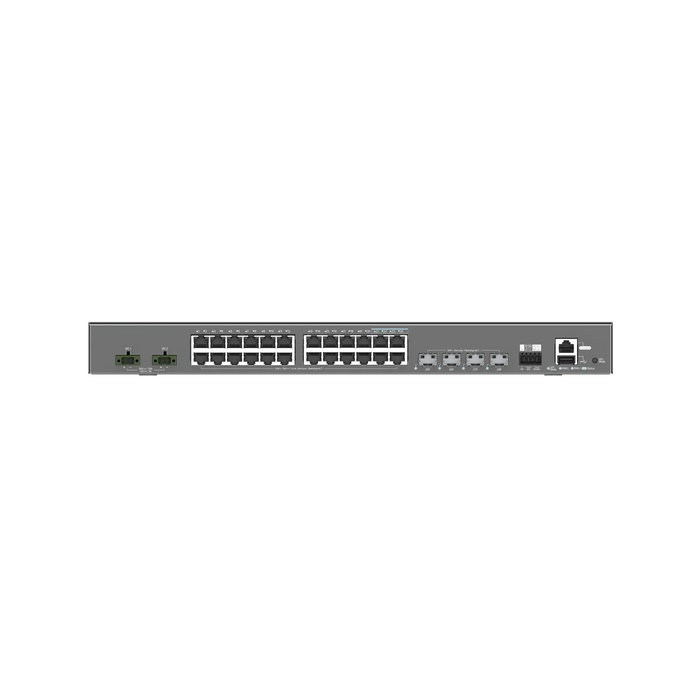

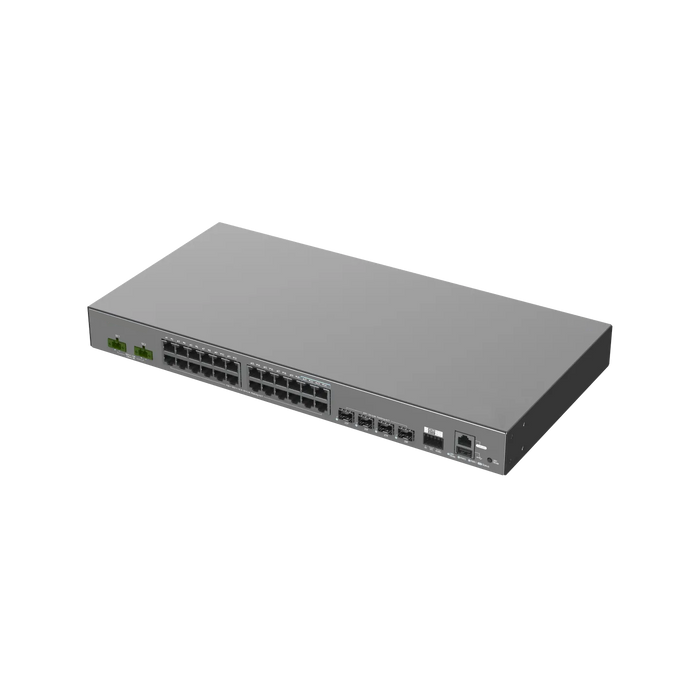

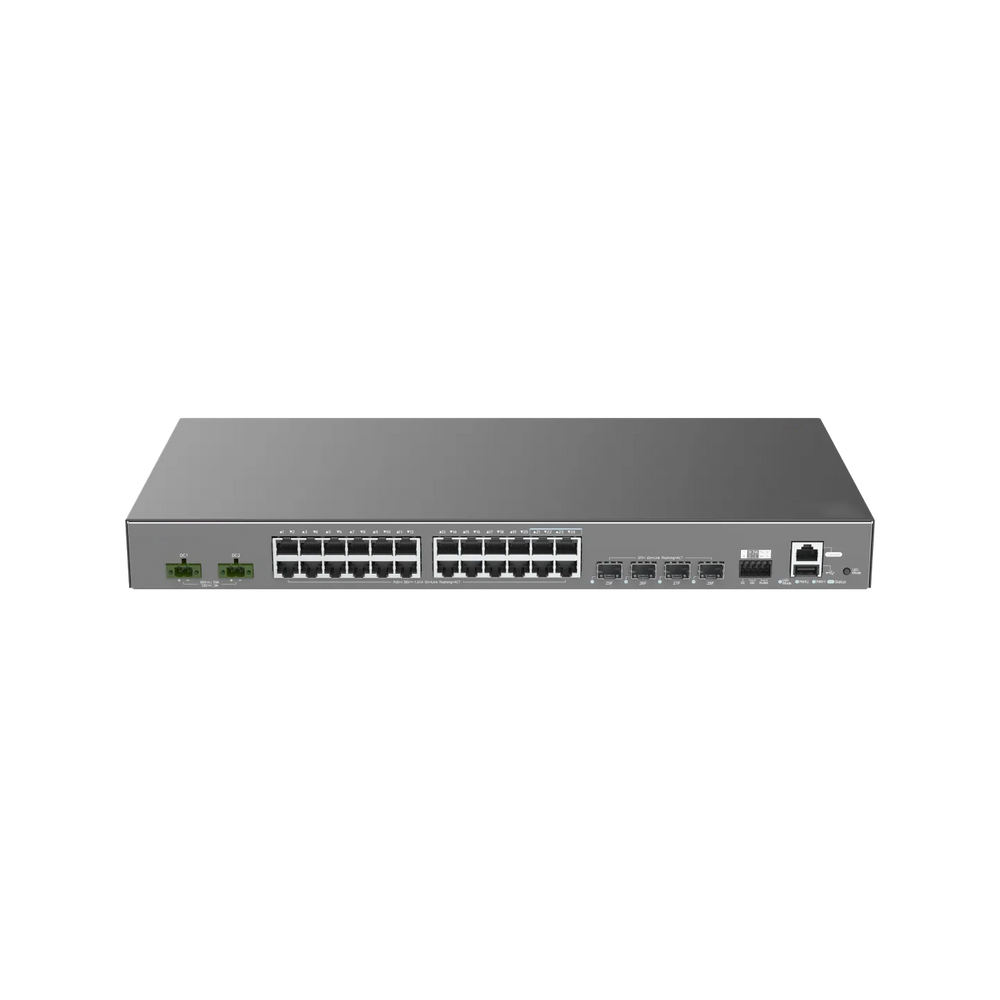

NS‑IS5200‑24GT4XS‑UP‑DC offers 24 Gigabit eth downlinks with PoE/PoE+/PoE++ support and 4 × 1/10 Gbps SFP+ uplinks. Engineered for robust, high-capacity industrial networks requiring power and data delivery in a DIN‑rail or rack-mount chassis.
Highlights
-
High PoE Budget & Coverage: Supports power repeaters (PoE‑REP) allowing 200–400 m reach and 60 W output per repeater port.
-
Environmentally Durable Design: Functions reliably in –40°C to +75°C, IP40/55 rated enclosure, vibration/shock resistant.
-
Advanced Industrial Protections: Includes RLDP, ERPS, CPP, NFPP, and 10 kV surge defense.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑IPA60 | Power Module | 60 W DC power adapter, applicable to DC models (AC→DC backup enabled) |
| NS‑IPA240‑P | Power Module (PoE Type) | 240 W DC module supporting PoE/PoE+/PoE++ for UP/DC models |
| NS‑PoE‑REP | PoE Repeater | Extends PoE over longer distances (1000 Mbps @200 m or 100 Mbps @400 m) |
| NS‑SFP‑1G‑SX‑I | Industrial SFP Module | Multimode fiber (850 nm), up to 550 m, IP-rated |
| NS‑SFP‑1G‑LX‑I | Industrial SFP Module | Single-mode fiber (1310 nm), up to 10 km, IP-rated |
| NS‑SFP+‑10G‑SR‑I | Industrial SFP+ Module | 10G uplink fiber module (up to 300 m on MMF) |
| NS‑Enclosure‑IP55 | Protective Enclosure | Waterproof & dustproof cap upgrade for outdoor installations |
| NS‑Console‑Cable | Management Interface | RJ45 to USB/DB9 console cable for onsite configuration |
Compare with Similar Models
| Model | Ports / Uplinks | PoE Support | Capacity / Rate | Key Selling Points |
|---|---|---|---|---|
| Ruijie RG‑IS5200‑8GT4XS‑DC | 8×1 GbE + 4×SFP+ | None | 96 Gbps / 72 Mpps | Industrial-grade Temp, Surge, VSU, DIN mount |
| NSComm NS‑IS5200‑8GT4XS‑DC | Same | None | Same | Identical spec under your brand |
| Ruijie RG‑IS5200‑8GT4XS‑UP‑DC | 8×GbE PoE + 4×SFP+ | PoE/PoE+/PoE++ | 96 Gbps / 72 Mpps | PoE-REP, Industry-ready, VSU, Surge |
| NSComm NS‑IS5200‑8GT4XS‑UP‑DC | Same | Same | Same | Same spec, customized branding |
| Ruijie RG‑IS5200‑24GT4XS‑UP‑DC | 24×GbE PoE + 4×SFP+ | PoE/PoE+/PoE++ | 128 Gbps / 96 Mpps | High-density PoE, industrial protection |
| NSComm NS‑IS5200‑24GT4XS‑UP‑DC | Same | Same | Same | Brand-equivalent model, full industrial feature |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑IS5200‑24GT4XS‑UP‑DC |
| Downlink Ports | 24 × 10/100/1000BASE‑T (PoE/PoE+/PoE++) |
| Uplink Ports | 4 × 1G/10G SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 16,000 entries |
| VLAN Support | Up to 4,096 VLANs |
| Operating Temperature | –40°C to +75°C |
| Power Input | Dual DC: 12–56V DC |
| Power Redundancy | Supported |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Power Budget | Up to 480 W total; PoE REP extension supported |
| Surge Protection | 10 kV per port |
| Enclosure | IP41/IP55 industrial-rated |
| Mounting | Rack-mountable |
| Dimensions | 442 × 220 × 43.6 mm |
| Weight | Approx. 2.85 kg |
| MTBF | > 300,000 hours |
| Management | Web, CLI, SNMP, SSH, PoE Manager, ZTP |
| Features | VSU, RLDP, ERPS, NFPP, IGMP Snooping, PoE REP, ACL |
