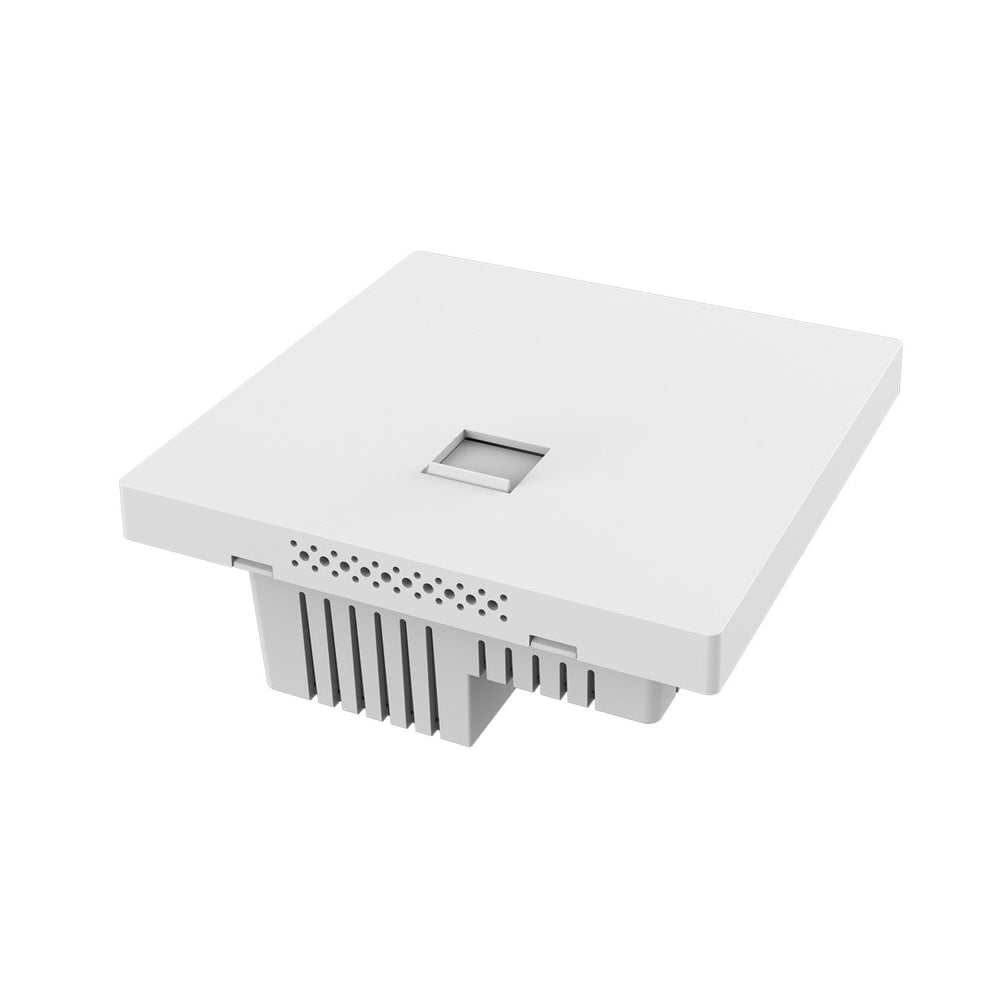

The NS FAP818 is a WiFi 6 (802.11ax) in-wall access point designed for high-performance indoor wireless coverage in homes, apartments, hotels, and small commercial environments.
Featuring an ultra-thin 8.5 mm panel design, the FAP818 delivers AX3000 dual-band wireless performance, supports PoE power supply, and fits seamlessly into a standard 86 mm wall junction box. With support for up to 128 concurrent devices, it is ideal for modern residential and hospitality deployments requiring both aesthetics and performance.
Overview
Highlights
-
High-Speed WiFi 6 Performance
Delivers AX3000 dual-band wireless throughput with OFDMA and MU-MIMO, ensuring smooth connectivity for multiple devices simultaneously. -
Ultra-Thin Modern Design
Features an 8.5 mm slim front panel, blending naturally into modern interiors without affecting room aesthetics. -
Standard 86 mm In-Wall Installation
Designed for standard 86-type wall boxes, making it ideal for renovation and new construction projects. -
PoE-Powered Simplicity
Supports standard PoE power supply, enabling easy installation with a single Ethernet cable for both power and data. -
Dual Gigabit Ethernet Ports
Equipped with 1×Gigabit WAN port and 1×Gigabit LAN port, supporting wired backhaul and downstream device connectivity. -
Enterprise-Class Features with Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS FAP818 | NS FAP815 | H3C EWP-WA5620 | Huawei AirEngine 5760-10W |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX1500 | AX3000 | AX3000 |
| MIMO | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Ethernet Ports | 1×GE WAN + 1×GE LAN | 1×GE | 1×GE | 1×GE |
| Panel Thickness | 8.5 mm ultra-thin | Ultra-thin | Slim panel | Slim panel |
| Max Concurrent Devices | 128 | 128 | 128 | 128 |
| Power Supply | PoE | PoE | PoE | PoE |
| Typical Positioning | High-performance in-wall AP | Entry-level in-wall AP | Enterprise in-wall AP | Enterprise in-wall AP |
Positioning Summary:
-
FAP818: AX3000 high-performance WiFi 6 in-wall AP with ultra-thin design and dual Ethernet ports.
-
FAP815: Cost-effective AX1500 in-wall AP for basic coverage.
-
H3C / Huawei: Comparable enterprise-grade in-wall APs focused on centralized WLAN deployments.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 2× internal omnidirectional antennas |
| Maximum Concurrent Devices | 128 |
| Ethernet Interfaces | 1×Gigabit WAN, 1×Gigabit LAN |
| Power Supply | Standard PoE |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | In-wall (standard 86 mm junction box) |
| Dimensions | 86 × 86 × 38.8 mm |
| Application Scenarios | Homes, apartments, hotels, dormitories, SOHO |
