NSComm FAP655P WiFi 6 AX3000 Dual-Band In-Wall Access Point with PoE Out and 4xLAN
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS FAP655P WiFi 6 AX3000 In-Wall Access Point with PoE Output
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas

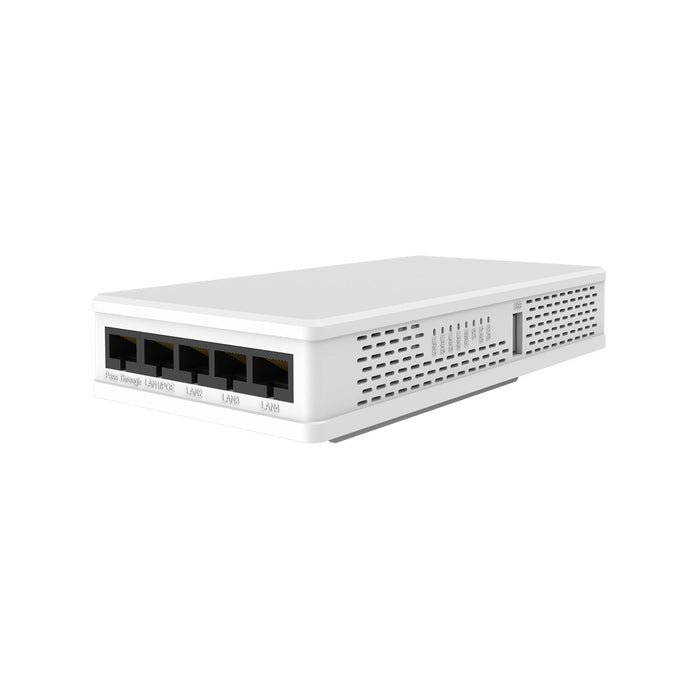

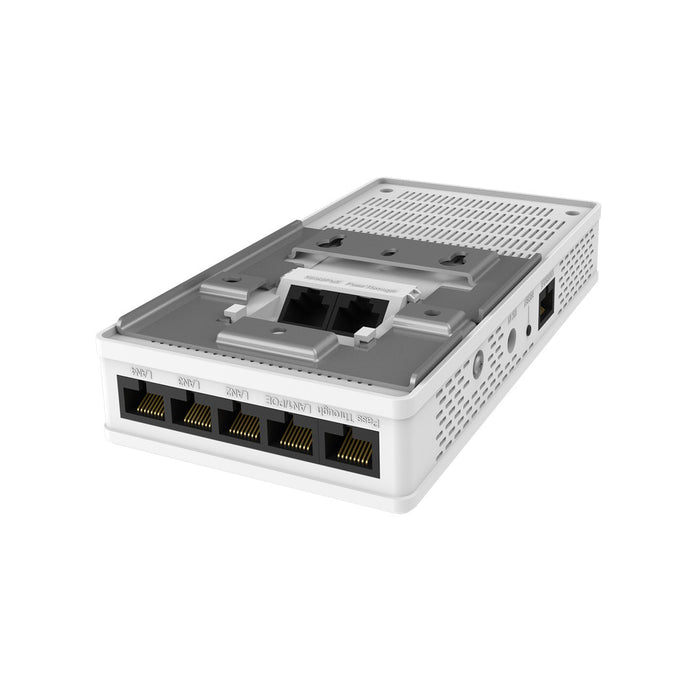

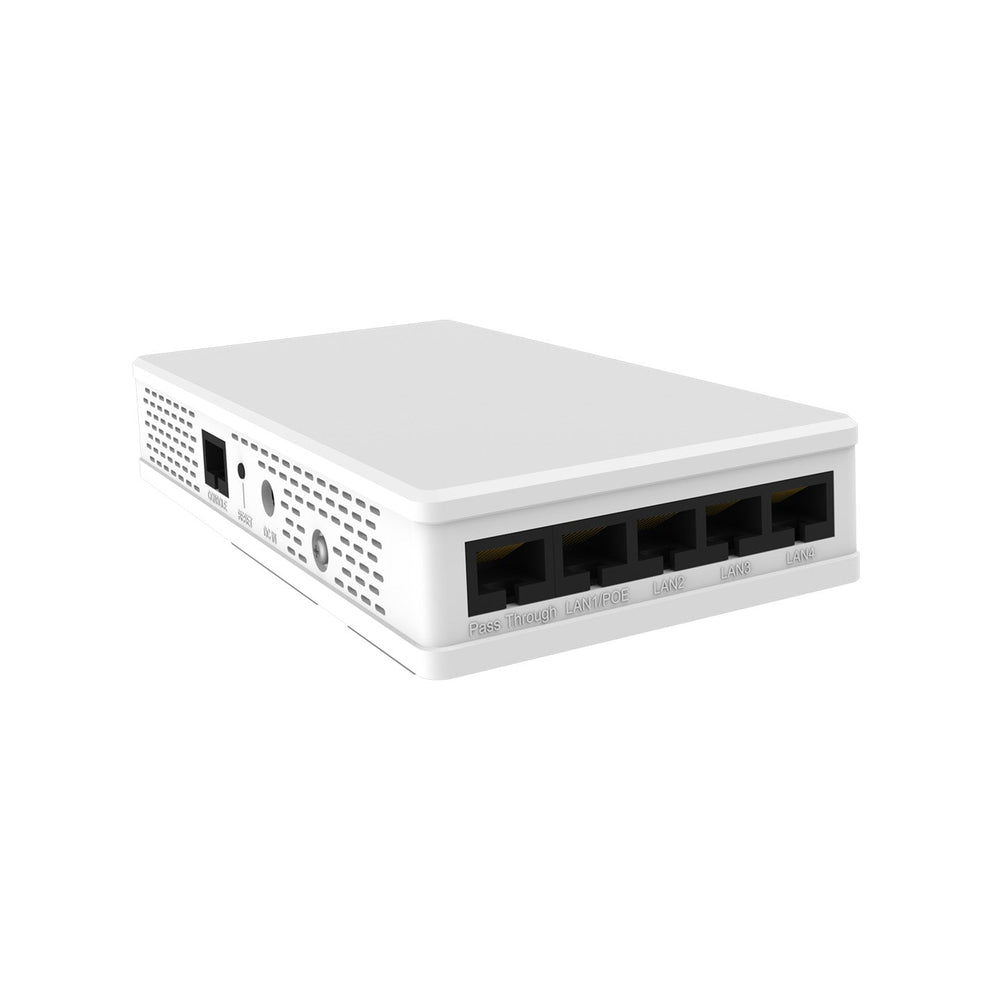

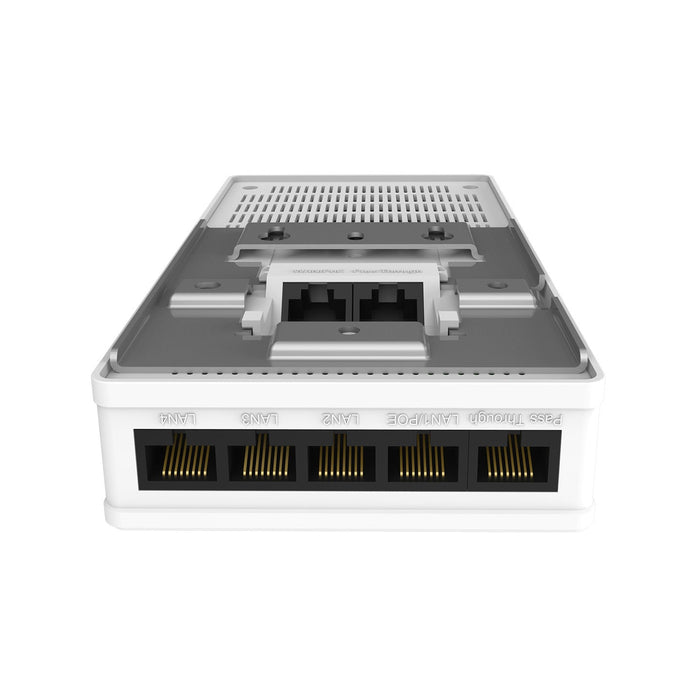

The NS FAP655P is a commercial-grade WiFi 6 (802.11ax) in-wall access point with PoE output, designed for enterprise and hospitality environments that require wireless access, multi-port wired connectivity, and downstream device power supply in a single wall-mounted unit.
Delivering AX3000 dual-band wireless performance, the FAP655P integrates four Gigabit LAN ports, a Gigabit uplink, dual pass-through ports, and PoE output on one downlink port within a large 86×160 mm wall-mounted form factor. Supporting up to 128 concurrent devices, it is ideal for hotels, hospitals, offices, and smart-room deployments.
Overview
Highlights
-
Commercial-Grade WiFi 6 Performance
Delivers AX3000 dual-band throughput with OFDMA and MU-MIMO, ensuring stable wireless performance in high-density indoor environments. -

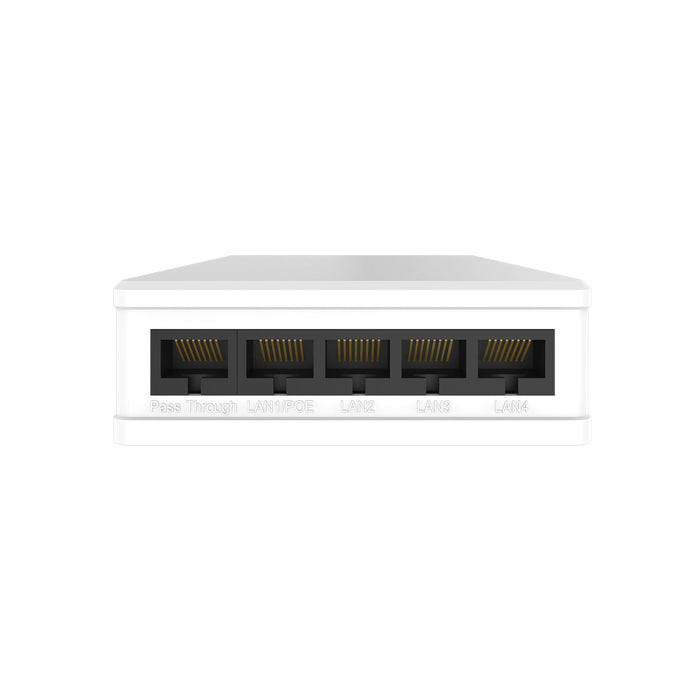

Integrated Multi-Port Wired Connectivity
Provides 1× Gigabit Ethernet uplink and 4× Gigabit Ethernet downlink ports, enabling direct connection of multiple wired devices. -
Built-In PoE Output for Edge Devices
Supports PoE output on one LAN port, allowing direct power supply to IP phones, IP cameras, access control terminals, or IoT devices. -
Dual Pass-Through Interfaces
Includes 1 pair of pass-through ports, enabling existing cables or services to pass through the wall box without additional wiring changes. -

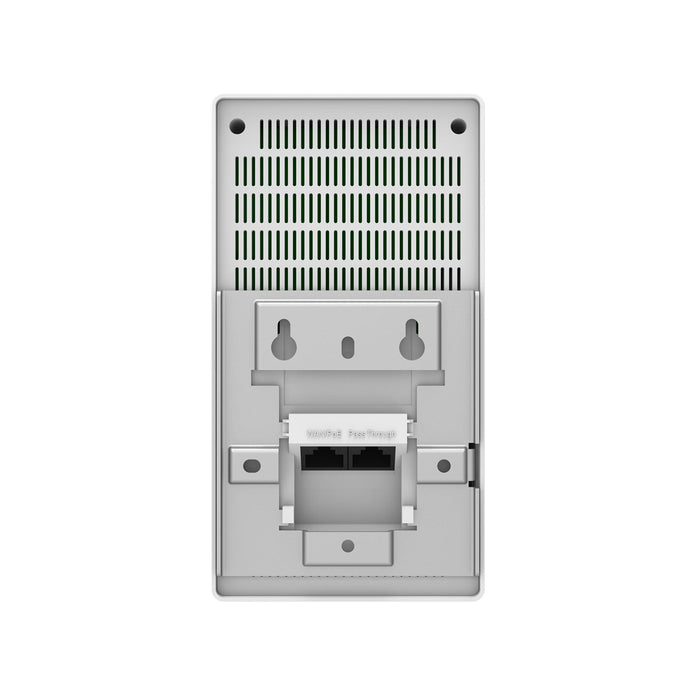

Large 86×160 mm In-Wall Design
Designed for 86×160 mm wall-mounted boxes, ideal for enterprise rooms with centralized weak-current wiring. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, unified Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS FAP655P | NS FAP655 | H3C EWP-WA5650P | Huawei AirEngine 5762-12WP |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| Ethernet Ports | 1×GE Uplink + 4×GE LAN | 1×GE Uplink + 4×GE LAN | 1×GE + 4×GE | 1×GE + 4×GE |
| PoE Output | Yes (1 port) | No | Yes | Yes |
| Pass-Through Ports | Yes (1 pair) | Yes | Optional | Optional |
| Panel Size | 86×160 mm | 86×160 mm | Large in-wall | Large in-wall |
| Max Concurrent Devices | 128 | 128 | 128 | 128 |
| Power Supply | PoE | PoE | PoE | PoE |
| Typical Positioning | In-wall AP with PoE out | In-wall AP without PoE out | Enterprise room AP | Enterprise room AP |
Positioning Summary:
-
FAP655P: AX3000 in-wall AP with PoE output, ideal for smart rooms and multi-device environments.
-
FAP655: AX3000 in-wall AP focused on wireless + wired access without power output.
-
H3C / Huawei: Comparable enterprise-grade in-wall APs with downstream PoE support.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4× internal omnidirectional antennas |
| Maximum Concurrent Devices | 128 |
| Ethernet Interfaces | 1×Gigabit uplink, 4×Gigabit LAN (1×PoE Out) |
| Pass-Through Ports | 1 pair |
| Power Supply | Standard PoE |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | In-wall (86×160 mm wall box) |
| Application Scenarios | Hotels, hospitals, offices, smart rooms, enterprise facilities |
